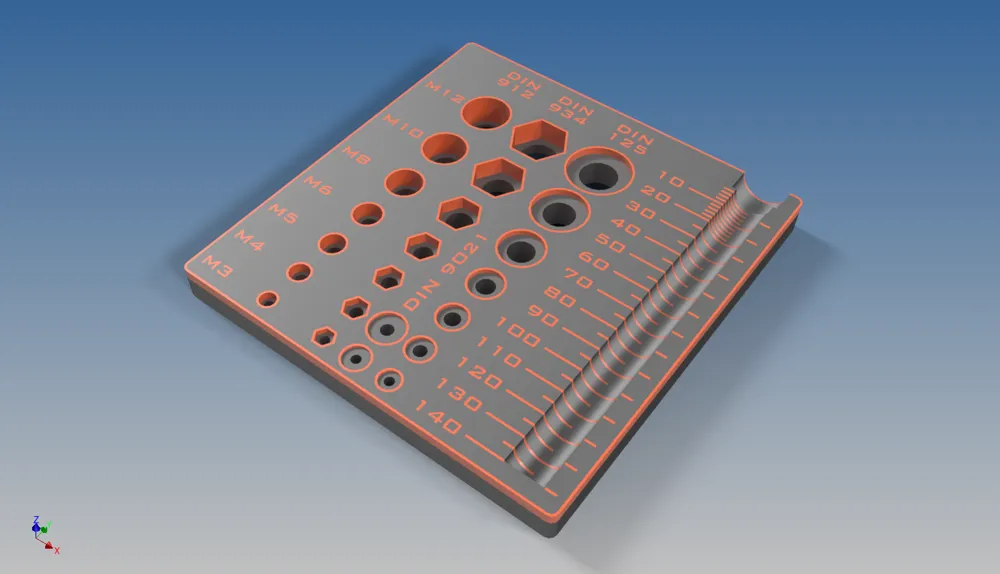

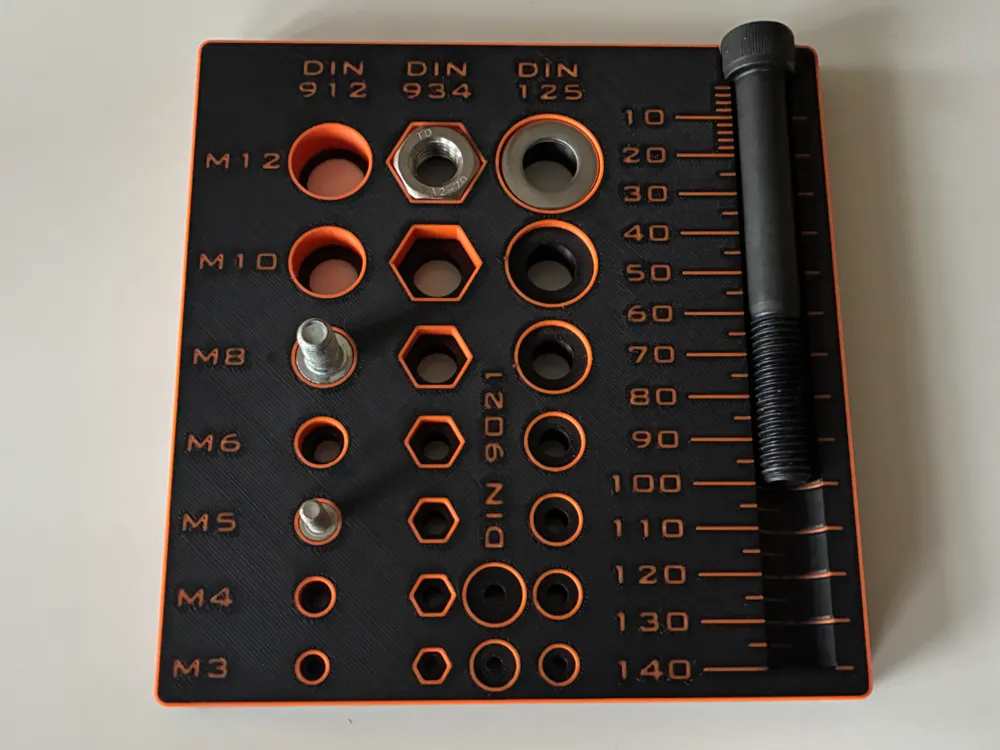

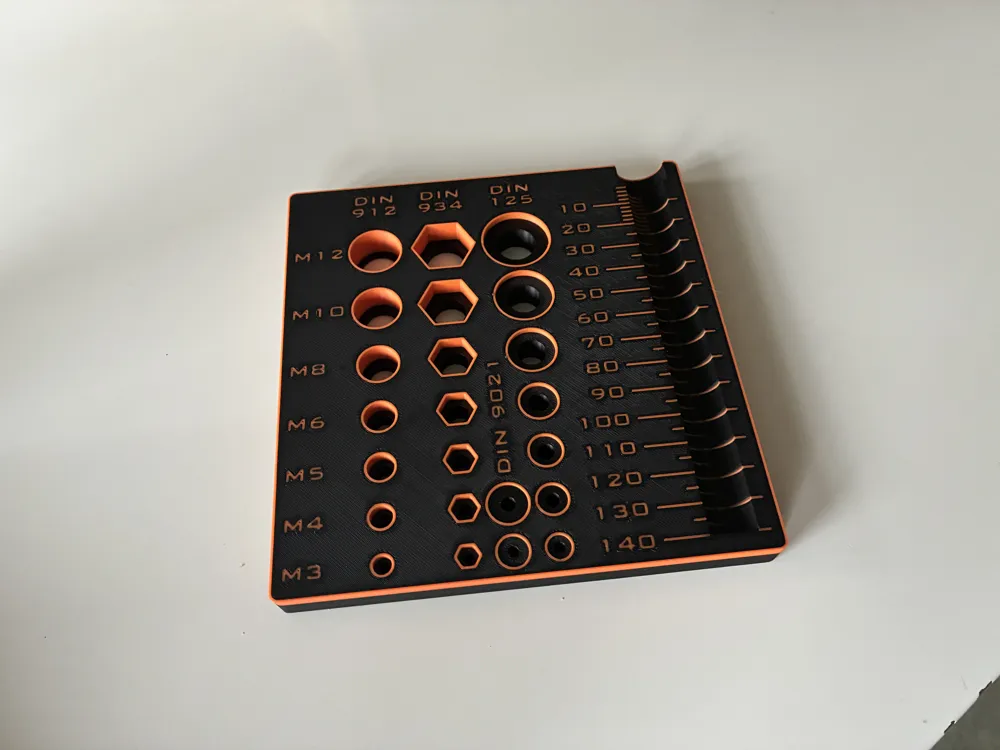

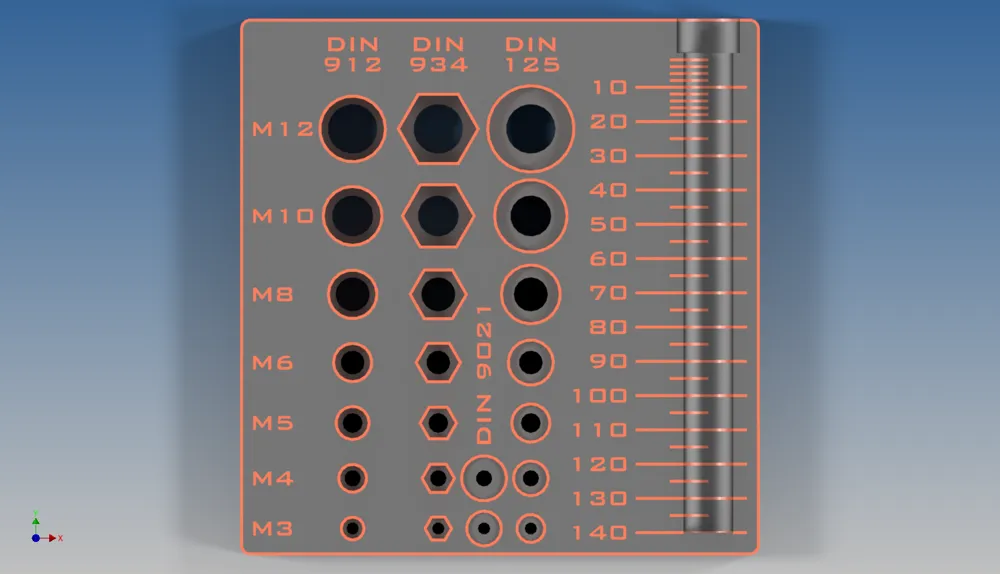

This Screw Measuring Tool allows you to quickly sort:

Screw length from 2mm to 140mm
DIN 912 Cylinder Head Screws from M3 to M12
DIN 934 / 985 Nuts from M3 to M12
DIN 125 Washer from M3 to M12
DIN 9021 Waser with large outside Diameter M3 + M4

All done in a compact form factor of approx. 150 x 150 mm.

Other Versions available:

Modular M3-M12: https://makerworld.com/en/models/2198544-modular-screw-measurement-tool-din-912-iso-etc#profileId-2388193

Standalone M14-M24: DIN 912 934 125 M14-M24 Screw Measuring Tool - Free 3D Print Model - MakerWorld

Modular M14-M24: Modular Screw Measuring Tool M14-M24 DIN 912 etc - Free 3D Print Model - MakerWorld
