DaYi A6A7 Power Tool Multi-Battery Series and Parallel Bracket (Two, Four, Six Batteries)
Print Profile(1)
Description
This model was designed with reference to Parkside X20 Battery Pack 6x from DAVID HOLEČKO - MakerWorld, and thanks are extended here. For detailed assembly instructions, please refer to the attached document. The accessories used in the model are as follows:
1: XT60E-F (fixing screws are: one M3*10 countersunk screw and nut, one M3*10 countersunk self-tapping screw)
2: M4*16 countersunk screws and nuts (two sets for one power take-off seat)
See figures:

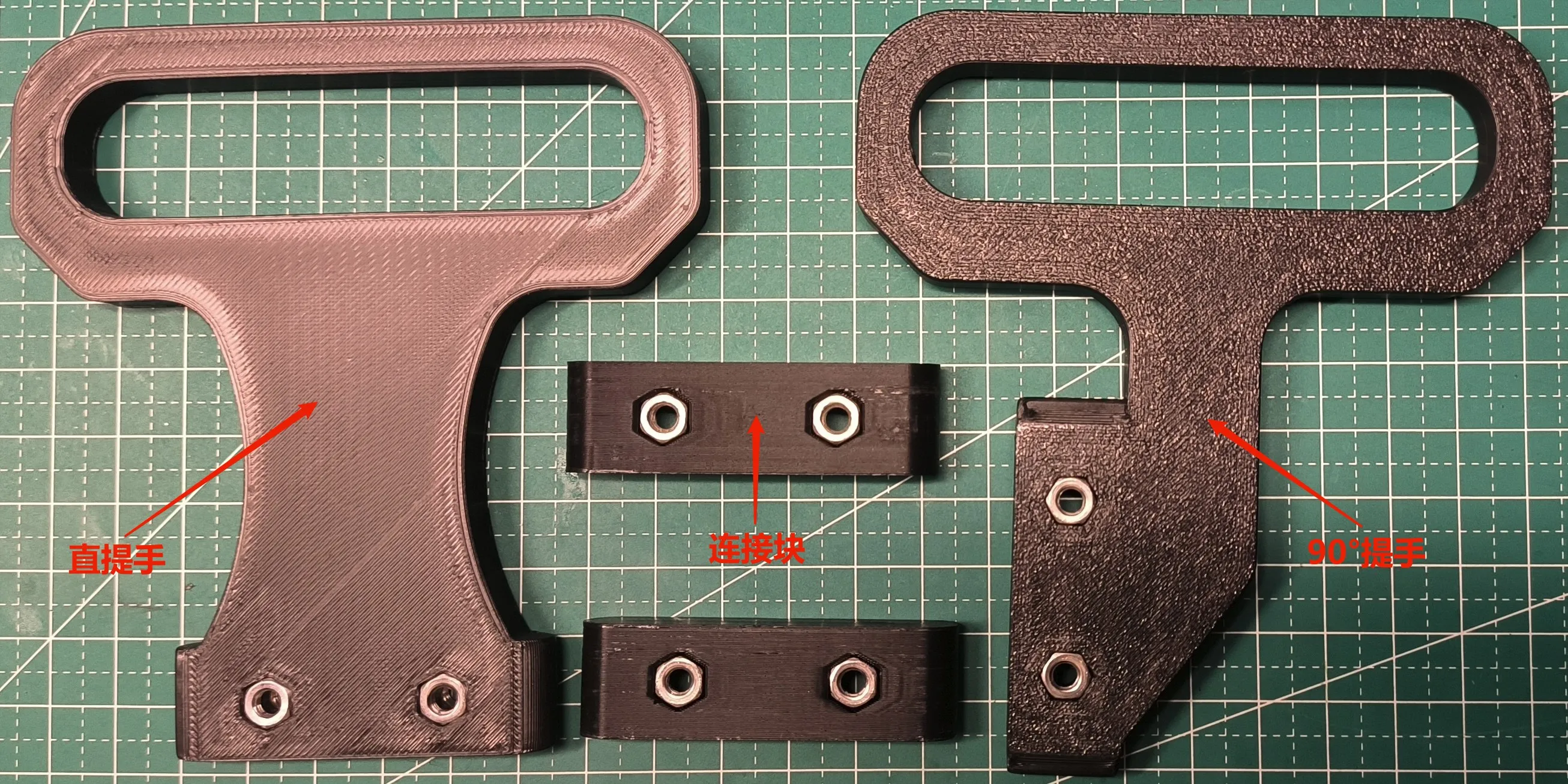

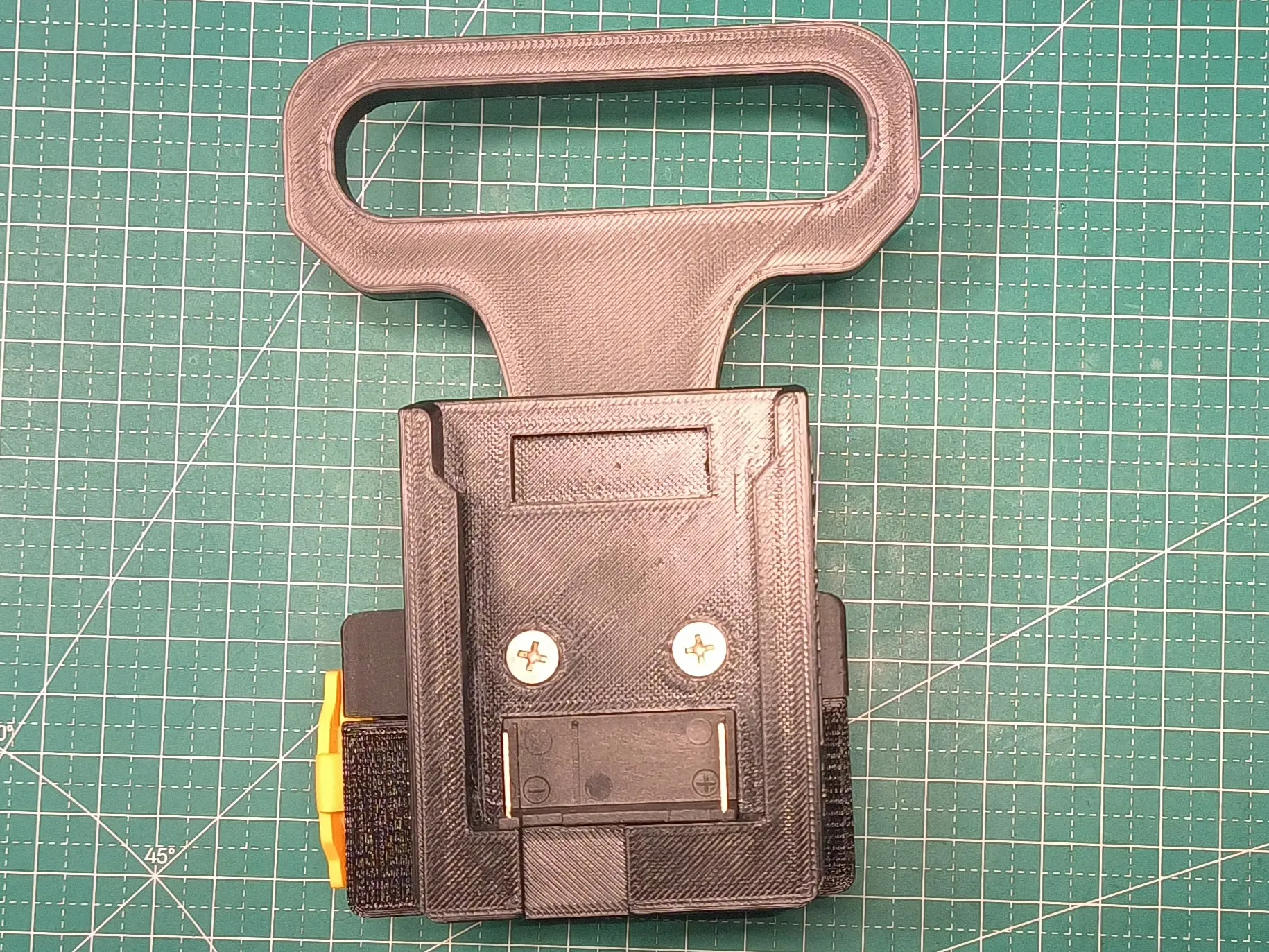

Two types of handles are designed in this model and can be chosen according to preference. See figures:

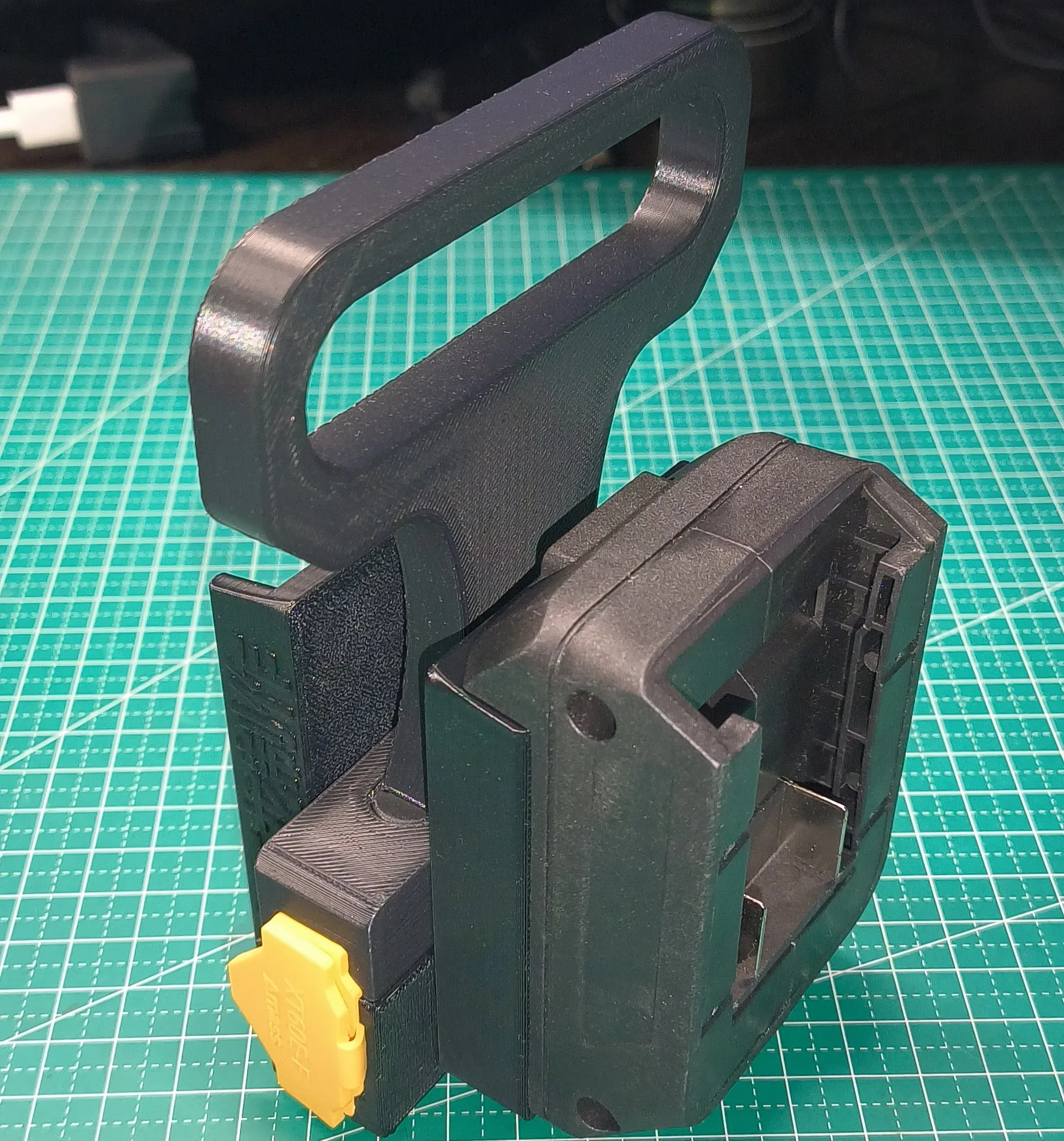

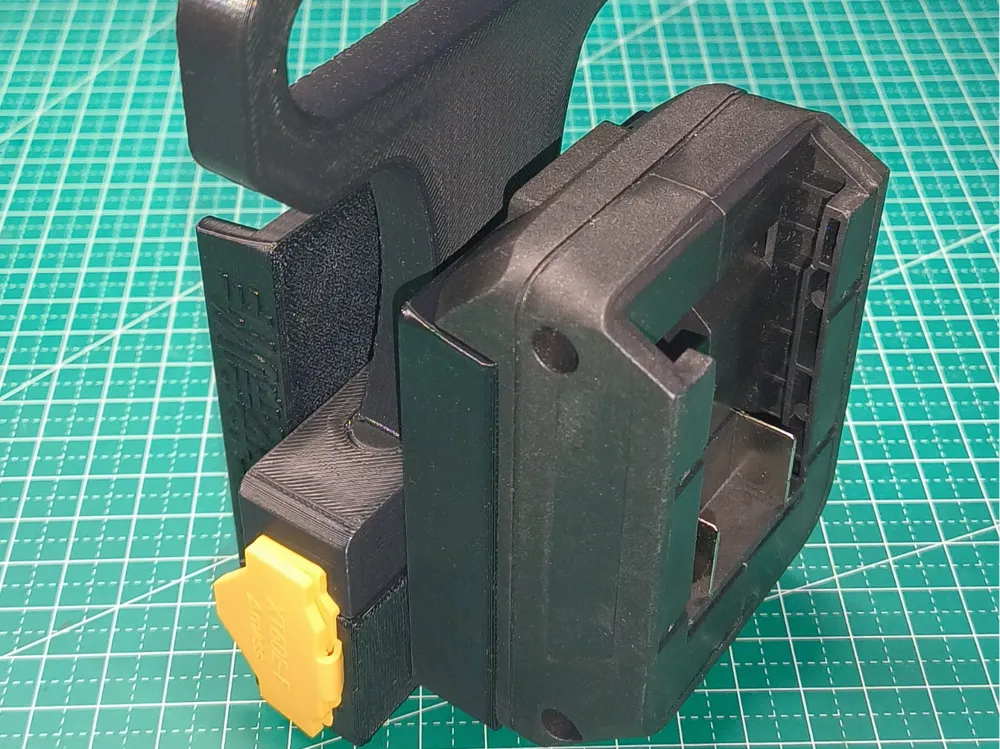

Another point to note is: It's a bit difficult to remove the support for the cable groove after printing the model, so be very careful, otherwise it can easily be damaged during removal. Hope you like it, please give your support, thank you very much!!!
Please note here, the battery protection board of DaYi A6 A7 is special, if power is drawn through the power take-off seat, the battery will not be protected, and over-discharging will damage the battery, therefore, when using the power take-off seat, it can only be manually controlled, do not let the battery voltage drop too low. This was suggested by a user named "Monkey King 46" in the comment section of this model, and thanks are extended here!!!
