Radxa Rock 5B Tiny Server - v1

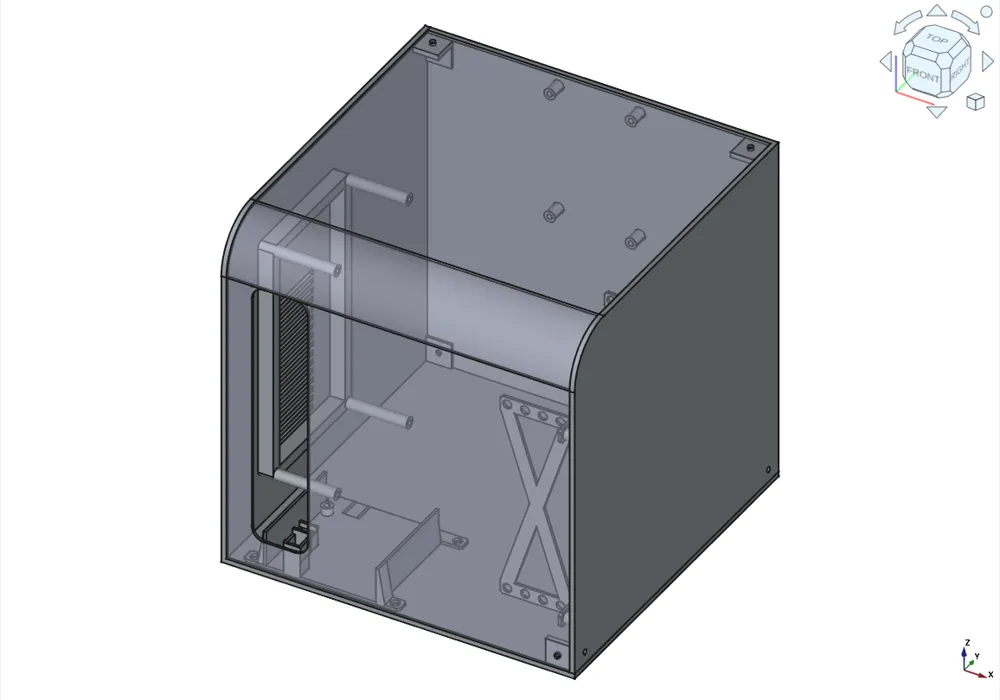

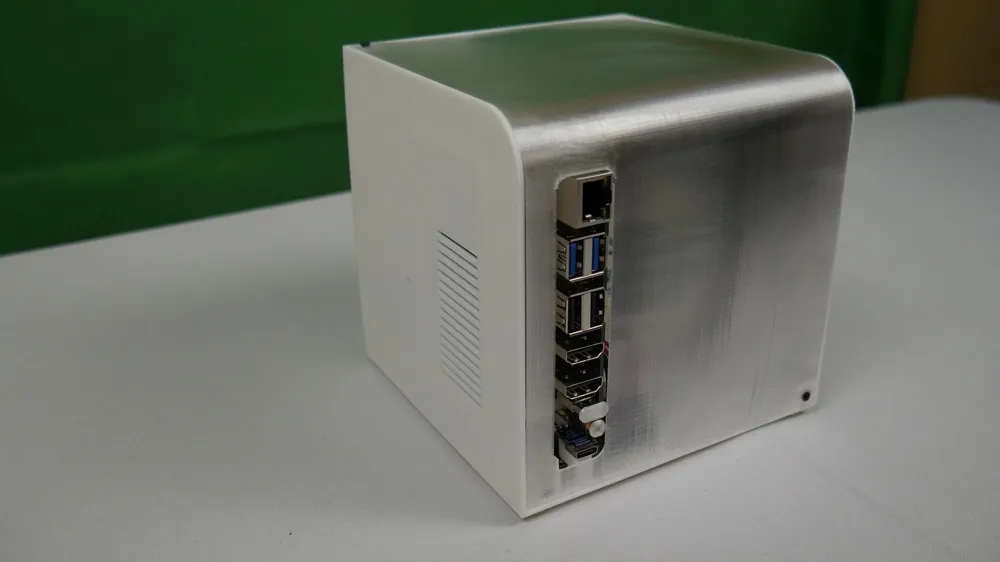

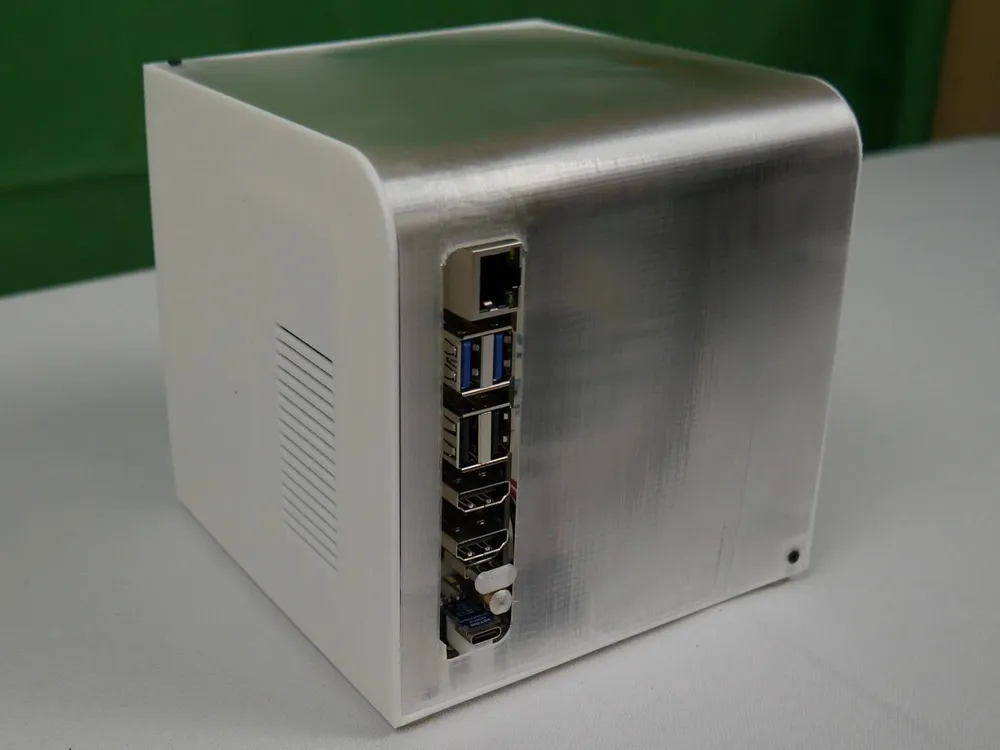

A tiny server case for the Radxa Rock 5B; supports up to 4x SSDs within the case. Fits great on a desk, and only requires 1x USB-C cable to power the entire server >:)

Infill/Print Settings:
I printed the case using 0.28 Extra Draft on the P1S, however this was because I was on a time crunch; you could likely up these settings for much better results (though, the layer thickness may have been what contributed to the cool light diffraction effect for the transparent PETG portion of the case, so perhaps leave that one at a higher layer thickness setting to maintain that effect).

I recommend using the given orientations for printing the case; it will result in the print bed “texture” being on the left and right sides of the case, which in my opinion looks the most aesthetically pleasing.

Make sure to use supports for everything too, especially for the transparent PETG section; the transparent PETG section should also have a raft and brim added, as it is much more susceptible to peeling off of the print bed (I had an instance where this happened, and had to redo the print because of it; learn from my mistakes!! :P ).


If you're interested in how this was made and/or want the parts list so you can make this yourself, check out my full video on YouTube:
