8 Channel Optocoupler case
IP Report
Print Profile(1)
0.24mm layer, 2 walls, 15% infill
Designer
27 min
1 plate
Open in Bambu Studio
Boost
2
3
0
0
8
2
Released
Description

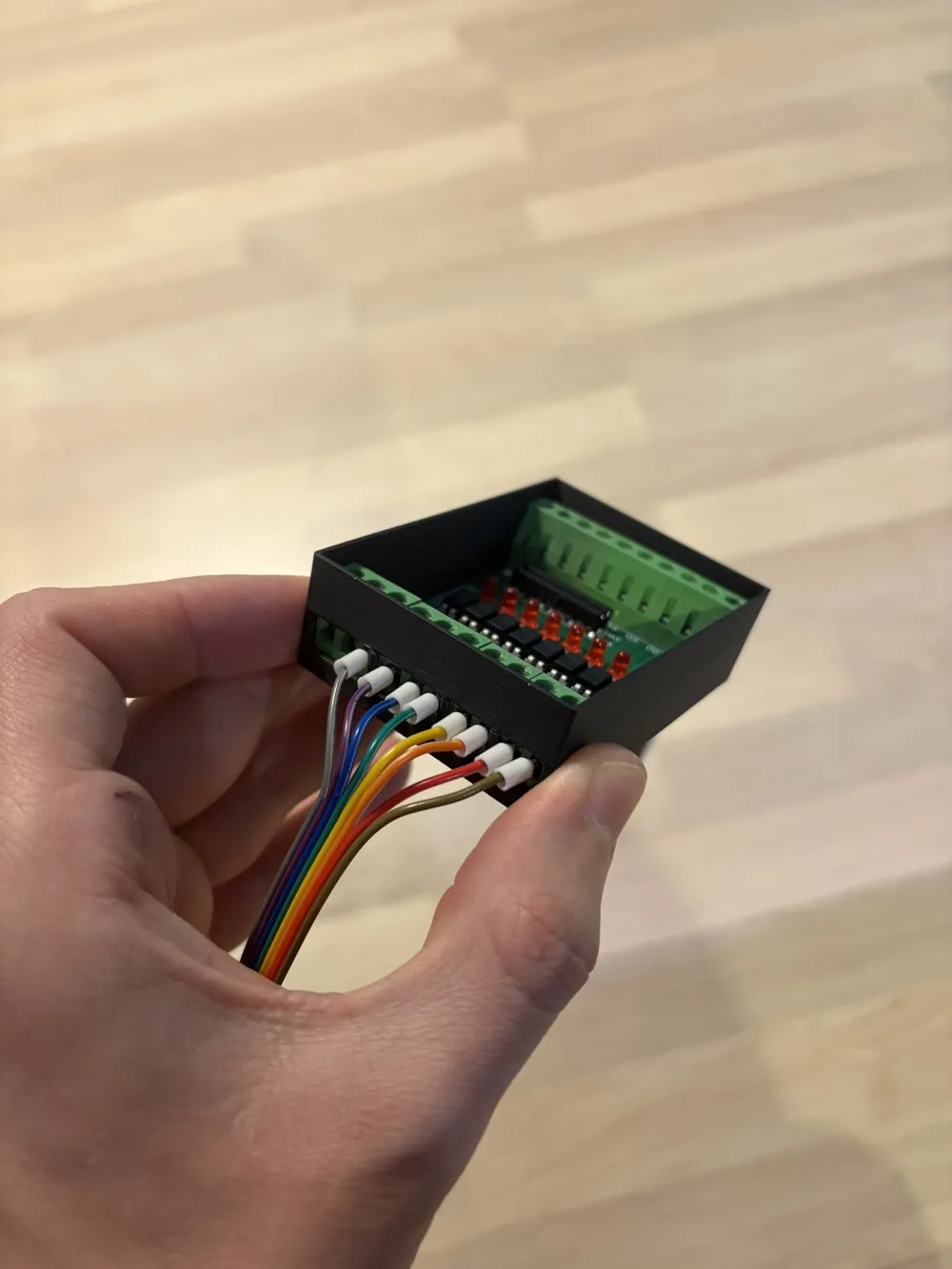

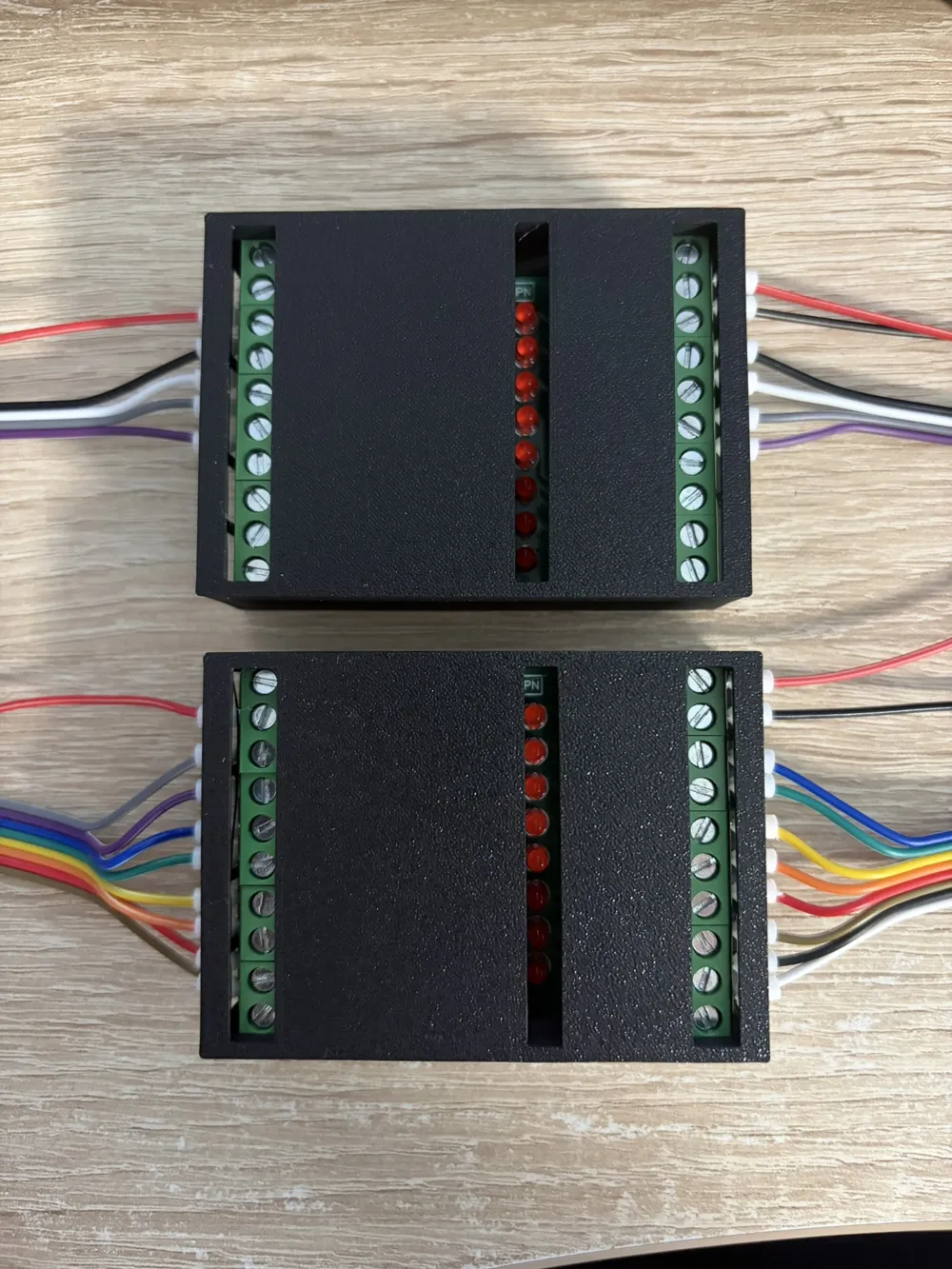

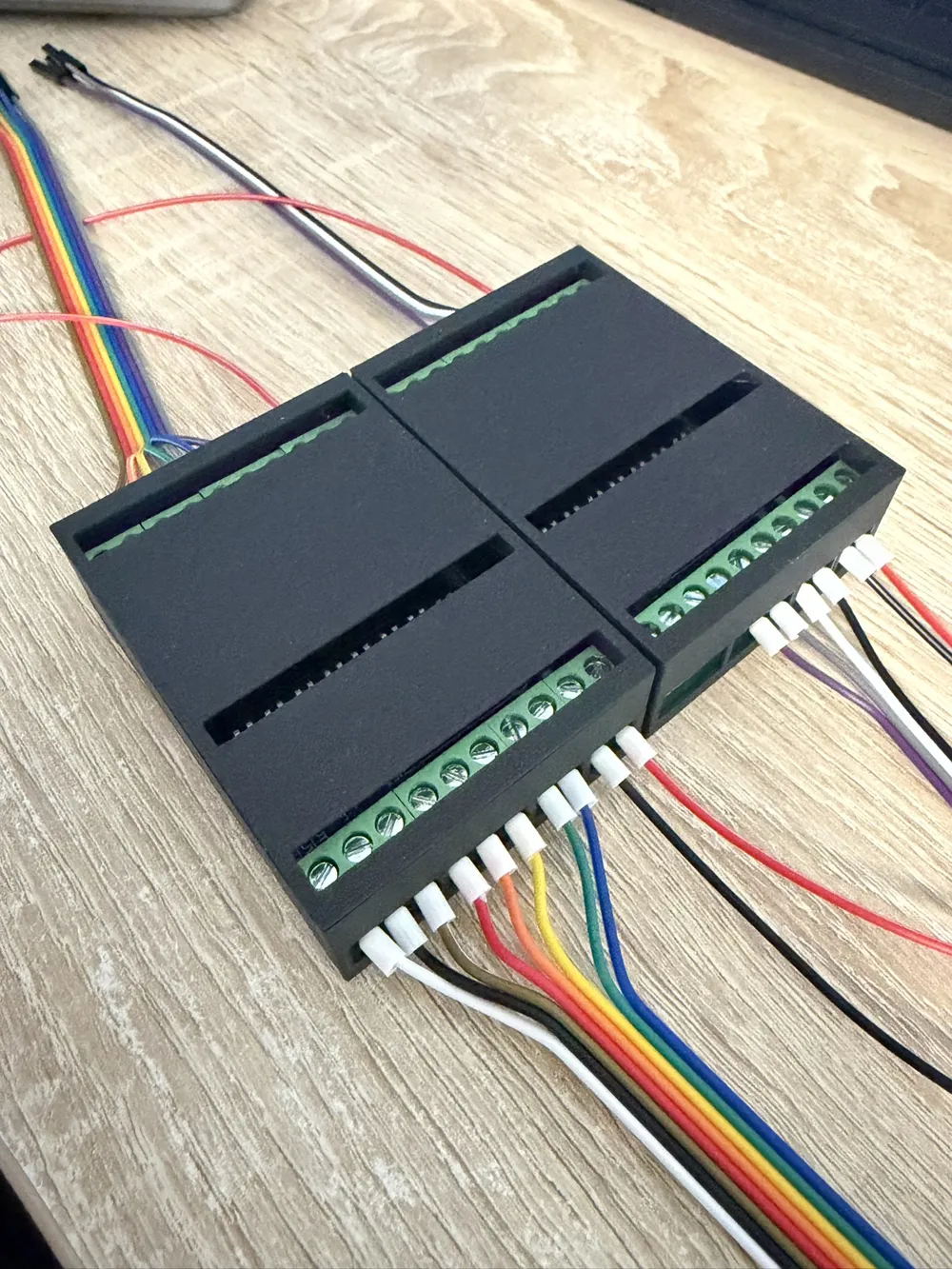

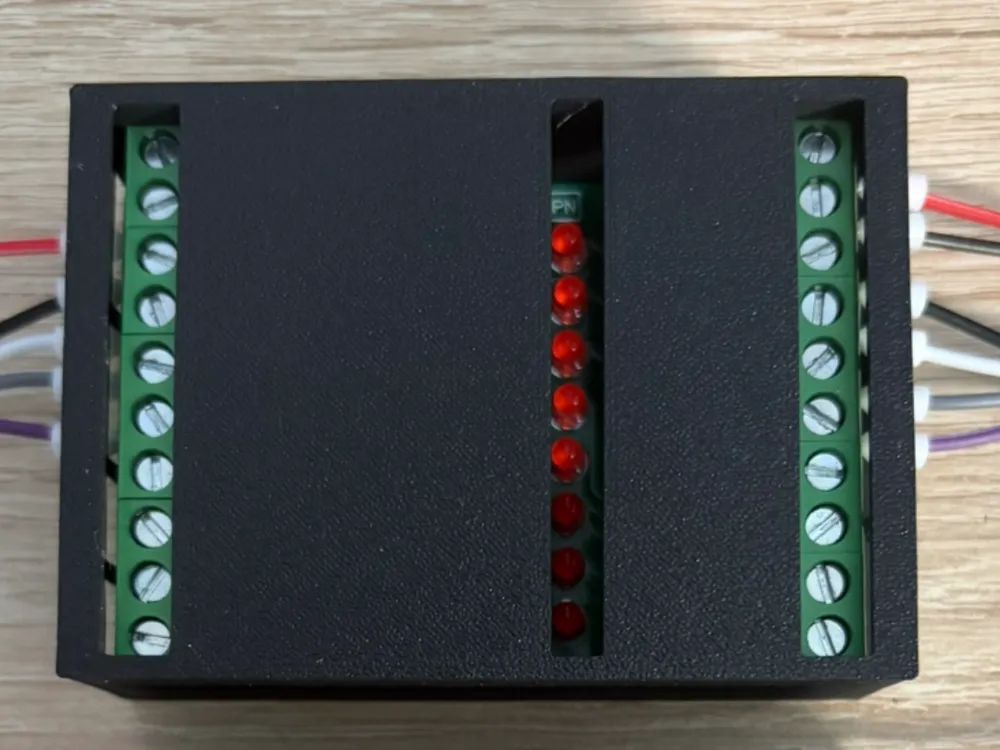

I wanted a case so I can put the optocoupler in and not have to worry about any of the PCB contacts touching metal. It encorporates 3 slits on top for easy access to the terminal screws as well as a slot to see the LEDs. It has a snug fit of the PCB and the cover on top. Printable without supports.
