EVO X - ECU Case - Standalone
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 25% infill
Designer
3.7 h
1 plate
Open in Bambu Studio
Boost
11
15
0
0
5
0
Released
Description
This project was designed for a standalone ECU swap for a 2008-2015 Mitsubishi lancer Evolution X
- Start with a basic lancer ECU - same connector around those years, ebay or junkyard is good for this - if cutting connectors try to get a much wiring as possible, 6-7inches is ideal.

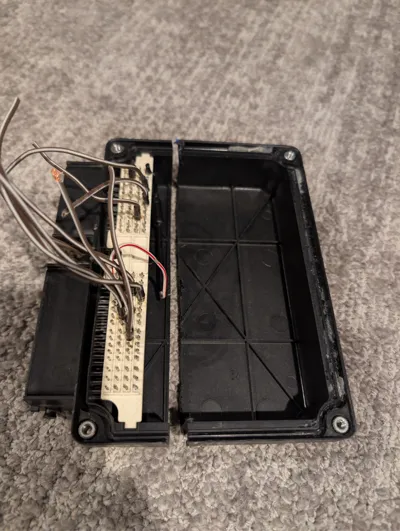

- Will need to de-solder the board once disassembled - hot air tool

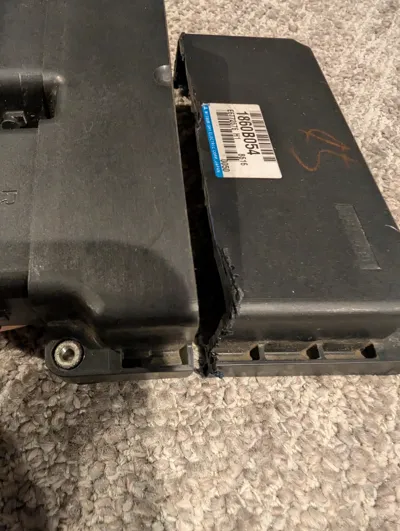

- Cut the ecu case at the first lengthwise horizontal mark - see pic

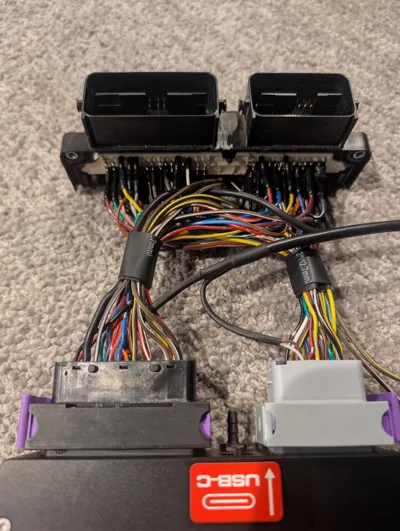

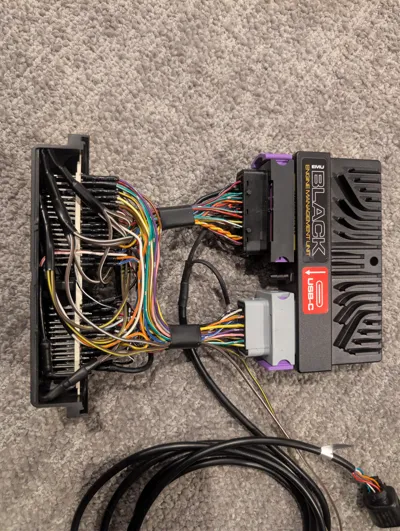

- For wiring pins, de-pin them from the doner ecu connector, you can choose to crimp them or solder. I soldered.
- Install case onto finished wiring, epoxy would be the best fill but you could try engine sealant for a serviceability
