With Mechanical Ingenuity, Awakening the Dormant Ancient Oriental Charm—Agile Butterfly Hexagonal Lamp
This work is named "Agile Butterfly Hexagonal Lamp", inspired by traditional Chinese hexagonal palace lanterns and the philosophical imagery of "Zhuangzi's Dream of the Butterfly"
I concealed intricate mechanical devices within the ancient pavilion structure, achieving complex component manufacturing through 3D printing technology

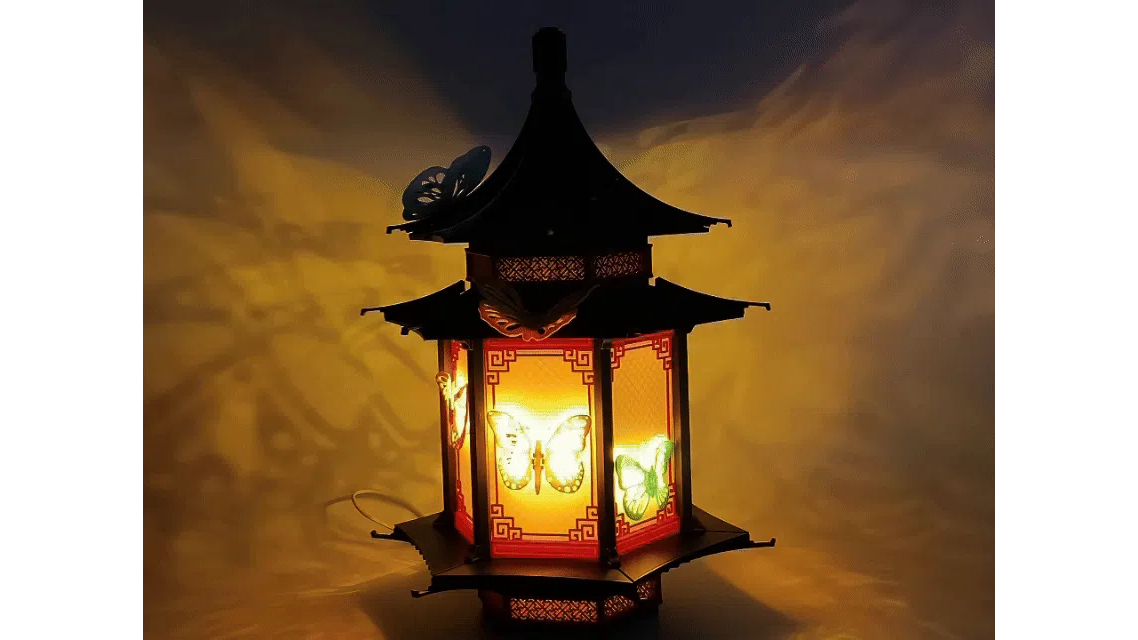

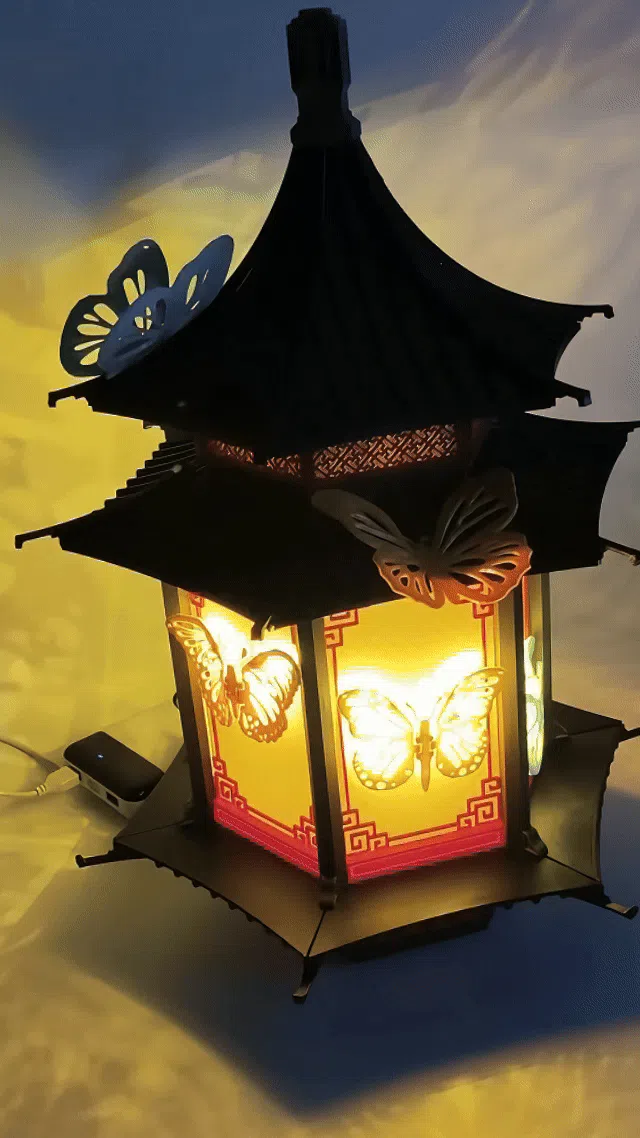

When power is supplied, the originally static lantern instantly comes to life,
the resting butterflies dance gracefully, and light and shadow flow with them,
achieving a deep cross-boundary integration of mechanical technology, light and shadow art, and traditional culture
Hidden Power Transmission System
A precise 'mechanical heart' is hidden within the central axis of the lamp body

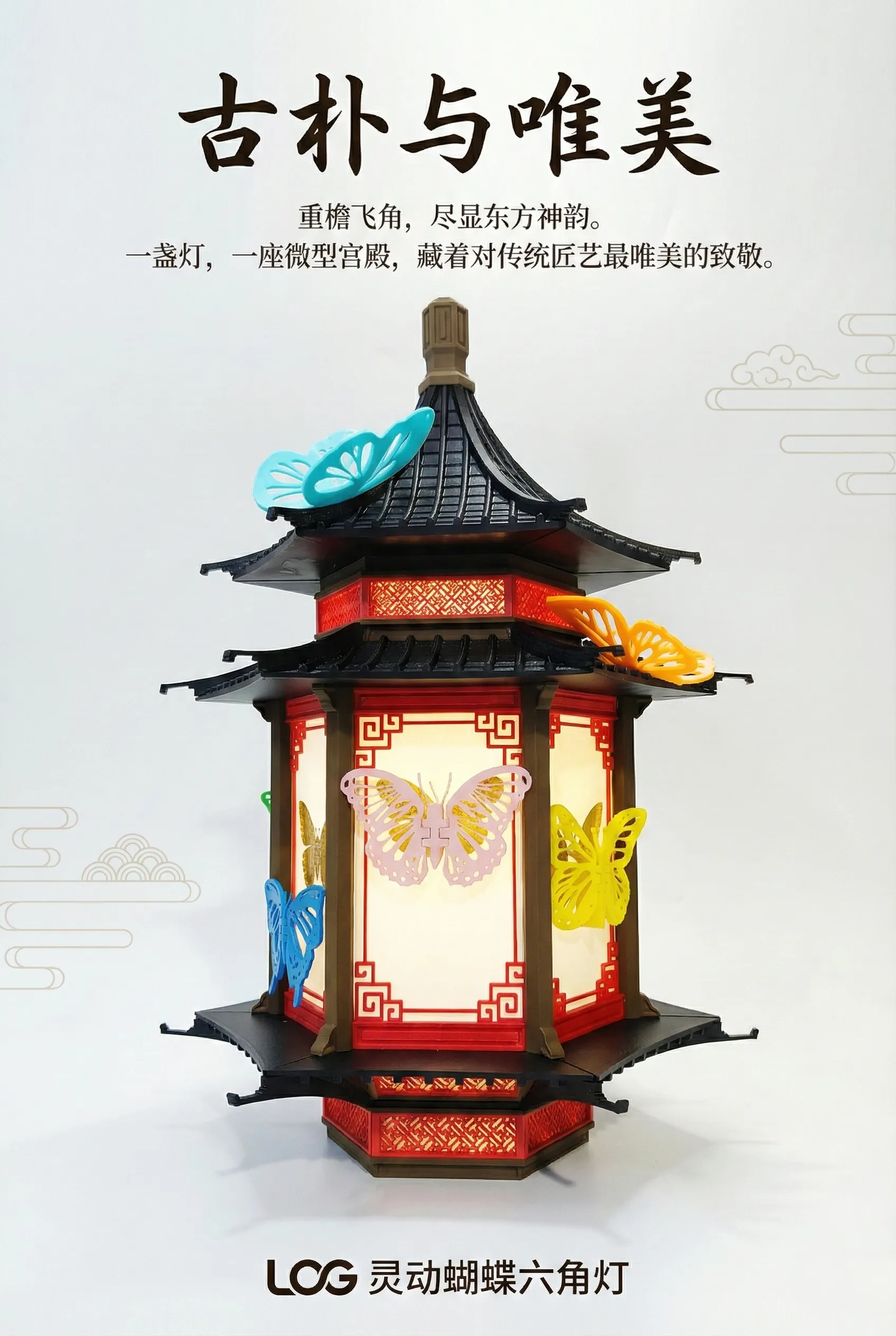

The Oriental Charm of Tiered Eaves and Six Corners
Machinery is the skeleton, culture is the soul
Immersive Experience Blending Reality and Illusion
Machinery makes butterflies dance, and light gives shadows life
Assembly Instructions Update
The first butterfly wire connecting rod is 67mm long
The second to sixth butterfly wire connecting rods are 62mm long
There may be some errors in length, please adjust slightly
The assembly of this model is relatively complex, requiring careful thought and patience; beginners please proceed with caution
Additionally, a regular lighting version will be modified, without mechanical structure, making assembly relatively simple
Because some parts are fragile, it is recommended to print with PETG material
After the butterfly is printed, you can use a heat gun to heat it and bend the butterfly's wings to make the butterfly appear more agile
