蝴蝶刀(balisong，Butterfly Knife) by 左狗拳

左狗拳

Props & Cosplays>Cosplay Weapons

IP Report

Print Profile(7)

All

P1S

P1P

X1 Carbon

X1E

A1 mini

H2D

0.12mm layer, 2 walls, 100% infill

Designer

6.1 h

3 plates

4.6(173)

0.12mm layer, 2 walls, 15% infill - A1 mini

4.5 h

2 plates

4.7(31)

1 Color, Fine Profile, 0.12mm layer, 2 walls, 15% infill

3.3 h

1 plate

4.6(25)

A1 Mini Version // Multi Color on 3 Plates // 0.2mm layer

4 h

3 plates

4.6(8)

Click to see more

Open in Bambu Studio

Boost

1222

1869

290

597

5.1 k

2.5 k

Released

Description

Content has been automatically translated.

Show original

Model reference: CSGO2 butterfly knife

Assembly accessories: glue, no need for hardware accessories

Printing suggestion: Enabling the ironing function can produce a better surface finish. It is recommended to use 100% infill printing and spray Lac to prevent printing warping. The assembly tolerance of the model has been set, please adjust the size of the model according to your own printing situation. Different 3D printers may have slightly different printing effects. If the stop column hinders the smooth movement of the blade handle, I suggest polishing the part of the stop column.

👍

Model reference: CSGO2 balisong

Assembly accessories: glue, no need for hardware accessories

Printing suggestion: Enabling the ironing function can print a better surface effect. It is recommended to use 100% fill printing and spray Lac to prevent printing warping. The assembly tolerance of the model has been set, please adjust the size of the model according to your own printing situation. Different 3D printers may have different printing effects. If the stop column hinders the smooth movement of the blade handle, I suggest polishing the part of the stop column.

👍

Balisong Butterfly Knife

balisong

butterfly knife

Comment & Rating (290)

@Dday289

Boosted

I really liked the final print, but I didn't find any assembly instructions, so I wanted to share my process here: Start by fitting the accent pieces first, as they are slightly different, then apply glue. Insert the thicker end of the four small pins with a drop of glue, then align the other halves as shown in picture 3. Hold them in place until the glue dries to keep it roughly square. Next, apply glue to the top of the pins and fully assemble it as shown in figure 3. For the longer pins, insert the thicker ends through the entire assembly as shown in figure 4. I used pliers to apply glue to the thinner part, inserted them, and gave them a quick spin to ensure an even bond.

@user_3867518316

Boosted

Thank you

Show original

@meltedface

Replying to @user_3867518316 :

This was super helpful, weird the author didn't provide all this, but thank you!

@Challapenjo

Print Profile

0.12mm layer, 2 walls, 100% infill

Excellent model for display, great job! But if you want to actually flip the knife around, one side of the handle always touches the upper pin of the blade when closing the knife. This creates enough friction to interrupt a smooth movement - very annoying when doing tricks with it. For anyone with a similar problem: I uploaded a remix which frees up the movement by making the upper pin a bit smaller (https://makerworld.com/en/models/450589#profileId-357572)

@user_3465698272

Thank you for pointing out the issues you discovered.Different 3D printers may yield varying print results. I took a shortcut in the design by integrating the blade stop with the blade body. If the blade stop impedes the smooth movement of the handle, it is recommended to file down the part of the blade stop.

@korilakkuma

Boosted

this happened to me too, but i just cut the old contact point with an exacto knife and it moves freely now!!

@eier1188

Print Profile

0.12mm layer, 2 walls, 100% infill

great print. took some time to figure out the assembly. some of the small spacers go into holes that needed to be carved out since my filament filled them in

@asahani

hey how did you end up removing the excess filament? there is some in the connector pins and I don’t wanna damage it.

@eier1188

Replying to @asahani :

I actually have a set of sheer flush cutters. I got this set for adding jump rings for 3d printed earrings, they're pretty good: https://a.co/d/0J2uEJw

@avo1000

Print Profile

0.12mm layer, 2 walls, 100% infill

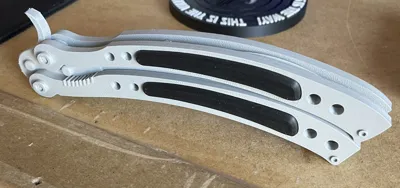

great print! tryed to make my own fade butterfly knife and think it came out pretty good. thanks 🙏

@sasuke1869

hey whats the best position to print with dual colors i printed and mine came like this

@RyanZhang

Boosted

Print Profile

0.12mm layer, 2 walls, 100% infill

Great design and easy to assemble.

@camc1e

The tolerances were quite loose, requiring extensive sanding, especially on the blade. The dimensions were off by a factor of two. I ultimately abandoned sanding and used a three-stud LEGO Technic axle instead

Show original

@FlintXO

Boosted

That print quality is horrendous.

@user_560084806

Replying to @FlintXO :

Not sure what they expected when the print quality looks like that lol

@Jessy.41

Print Profile

0.12mm layer, 2 walls, 100% infill

I find it rather good 😁 I think I can apply some fine-tuning for printing, otherwise perfect 👌 I'm adding a picture showing where to attach the supports to the handle, it might help 😉 plan to use a cutter to remove excess material 🤘

Show original

@Spagetii_Boi

Boosted

Print Profile

0.12mm layer, 2 walls, 100% infill

Printed this along with the Karambit. Very Content with Both

@Monkeytray

Print Profile

A1 Mini Version // Multi Color on 3 Plates // 0.2mm layer

SO SICK‼️‼️‼️ THIS WAS MY FIRST ASSEMBLED PRINT AND IT WAS SO FUN (handles quite the beating after testing) all my friends will be receiving one 😁

@imperatyw

Boosted

Print Profile

0.12mm layer, 2 walls, 100% infill

perfect
