Milwaukee Capture Housing For M12 BPRT Pop Rivet
IP Report
Print Profile(1)
0.2mm layer, 4 walls, 15% infill
Designer
2.2 h
1 plate
Open in Bambu Studio
Boost
12
35
3
1
65
46
Released
Description

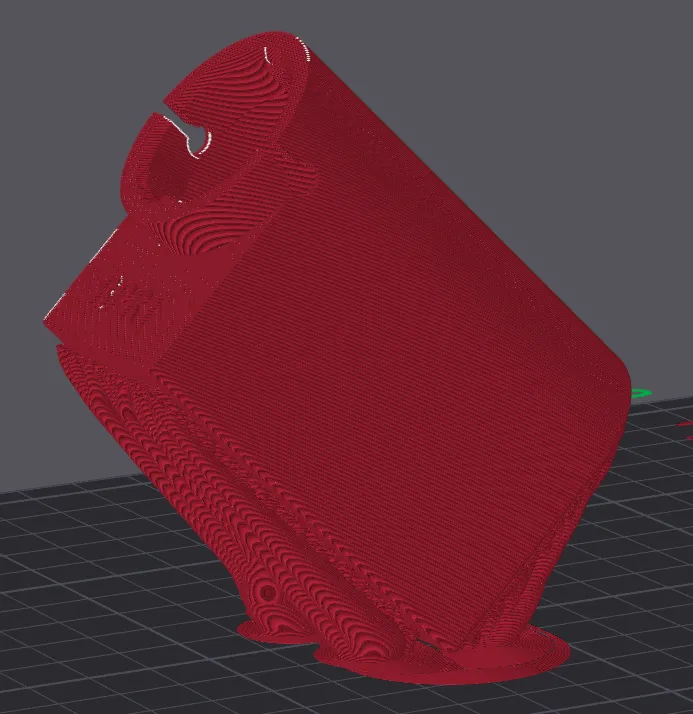

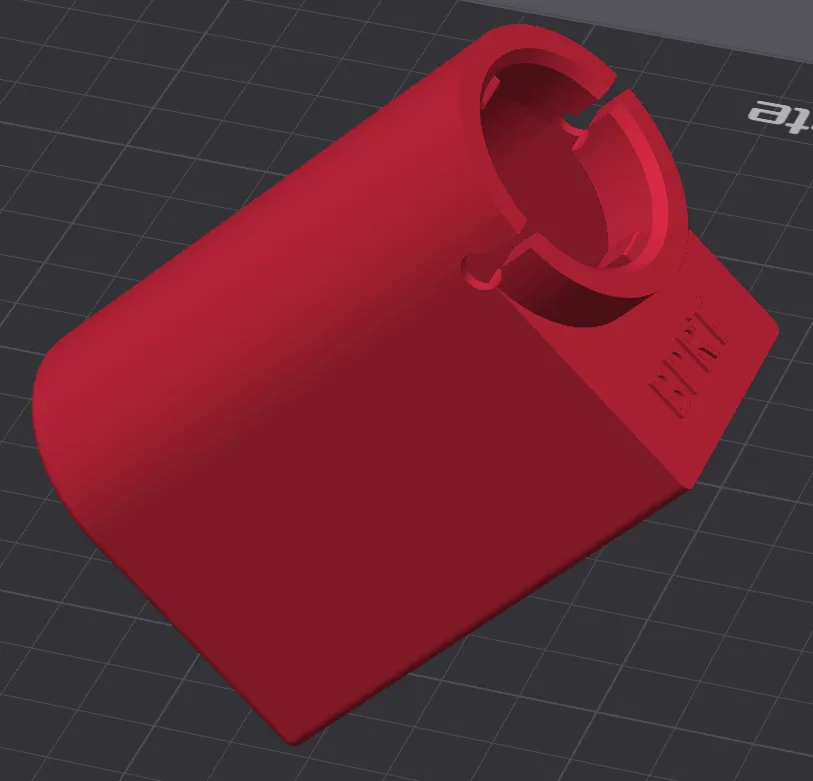

- Replacement housing for pop rivets for the Milwaukee M12 BPRT tool. I recommend printing with the model tilted at 45 degrees (as shown on contained photos) to ensure proper reproduction of the upper part of the model without using internal supports — so you can avoid having to remove them later through a tight hole.
The supports for the two walls adjacent to the tray were drawn manually, so printing must be done with manual support generation enabled. It is recommended to set 4 wall lines for stronger and more reliable usage.

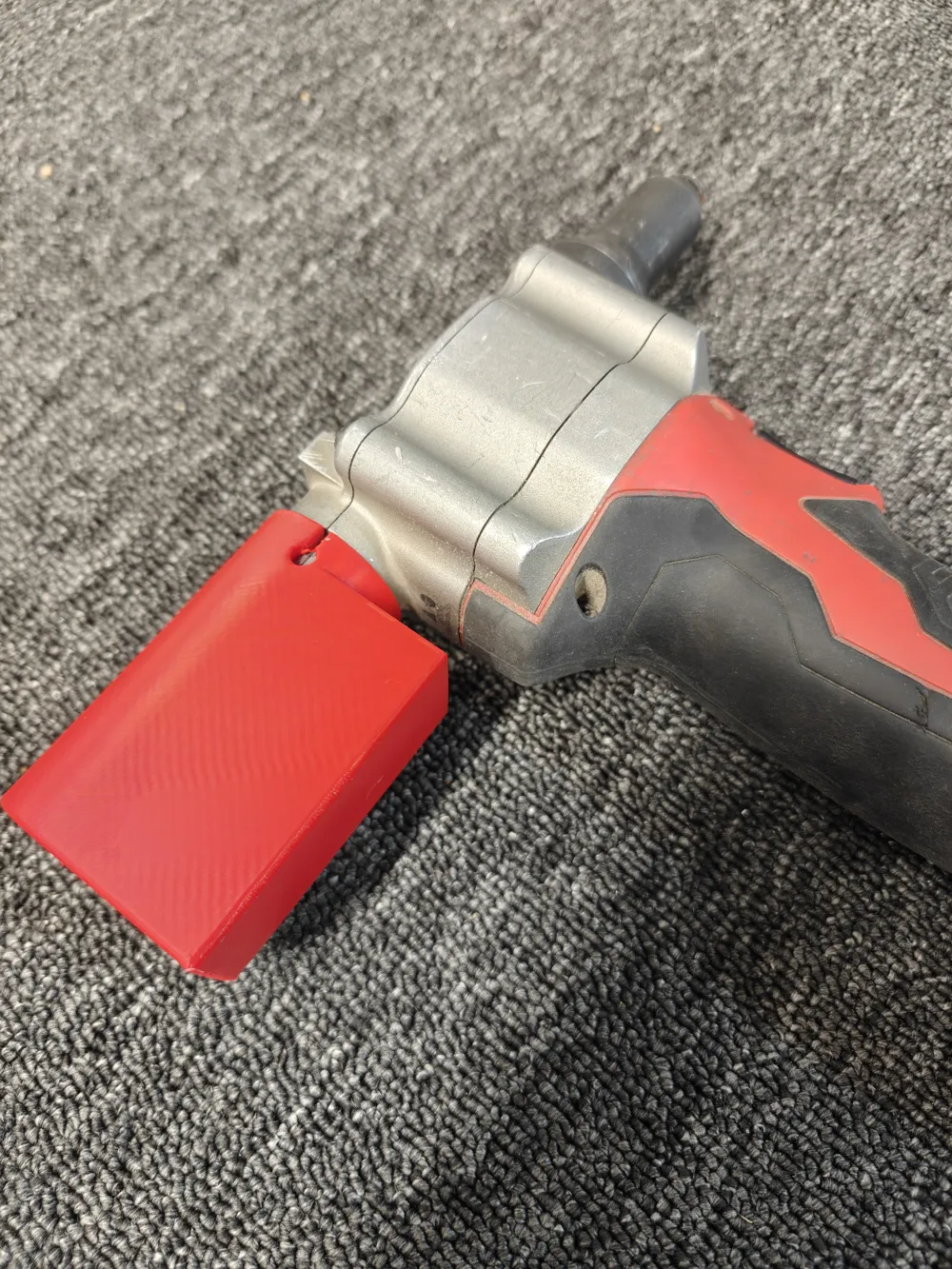

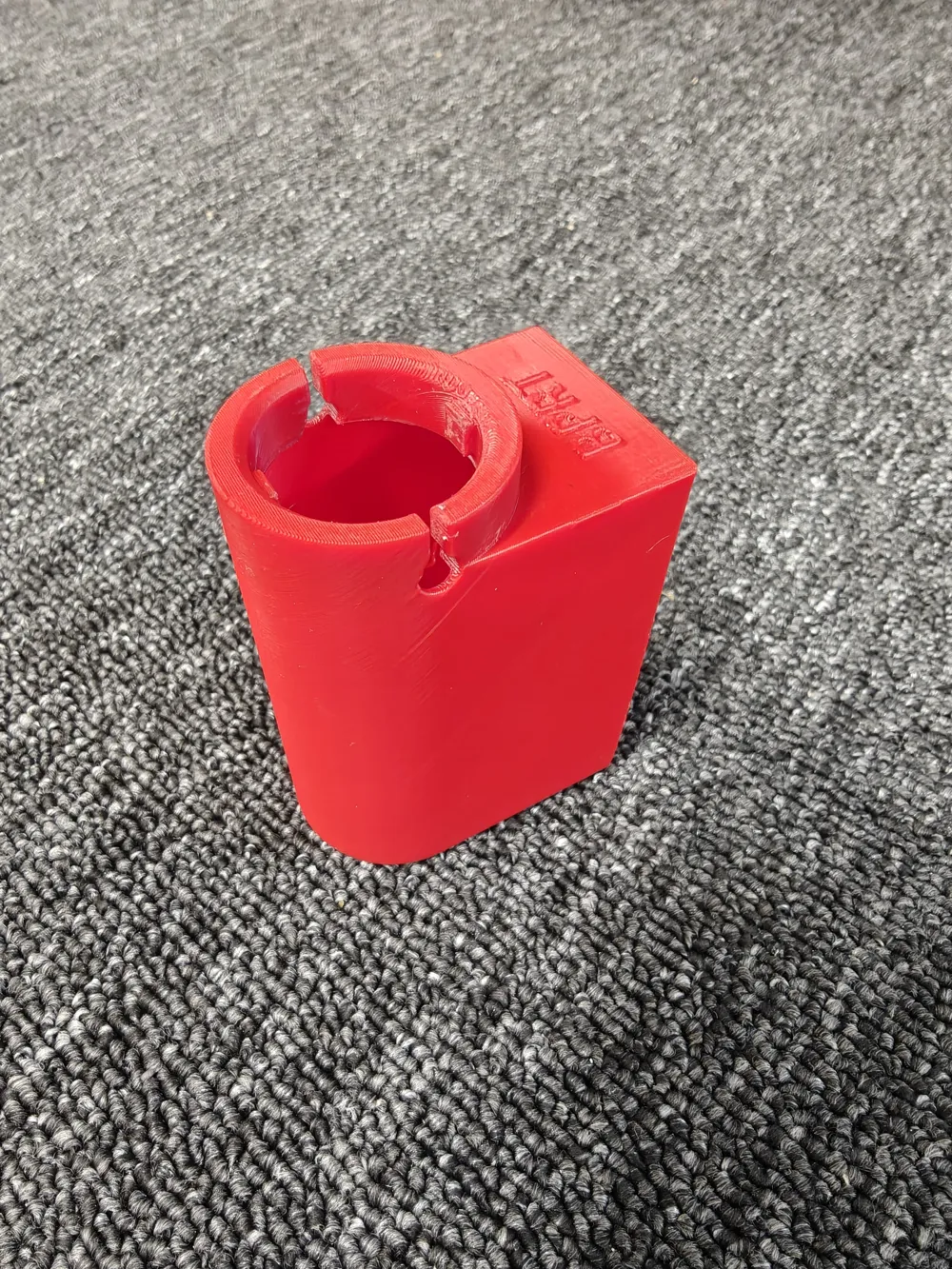

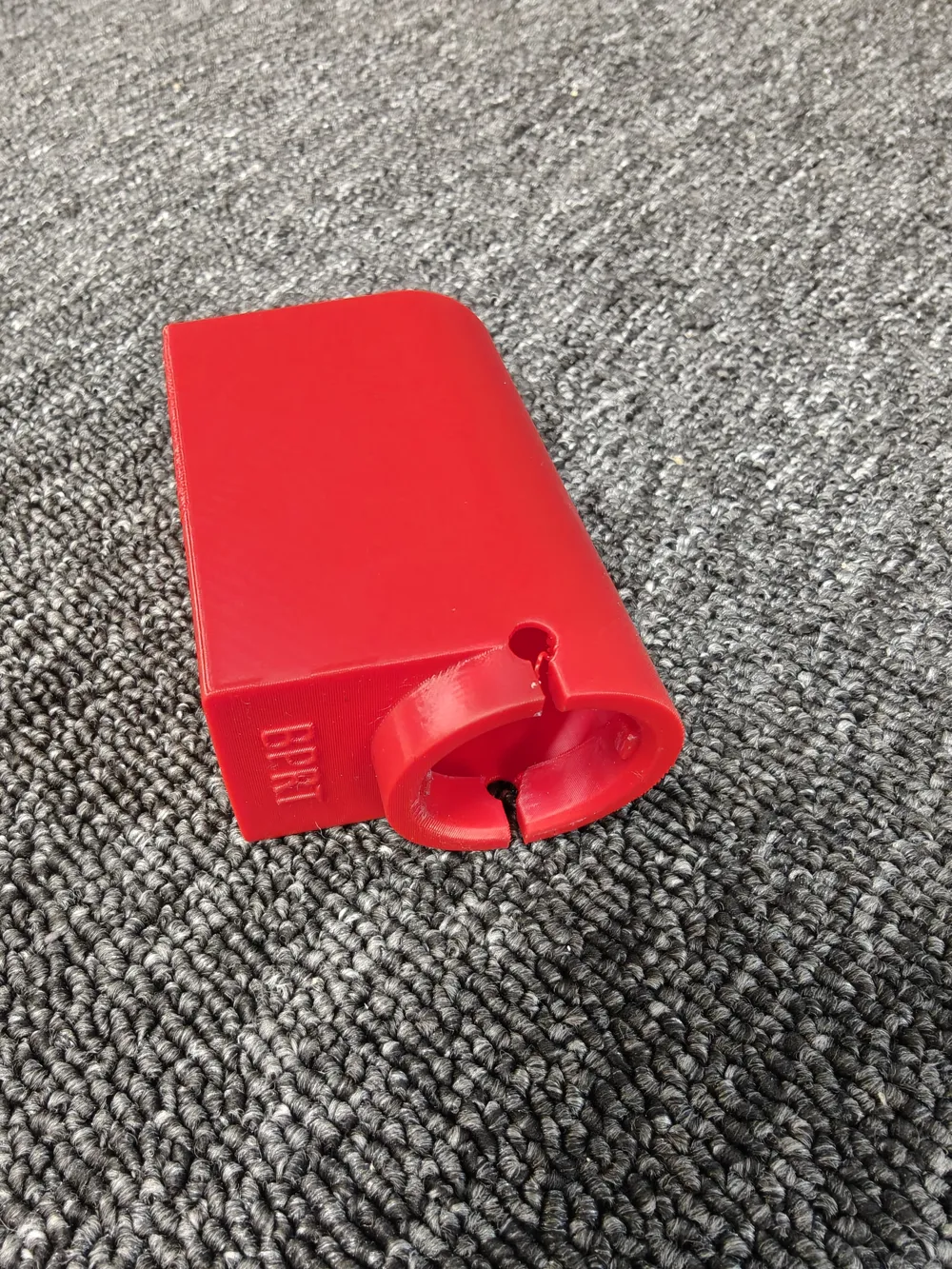

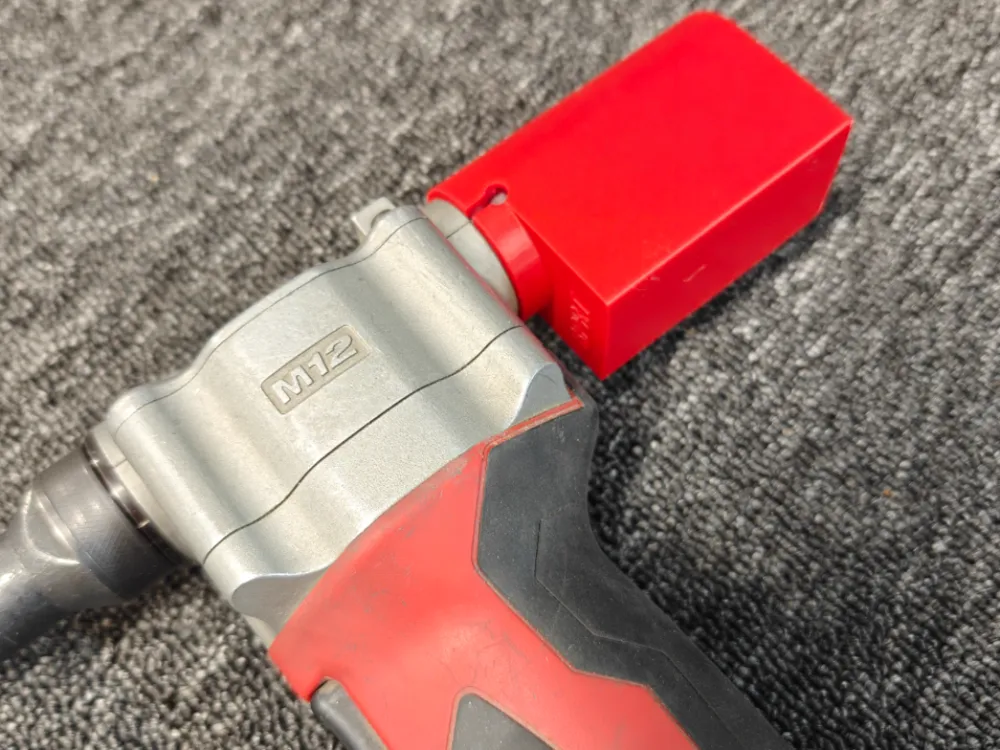

- The shown model was printed using ABS filament.
