Dometic Micro Heki easy fan mount
Print Profile(1)
Description
Boost Me (for free)
Über einen Boost würde ich mich sehr freuen!

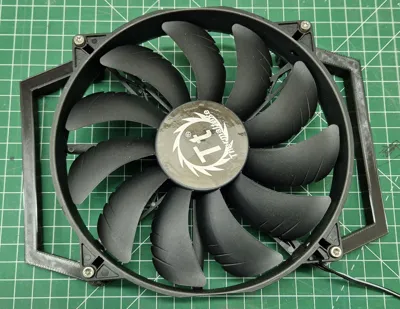

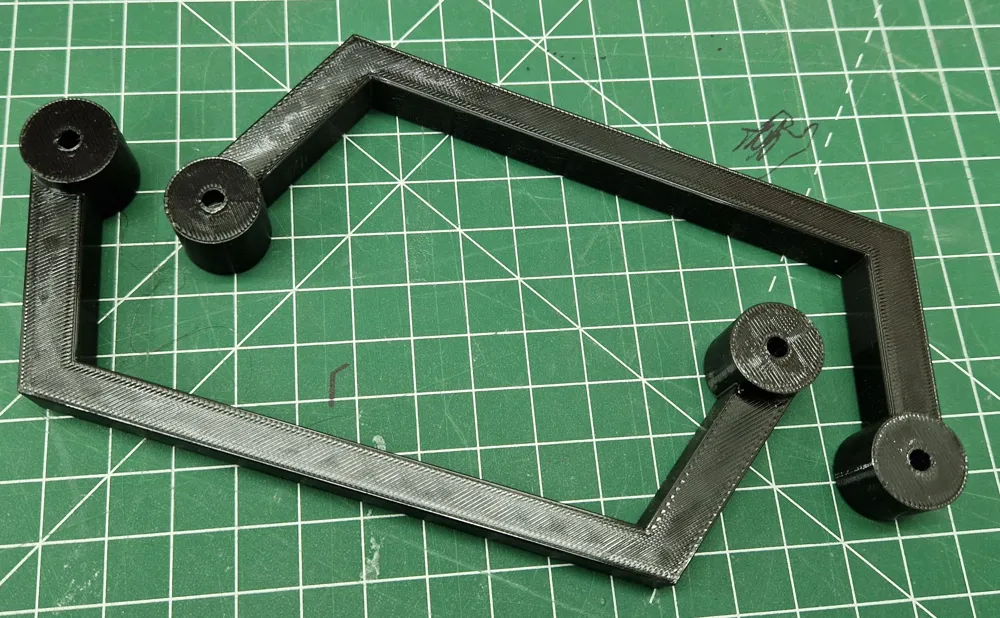

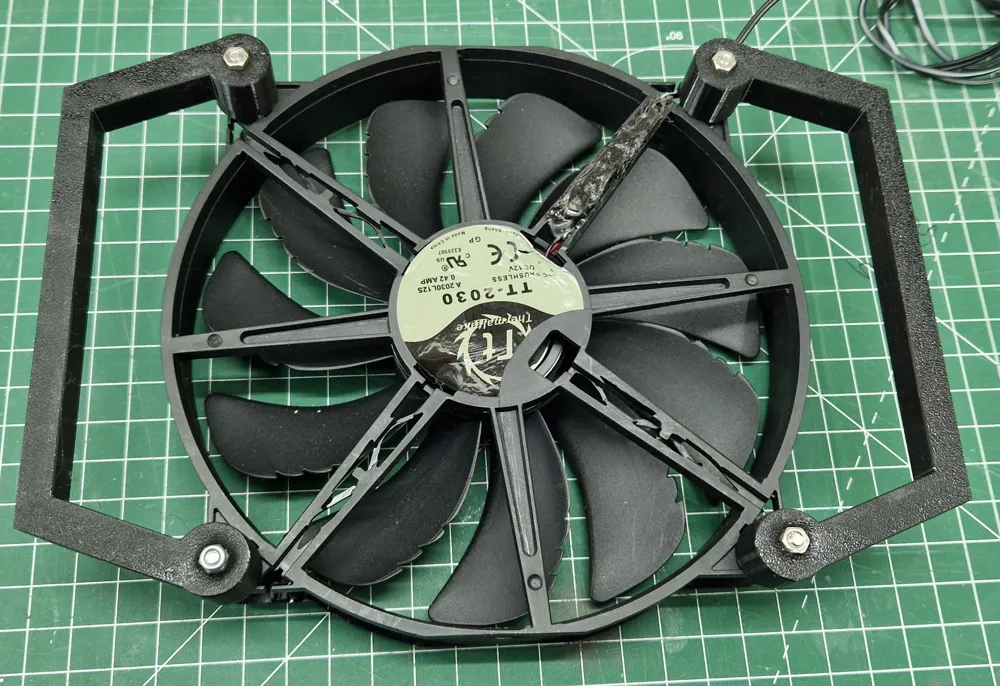

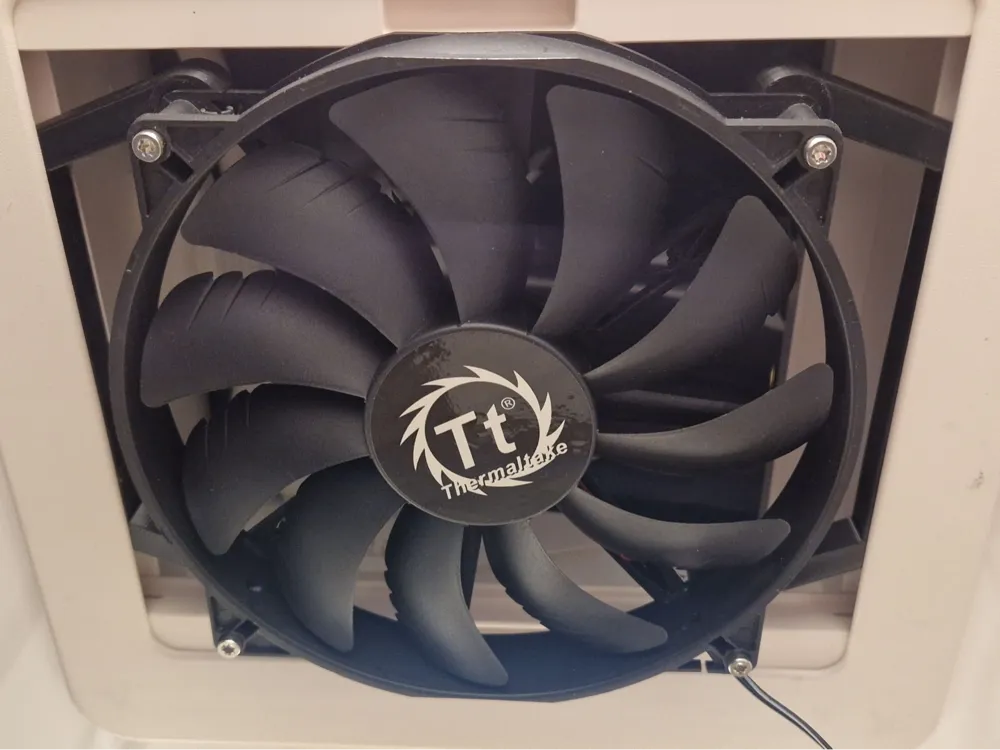

This simple design allows you to easily mount and remove a 200mm fan on your Seitz / Dometic Micro Heki roof hatch. It consists of only two identical parts and should work with every 200mm fan with a mounting hole distance of 150-160mm (mine has 154mm). The parts are printed in TPU which allows them to be be bent and squeezed into the hatch rails and also dampens vibrations. Besides the printed arms and the fan, you will need four M4 screws mathing the thickness of the fan+17mm (in my case M4x50), four M4 nuts (preferably self locking nuts or use some Loctite) and a few M4 washers (optional).
