Square for cabinet assembly 18mm panels.
Print Profile(2)
Description

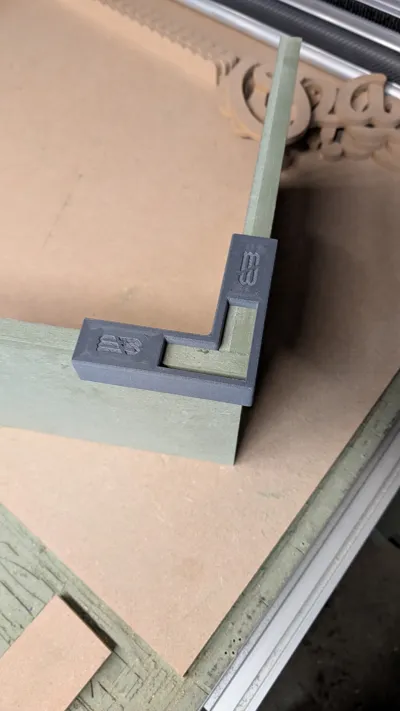

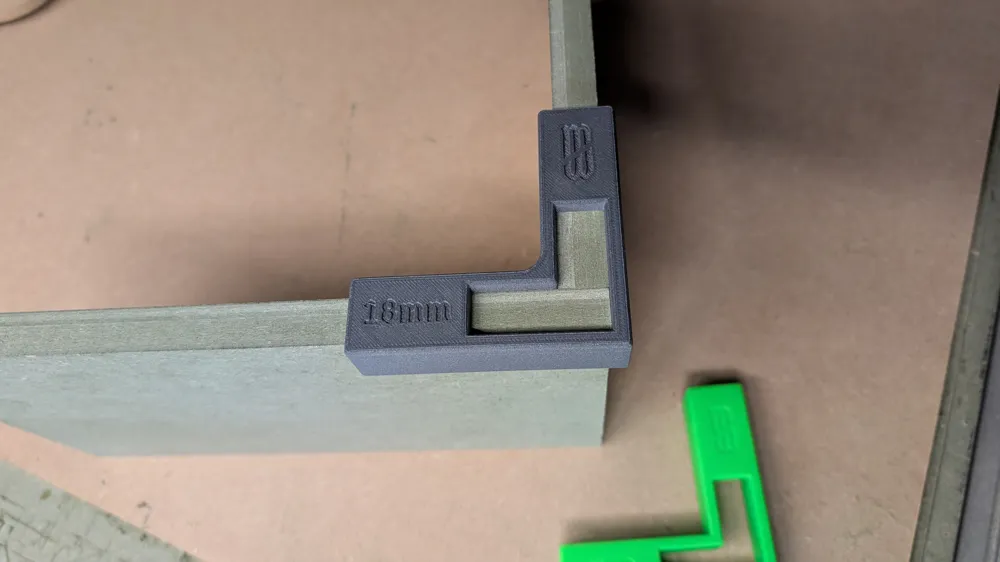

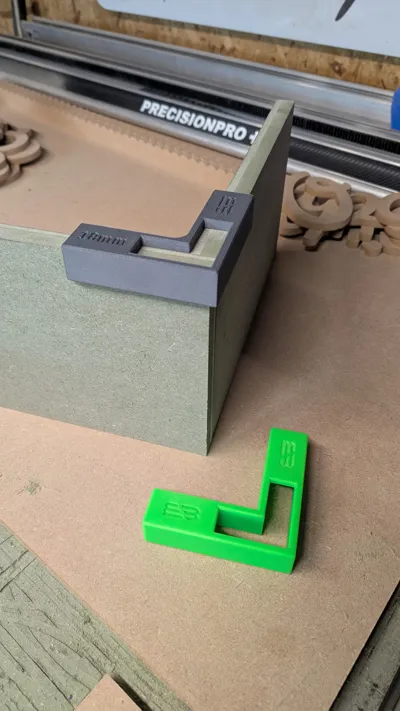

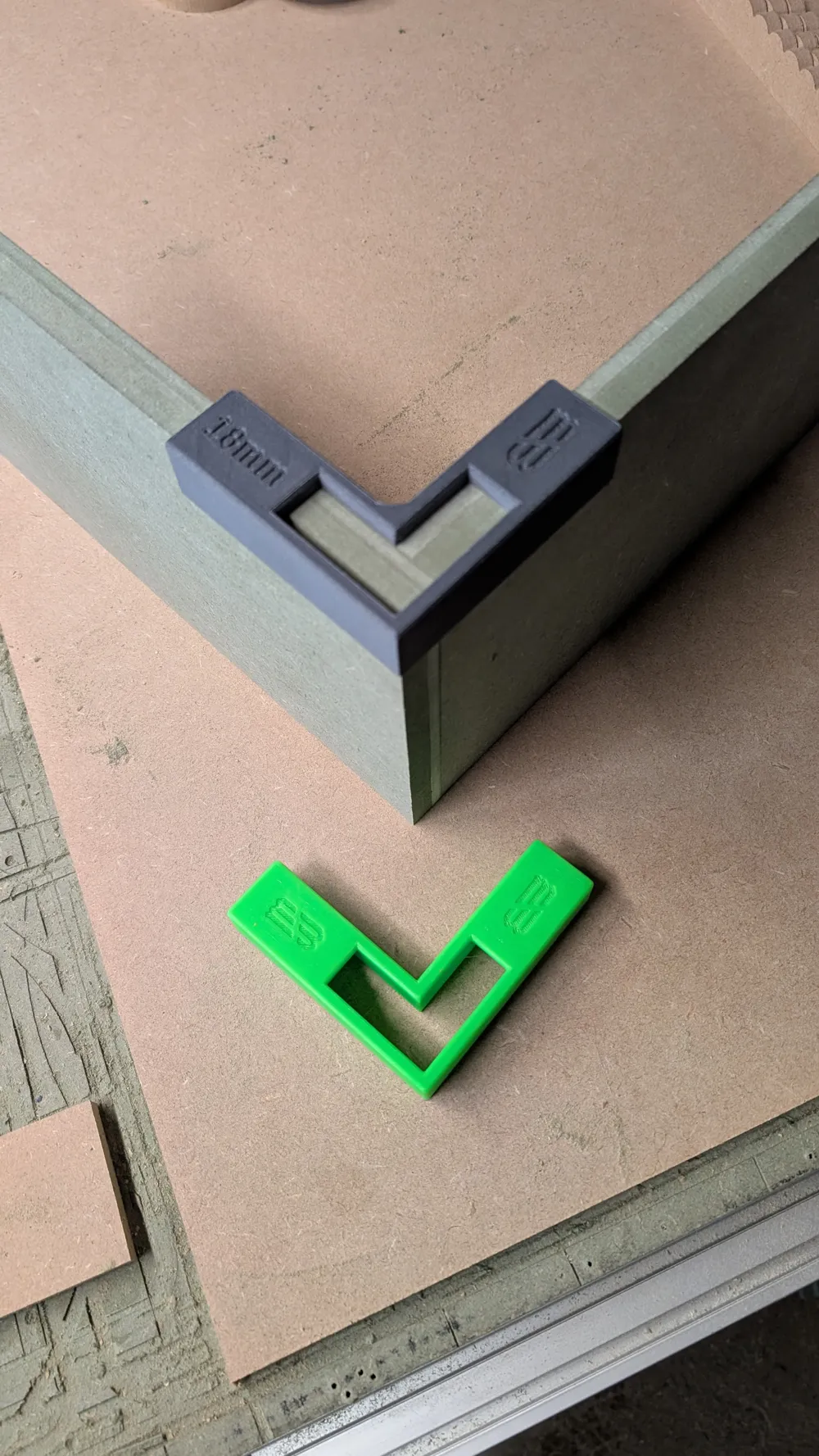

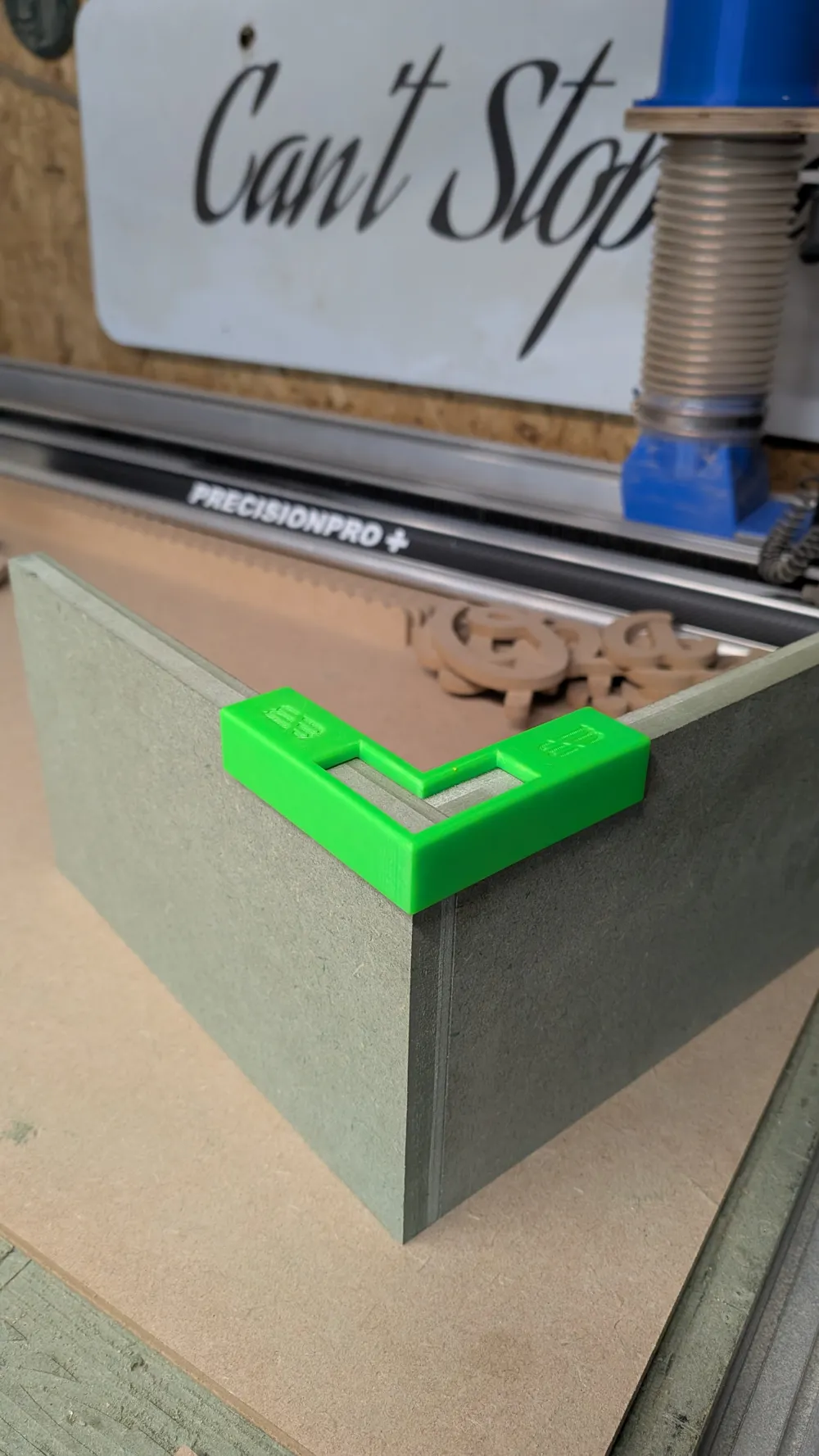

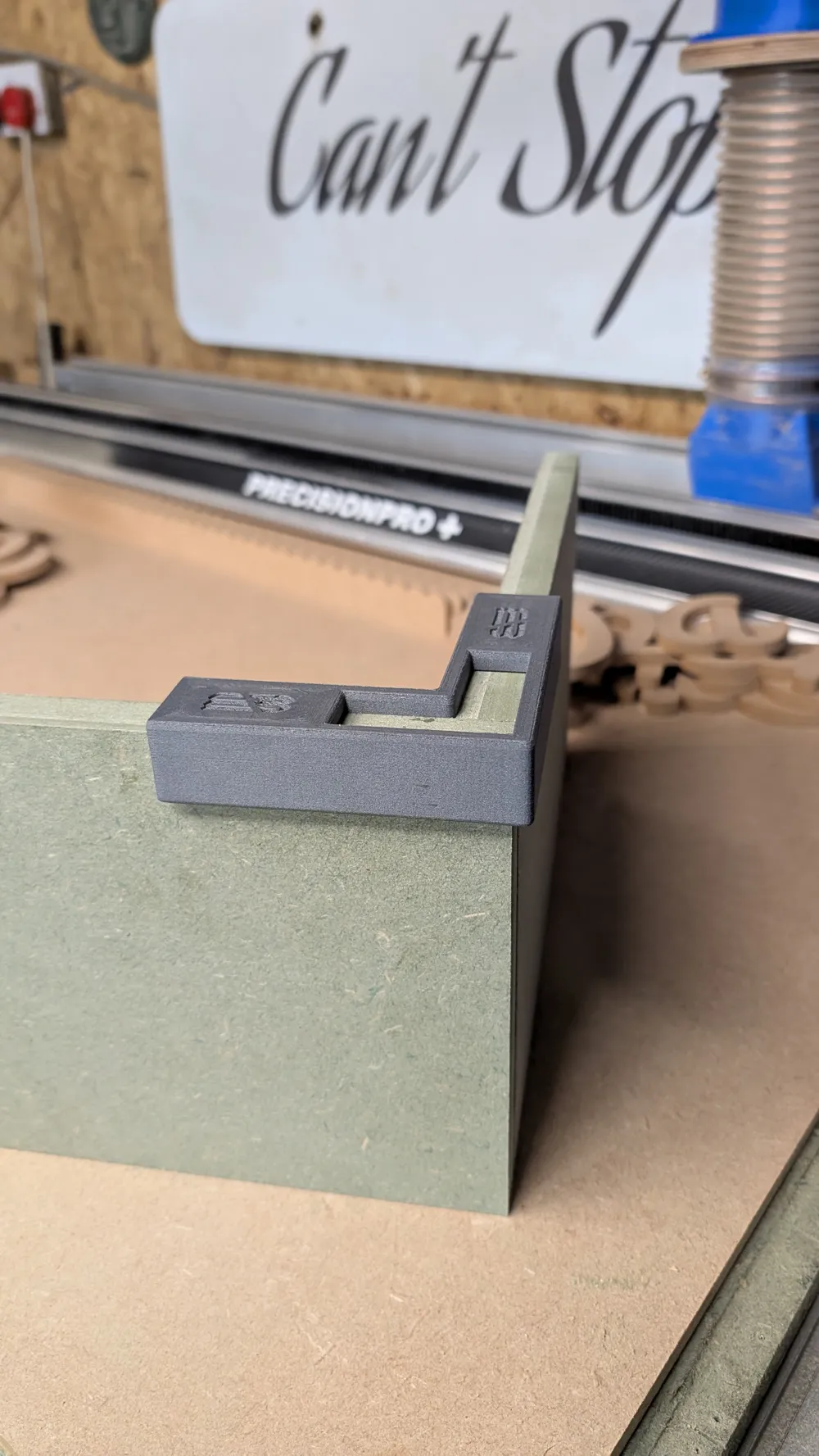

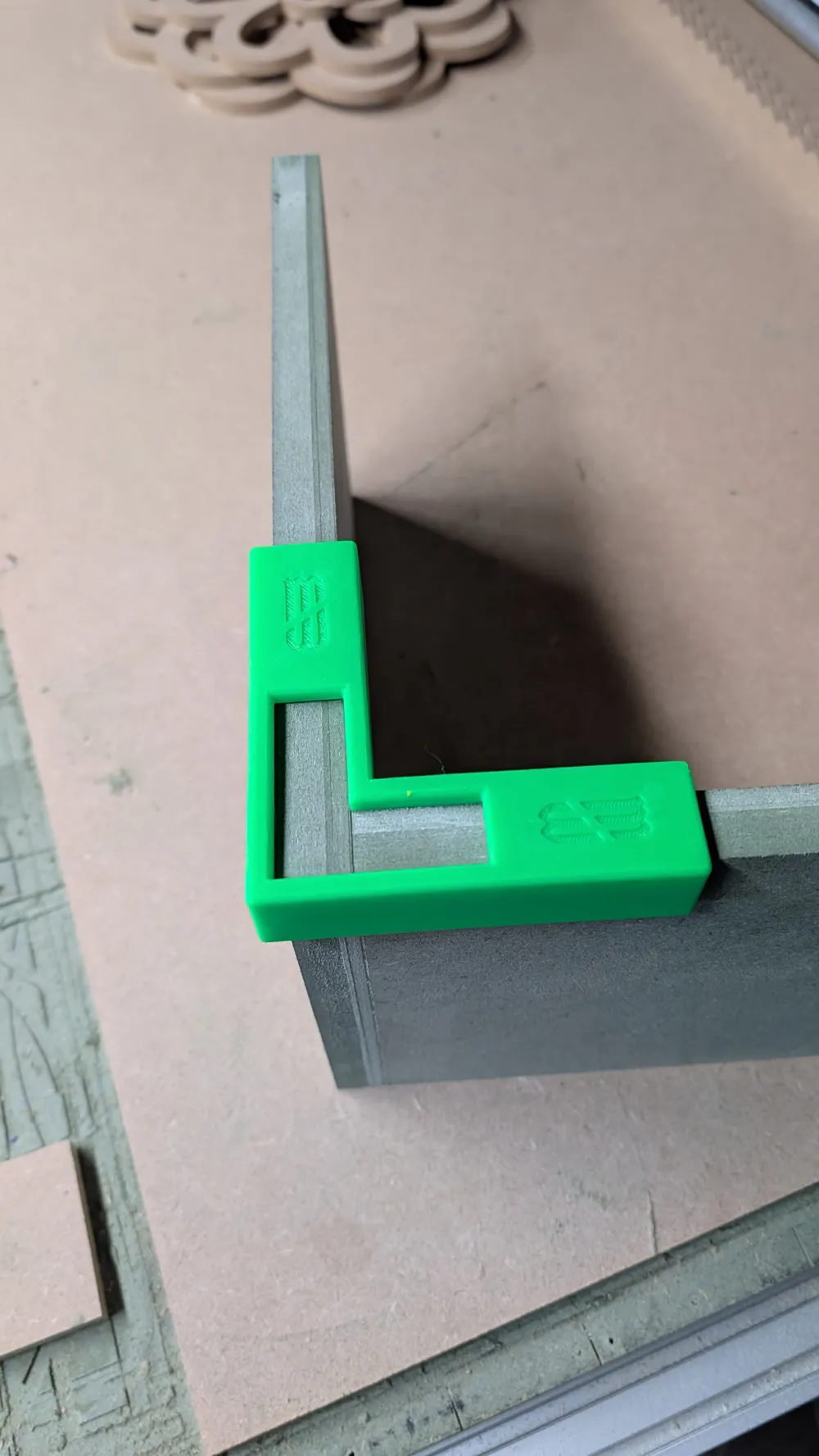

A nice little friction fit assembly square for joining 18mm cabinets and panels.
Great for setting out end panels for working out breakfast bars, making up large carcases like wardrobes etc.

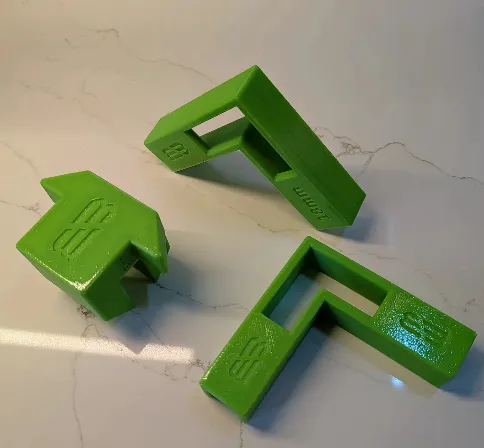

There are 3 jigs on the file.
plate 1- 18mm reveal, great for regular PETG.
Plate 2- 18.2mm reveal, great for plywood wen the veneer is slightly over size or you want a little extra tolerance for adjustment.
Plate 3- 18.4mm reveal, Great for PETG CF which needs a little extra tolerance due to the Carbon Fibre filler.
