Blast Gate / Dust Extraction / Vacuum HT50
Print Profile(3)
Bill of Materials
Description
Boost Me (for free)
If you like this model, please consider a boost

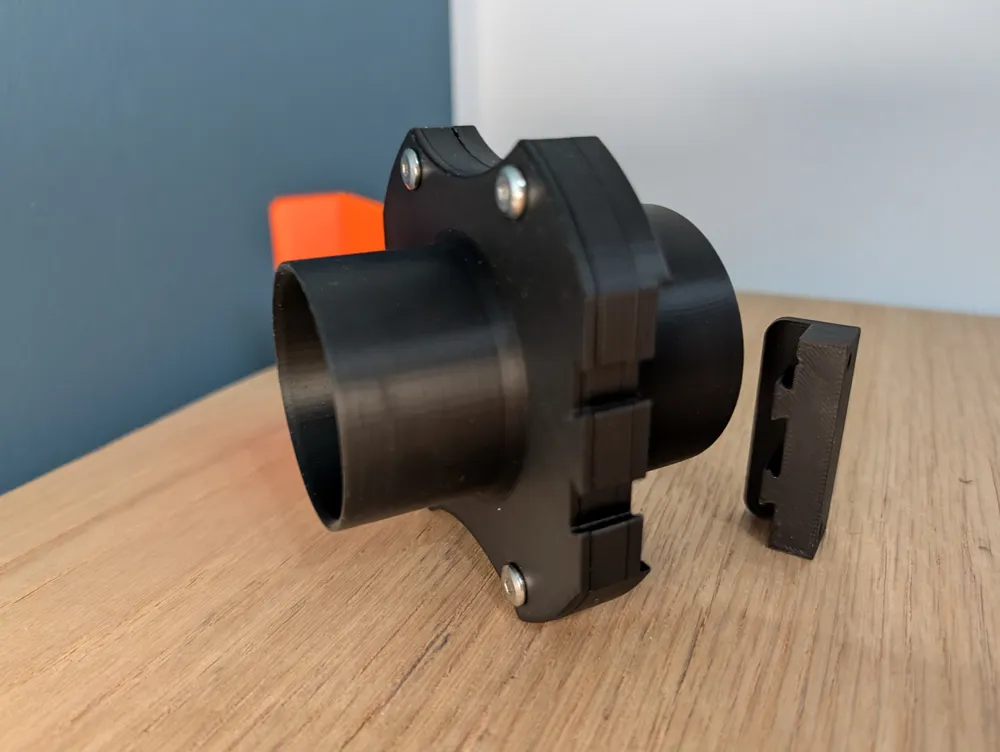

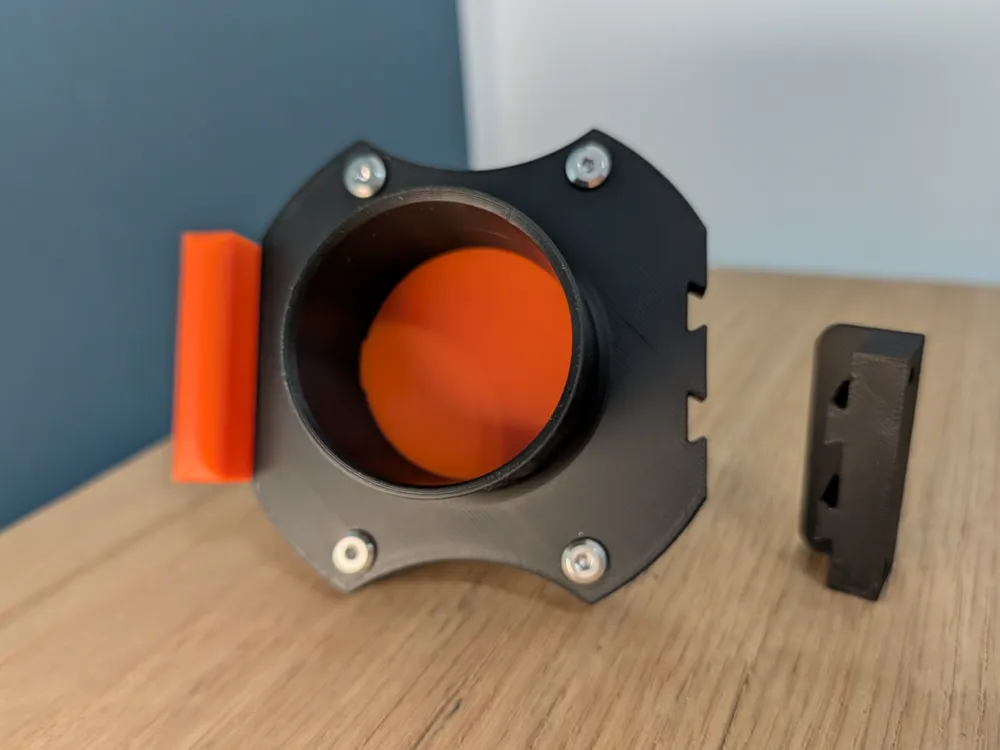

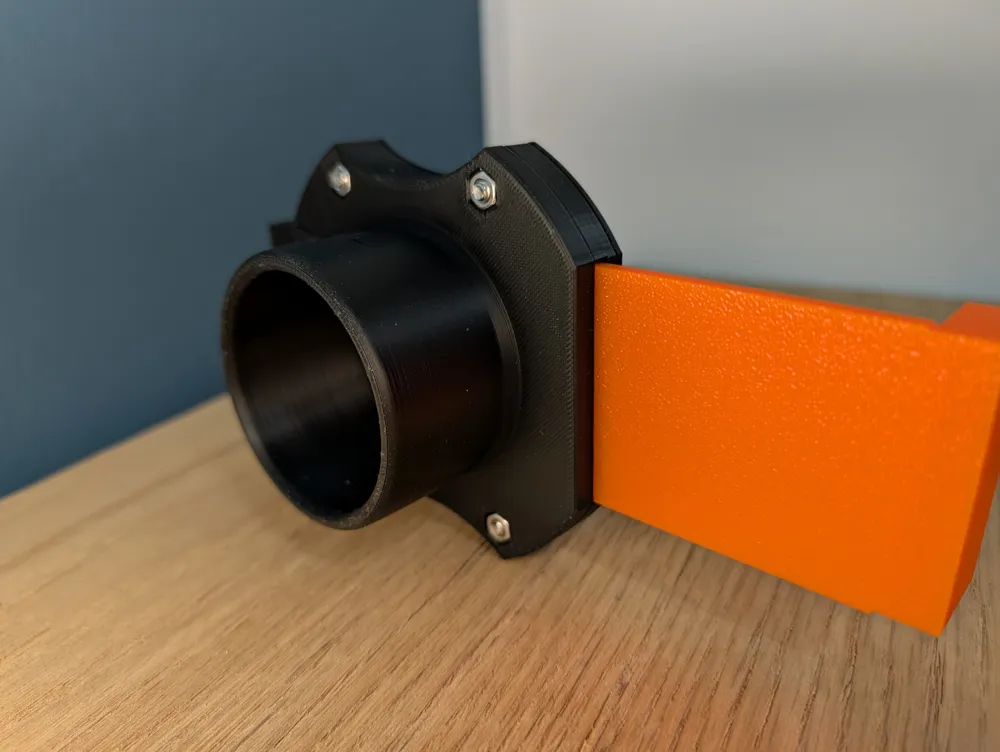

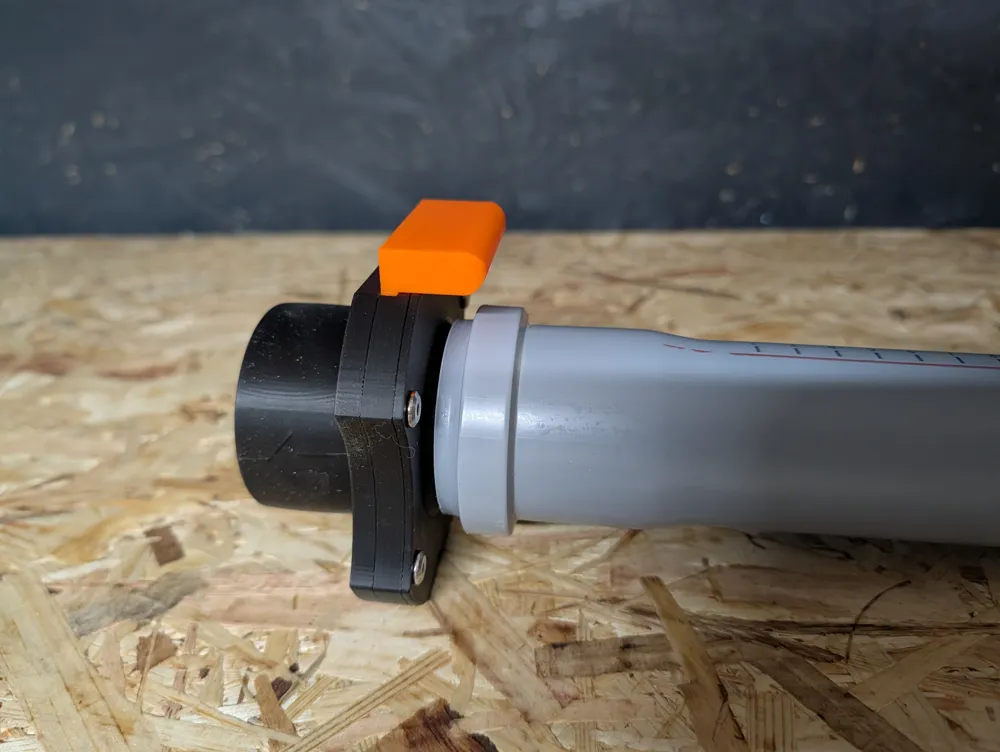

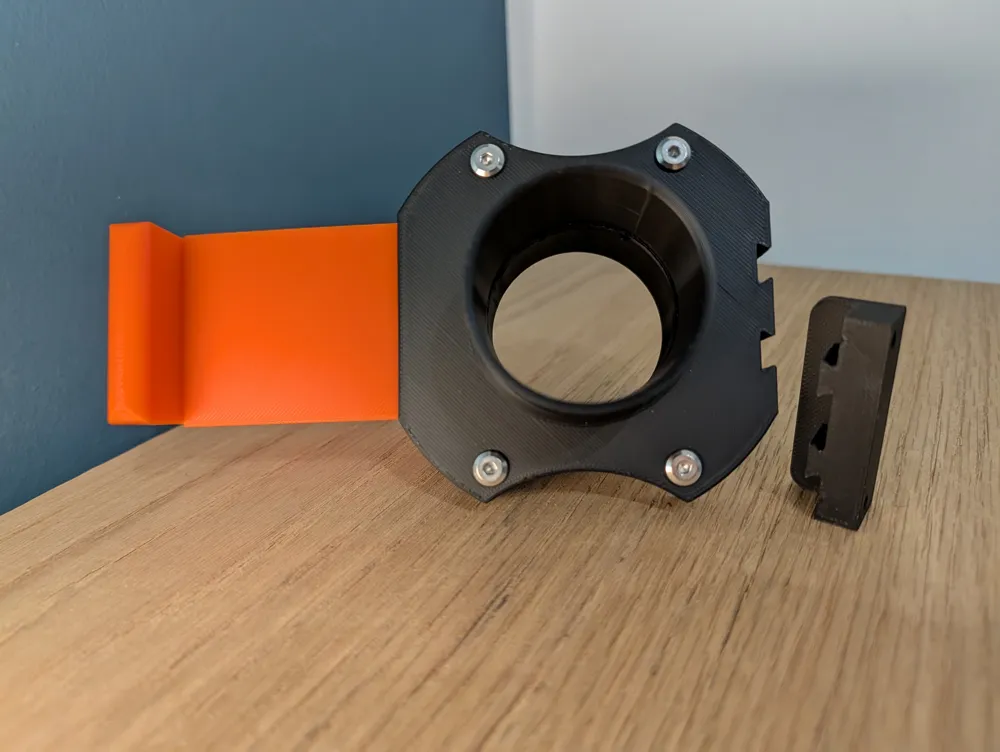

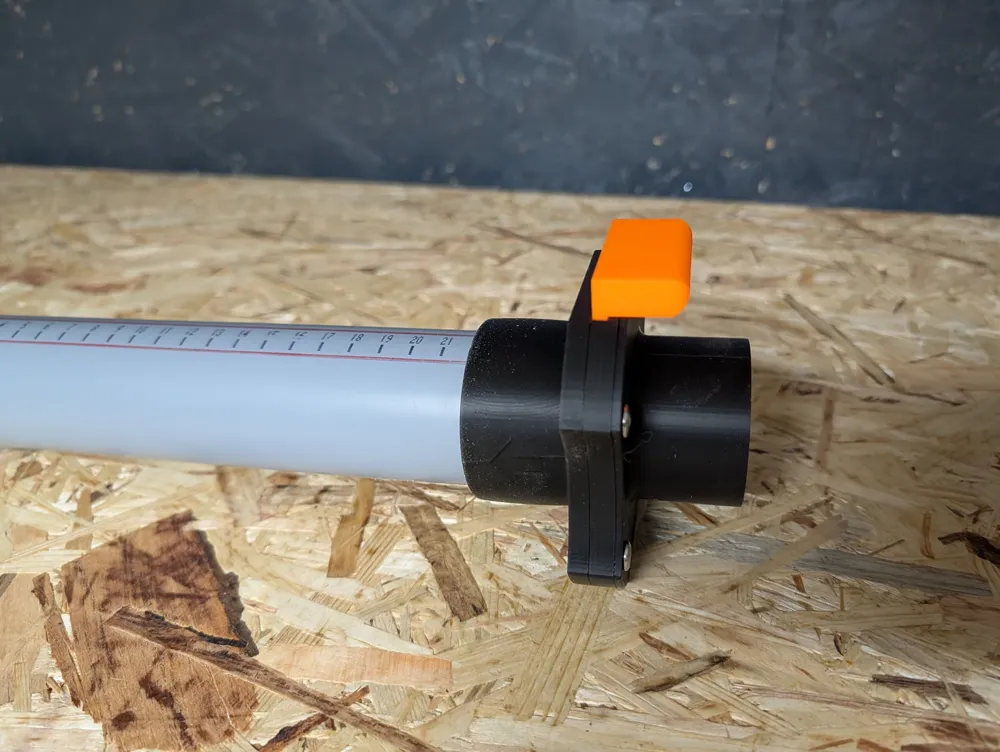

Compact and practical blast gate designed for HT50 (50 mm) pipes. Features a smooth sliding mechanism for easy opening and closing to control airflow or suction in dust collection and ventilation systems. The lightweight design includes a wall-mount bracket that allows the entire unit to slide on and off for quick removal or repositioning. Ideal for workshops or DIY setups where space-saving and simple operation are key.
Assembly:

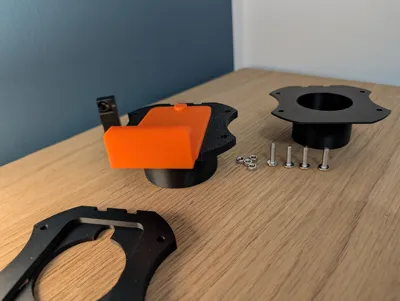

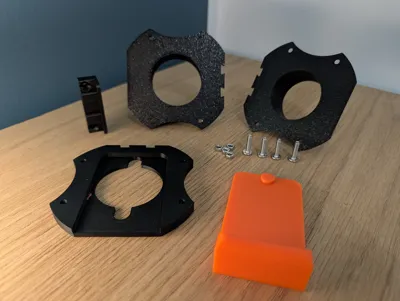

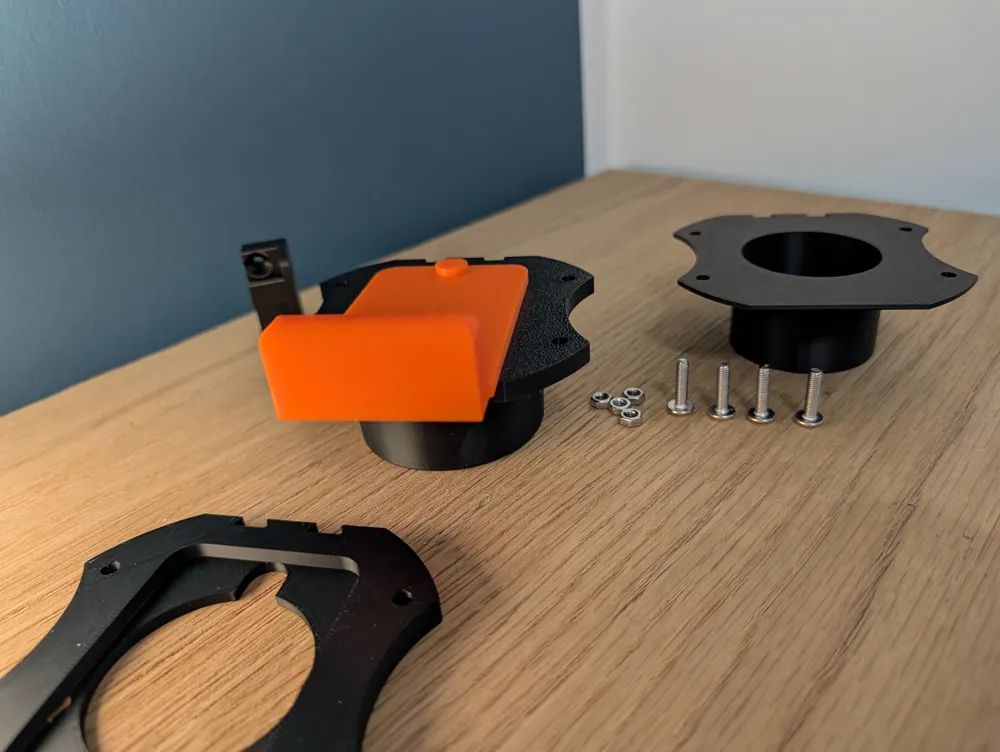

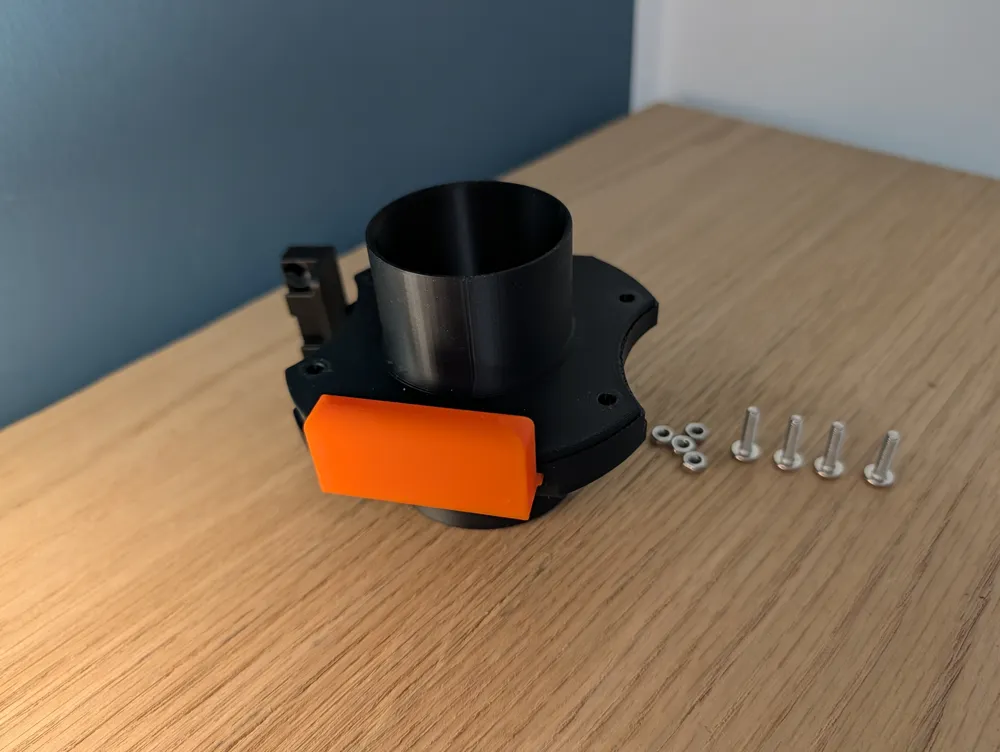

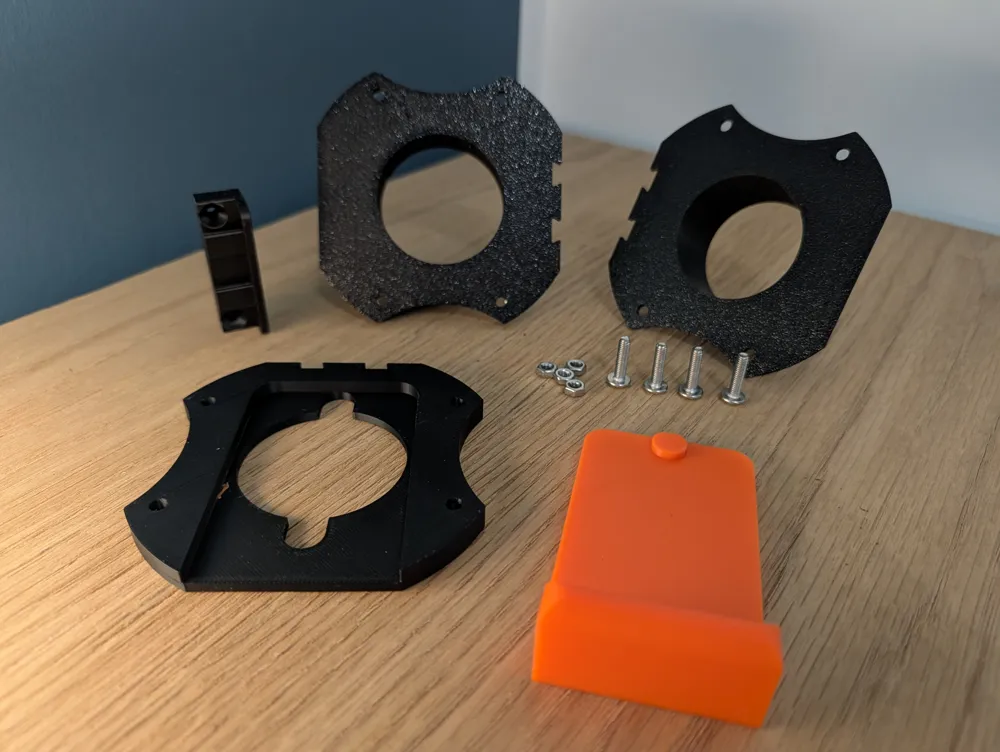

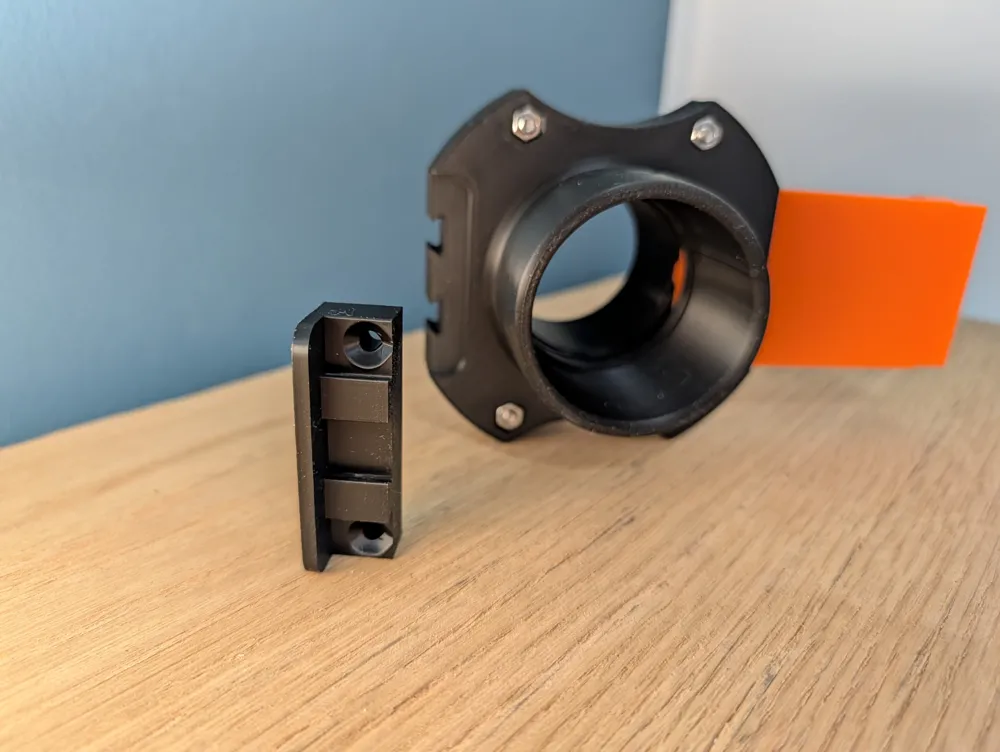

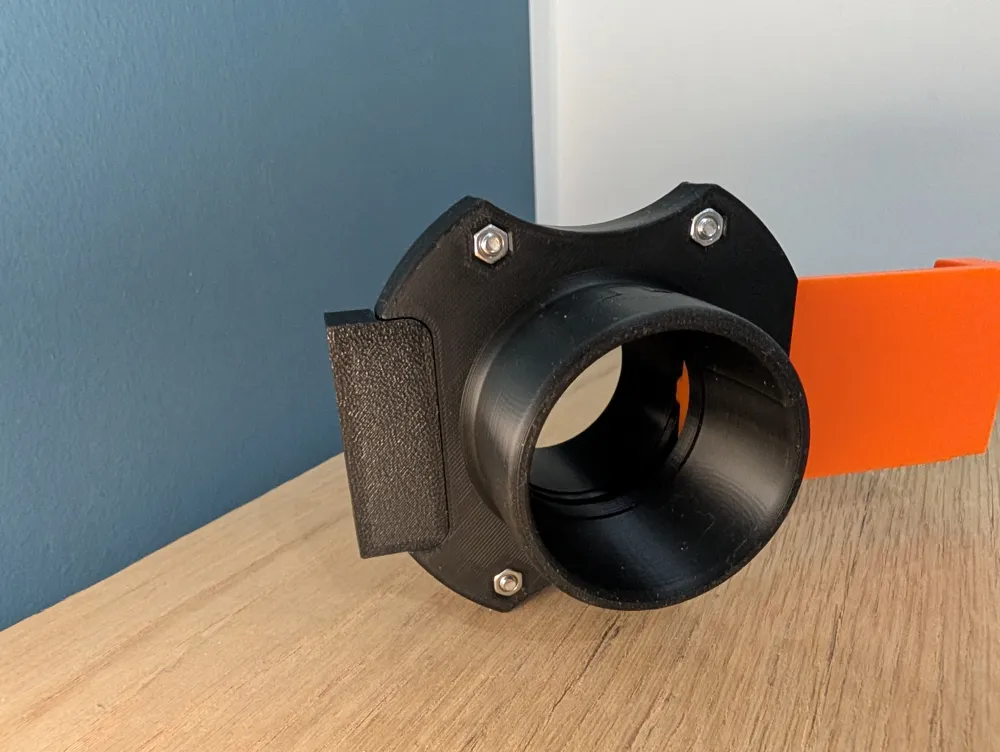

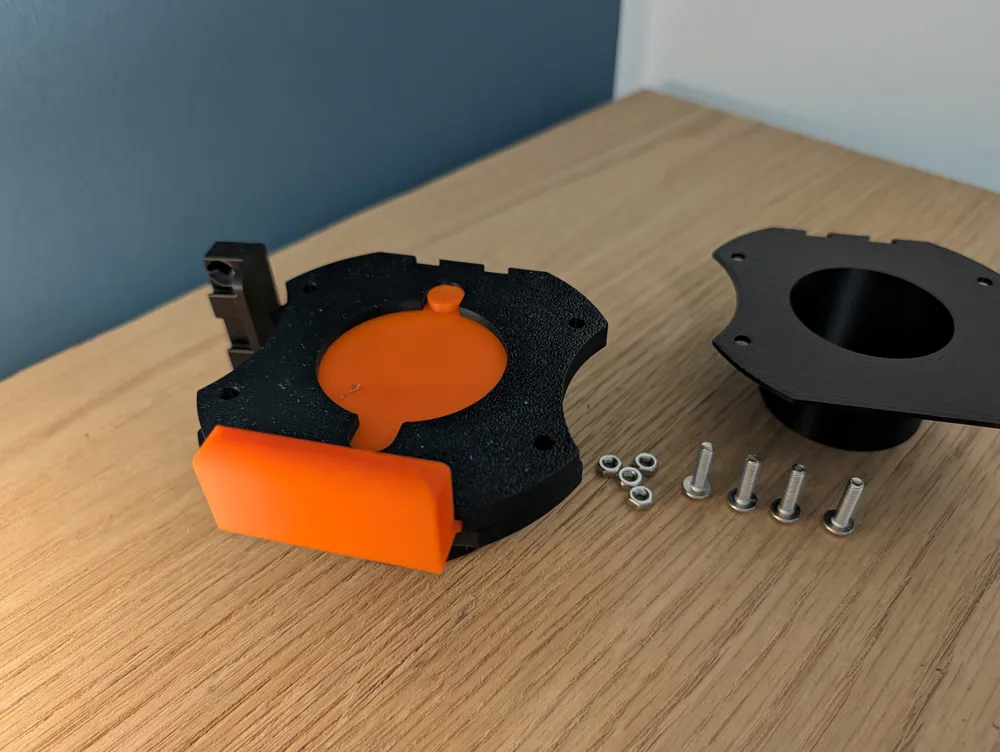

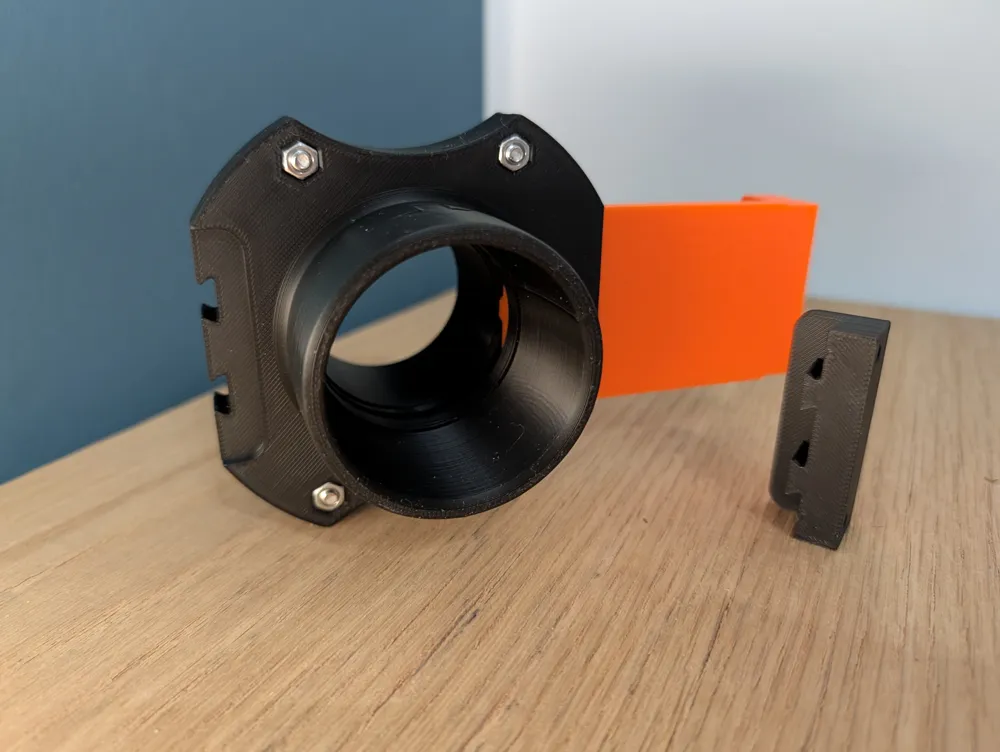

The blast gate has a male and a female part. I recommend that the flat surface of the slider (open/close) faces towards the direction of the airflow. In my case it is the female part. You may change the direction if your airflow is in the opposite direction.

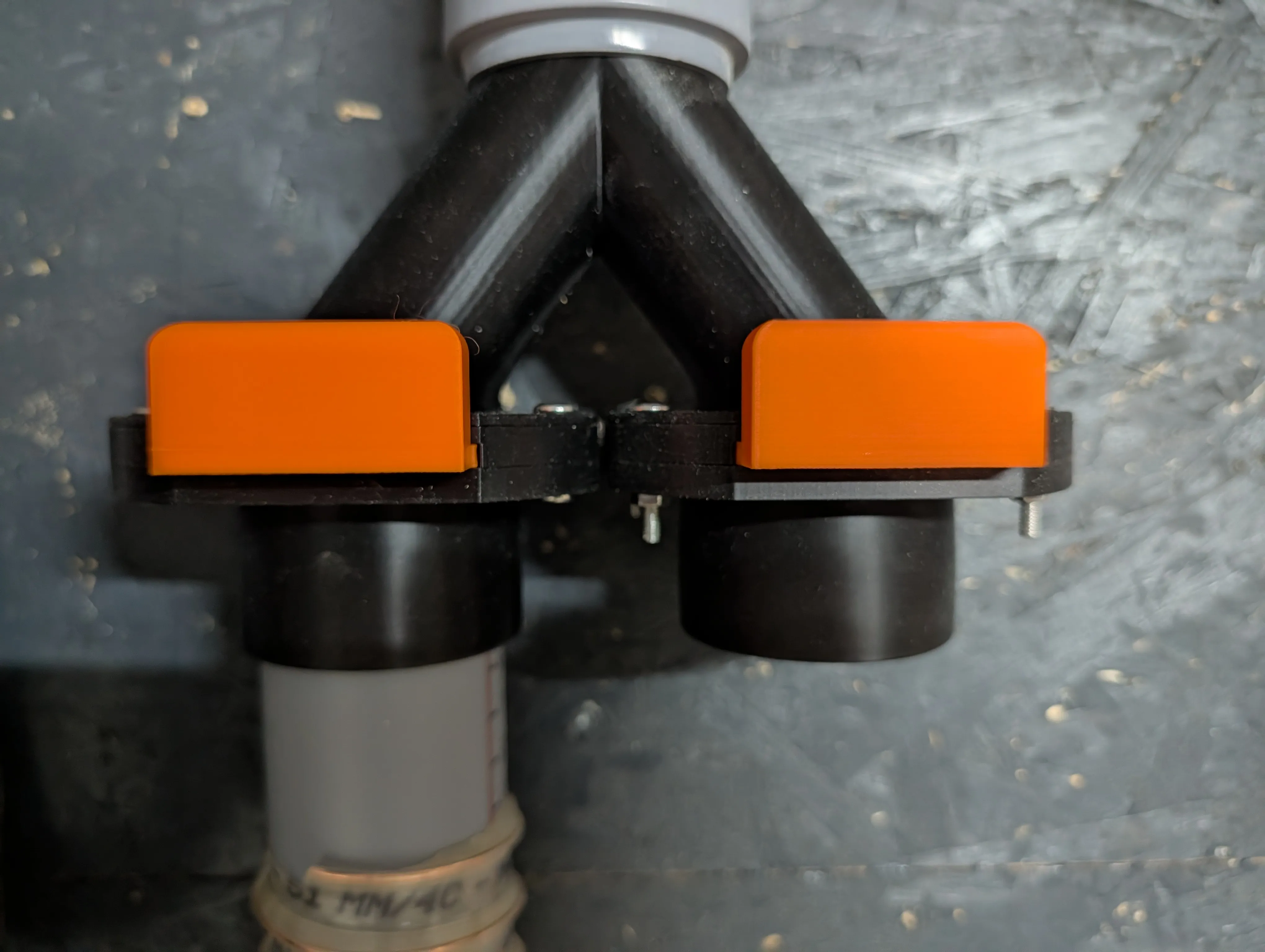

Update: If you need a splitter to connect two different extraction points, check my Y-Splitter https://makerworld.com/en/models/2205530-y-adapter-splitter-for-blast-gate-ht50#profileId-2396863
