Volador VX3.5 Full TPU Set

Volador VX3.5 TPU Protection Kit (FlyFish RC – DJI O4 Pro Compatible)

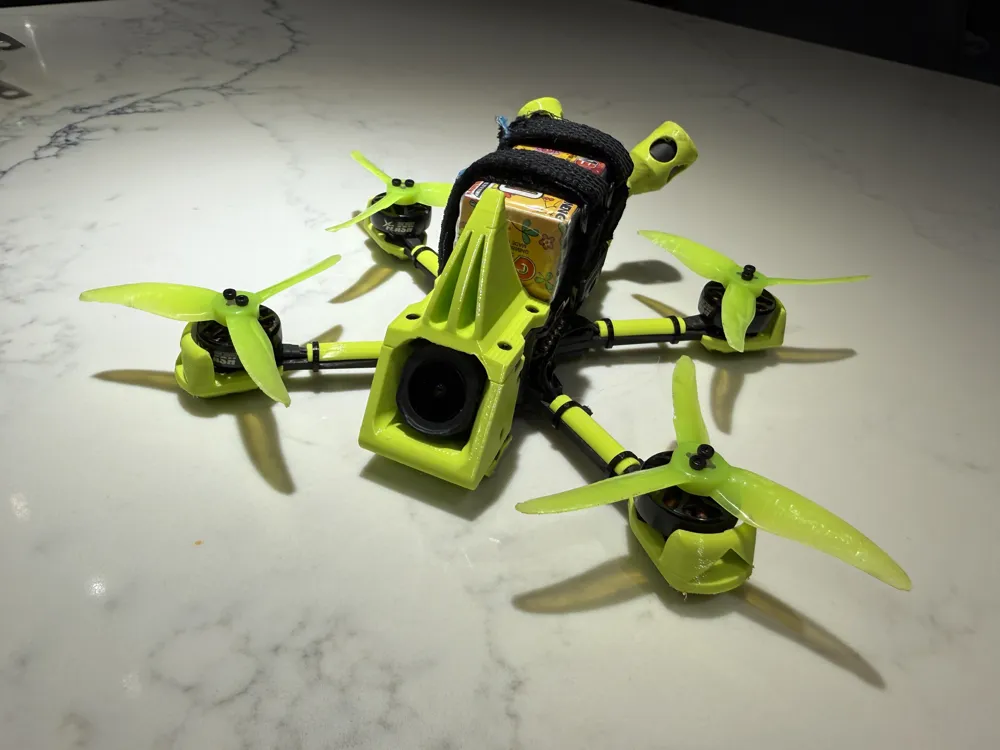

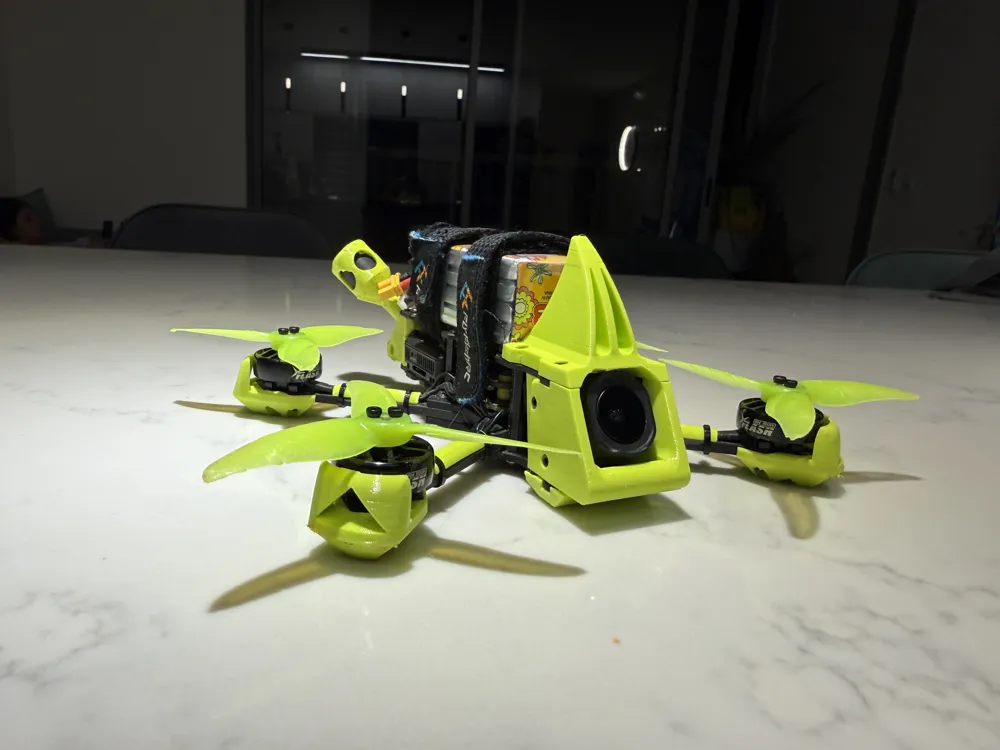

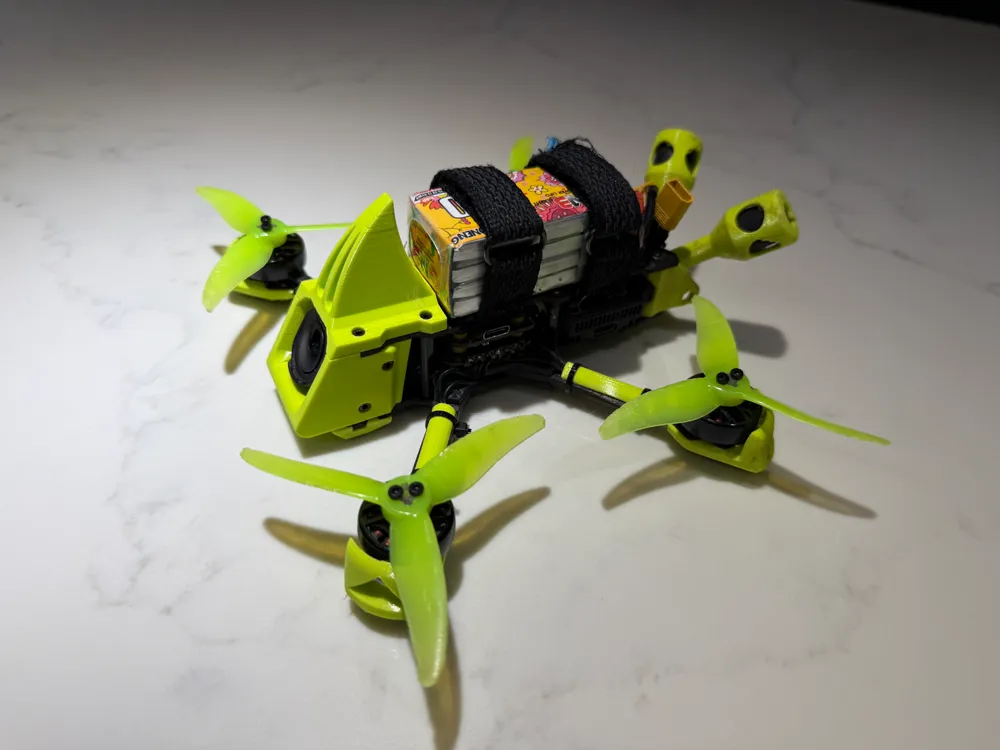

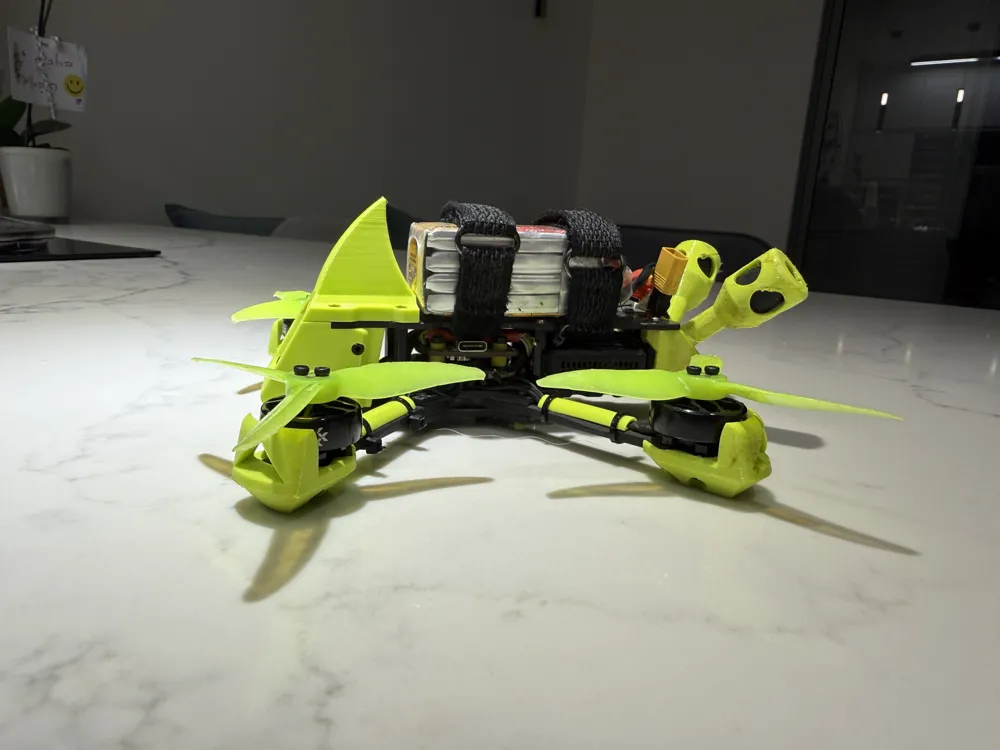

This TPU upgrade kit is designed specifically for the FlyFish RC Volador VX3.5 and provides a full set of durable protective parts to keep your drone safe during freestyle, cinematic flights, or everyday use. All parts are optimized for TPU 95A and tested for a precise fit on the VX3.5 frame.

Included Components

• DJI O4 Pro Camera Soft Mount
  Designed primarily to protect the camera from impact, keeping the O4 Pro safe during crashes or hard landings.

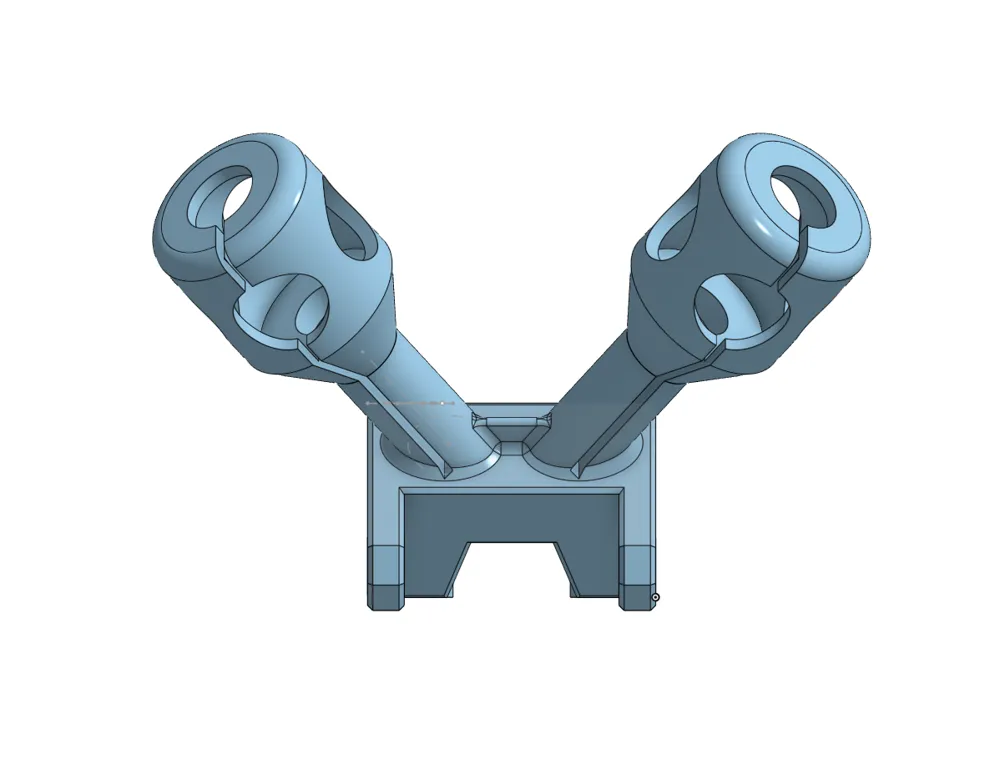

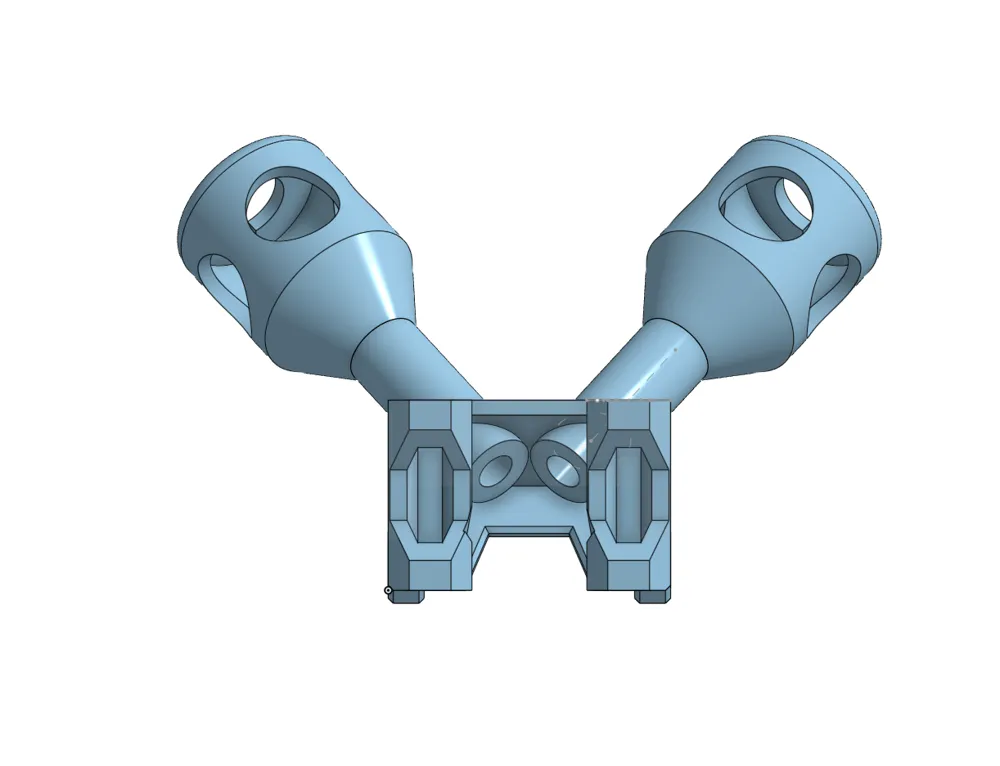

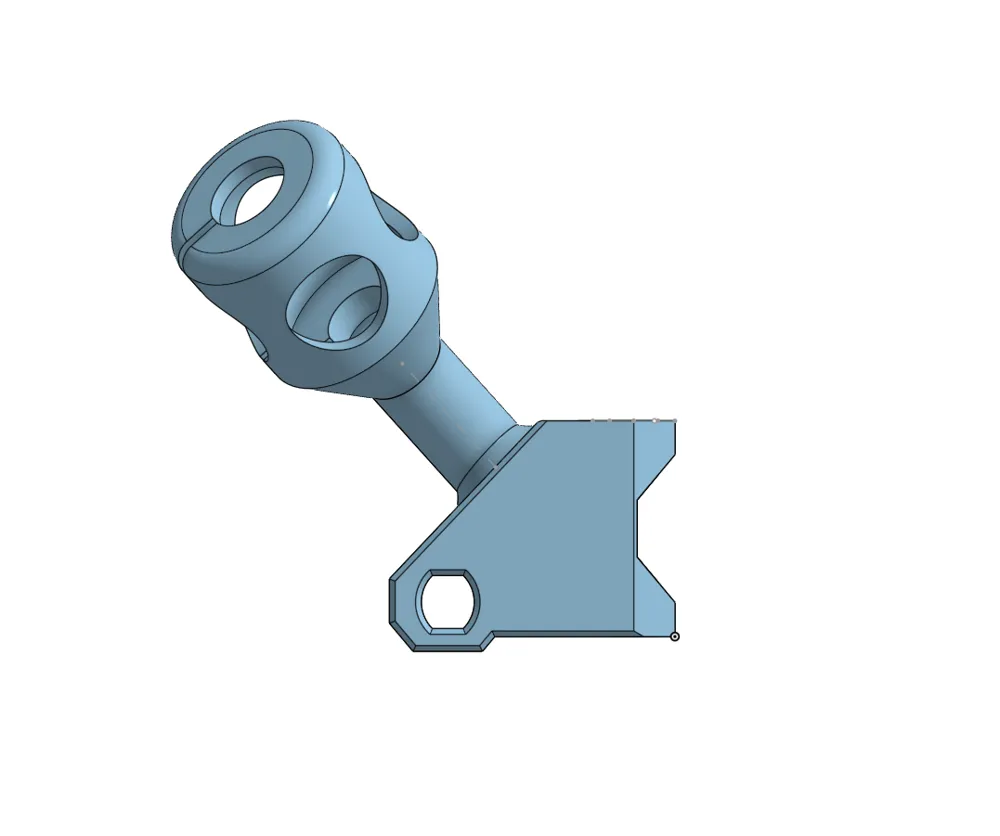

• DJI O4 Pro Antenna Mount
  Holds antennas securely in place while shielding them from damage.
• Motor Cable Protectors
  Prevent motor wires from contacting or being cut by propellers. Includes a slot for a zip-tie (< 0.2 cm wide) to lock cables firmly in position.

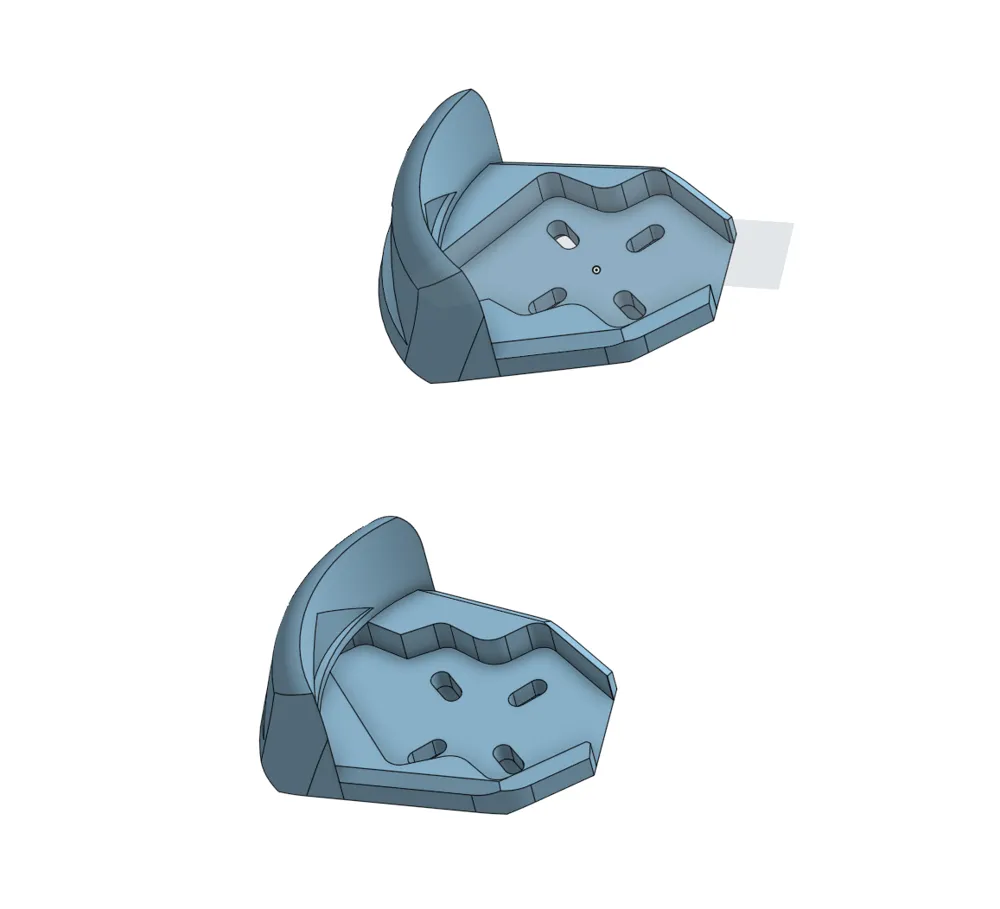

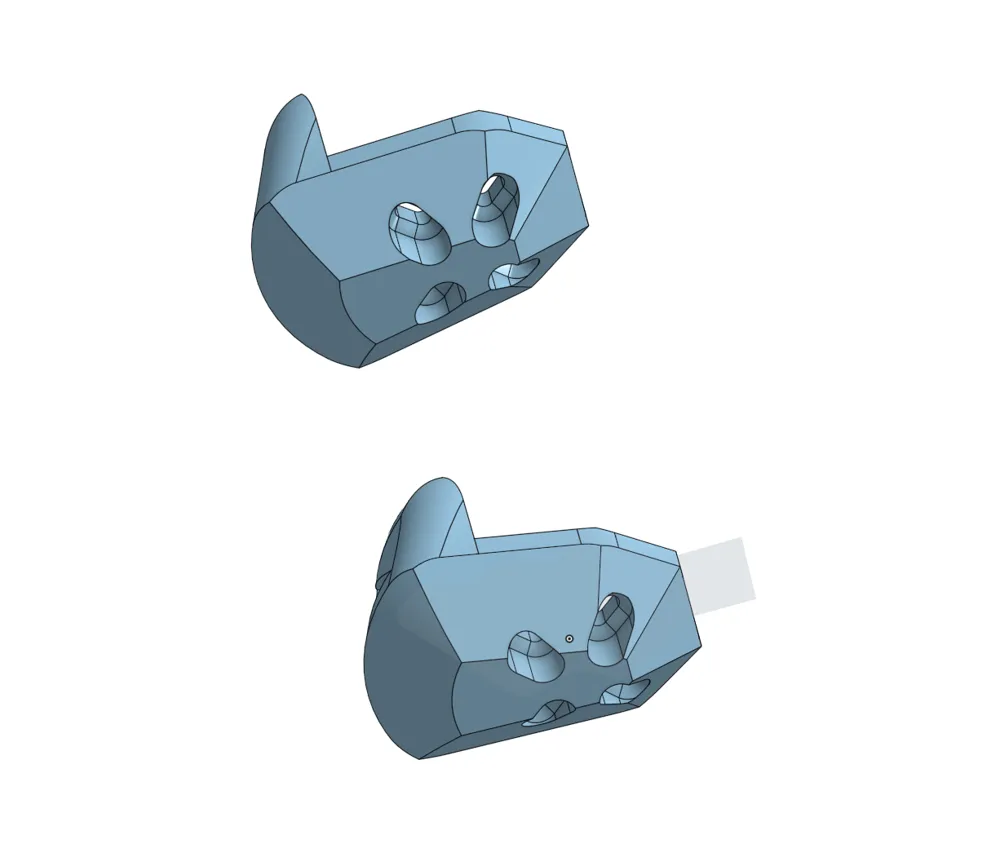

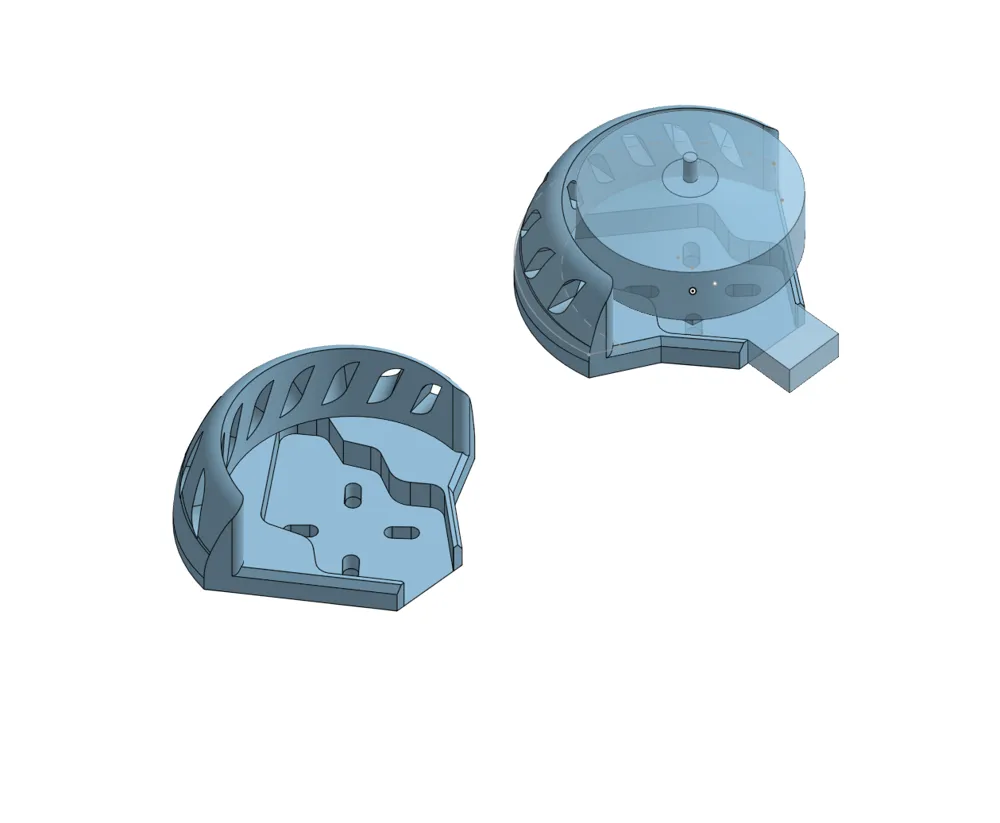

• Arm Guards (Lite & Heavy Versions)
  Both versions include integrated air vents to improve motor airflow and help prevent overheating.
  • Lite Version: Minimal weight with essential protection.
  • Heavy Version: Reinforced walls for maximum durability in crashes.
• Lower Frame Bumper
  Protects the underside of the frame from impacts, debris, and rough landings.

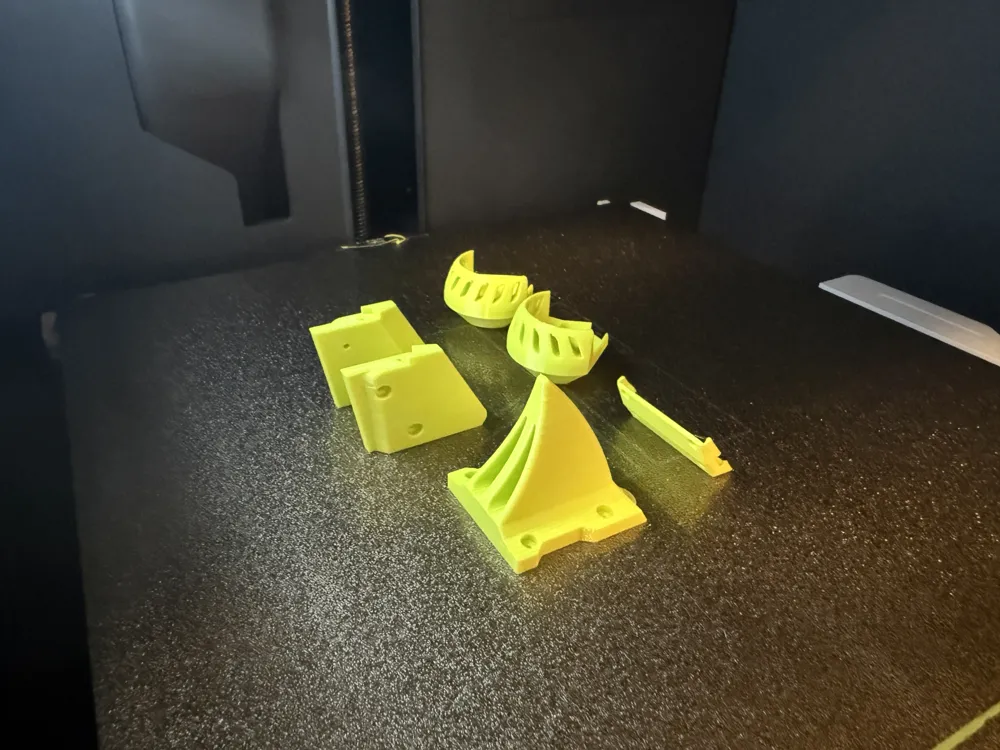

Printing Instructions

• Material: TPU 95A
• Supports: Enabled
• Layer Height: 0.16 mm
• Infill: Gyroid
• Infill Density: 20%

Notes

• Parts are easy to print and assemble.
• Screw holes are intentionally tight to ensure a solid, secure hold once hardware is installed.
• Cable protector includes zip-tie channels for clean cable management.
