Gas Knob Retention Spring – Snap-On Replacement

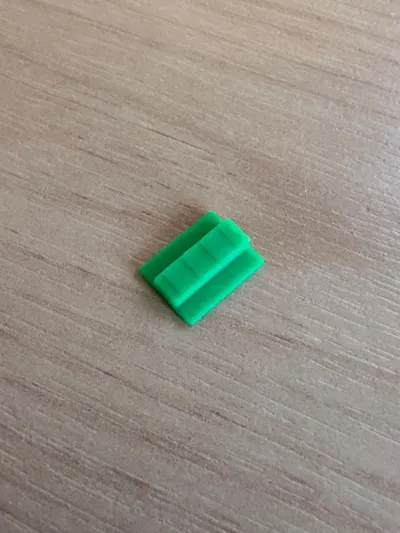

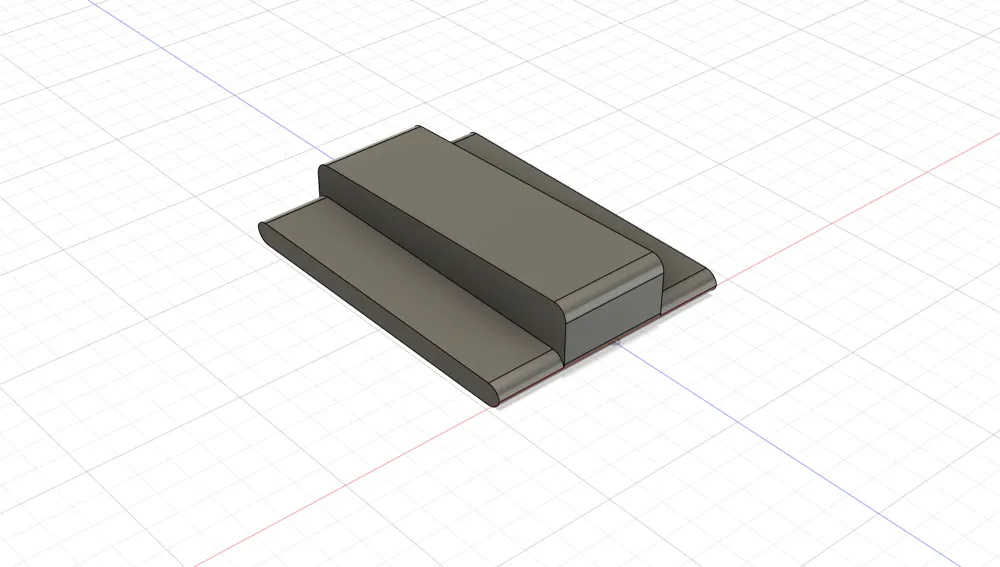

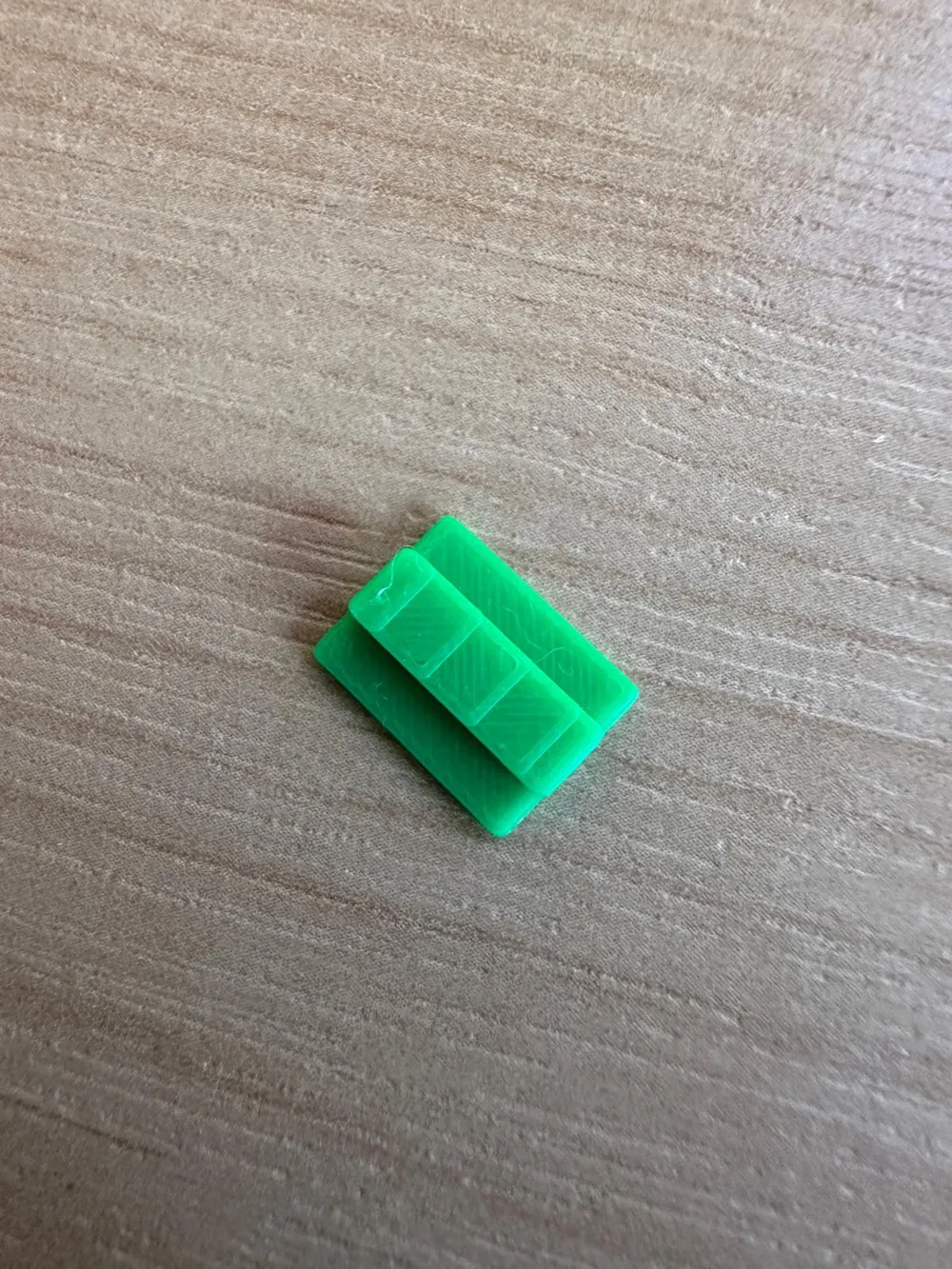

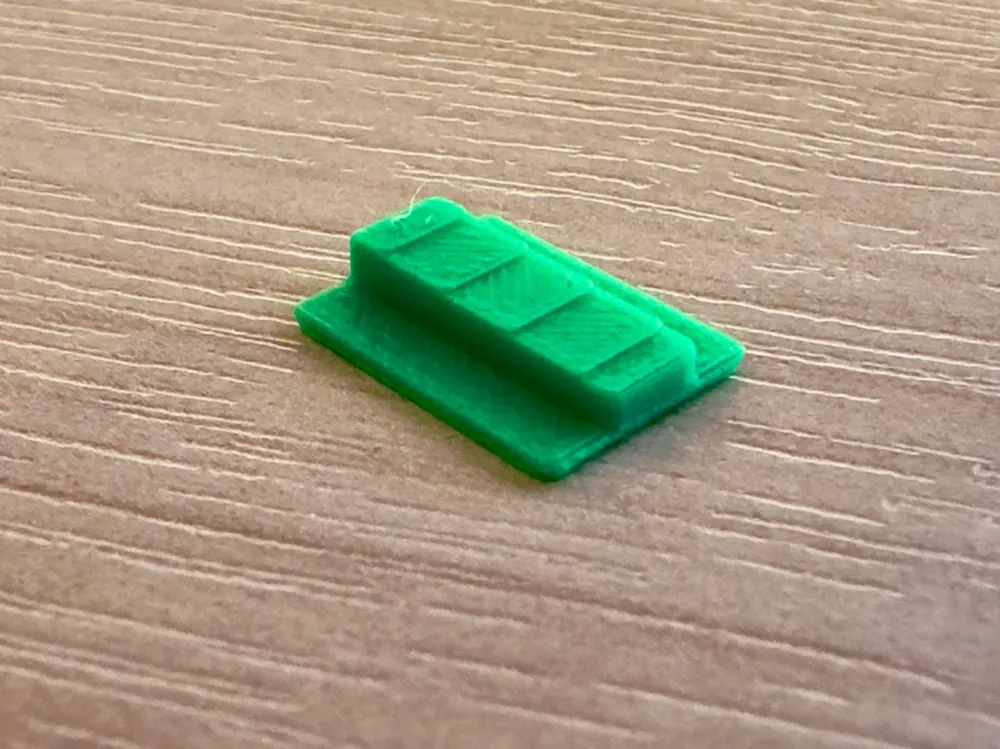

This is a custom-designed retention spring for plastic gas knobs,  to allow secure attachment and easy detachment from the control shaft.

The spring integrates a flexible clip mechanism that mimics the original part’s functionality, ensuring a snug fit.

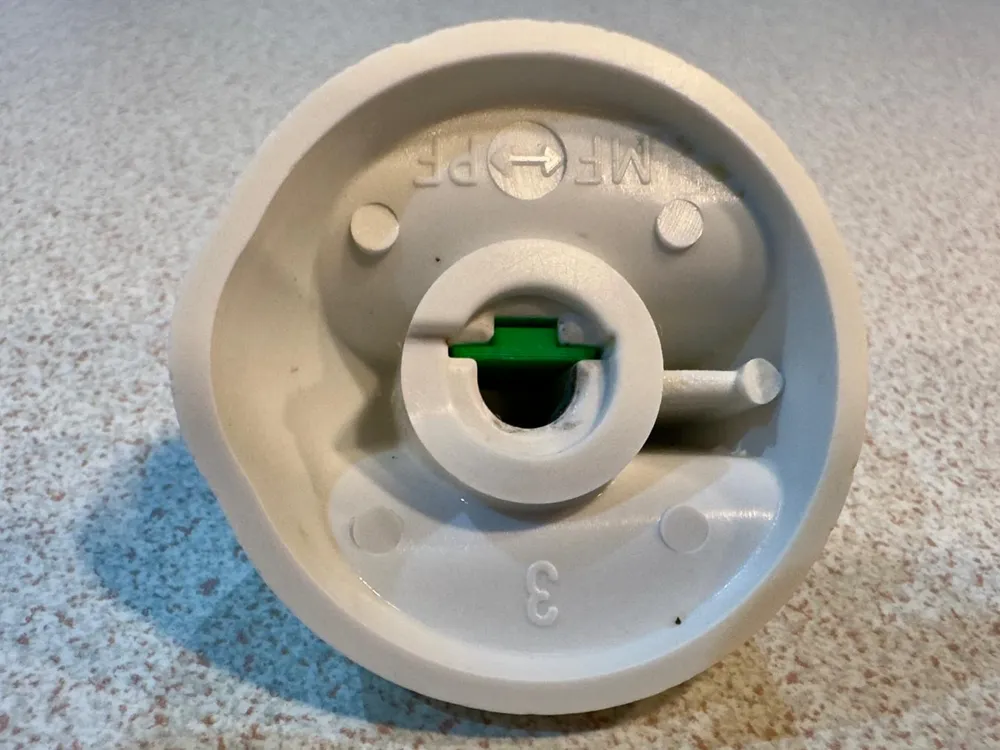

• Holds the knob firmly in place while enabling quick removal for cleaning or replacement.

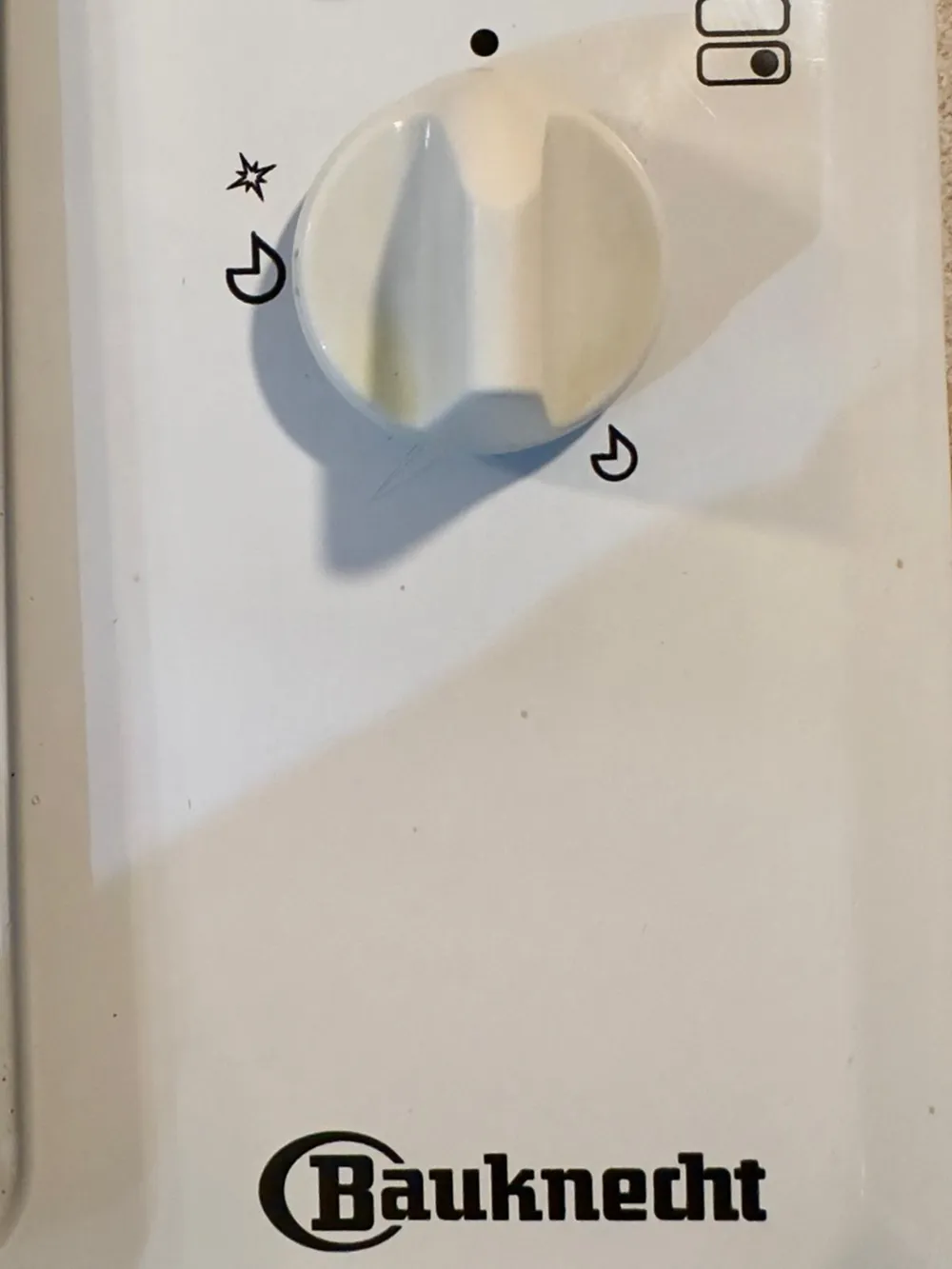

• Ideal for gas stove knobs, appliance knobs, or similar applications where a retention clip is required.

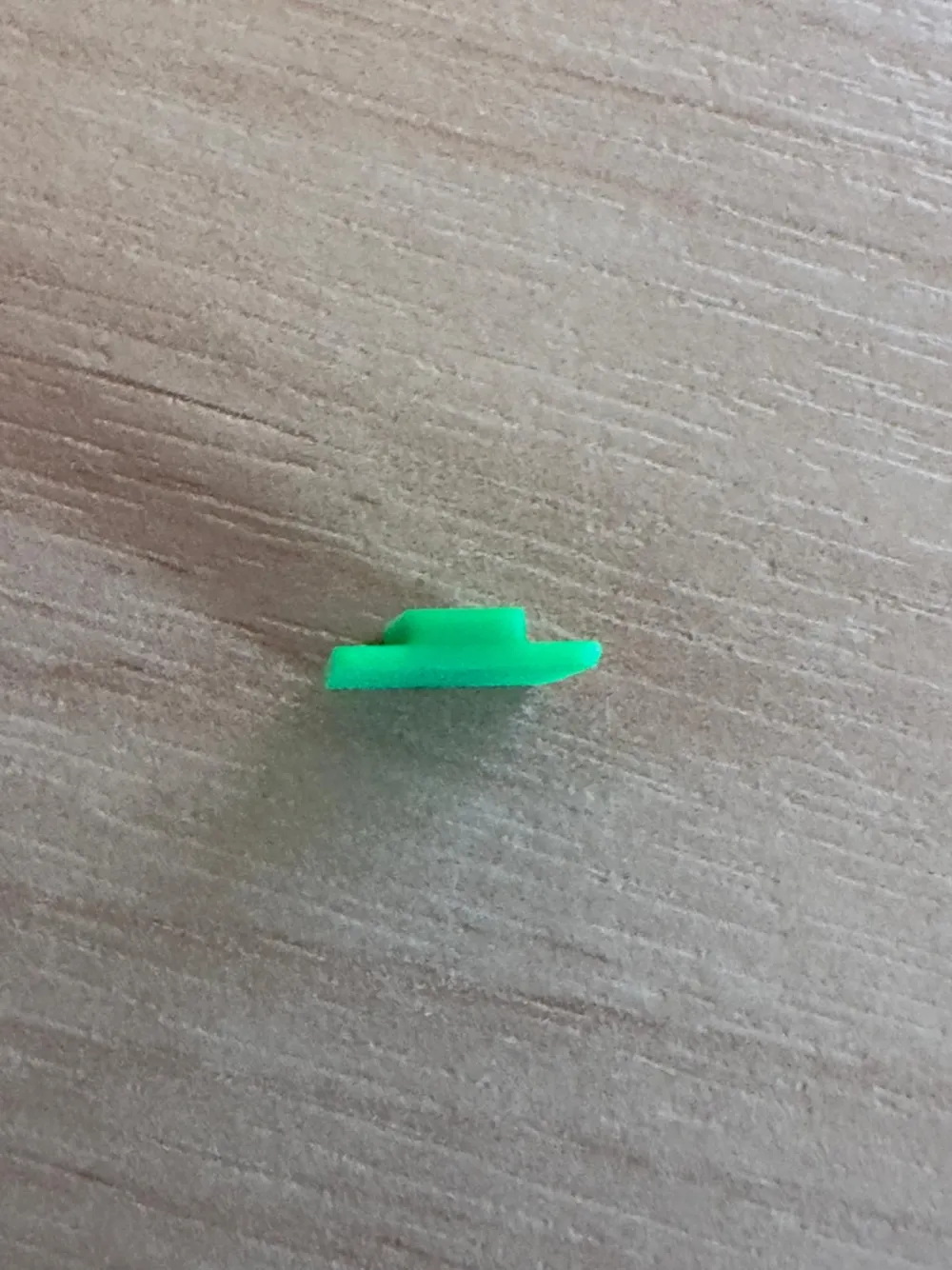

Note : made specifically for my gas knob, dimensions may vary a lot - the spring slit is 9mm wide, .8mm deep, with a 4mm retention. The clip is 12mm long.
