Lightweight Infinite Skadis Multi Panel Mount
Print Profile(4)
Bill of Materials
Description

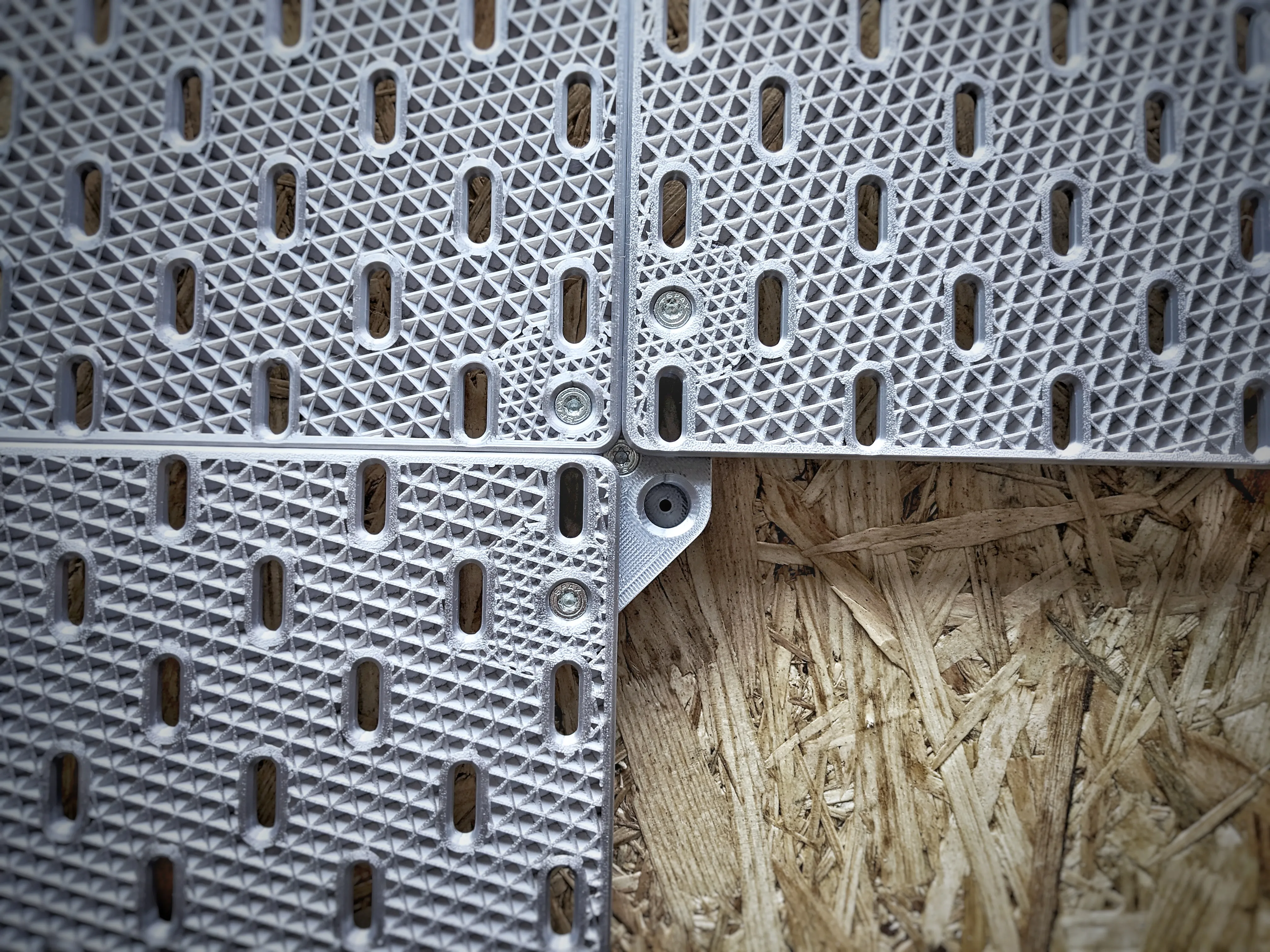

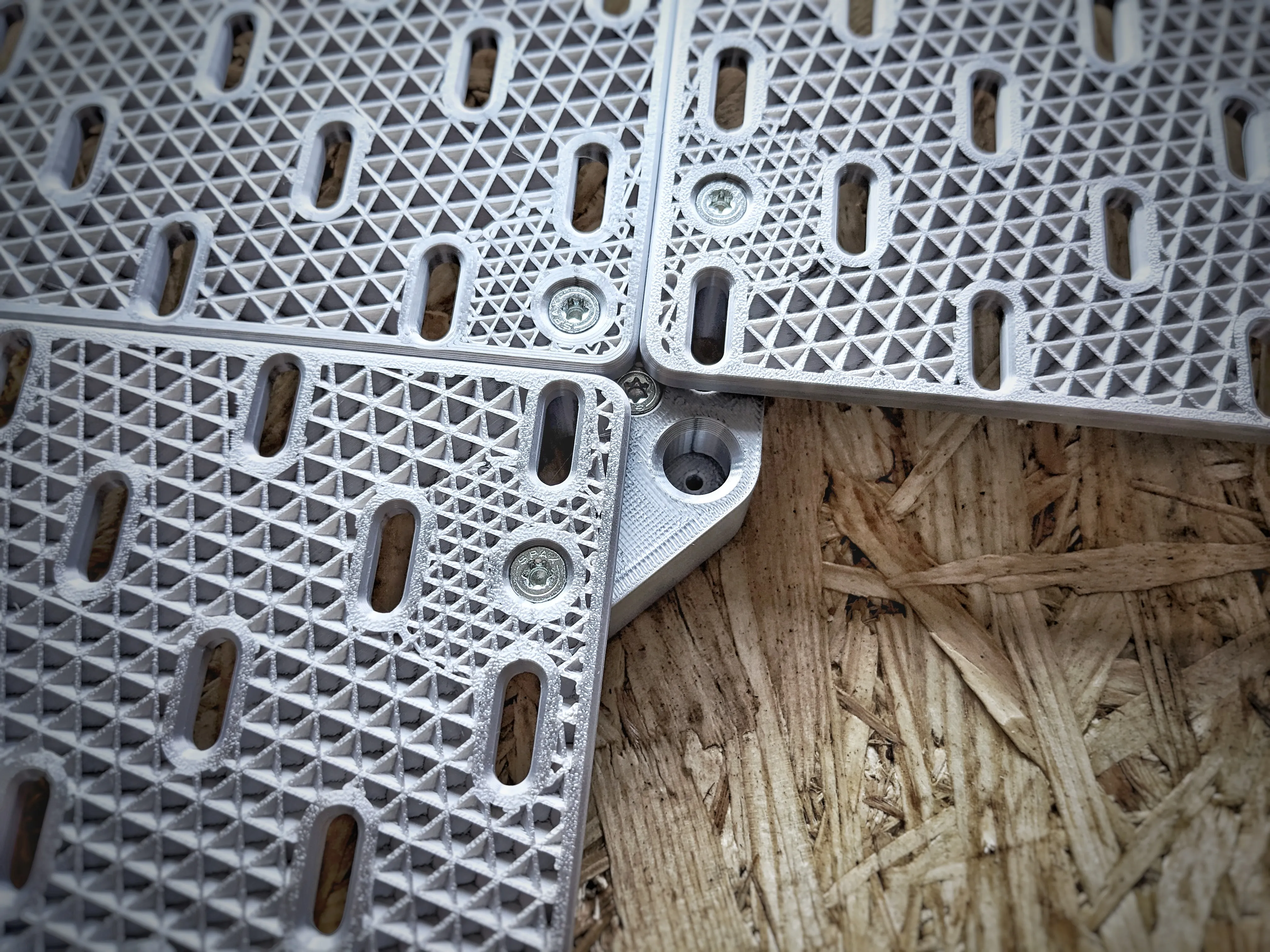

If you're building a wall with multiple Lightweight Infinite Skadis panels, this mount connects them together and reduces wall drilling dramatically. Instead of 4 screws per panel, you can get down to 1 shared screw point.
Designed exclusively for the Lightweight Infinite Skadis panels. Not compatible with standard IKEA Skadis panels!
Two sets available, choose based on your load requirements
| Bulky: standard wall thickness, maximum strength, recommended for heavy tools and dense setups. |  |

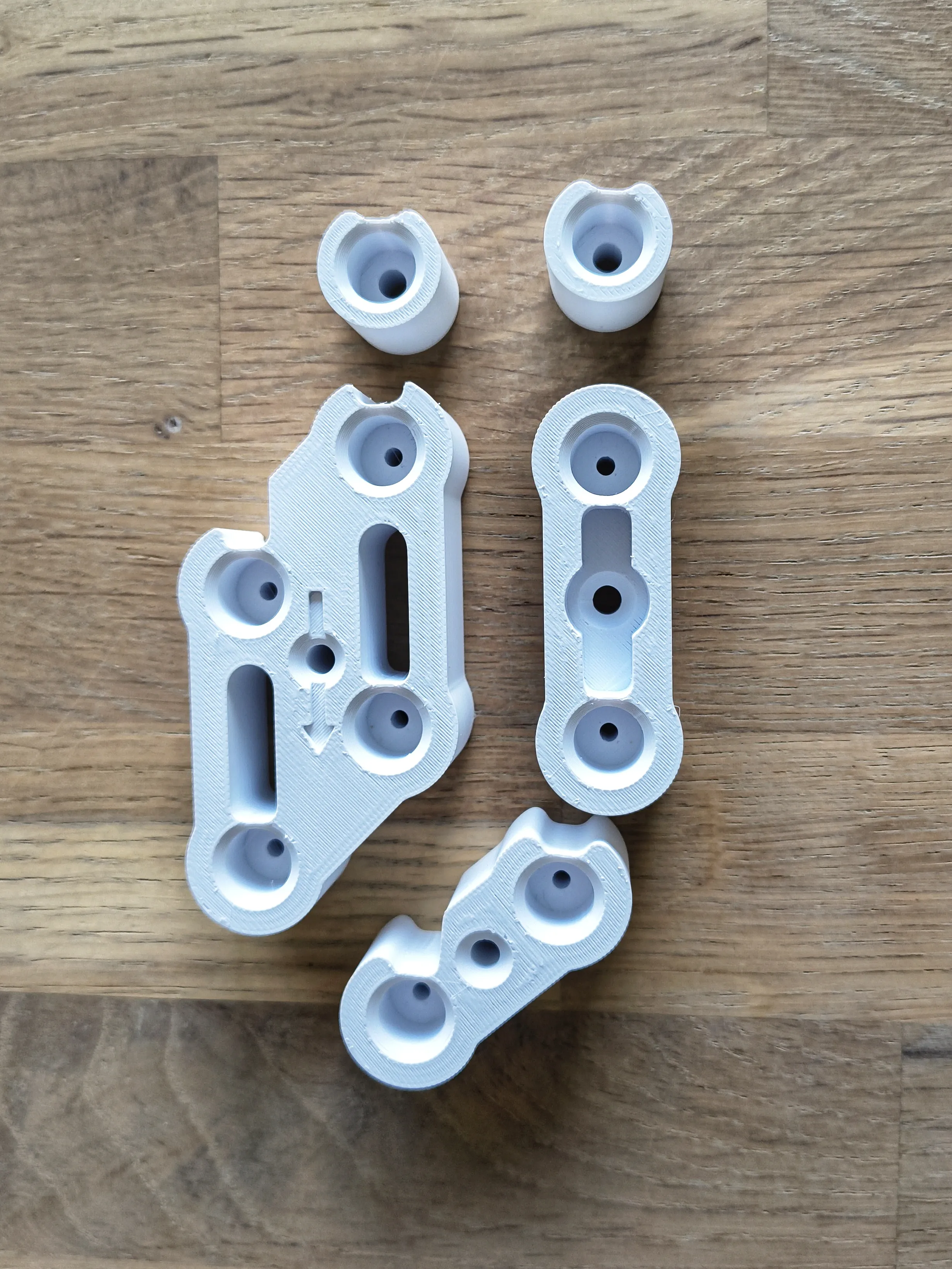

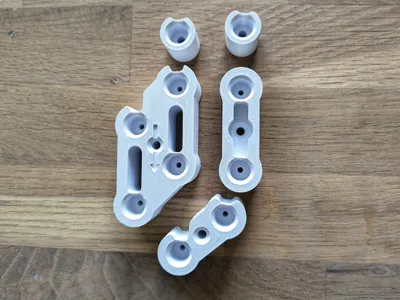

| Mini: material-saving cutouts reduce print time and filament use. Suitable for lighter loads. Use Bulky if you plan to hang heavy items. |
 |
For easy alignment just check: Infinite skadis Alignment Tool
Want to mount your panel without drilling? Check out the Lightweight Infinite Skadis Wall Mount - No Screws.
New to Lightweight Infinite Skadis? Start here:

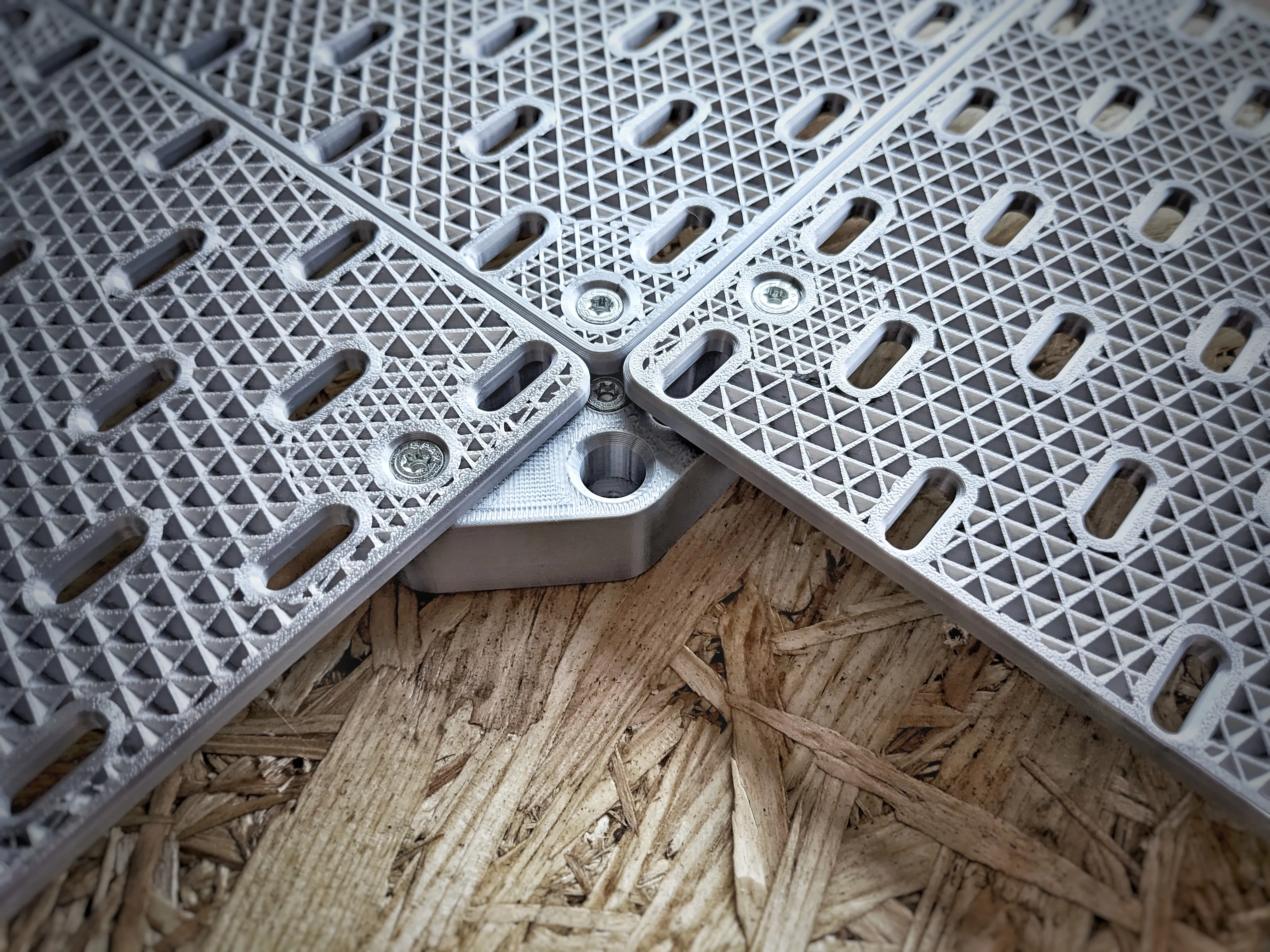

The mount adds approximately 10 mm of depth, which results in 20 mm total offset from the wall (mount + Light Weight Infinite Skadis board thickness). This creates a small, useful cable/air gap while keeping the setup visually close to the surface.

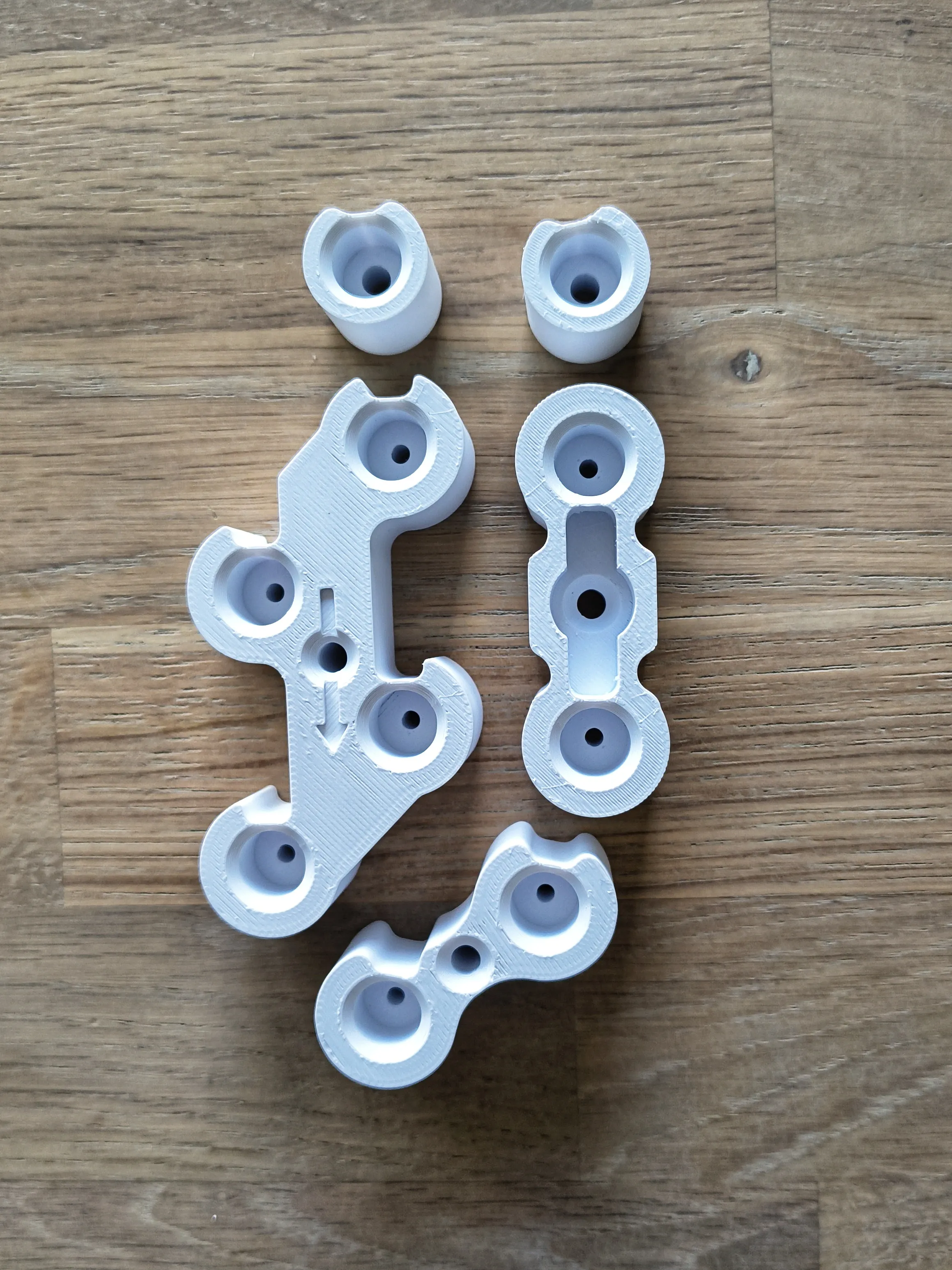

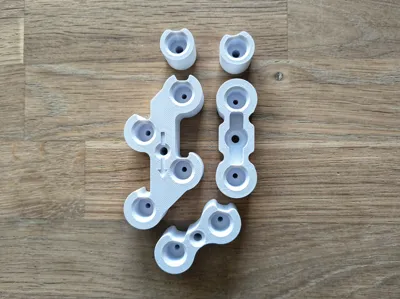

Included Components (same types for all versions)
| Component | Purpose |
|---|---|
| Quad Mount | Connects 4 panels together into one stable hub |

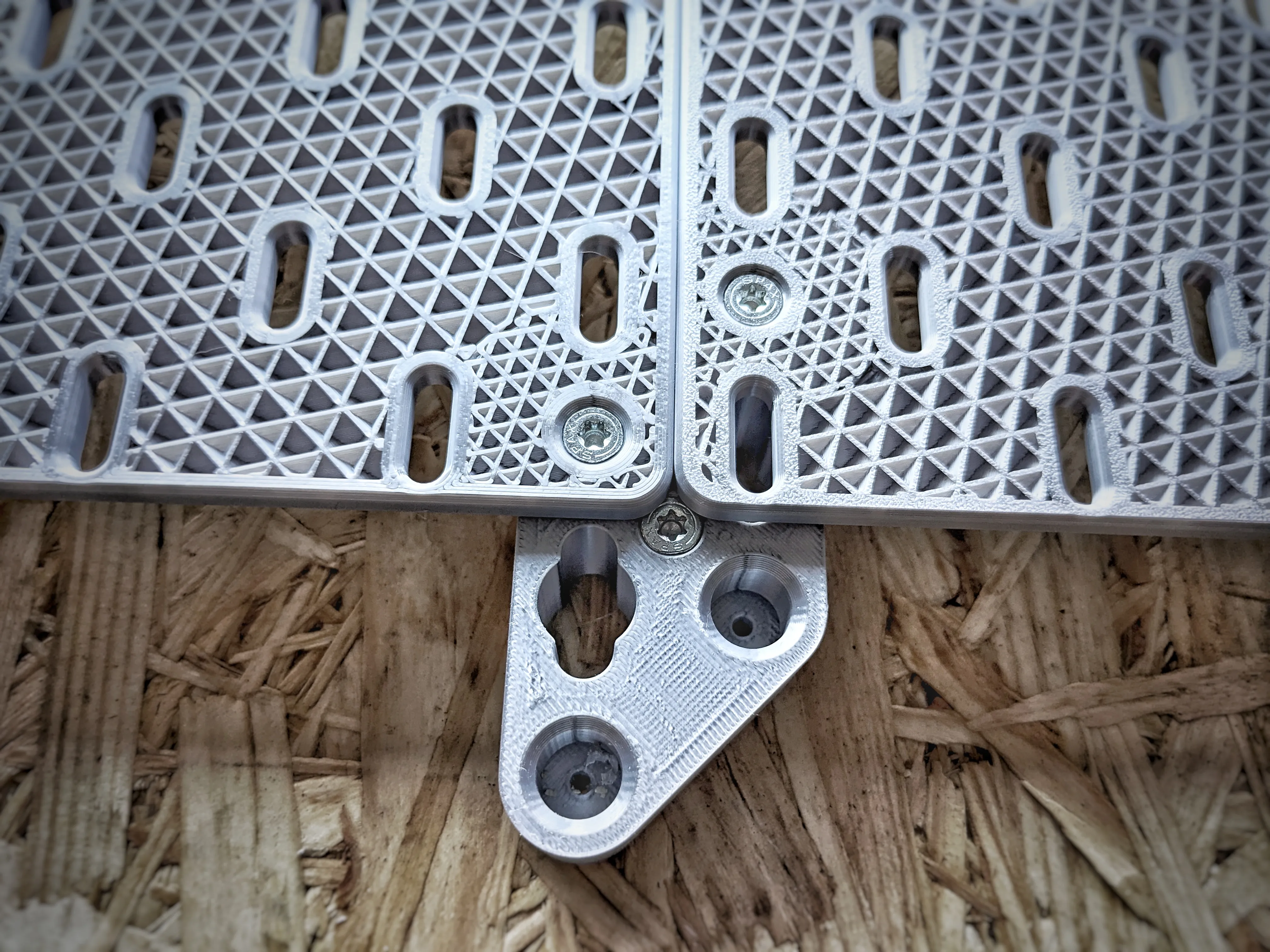

| Double Horizontal | Connects 2 panels side-by-side horizontally, useful in the top row and bottom row and it is essentially the bottom part of the quad. |
| Double Vertical | Connects 2 panels stacked vertically, will be required on the far left and far right columns and it corresponds to the vertical half of the quad. |
| Single Mount pass throught | For a single panel endpoint or areas without adjacent connections, single with a through hole are needed on the corners. |
Recommended Hardware
- Panel to Mount: M4 x 25 mm screws
- Mount to Wall: M4 x 50-60 mm screws (depending on wall material and anchors)
 |
|
|  |
Update 09/05/2026: added bulky and mini versions, v1 moved to obsolete
Update 07/02/2026: Added single mount with smaller hole (to v1) - intended to use 25mm screws, without pass to wall, requested by @torizuki.
