soldering jig for WS2812 COB strip & 18 AWG wires
Print Profile(1)
Description
Boost Me (for free)
If this print made you smile, solved a problem, or just came out great, feel free to give it a boost 💚 It’s free, makes my day and helps keep my printer running. Every boost = more designs, more experiments, and more fun prints for everyone.

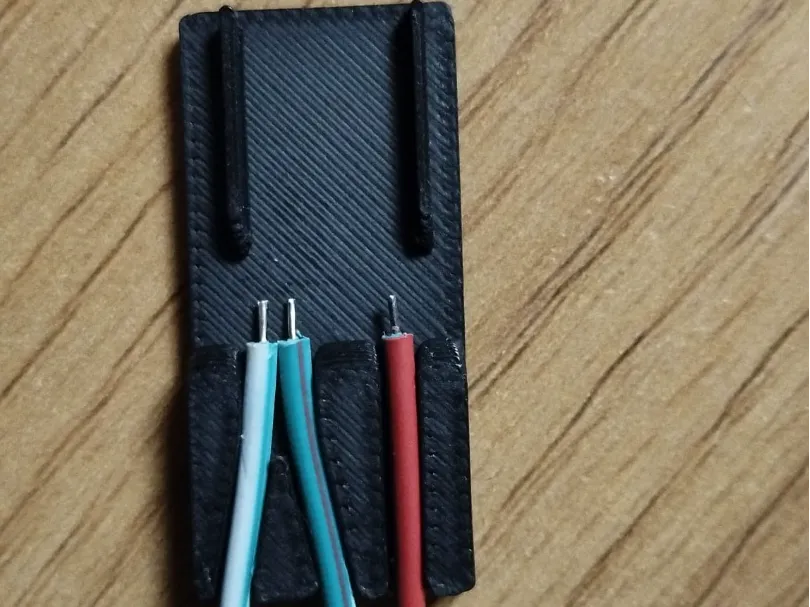

Custom soldering jig made on request. Initially, this model still required real-world testing for proper fit and alignment, as I did not have a COB LED strip available at the time of design.
I’ve now received confirmation from a user that everything fits correctly. This jig is designed for 18 AWG LED wires and a 10 mm wide COB LED strip.
Related jigs you might find useful:
- I also have a jig for a standard 10 mm LED strip with 18 AWG wire:
https://makerworld.com/en/models/1302402-led-strip-soldering-jig-18-awg#profileId-1335007 - And one for a standard 10 mm LED strip with 22 AWG wire:
https://makerworld.com/en/models/418201-soldering-jigs-10mm-ledstrip-3-wires#profileId-320734
If you need a jig for a different wire gauge or LED strip combination, feel free to contact me and I’ll see if it’s possible to design one for you.
Don’t forget to like and follow to see my latest free 3D printable designs. Your support keeps me inspired to make more fun, useful prints for everyone. Thanks, and happy printing! 💚
