Recreate the high-frequency vibrating particle knife used by Unit-01 in Neon Genesis Evangelion (EVA)!
Materials and consumables: PLA-Black (0.16mm layer height), 4mm*35mm pins, rubber bands (approx 4cm diameter), 401 glue
Because it is printed in a single color on A1, the original color separation cannot be restored. A colored version will be released later for users with AMS to print.
The spring mechanism uses rubber bands to achieve folding and pop-out. The strength and number of rubber bands should be limited to two
The hook position uses a sandwich design to ensure the strength of the hook-lock structural parts; just glue it firmly

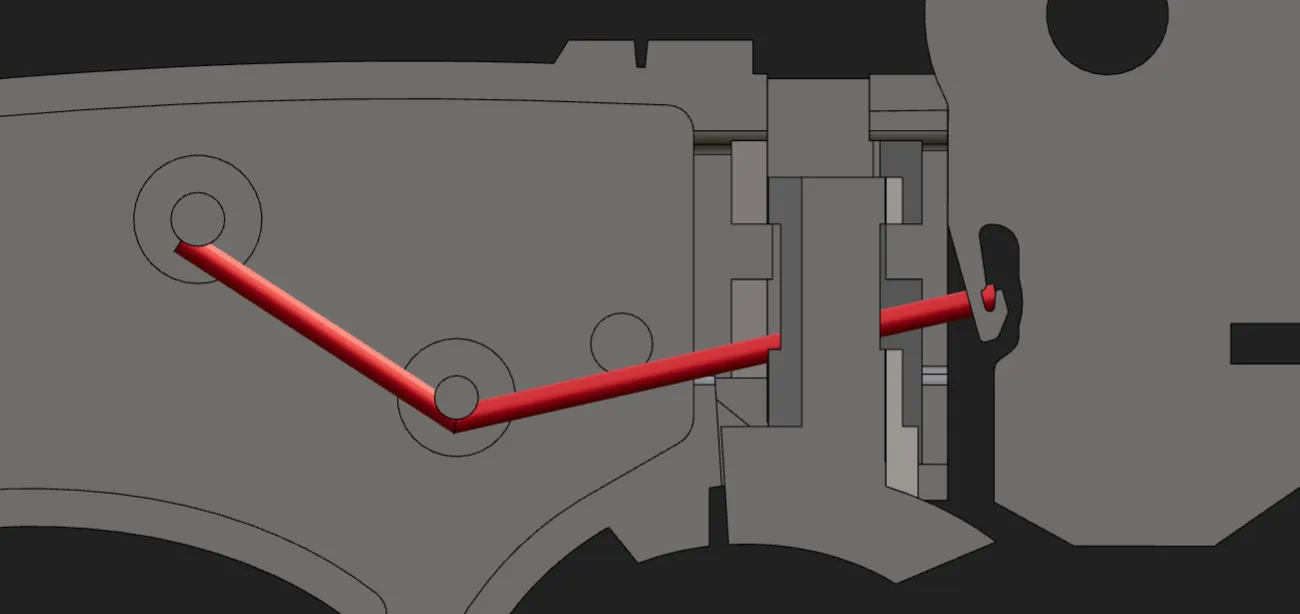

Rubber band connection method ↓:

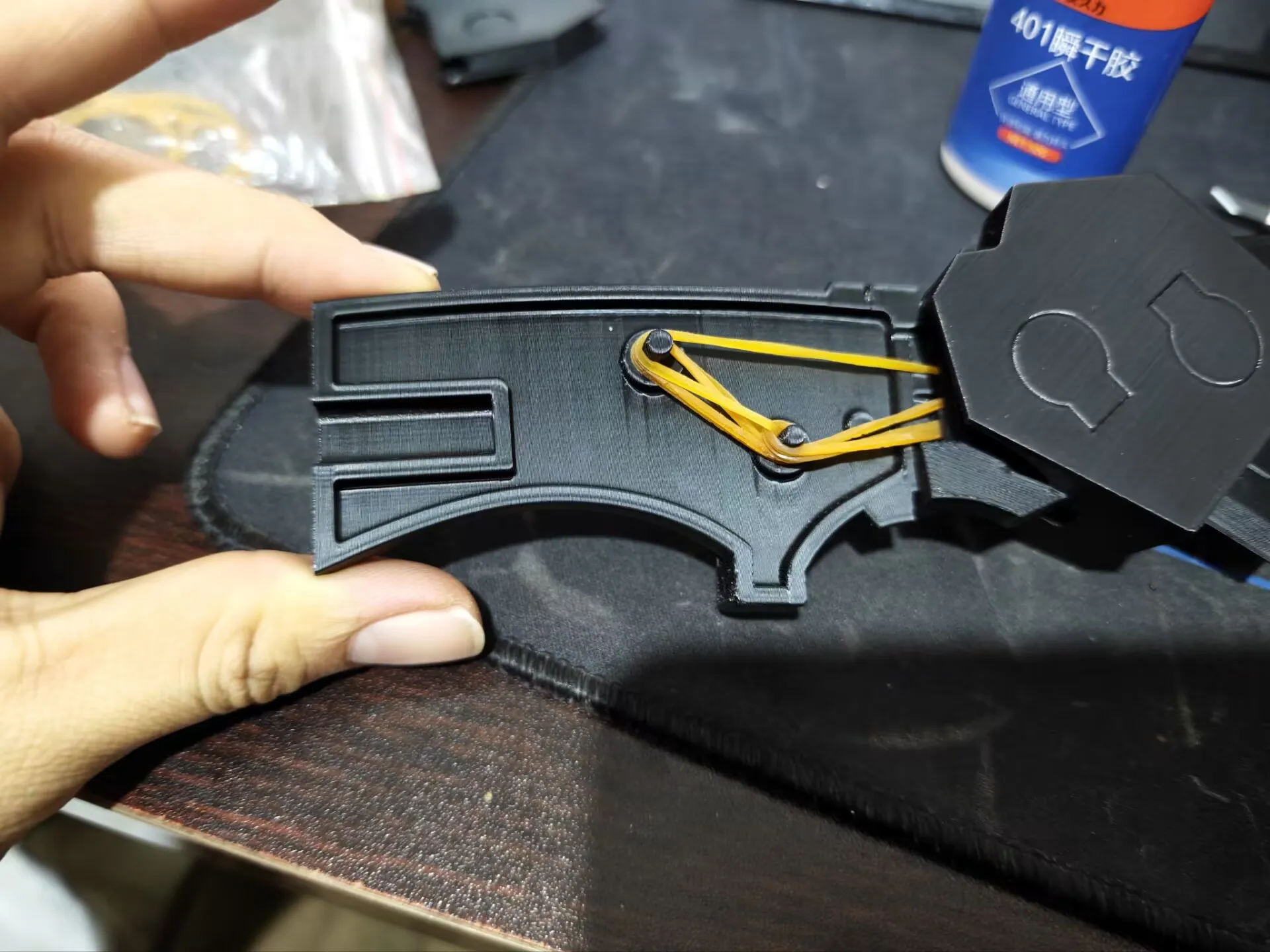

First, pass through the hook, clamp the trigger, then wrap around the post
(As shown:)

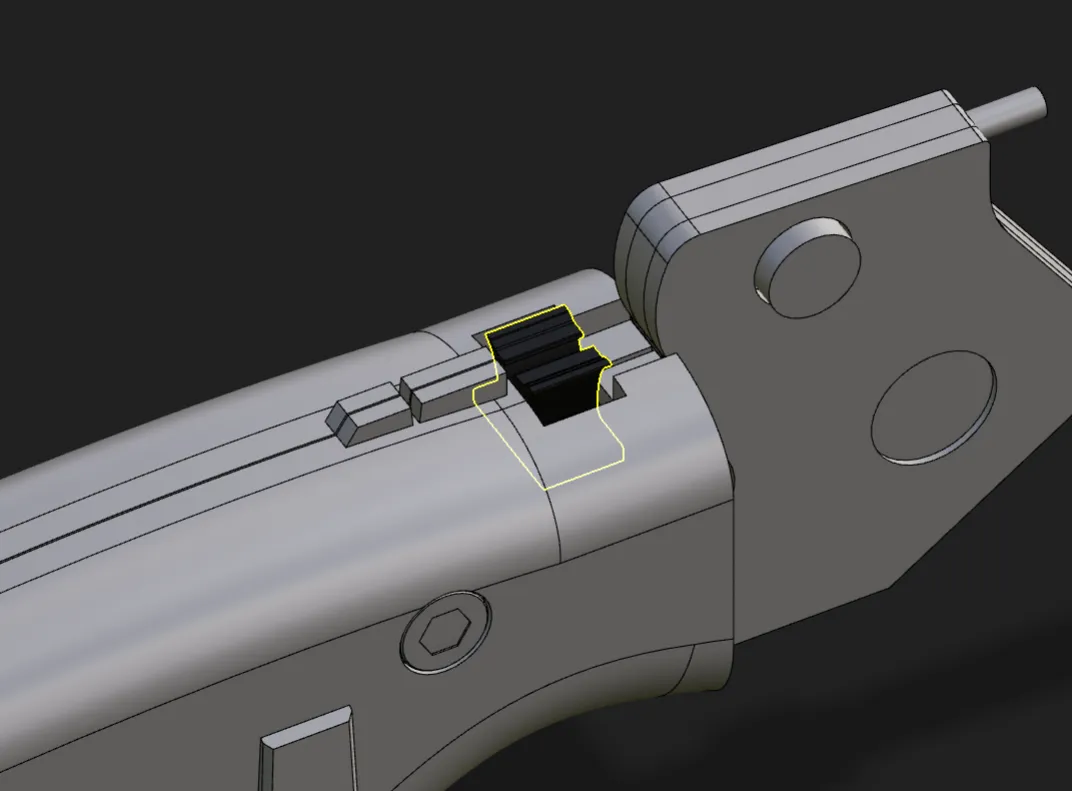

After joining left and right, as shown in the figure, place the part displayed in the yellow border frame into the groove, paying attention to the correct orientation

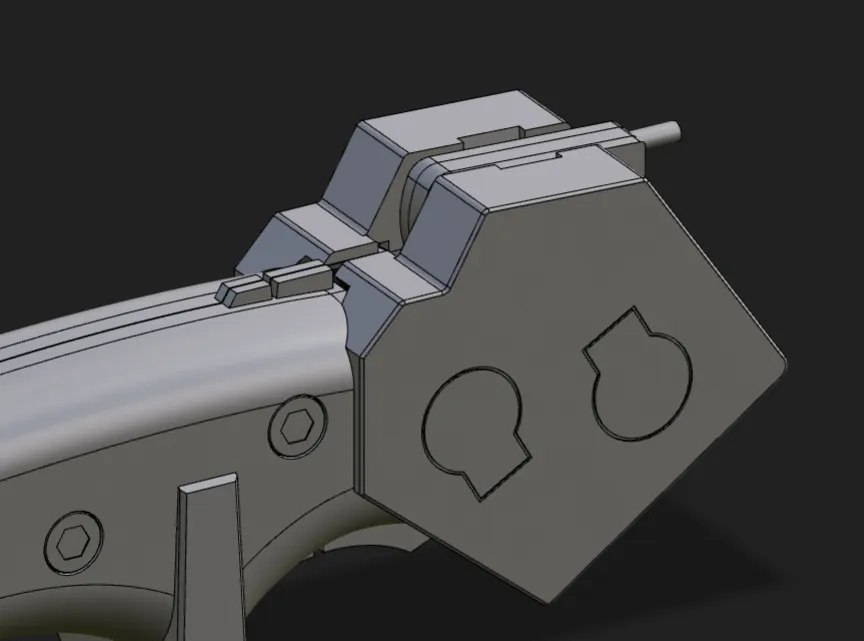

Final step:
The cylinder passes through the opening
Insert into the component, ensuring the rubber band passes through from above
The contact points between the grip and this part should be firmly glued to ensure normal trigger operation
