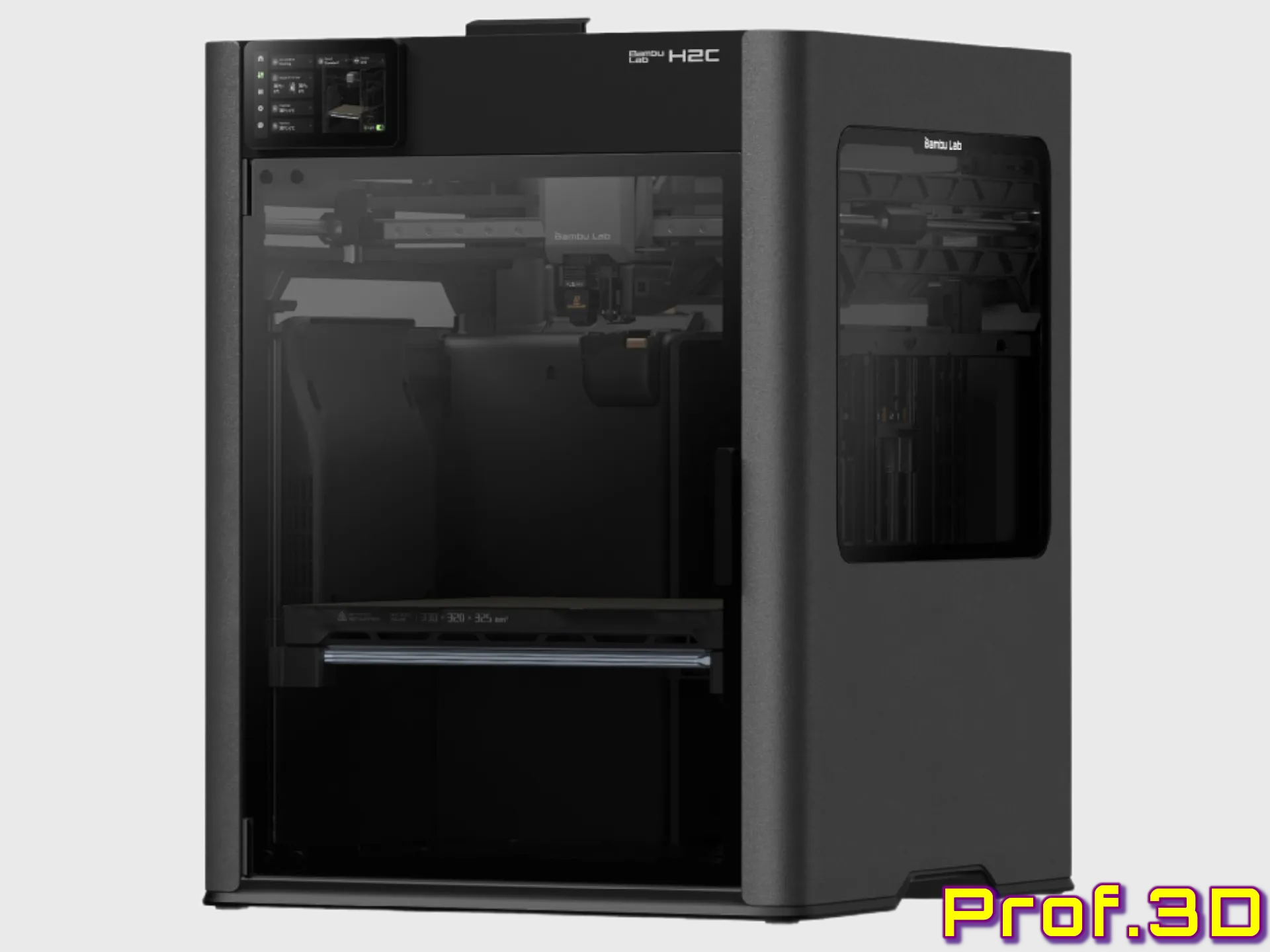

This bearing attracts dust like a magnet, and sweeping the floor around the printer only makes it worse. Here’s the fix: a clean, tight fitting cover for the H2C, H2D, and H2S Z axis bearings.
 Designed as part of my ongoing collection of practical Bambu Lab upgrades. Each model is conceived, printed, and endurance-tested on my own machines, refined through dozens of iterations to match the printer’s true mechanical behavior. Precision isn't assumed here, it’s verified layer by layer.
Follow me if you like my work, that kind of appreciation really dries my filament. Likes and boosts feed the Maker World algorithm and keep the new models coming |

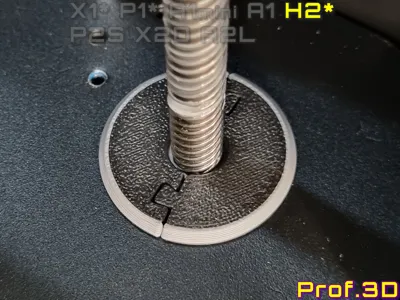

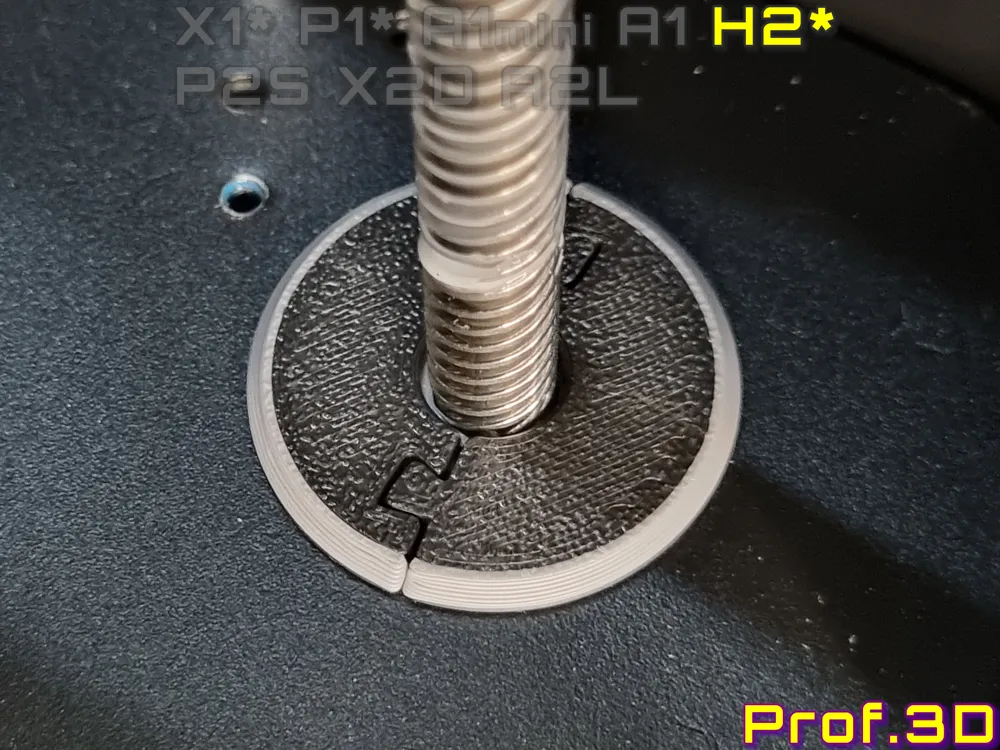

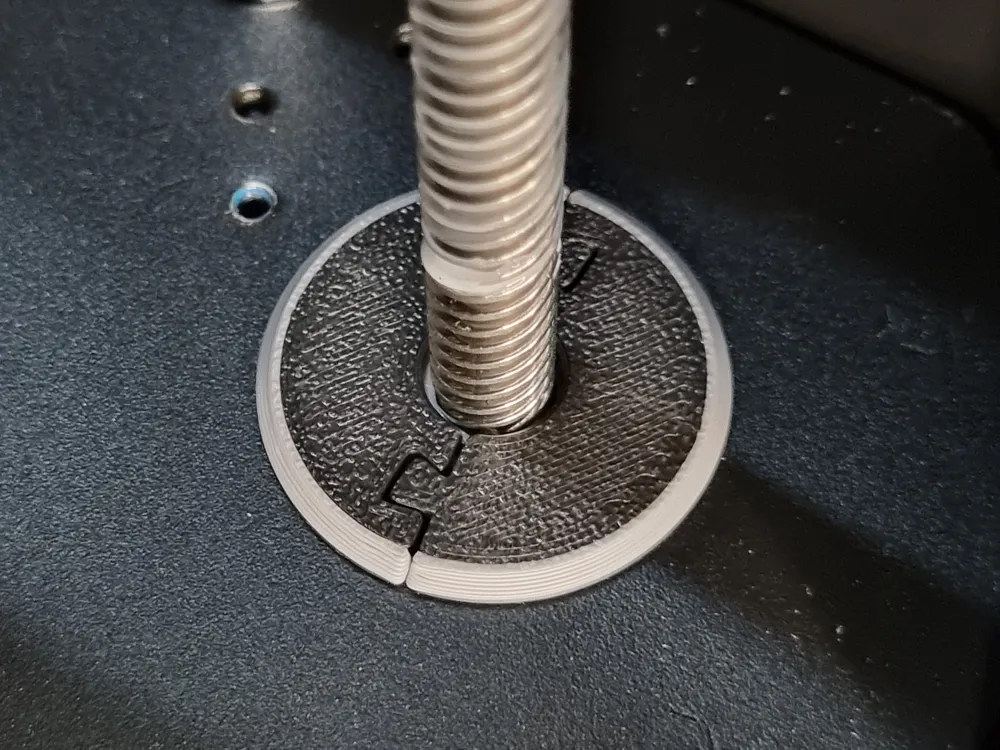

The two shells snap together like a small puzzle. Precise cutouts and tested tolerances make installation effortless, and once clipped in place the cover sits with almost no play on the bearing.
No screws to remove, no axis to disassemble. The two piece design wraps neatly around the existing hardware and just works.

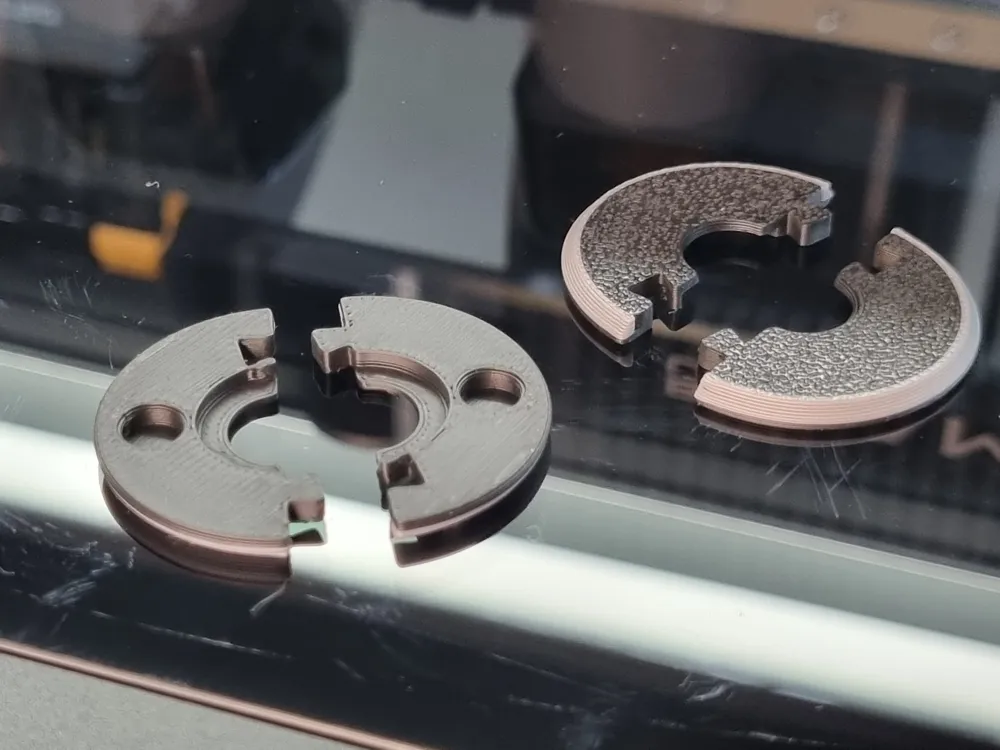

Please note: different dimensions for the rear threaded rod and the two front ones. The model is aligned on the build plate according to the installation location.
Part #09 in my H2Collection Design Journey.
