Nikon Z Mount to 32mm Telescope Tube Adaptor

Print Profile(1)

All
X1 Carbon
X1E
A1 mini
H2C
P1S
H2D
H2S
P2S
H2D Pro
P1P
A1
X1
X2D
A2L

PETG, 0.2mm layer, 4 walls, 20% gyroid infill
PETG, 0.2mm layer, 4 walls, 20% gyroid infill
Designer
1.1 h
1 plate

Open in Bambu Studio
Boost
1
13
0
0
17
7
Released

Description

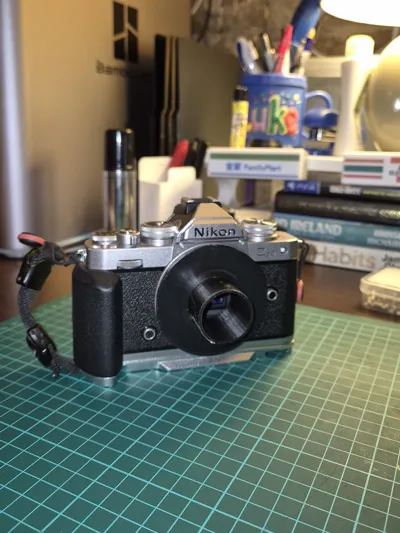

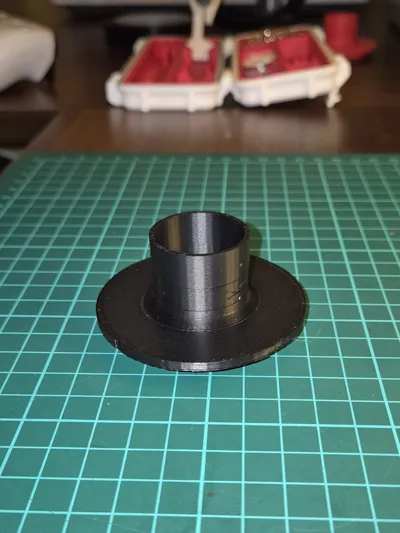

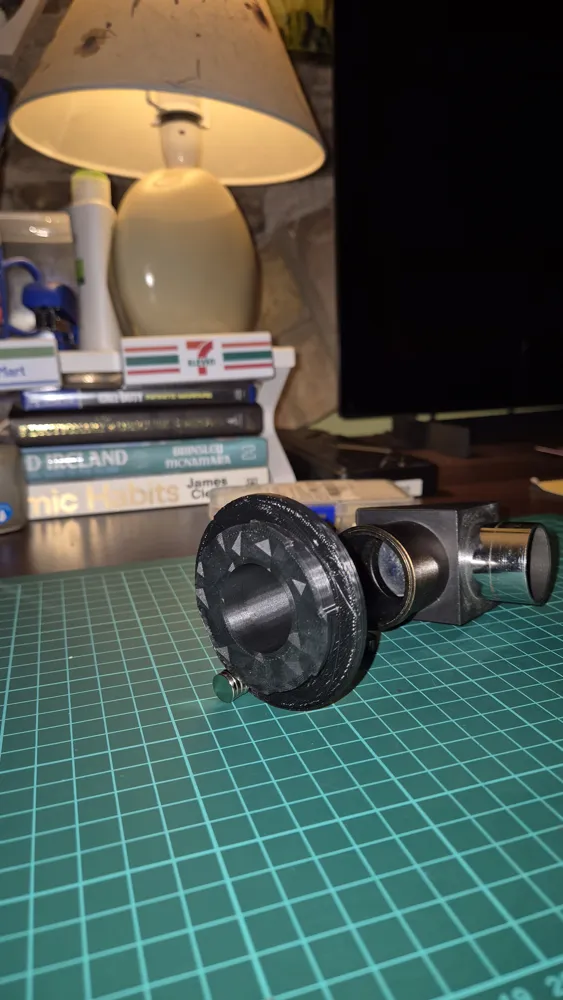

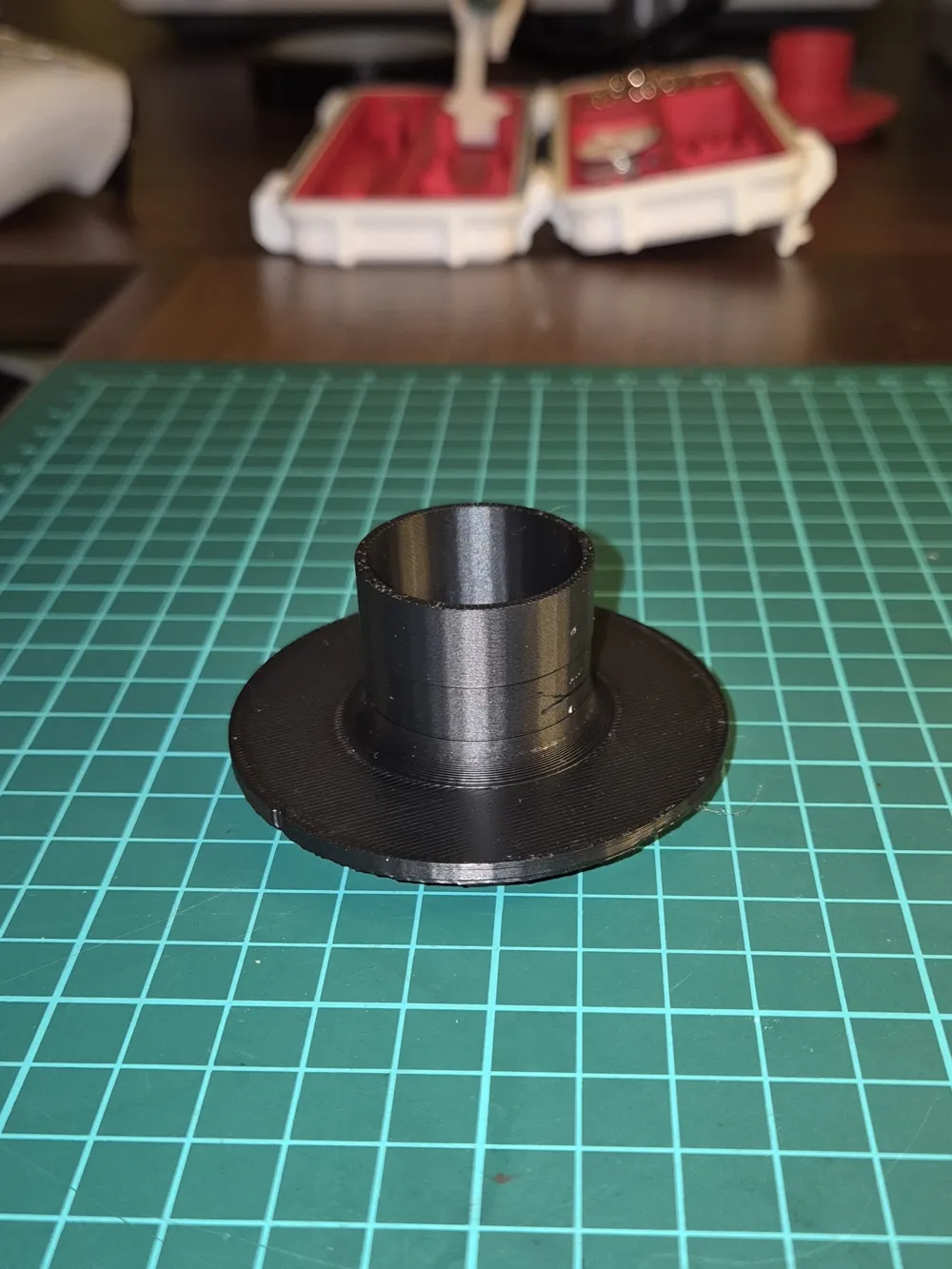

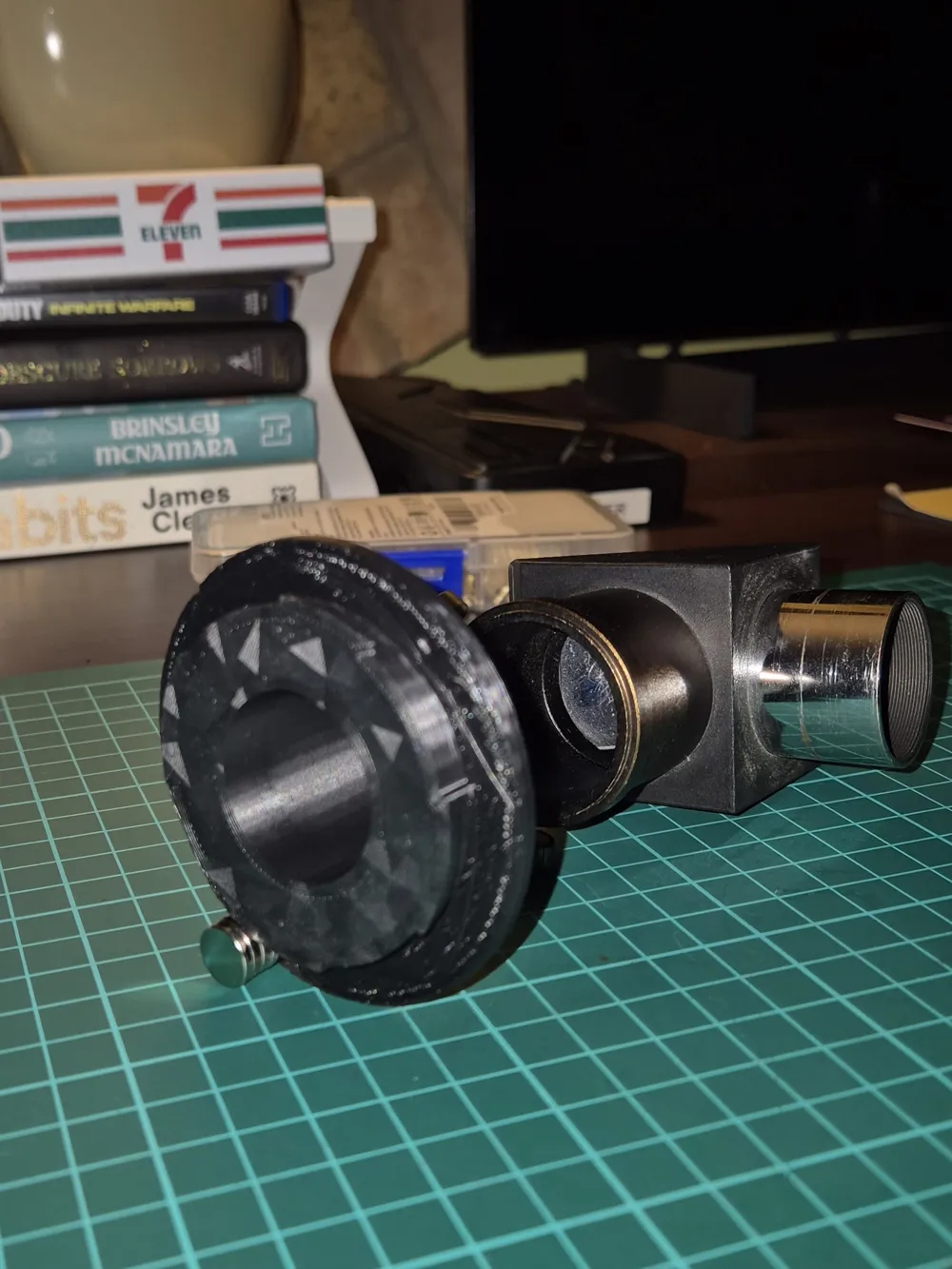

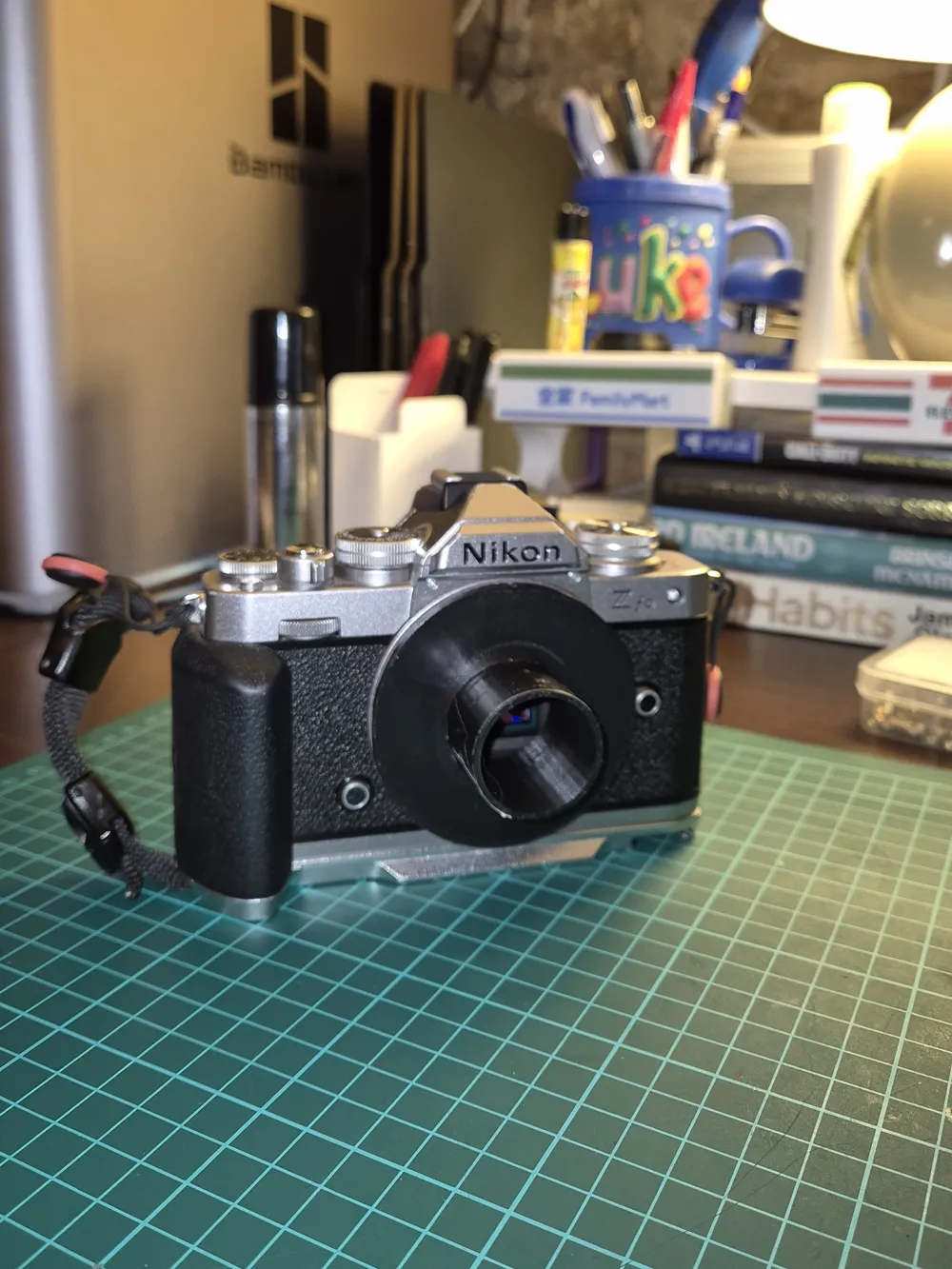

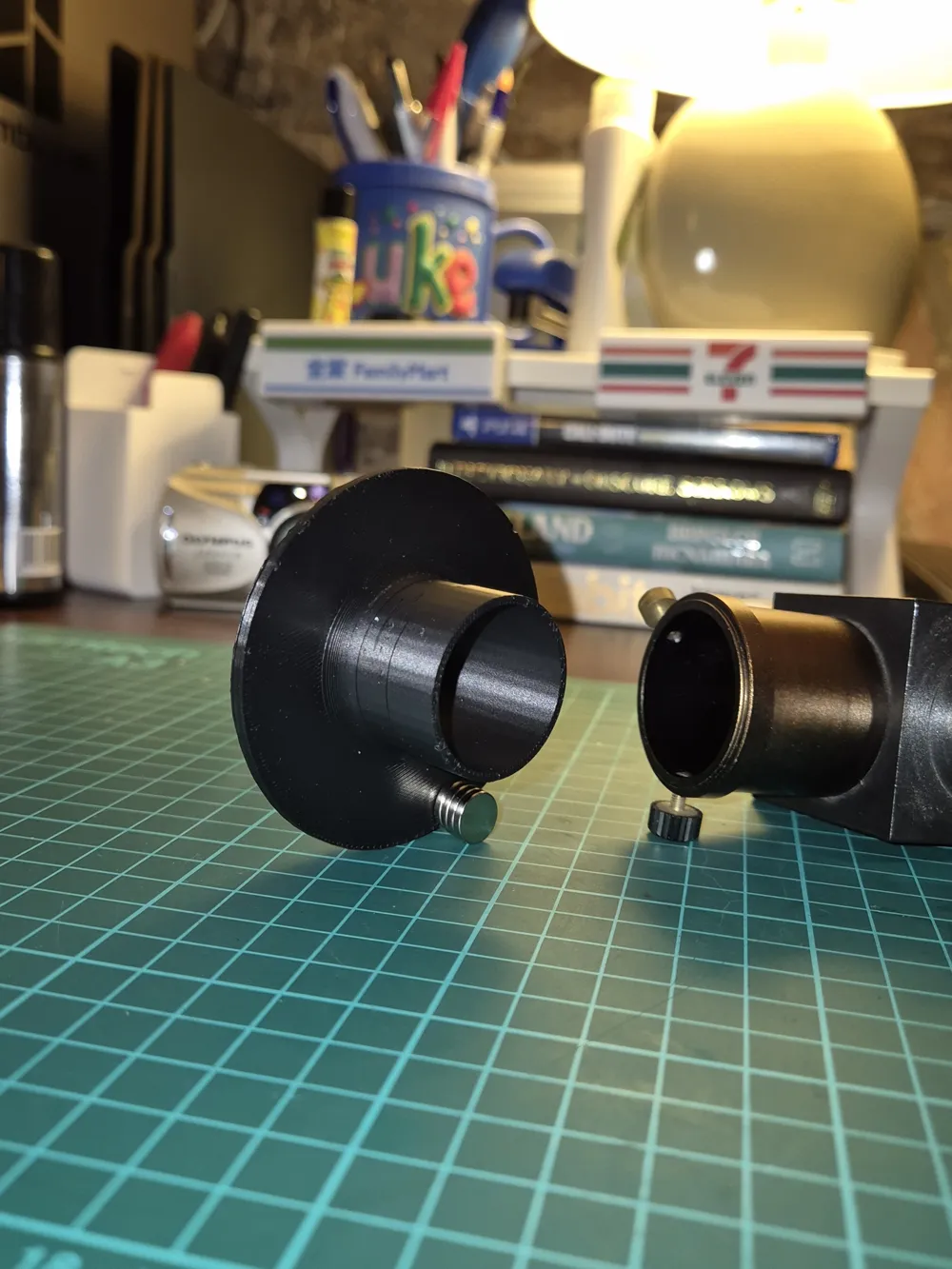

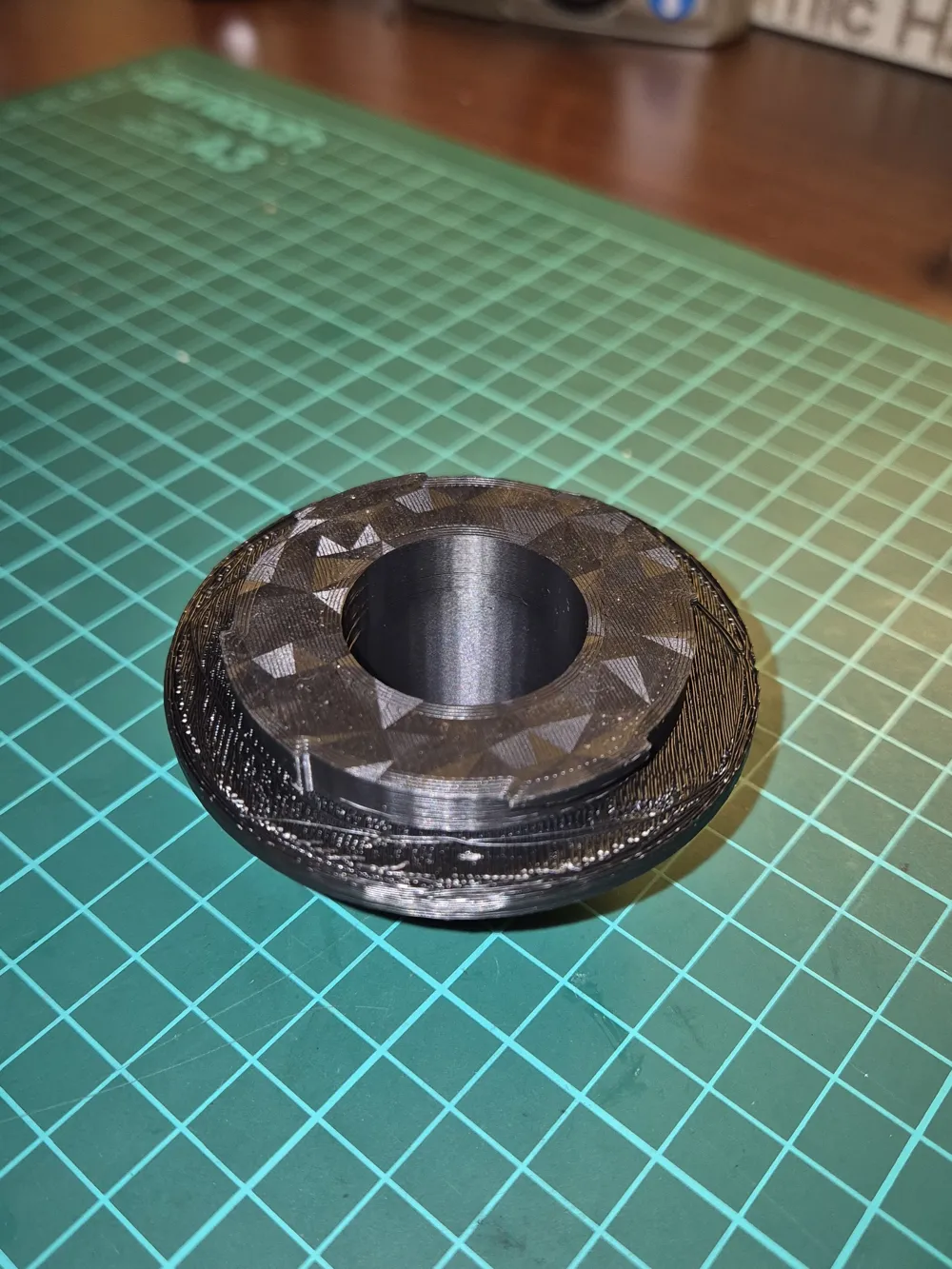

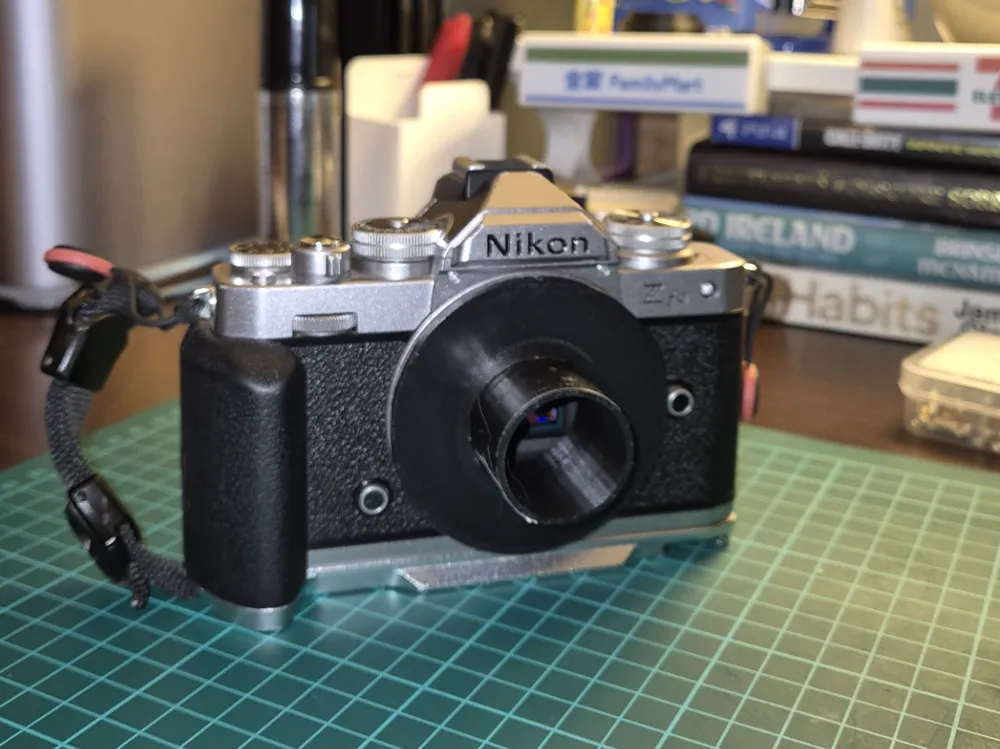

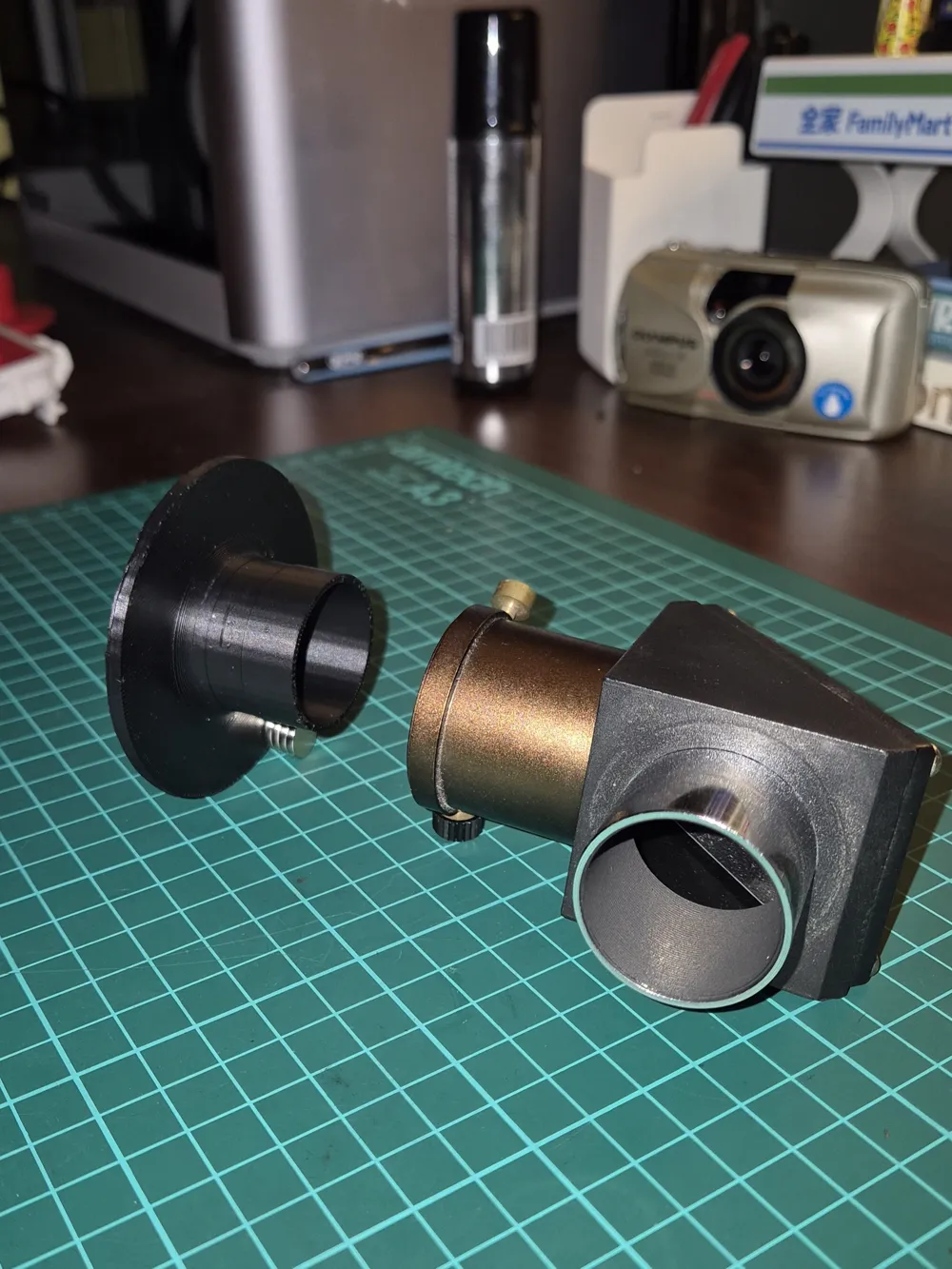

Adaptor for mounting a Nikon Z mount camera to a 32mm telescope fitting.  The tube is about 24mm long and has an indented ring for retention.

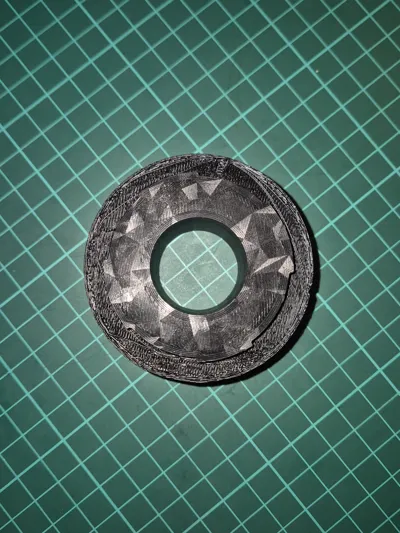

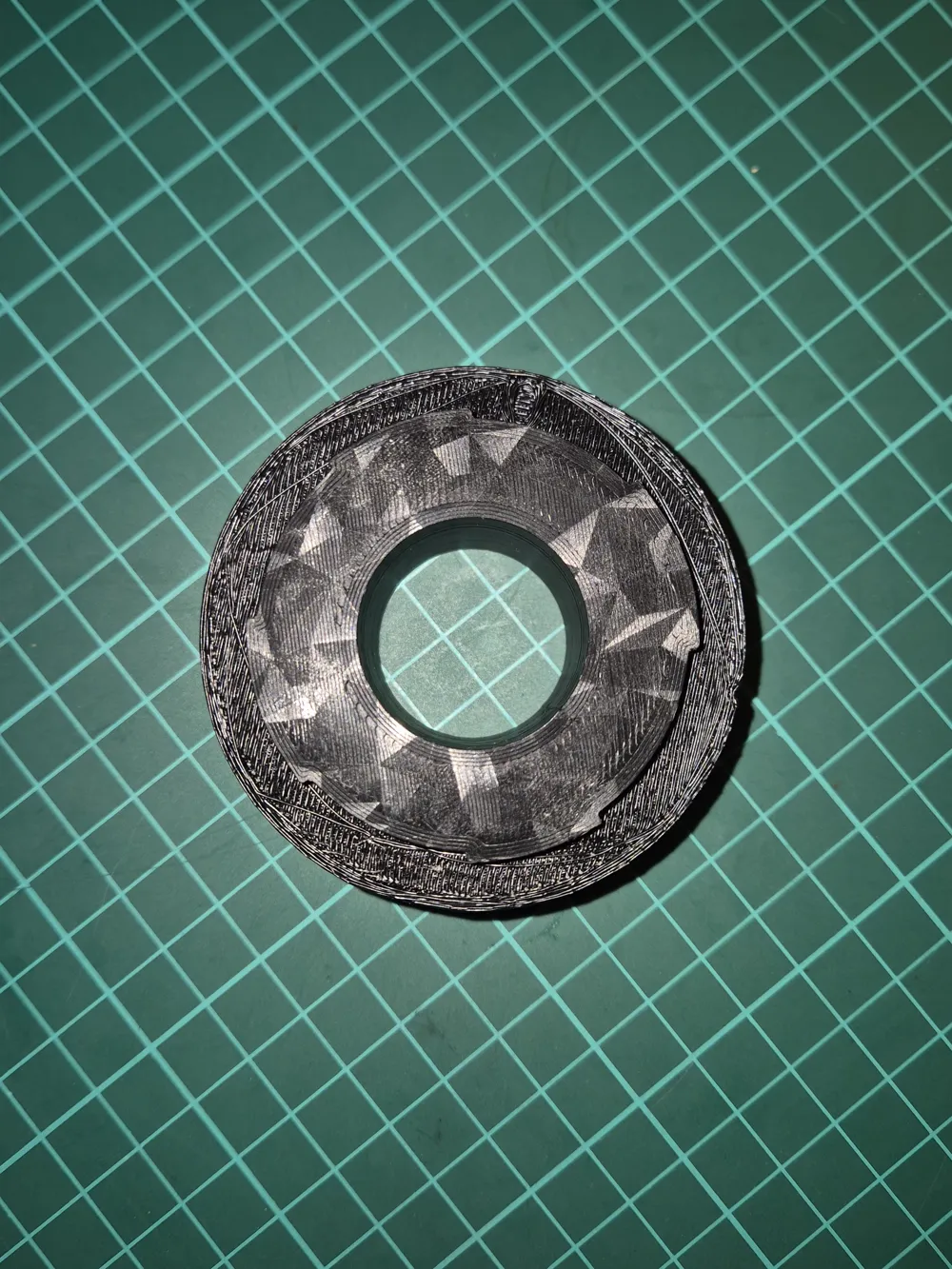

The camera Z-mount has a notch for alignment and a recess so that it clicks into place on the camera body.

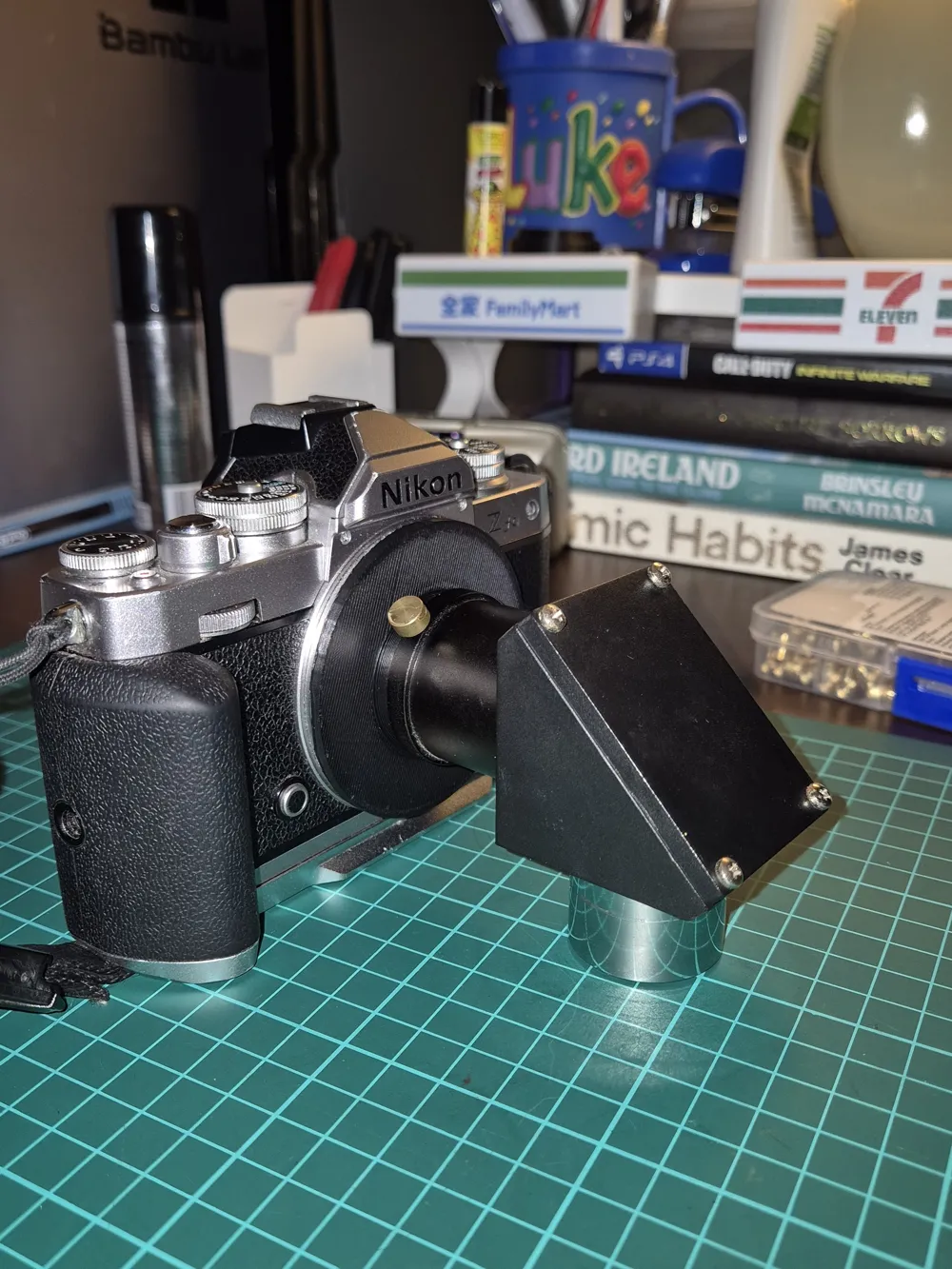

I recommend adding a strip of duct tape around the tube part to reinforce it and be mindful to support the camera when moving the telescope, especially with heavier full-frame cameras.  I increased the wall count for strength but you can never be too careful.



I inculded the .sldprt file in case anyone needs to make edits.
