Deep Blue Car Tuotuo Clip Screen Mount

Deepal Car Tuotuo Tie Screen Mount

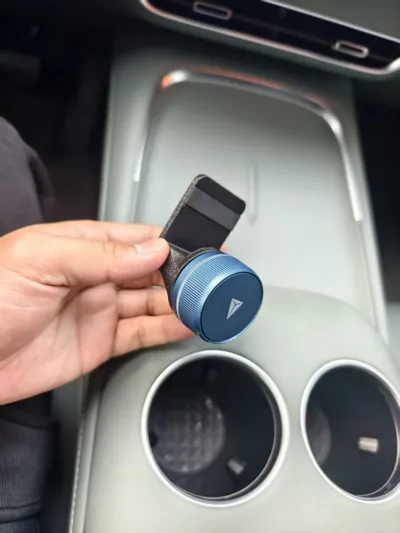

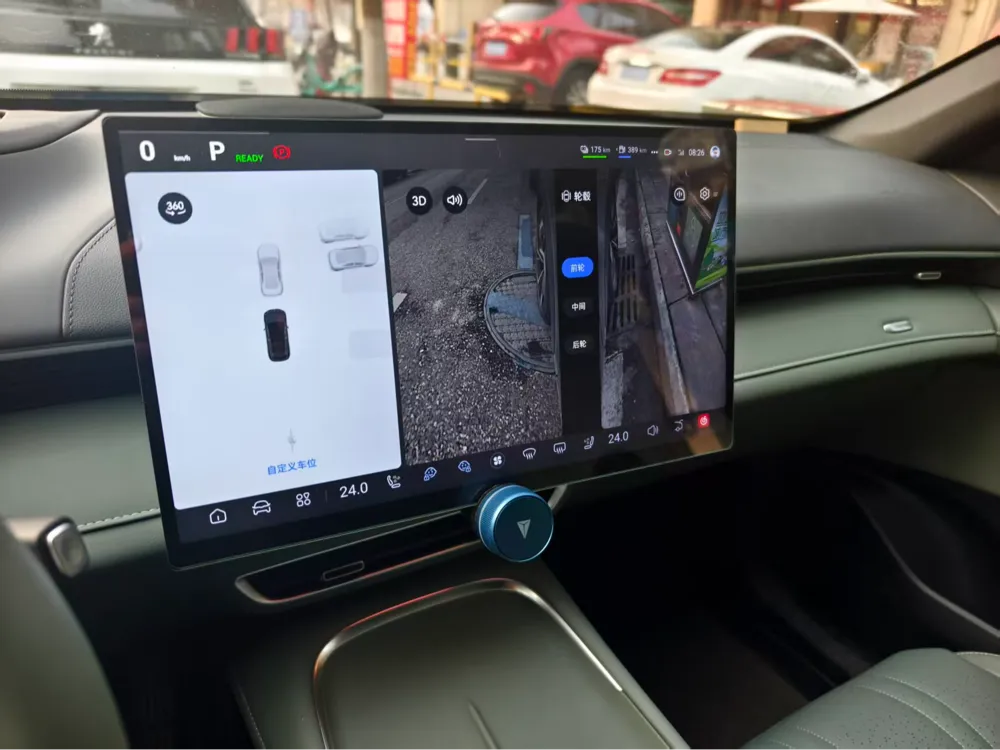

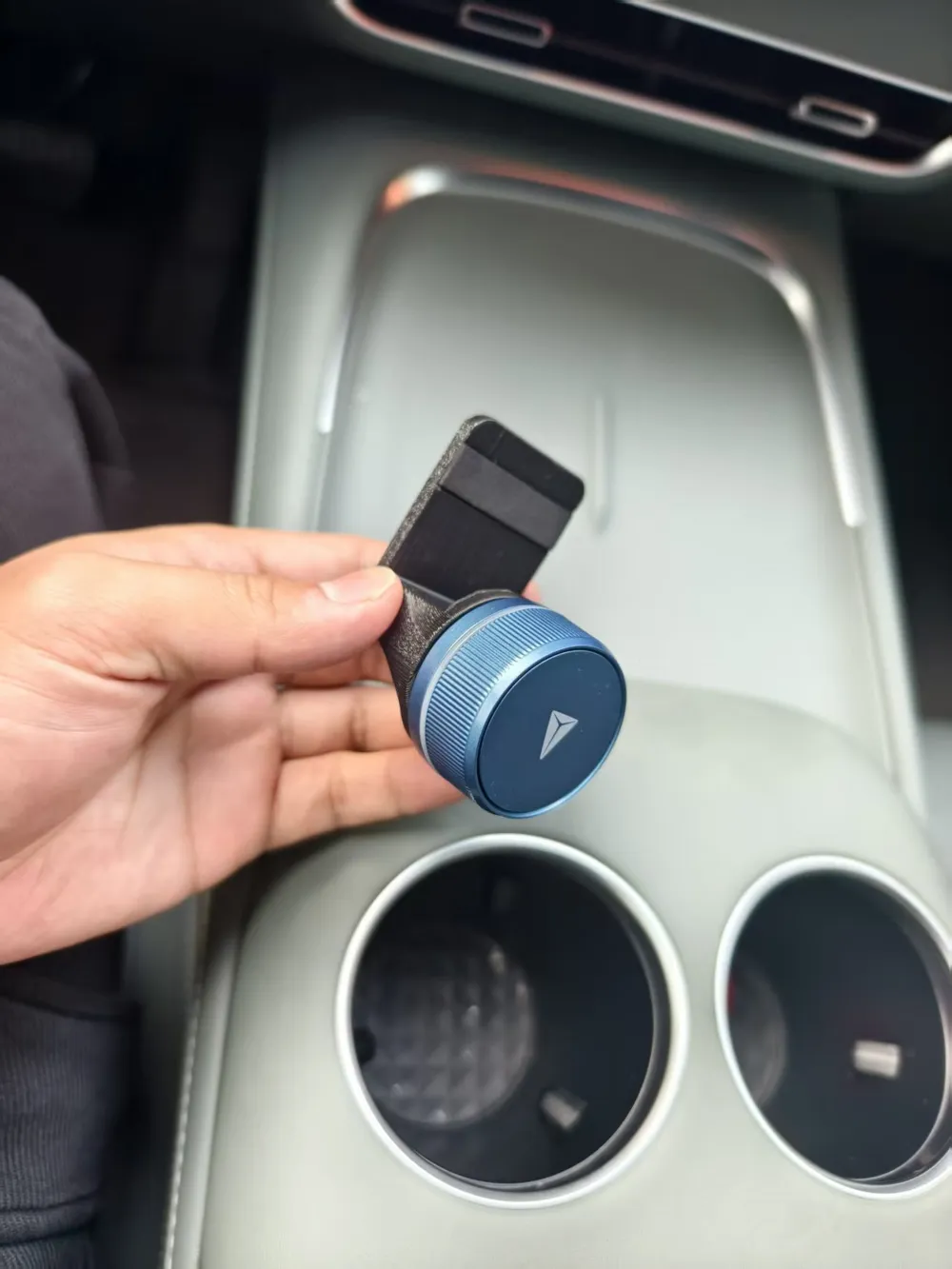

The Tuotuo Tie screen mount, specifically designed for Deepal series cars, perfectly fits models like S07 and SL03. This mount features an innovative design, offering various installation methods, making your Tuotuo Tie usage more convenient

Installation Methods

• Adhesive Mount: Directly use the 3M adhesive included with Tuotuo Tie for fixed adhesion

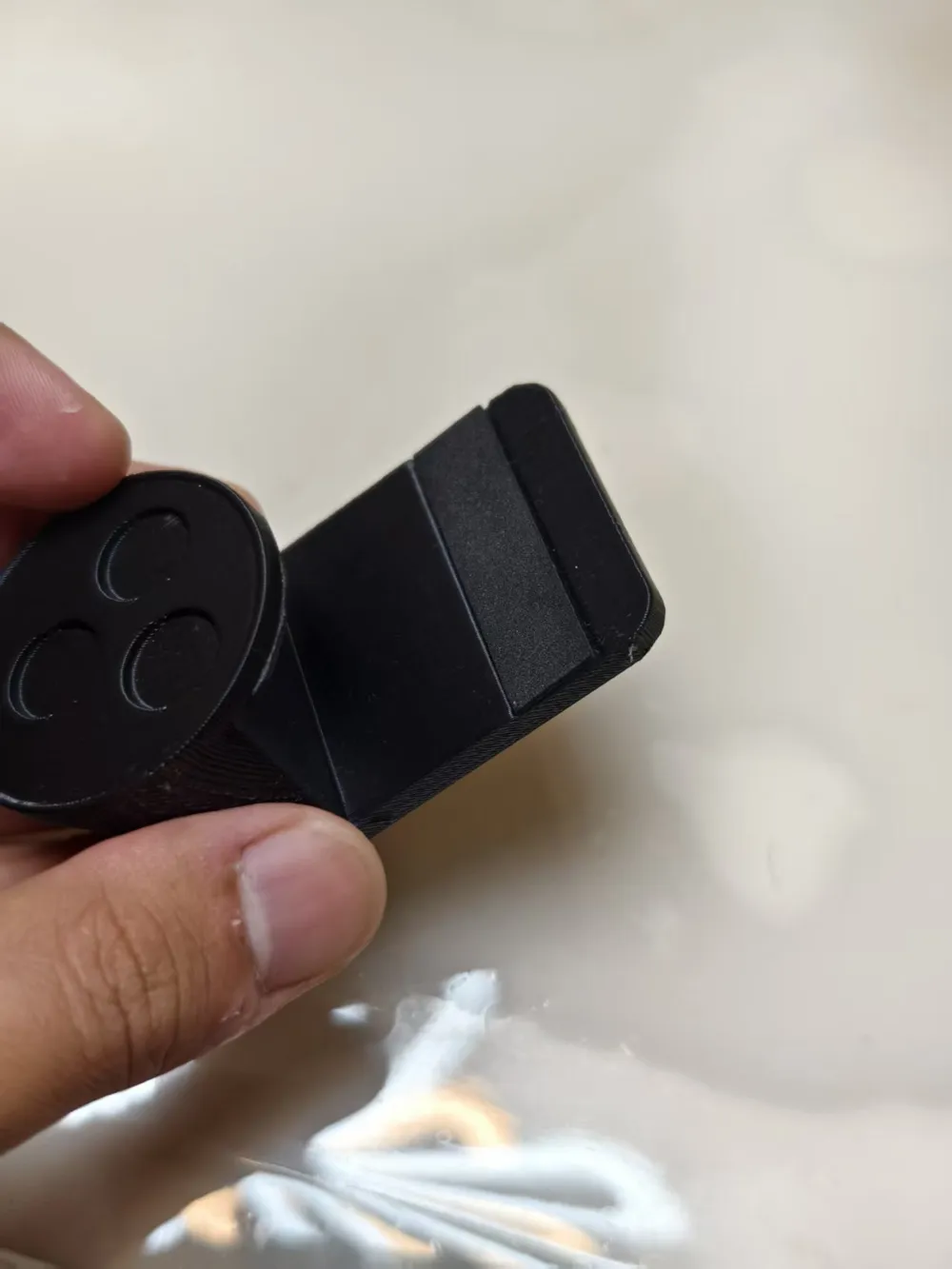

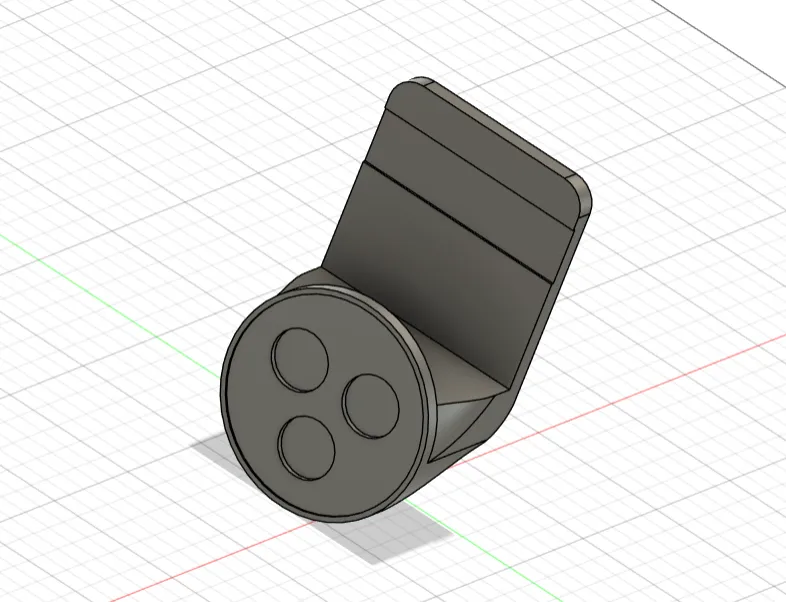

• Magnetic Mount: Place 3 10*1mm magnets in the mount's recessed area and use with a magnetic sheet to achieve magnetic function
• Clamping Design: Unique clamping design, securely fixed to the screen without adhesive
• Anti-slip Protection: Foam can be attached to the front and back of the mount, effectively preventing slipping and scratching the screen
• Stable and Reliable: Carefully calculated clamping force, ensuring it won't loosen during driving
• Non-destructive Installation: No need to modify the original car, protecting vehicle integrity

Important Notes

• Recommended to use 0.2mm layer height, 3 walls, please do not change the model placement direction
• Recommended to use 3D printing materials with higher heat deflection temperature such as PETG/ABS/ASA to ensure the product does not deform
• Please clean the screen surface before installation to ensure a secure installation
