Joint Set for 3mm Panels – Photo Booth Assembly

📌 Overview

This is a set of joints designed for building a compact photo booth using 3mm panels.
Recommended material: corrugated plastic board (3mm).
Foam board also works perfectly.

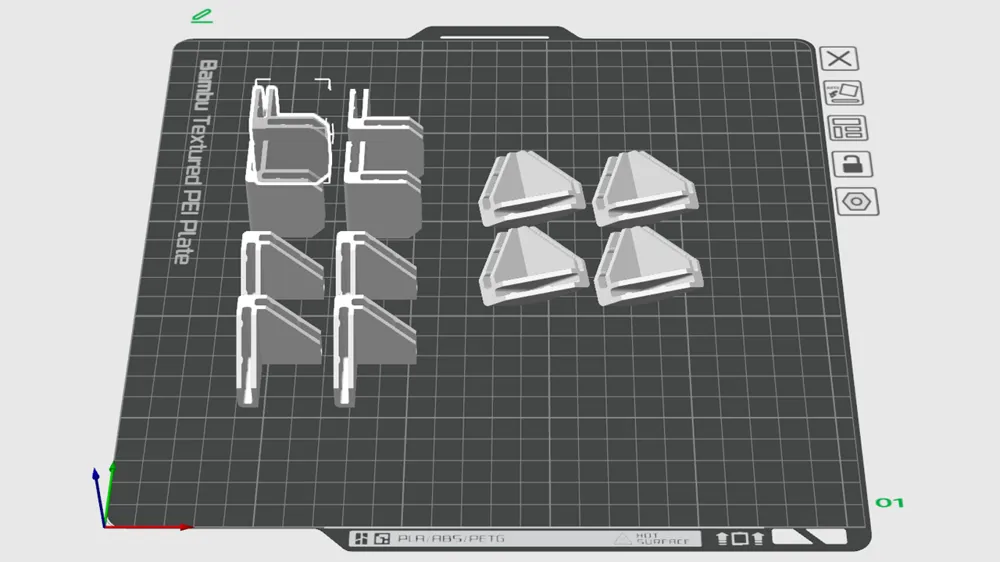

The corner joints feature a support-free angled structure, which keeps them lightweight, strong, and clean-looking after printing.

A STEP file is included, allowing you to freely customize the layout to match your shooting environment.

Perfect for photographing small items, model kits, figures, handmade crafts, and more.

✨ Features

• Compatible with 3mm panels
• Support-free corner design
• Works with both plastic cardboard and foam board
• Comes with STEP file for customization

• Ideal for small product and hobby photography



🔧 How to Use (photos recommended)

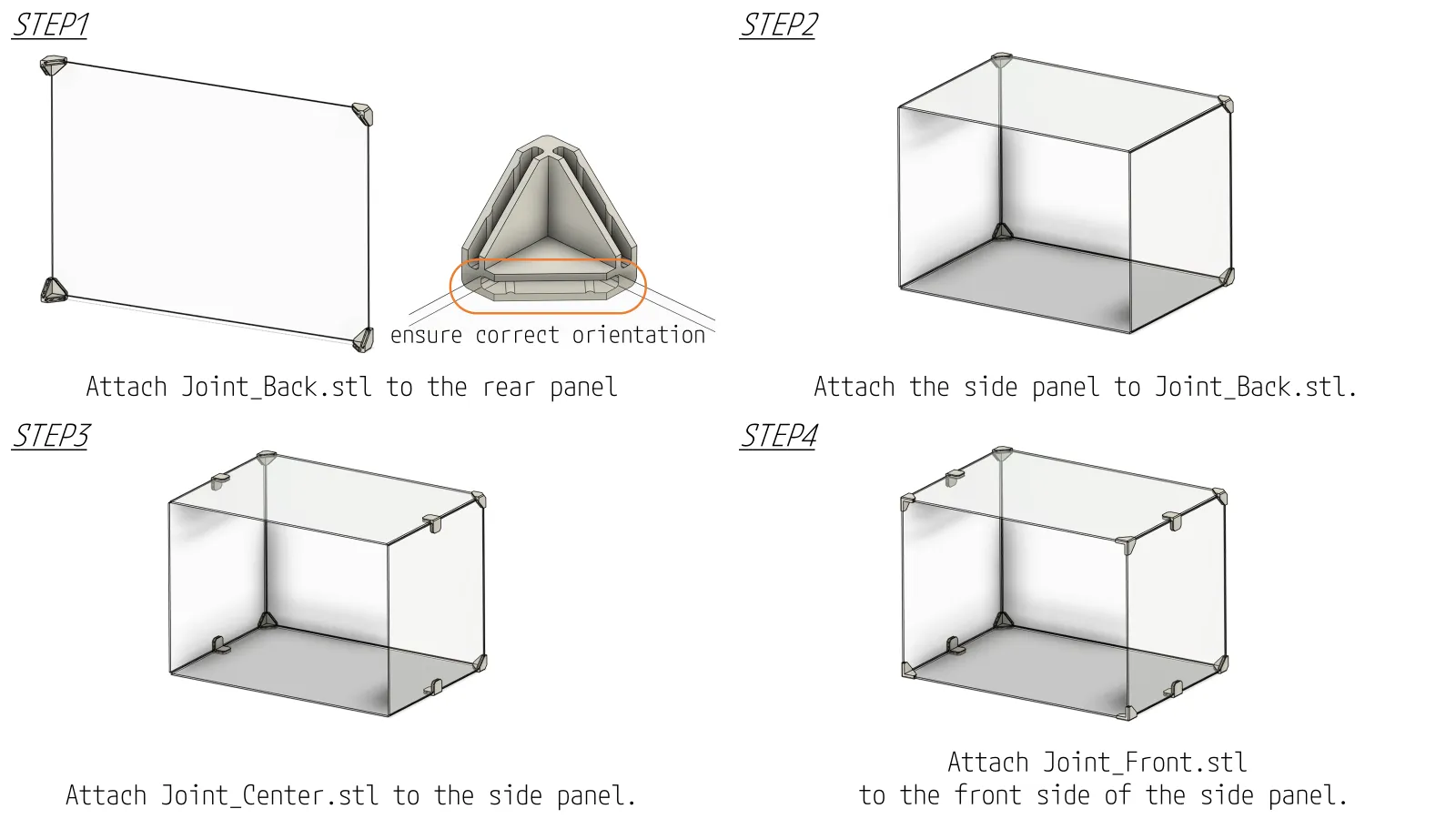

1. Attach “Joint_Back.stl” to the rear panel.
   Make sure the orientation is correct.
2. Attach the side panels to the Joint_Back.stl.
3. Attach “Joint_Center.stl” to the side panels.

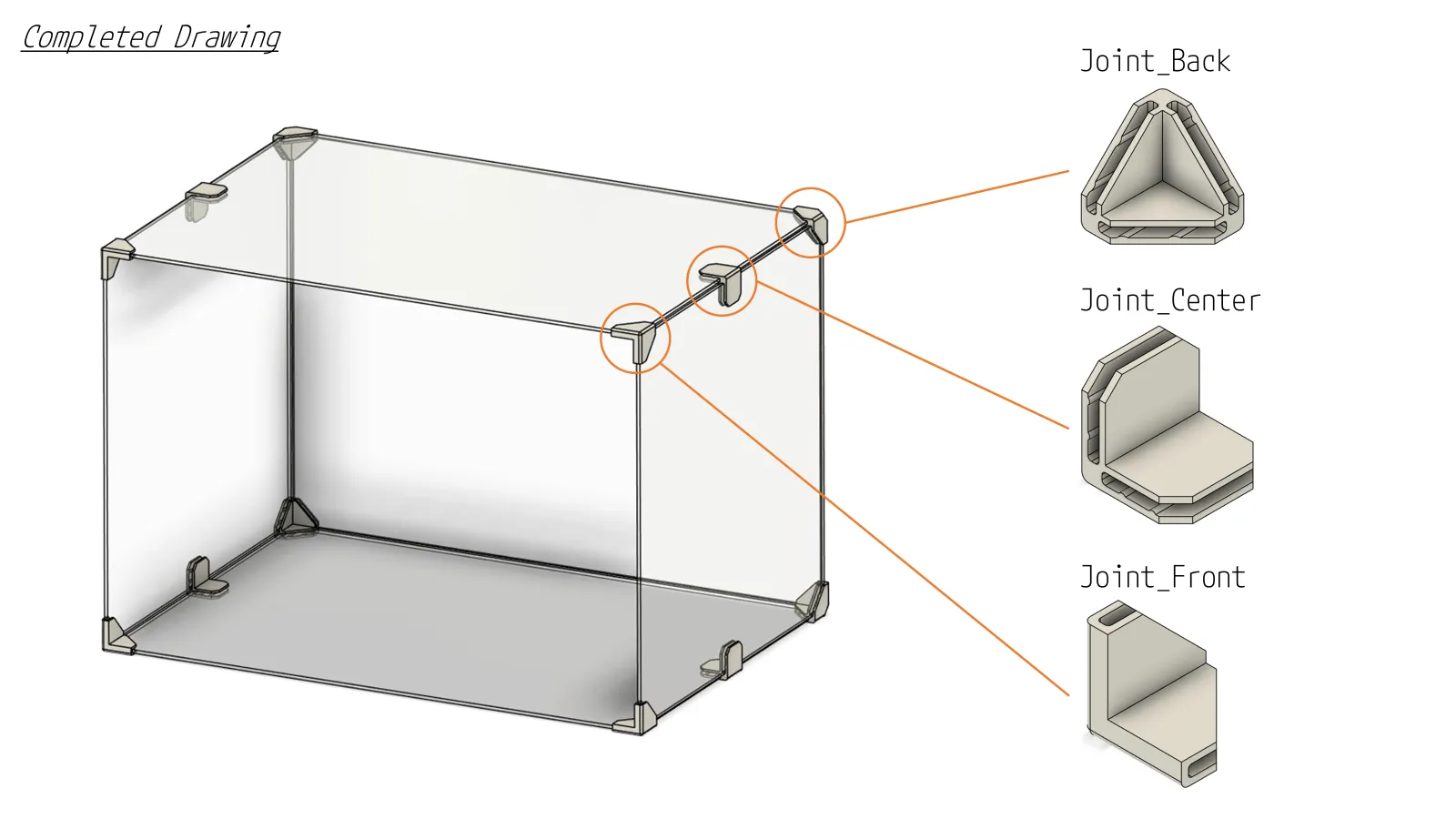

4. Install “Joint_Front.stl” to complete the frame structure.

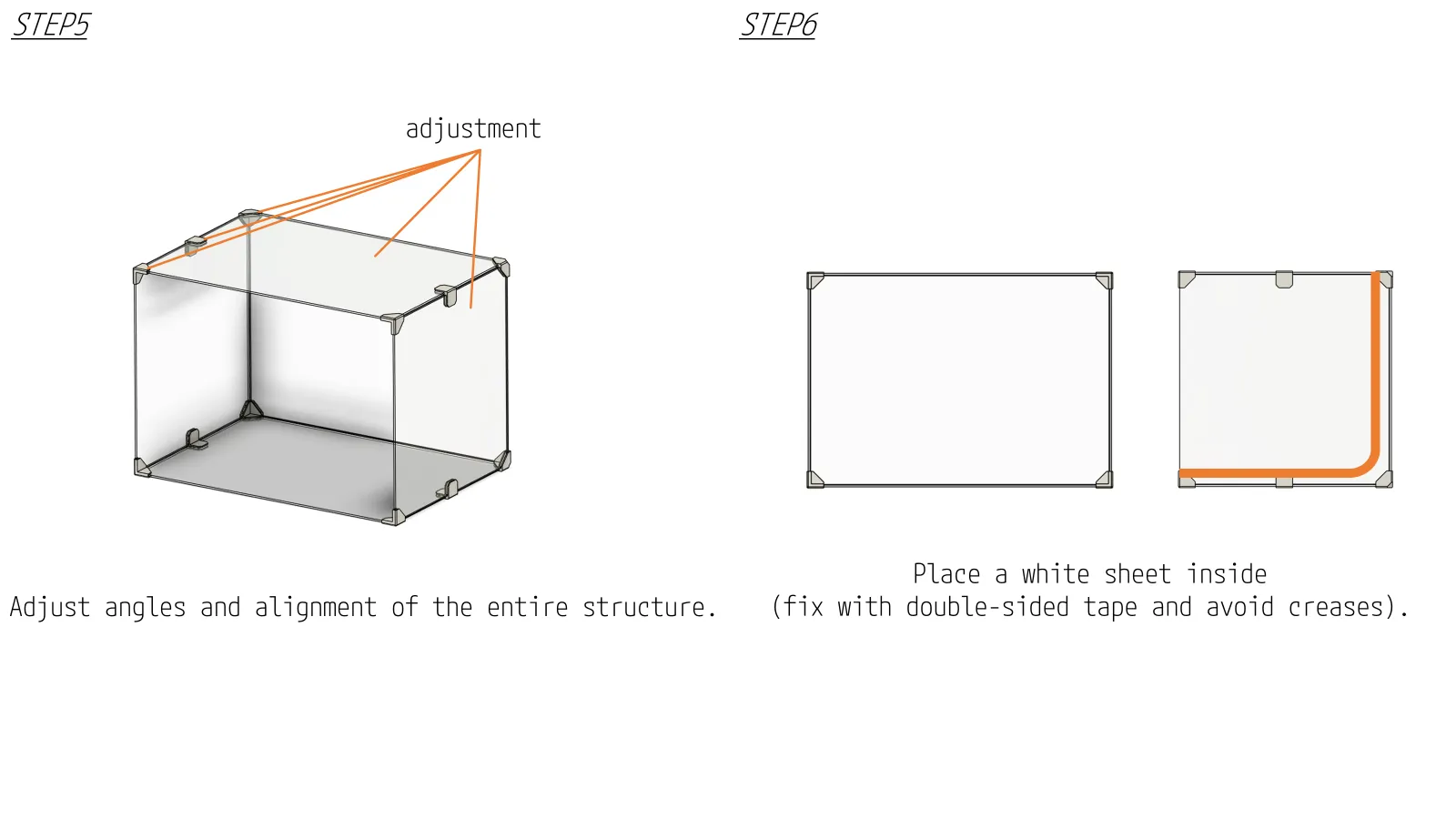

5. Adjust the angles and positions as needed.

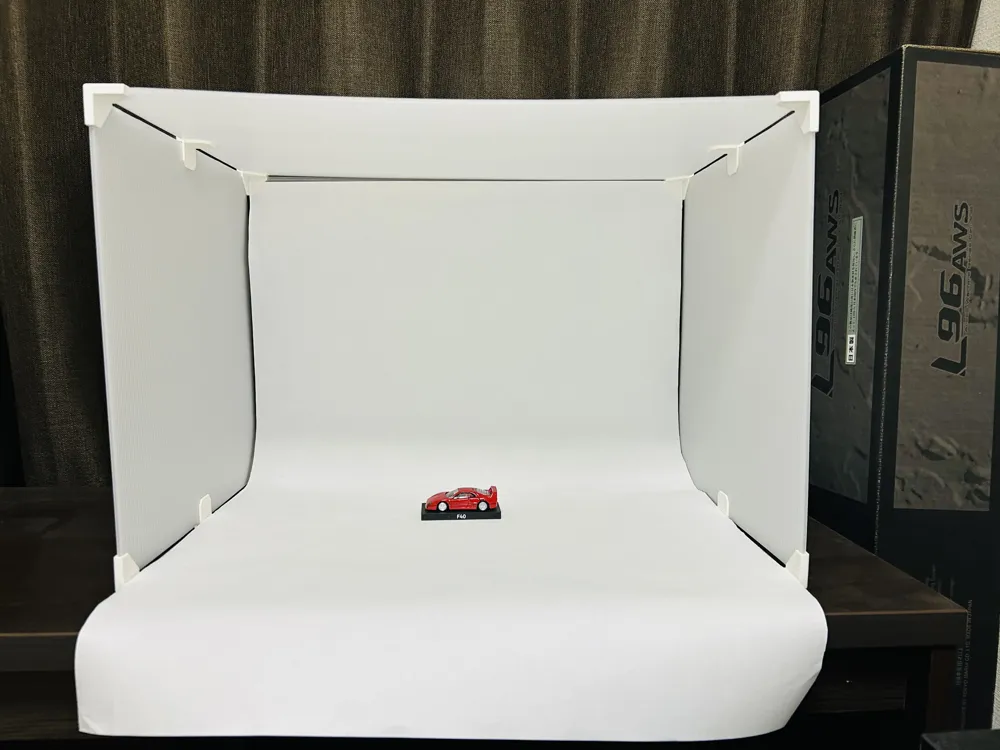

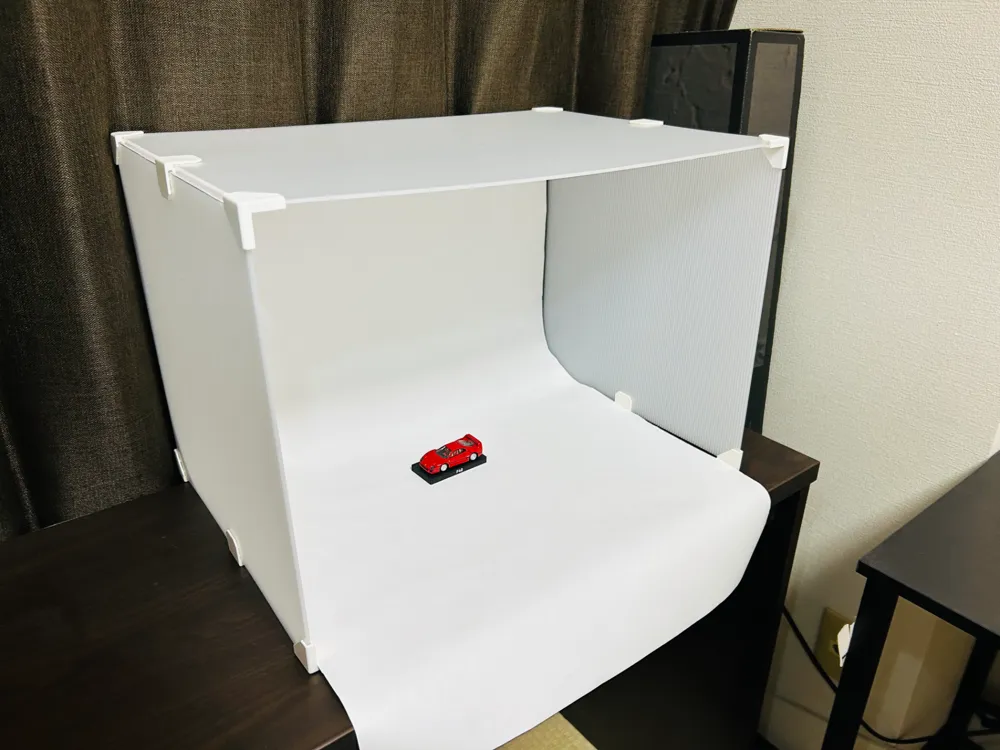

6. Place a clean sheet of white paper for the background.
   Use double-sided tape and avoid any creases.







🛠 Developer’s Comment

I used to photograph items in front of a wall, which often caused unwanted background noise in the images.
So I decided to design and share a simple, customizable joint system that makes building a clean photo booth easy for anyone.

This setup has significantly improved the quality of my product shots, and I hope it helps elevate yours as well!
