Deepal Car Tuotuotie Bracket (for S07)

Deepal Car "Tuotuotie" Dedicated Screen Bottom Edge Fixing Bracket

(Applicable to Deepal S07)

【Model Introduction】

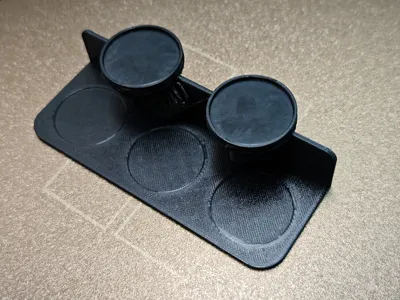

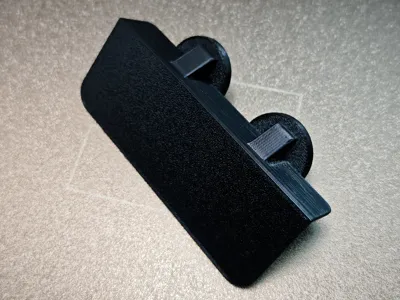

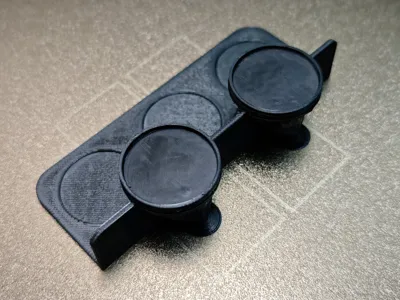

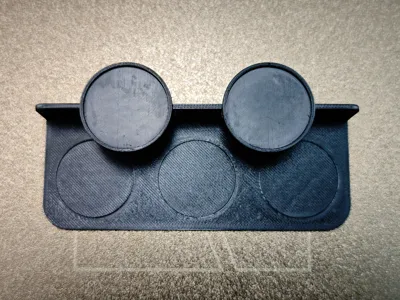

A practical gadget created specifically for Deepal car owners! This is a 3D Printed fixing bracket custom-designed for the Deepal Car Tuotuotie, which can perfectly secure your Tuotuotie to the lower edge of the car's screen, achieving the ultimate experience of non-destructive installation and easy control.

Whether you use Tuotuotie to switch songs with one click, quickly navigate home, or customize other convenient functions, this bracket allows your beloved little button to “settle down,” bidding farewell to the clutter of the center console, making every operation within reach, elegant and effortless.

【Available Versions】

• Center screen without silicone protective cover, 1-3 pack
• Center screen with silicone protective cover, 2 pack

【Design Highlights and Problems Solved】

• Perfect fit, invisible installation: Specifically designed for the size and shape of Deepal Tuotuotie, with a tight buckle for stability and no wobbling. Installed along the lower edge of the screen, it is visually almost invisible, does not obstruct the line of sight, and blends seamlessly with the original car interior.
• Screen bottom edge snap-on design: No glue or drilling required; it uses the screen's own structure for fixing, achieving completely non-destructive installation, protecting your car and making removal and installation convenient.
• Extremely convenient operating experience: Transforms Tuotuotie from an “object you need to look down to find” into a “shortcut key that can be operated by touch.” It can be easily pressed where your fingers naturally rest, significantly improving driving safety and operational efficiency.
• Optimized interior space: Say goodbye to the cluttered center console, making your car's interior neater and more technologically advanced.

【Printing Suggestions】

• Recommended materials: PETG, ABS, ASA. Please choose a filament that can withstand high summer temperatures inside the car; PLA is not recommended.
• Layer height: 0.12mm for a smoother surface finish.
• Infill density: 15%-20% is sufficient to ensure structural strength.
• Supports: Supports are needed. Tree supports (strong tree) are recommended, or print at a 45-degree angle with only a small amount of support.
• Color recommendation: Choose a filament color similar to your car's interior (such as black or dark gray) for the best invisible effect.

【Installation Instructions】

Installation is very simple, here are the brief steps:

1. Print the model and clean it thoroughly.

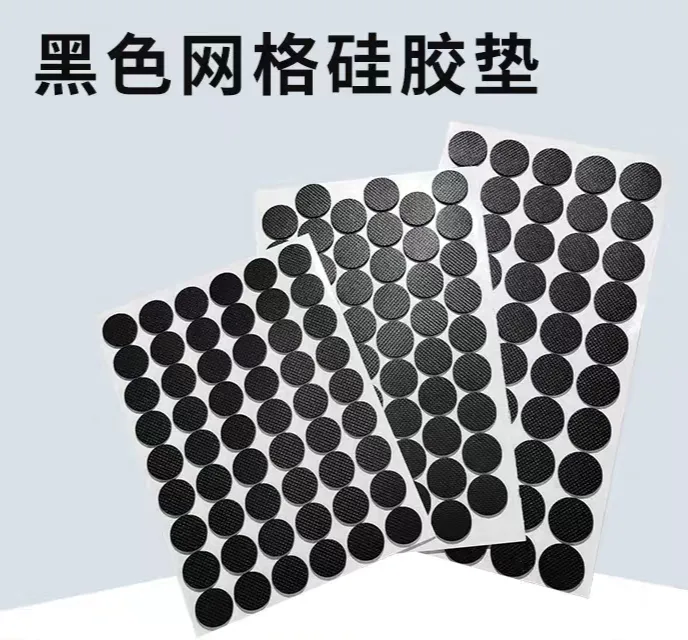

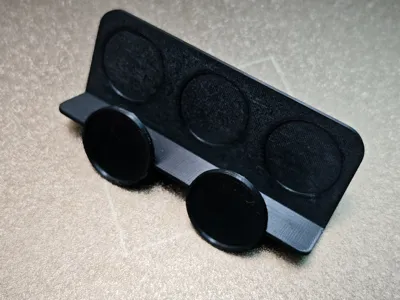

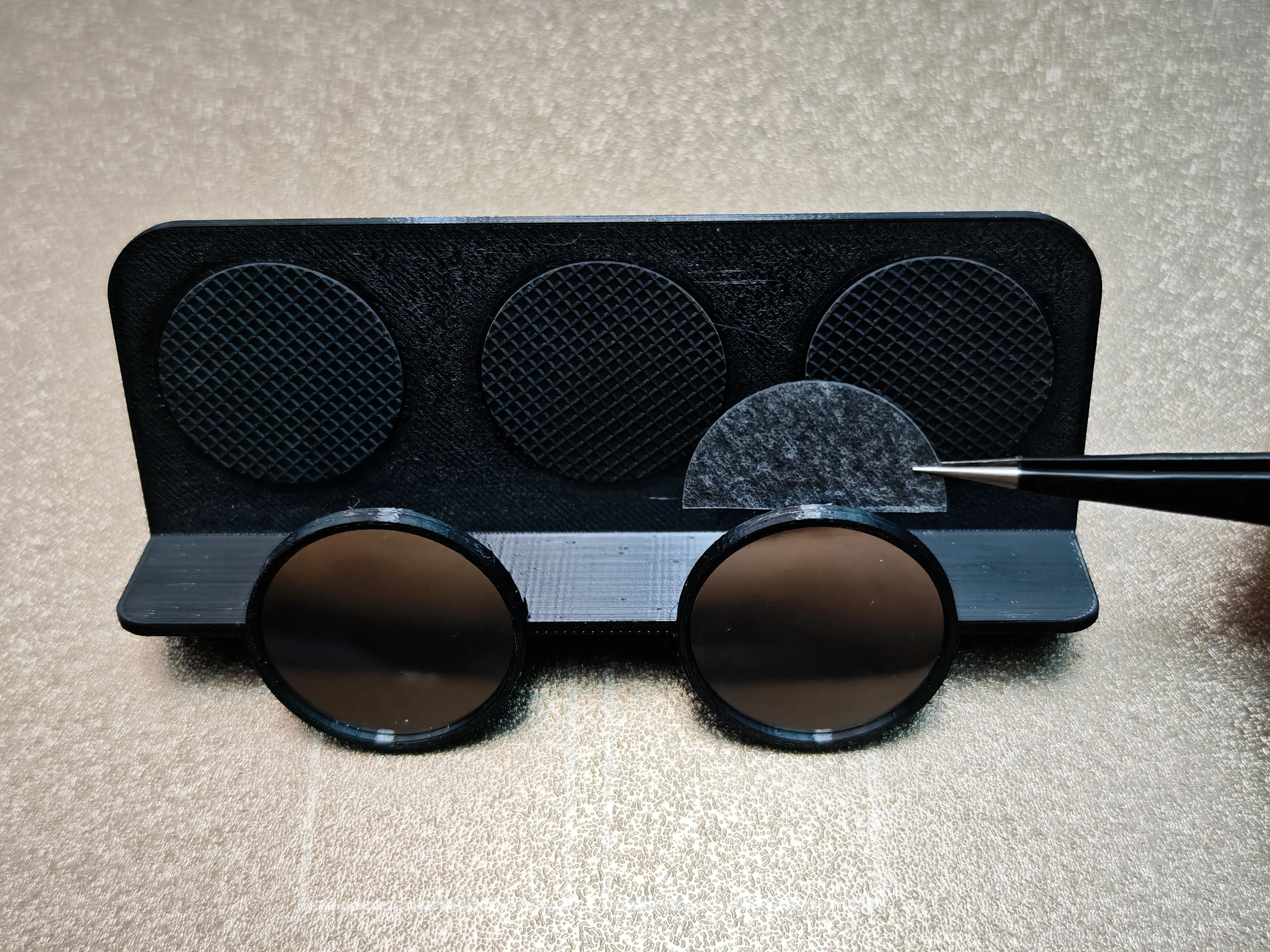

2. Paste the black mesh silicone pads. Specifications: 30mm diameter, 1mm thickness, 4 pieces (cut one in half and stick it on the back of the circle; if it feels too tight, you can omit it or choose a 0.5mm thickness).

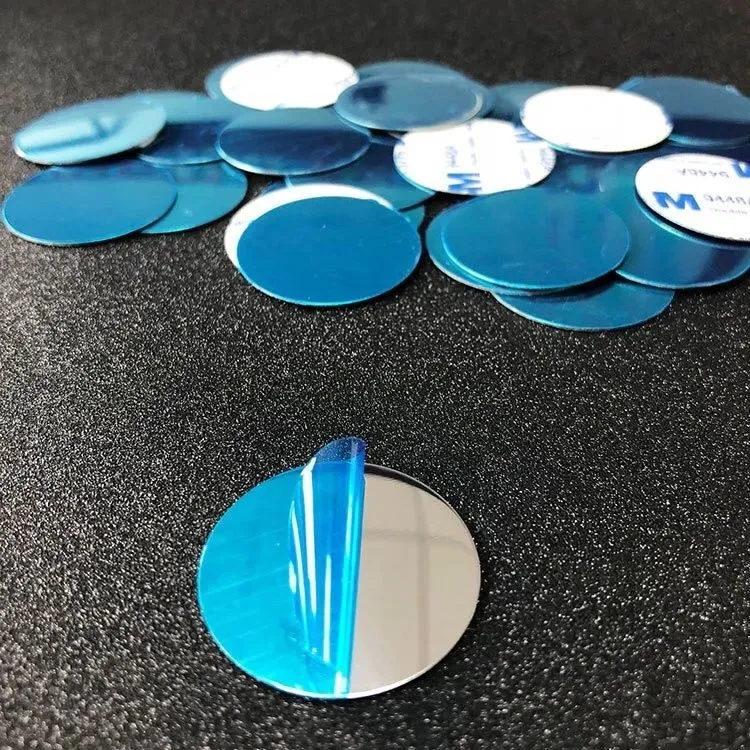

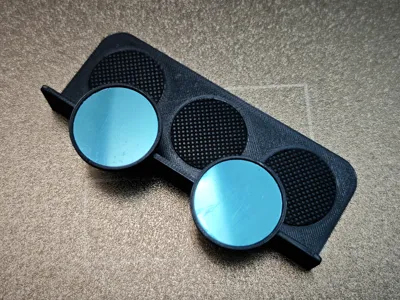

3. Stick round magnetic induction sheets onto the bracket. Specifications: 30mm diameter, 2 pieces.

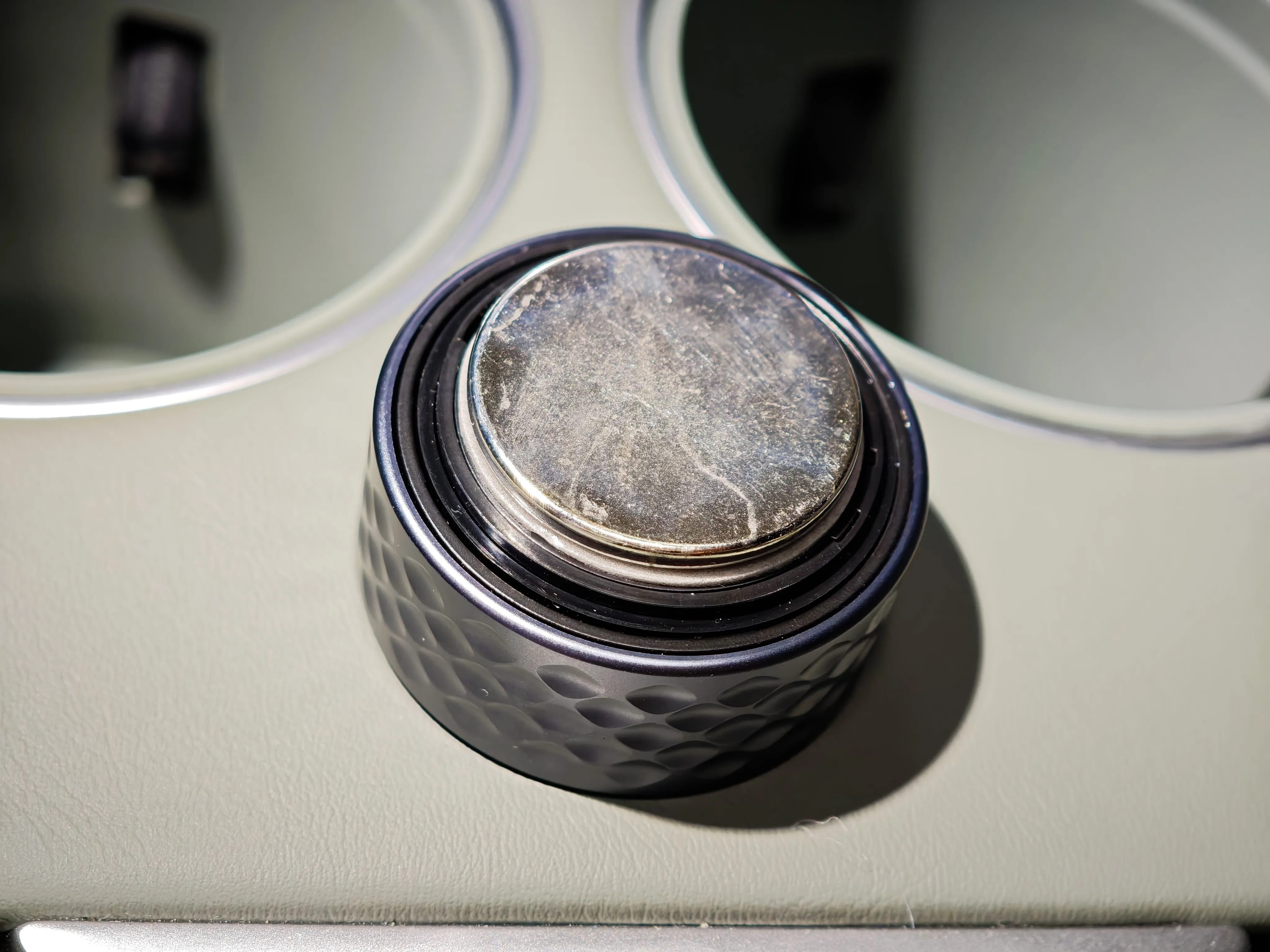

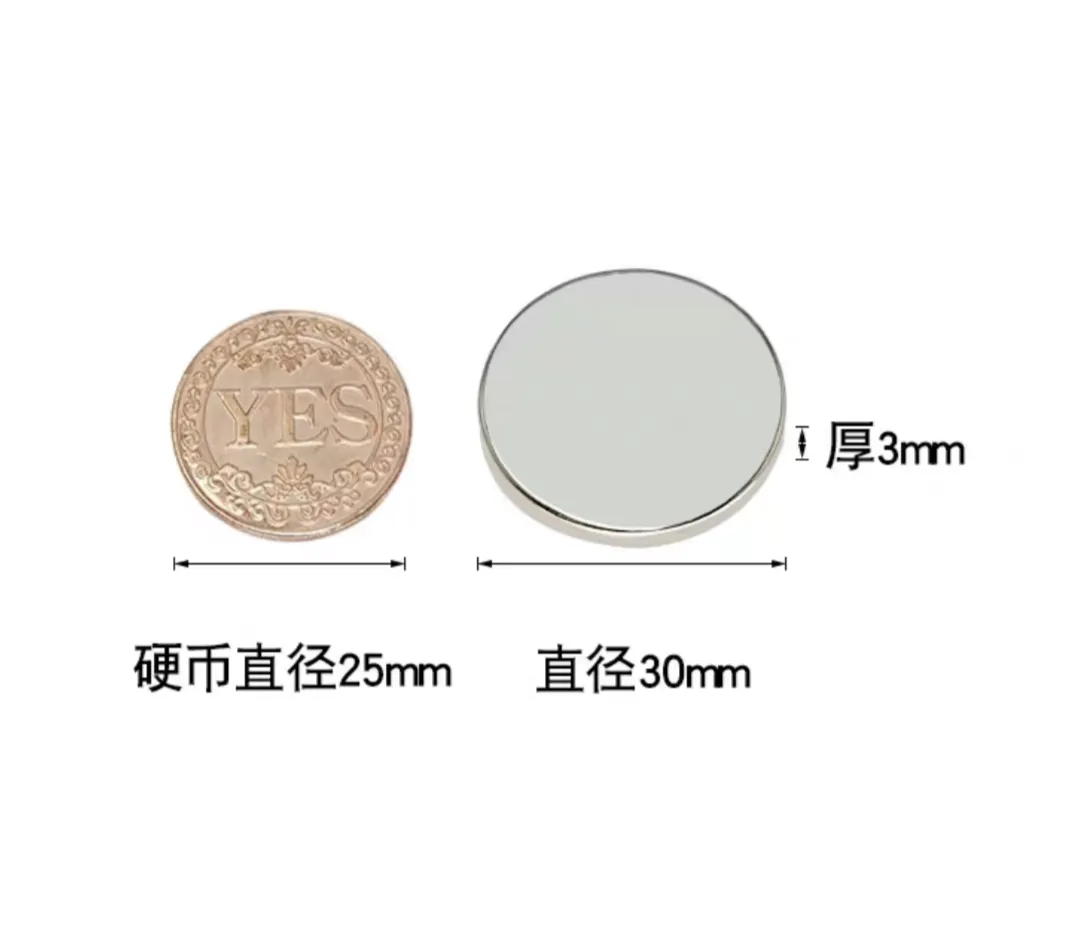

4. Stick magnets onto the Tuotuotie. Specifications: 30mm diameter, 2-3mm thickness, 2 pieces.

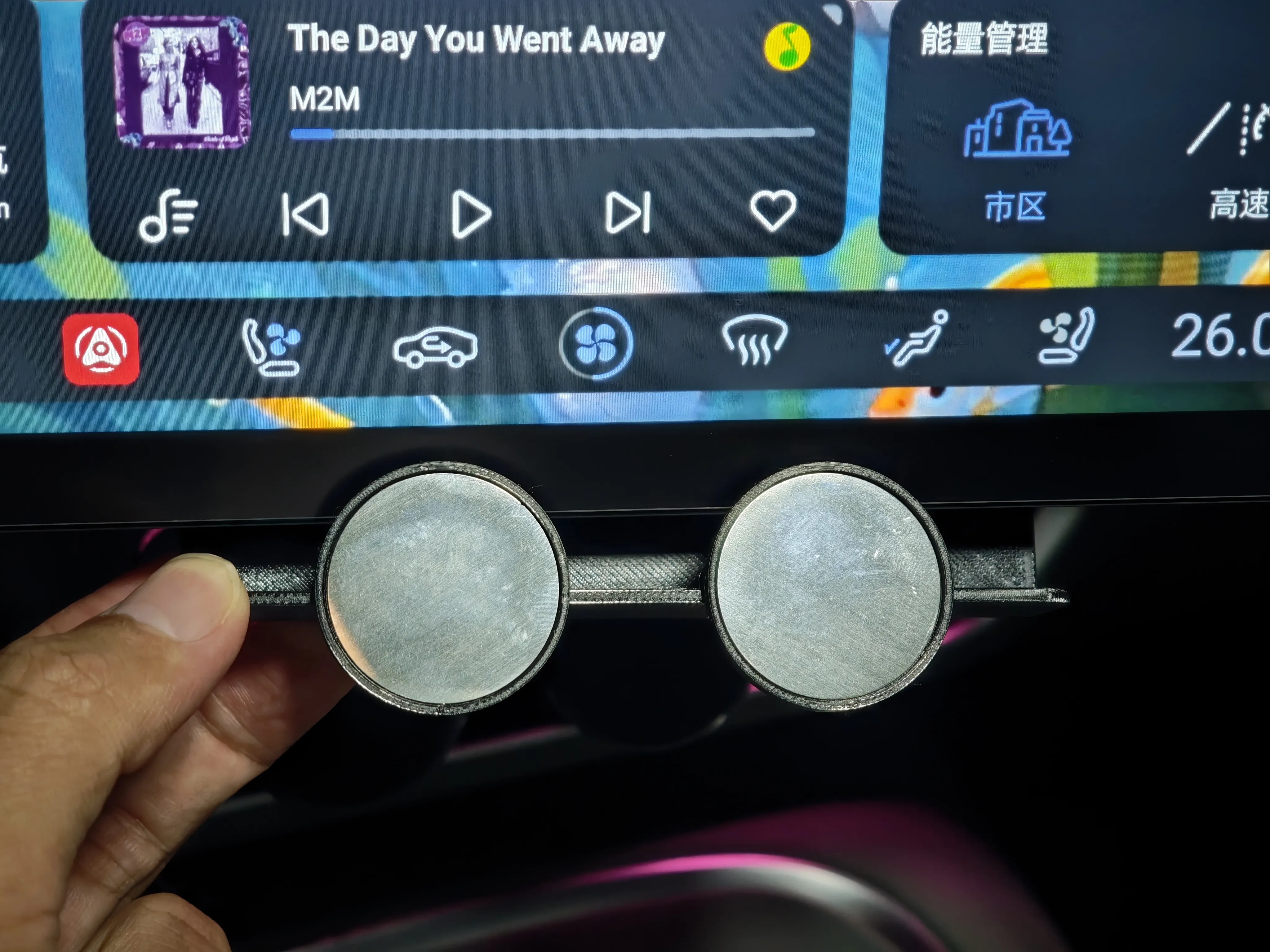

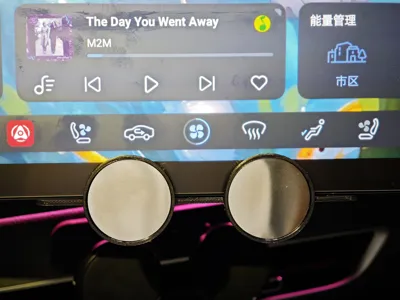

5. Align the entire bracket with the lower edge of the car's screen, and with a gentle snap, it will be installed in place.

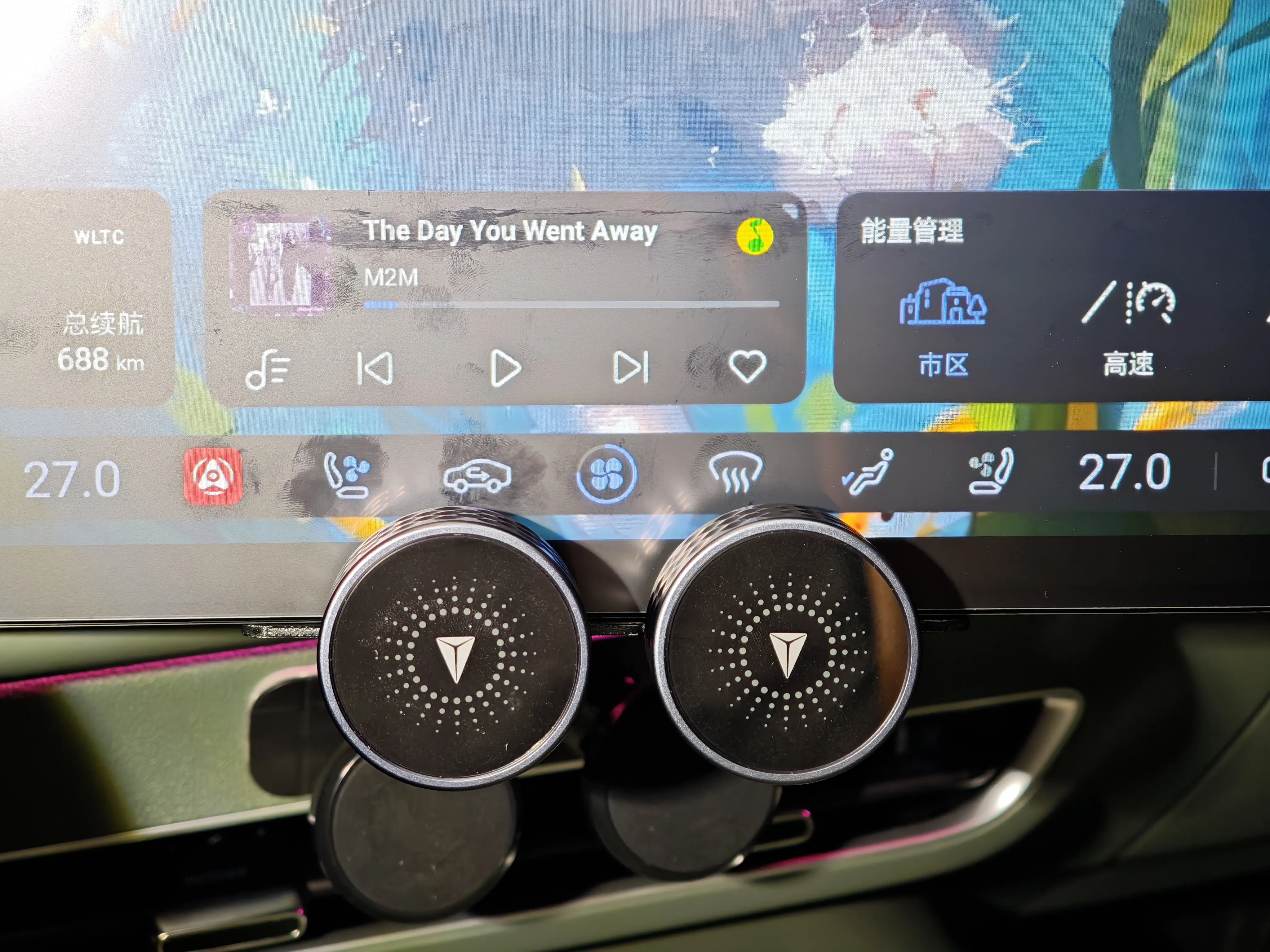

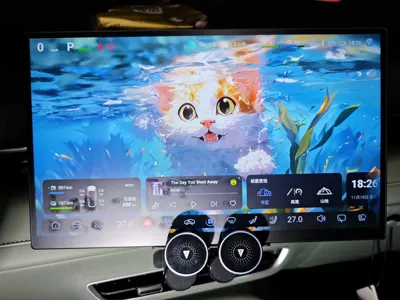

6. Finally, place the Tuotuotie on it, and it will be held magnetically.



【Acknowledgements】

Thank you to Deepal Car for developing such a fun Bluetooth button, and thank you for your download and print! If you like this design, don't forget to like and favorite it on MakerWorld. Your support is my motivation to keep creating.

If you have any suggestions for improvement or encounter printing problems, please leave a comment in the comments section, and together we can make this design even better!

---
