Battery box for 18350 batterys
Print Profile(2)
Description

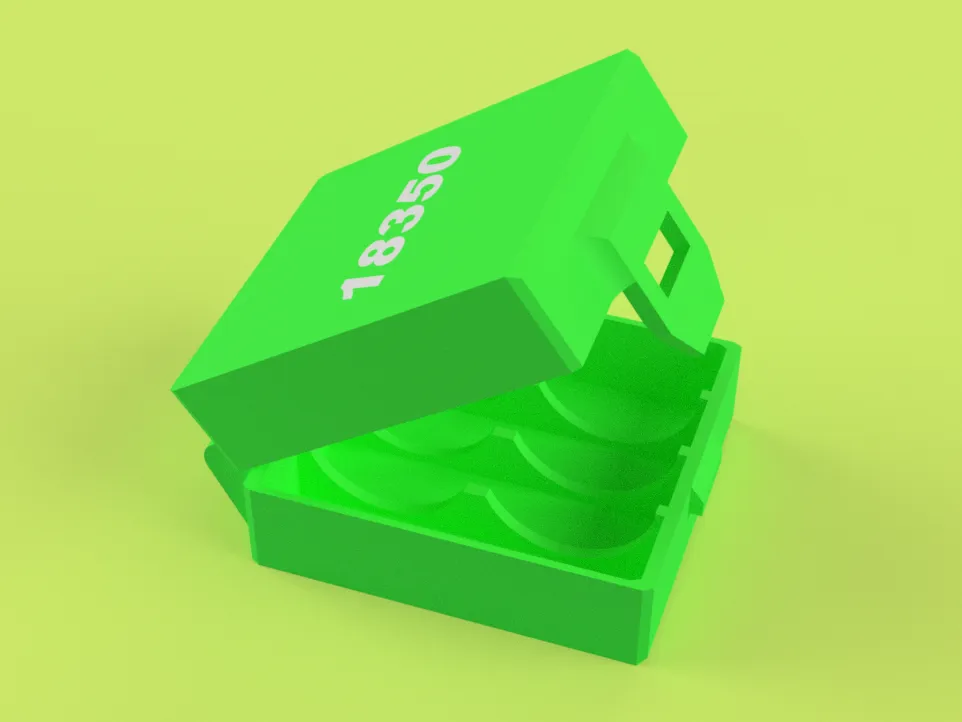

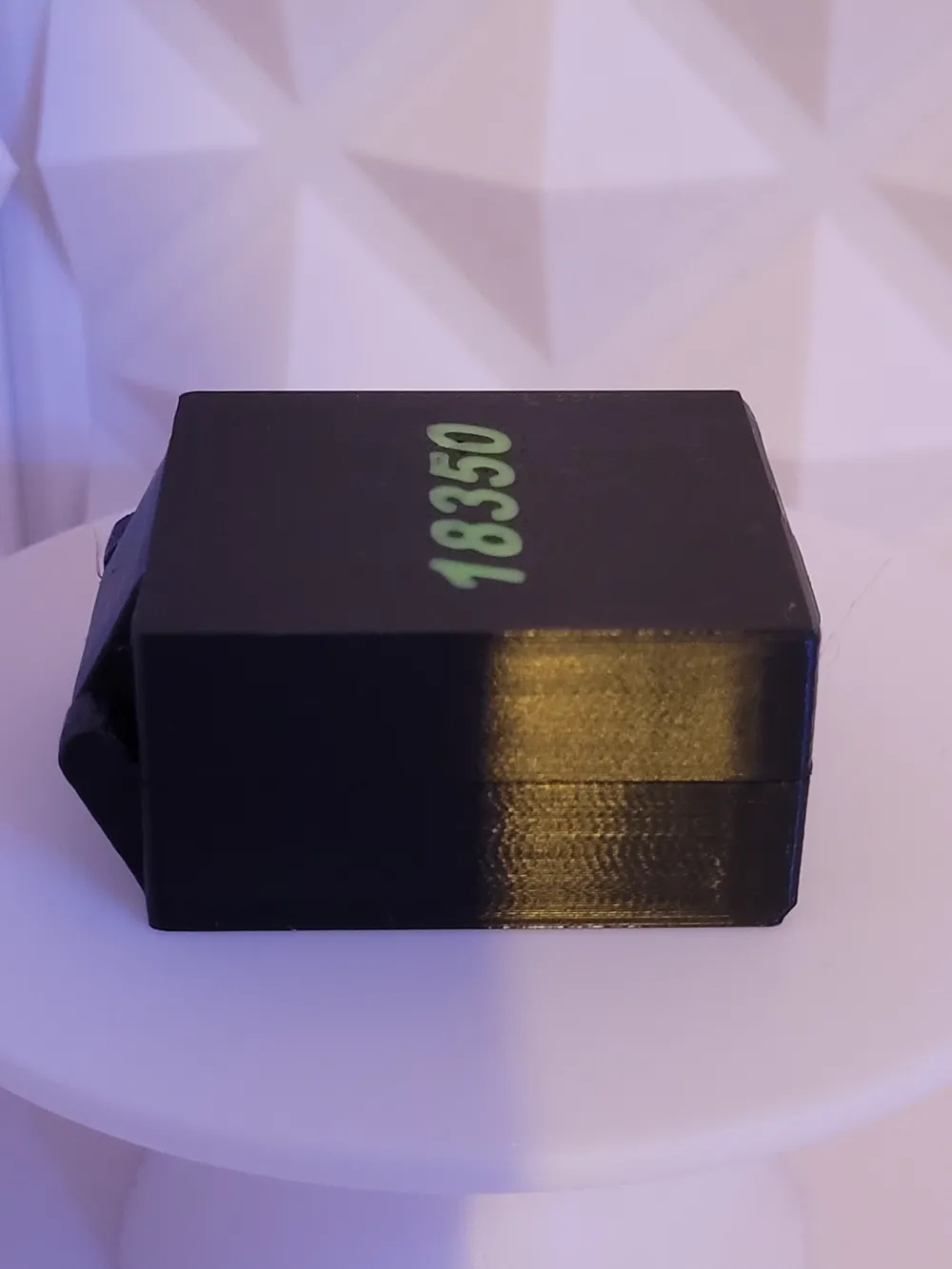

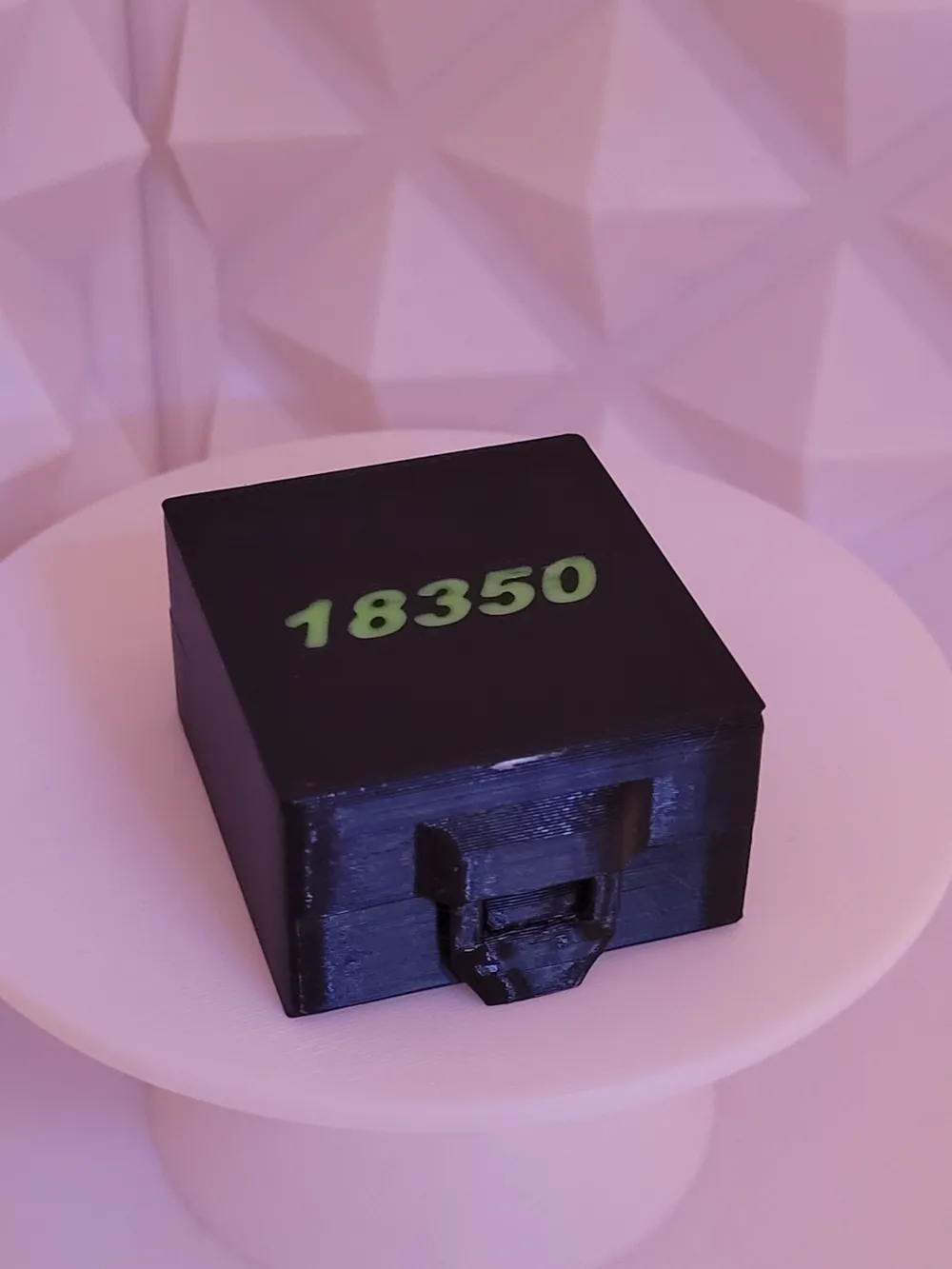

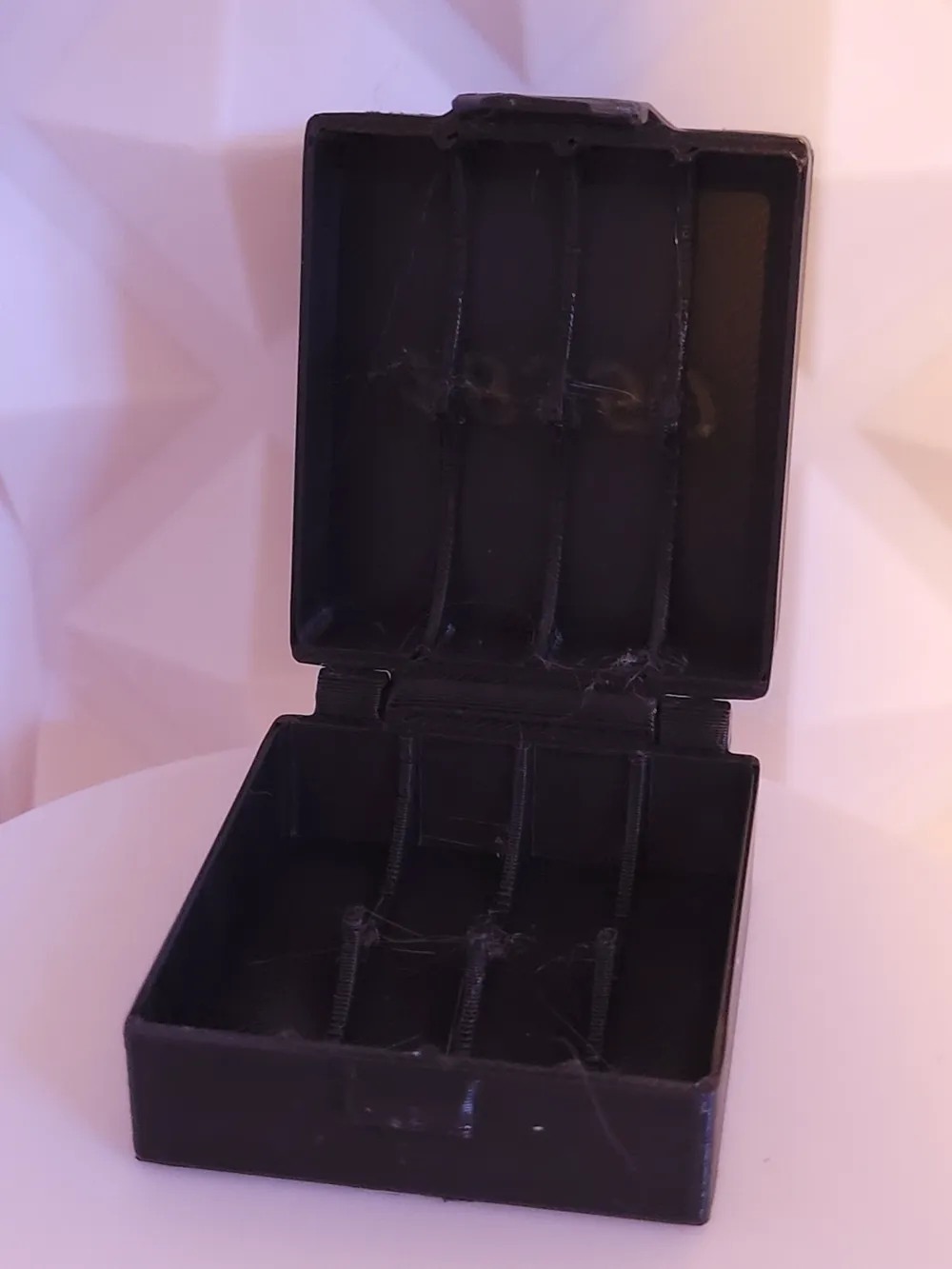

This is a battery box for 18350 batterys!
There are two print profiles. One for flat top batterys and one for button top batterys.
These are flat top:
These are button top:
Recommended filament: PLA
Hotend: 0,40mm
Print time: 0:44h
Print instructions:
- layer height 0,20mm
- 2 wall loops
- top/bottom shells 4 layers
- top/bottom shell thickness 0,80mm
- sparse infill 10%
- sparse infill pattern “gyroid”
- enable support
- Support type “tree manual”
- Support style “tree slim”
- support on build plate only
Before printing, make sure your build plate is clean and apply some adhesive. Wash the build plate with oil free soap and wipe it off with some paper towels. For build plate adhesion, apply a thin, even coat of your preferred adhesive. I repeat the process every 5-6 prints.
Bad build plate adhesion is not related to the model.
