US General Mini box double stack adapter

Print Profile(1)

All
X1 Carbon
H2S
H2C
H2D Pro
A1
X1E
P1S
X1
H2D
A1 mini
P2S
P1P
X2D
A2L

0.2mm layer, 6 walls, 25% infill
0.2mm layer, 6 walls, 25% infill
Designer
1.1 h
1 plate
5.0(6)

Open in Bambu Studio
Boost
67
250
9
1
106
62
Released

Description

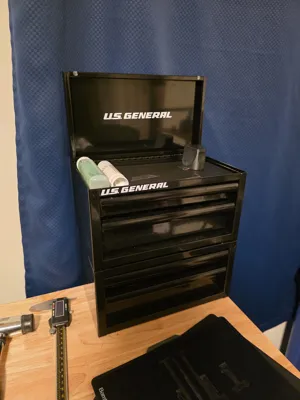

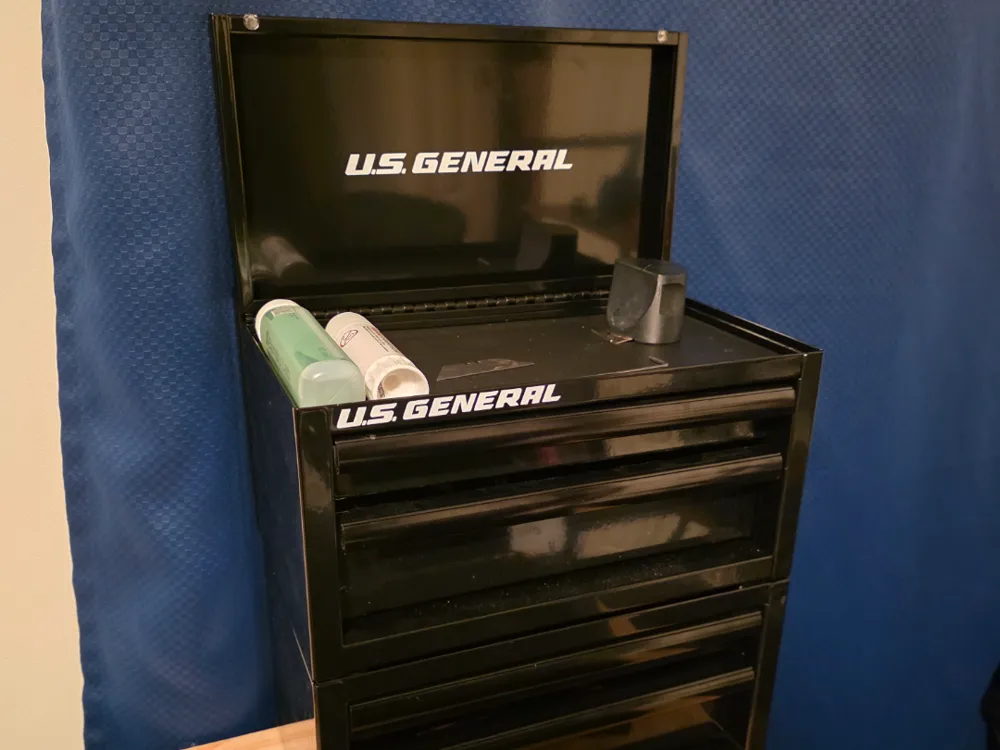

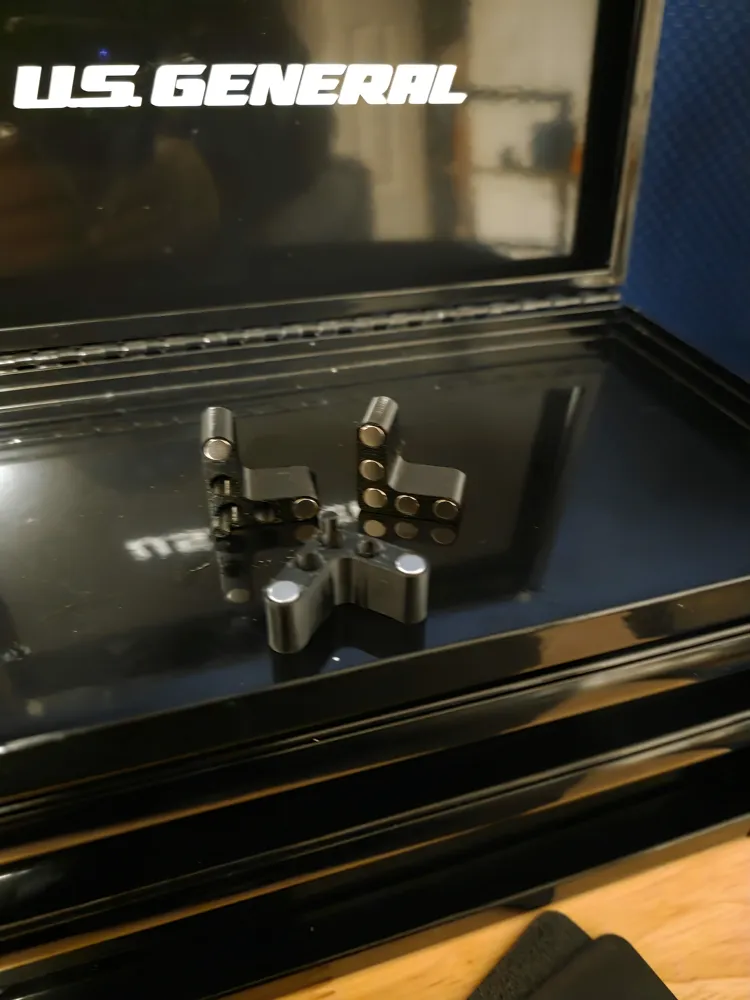

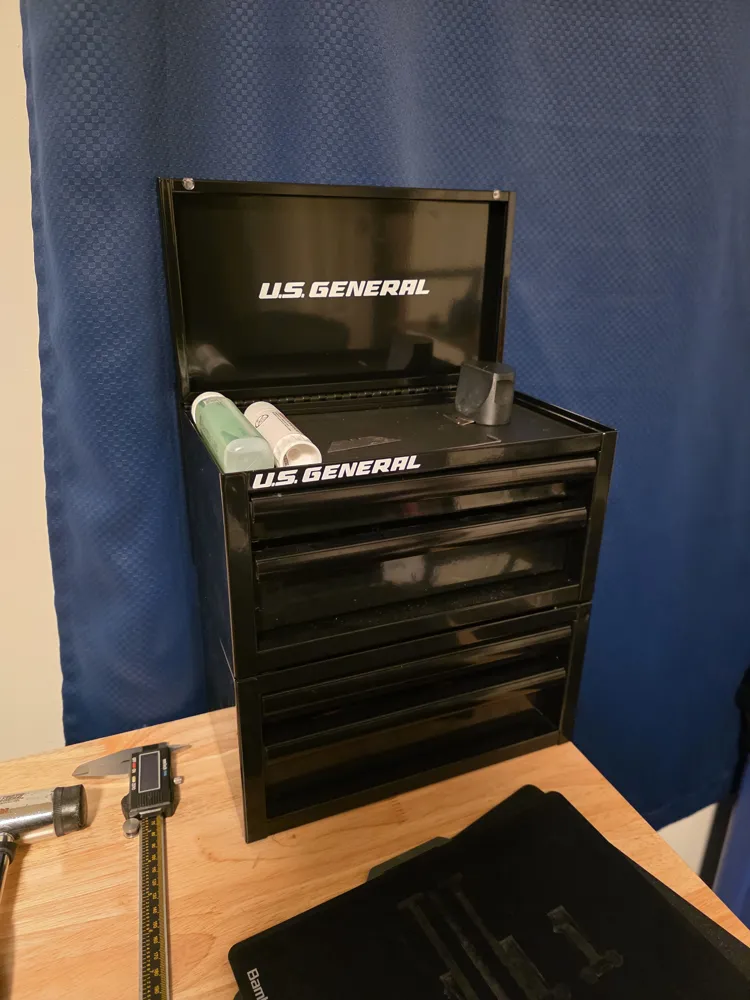

This is a 1 hour print to get a set of 4 adapters that allow you to stack 2 harbor freight mini tool boxes. Be aware that the older tool boxes do not have holes for feet. At minimum this required 1 of the newer boxes, preferably both newer. In the future you could use the holes to index a wheeled platform so the mini tower looks like a proper roller cab. Uses 2x6 mm cylindrical magnets press fit. I used 7 magnets per adapter, but you could use less or more. next iteration may include a spacer to prevent any fore to aft sliding. As printed there is 0 left to right play, but the qc on the boxes might require some hand fitting if yours line up differently,
