VH-109 FRC Radio case
Print Profile(1)
Description
š„ VH-109 FRC Radio Case ā Heat-Optimized Mount š§š¤
UPDATE15.2.2026: add solidworks file and STEP fileĀ

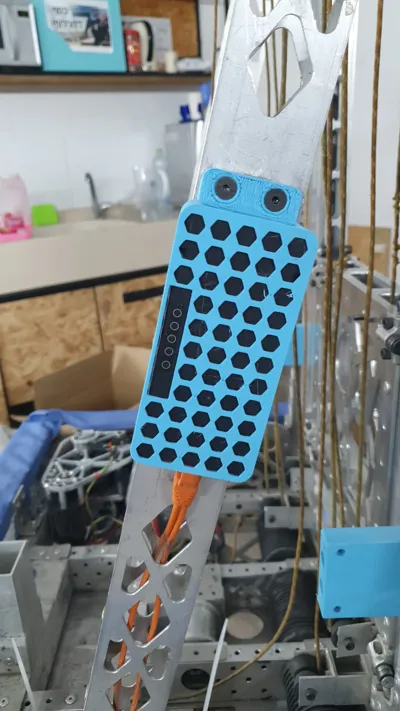

A lightweight, airflow-optimized protective case designed specifically for the VH-109 FRC radio.

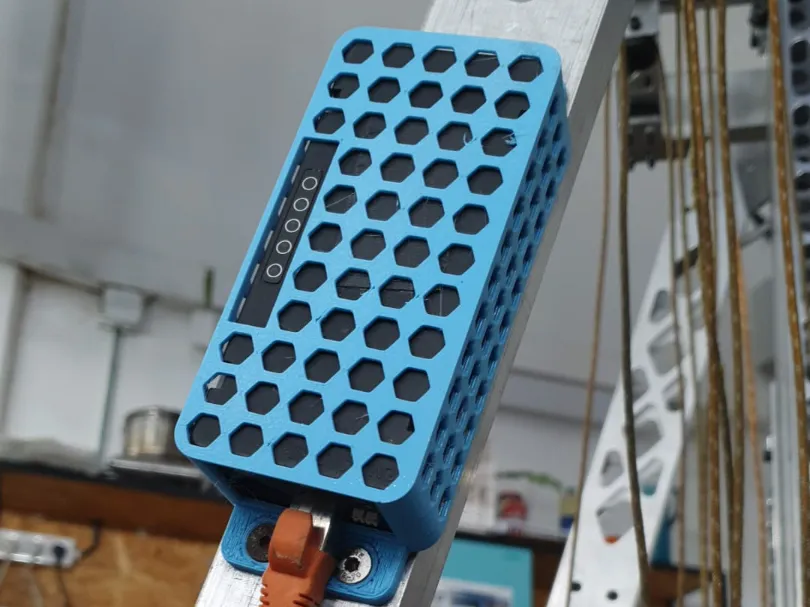

This enclosure is engineered to mount directly on a metal profile with threaded inserts, ensuring proper bottom-side heat dissipation during demanding FRC operation.
The case includes mounting ears designed for M5 or 10-32 socket-head screws, making it fully compatible with common FRC robot construction standards. š©š¤
The hex-vent pattern provides excellent airflow while keeping the radio secure and easy to service. šØš”
Boost Me (for free)
Printing Requirements:
ā Do NOT print in PLA ā it will deform from heat.
ā
Recommended materials: PETG, ASA, ABS
š§ For best cooling, mount the radio on a metal surface.
Dimensions:
- š Mounting hole spacing (left to right): 135.9 mm
- š Vertical spacing between mounting holes: 23.0 mm
- š© Compatible with M5 or 10-32 socket-head screws
Built for durability, simplicity, and real FRC performance. šš¤
