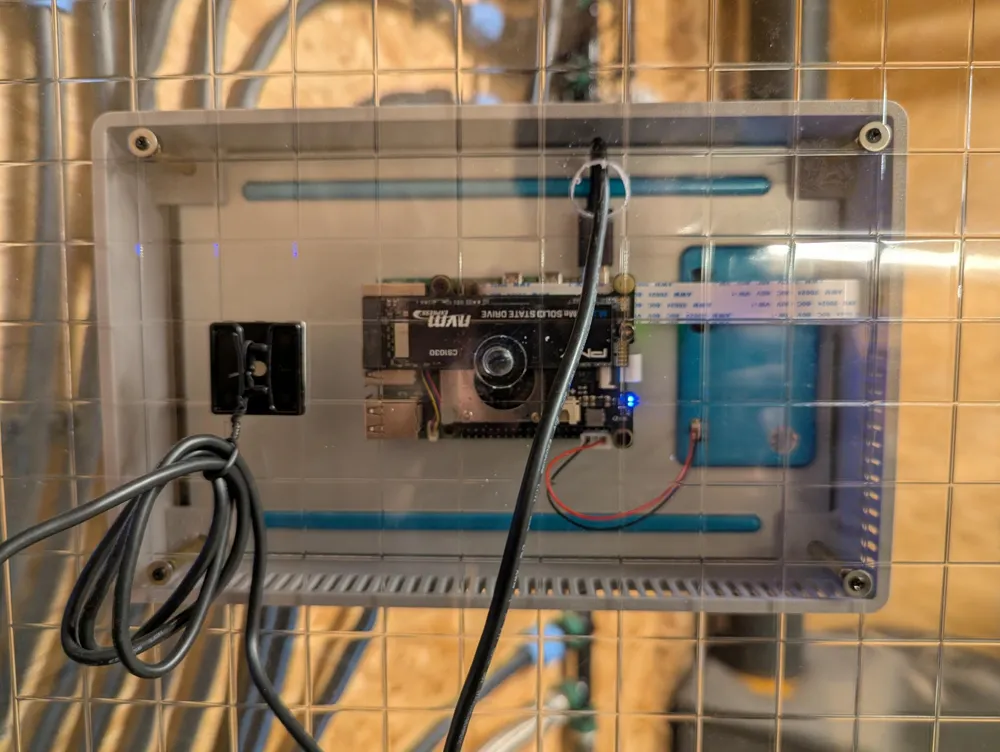

This design features a panel mount for the Waveshare 10.1-DSI-TOUCH-A screen. It leaves enough space behind the screen for a raspberry pi + SSD hat. It is to be mounted with M2.5x30mm hex stand-off screws on the display, and then fastened trough the panel with M2.5x15mm screws. The 30mm stand-off screw fall a bit short to ensure some pressure against the panel.

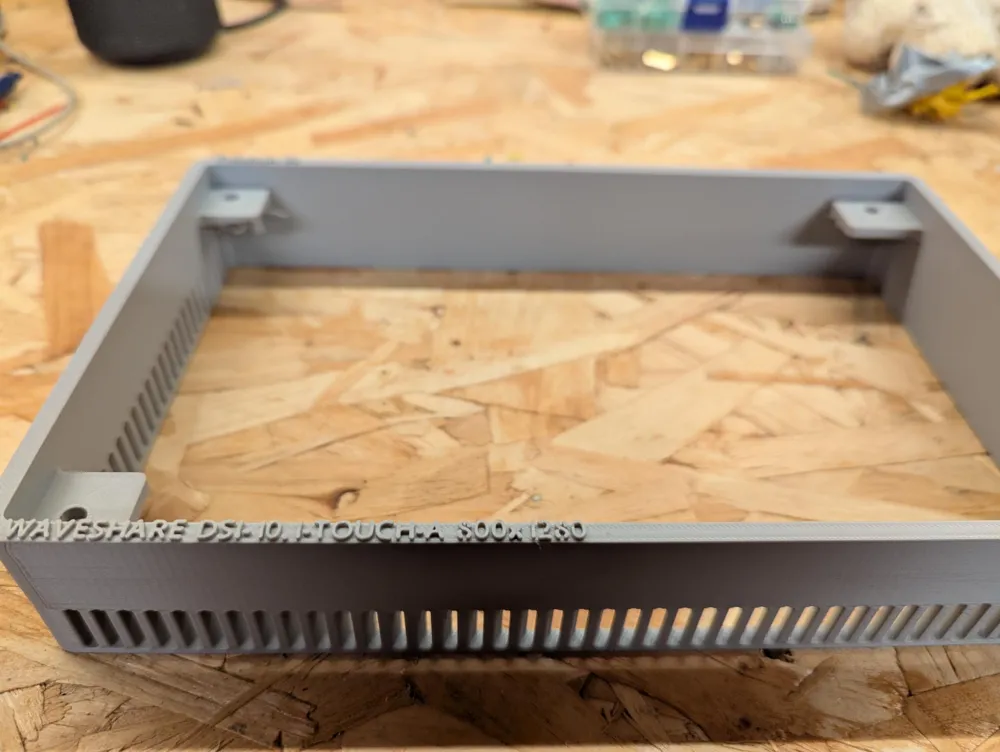

I printed in bambu PETG-HF, in this upload I added a bezel behind the screen for a better fit. I also changed the supports to normal supports because a tree support failed on my print.
This is my first upload, suggestions/improvements are more than welcome.
