Screw lock zip tie wrap
Print Profile(1)
Description
Screw lock reusable zip tie wrap
Insertable from both sides
Dimensions:
Length: 170mm
Tie width: 6mm
Thickness: pt. 6mm or pt. 8mm
Screw container: ~1cm cubed
Thread 1.4mm pitch, 6mm diameter
Print time 10min+ (depending on speed)
Options:
Print at slower speed for increase strength
½ speed for PLA
⅓ speed for PETG
Adjust speeds or flow rate(under project filament edit)
There is a necessary prebridge, slow bridge speed to half if stringing observed in aperture

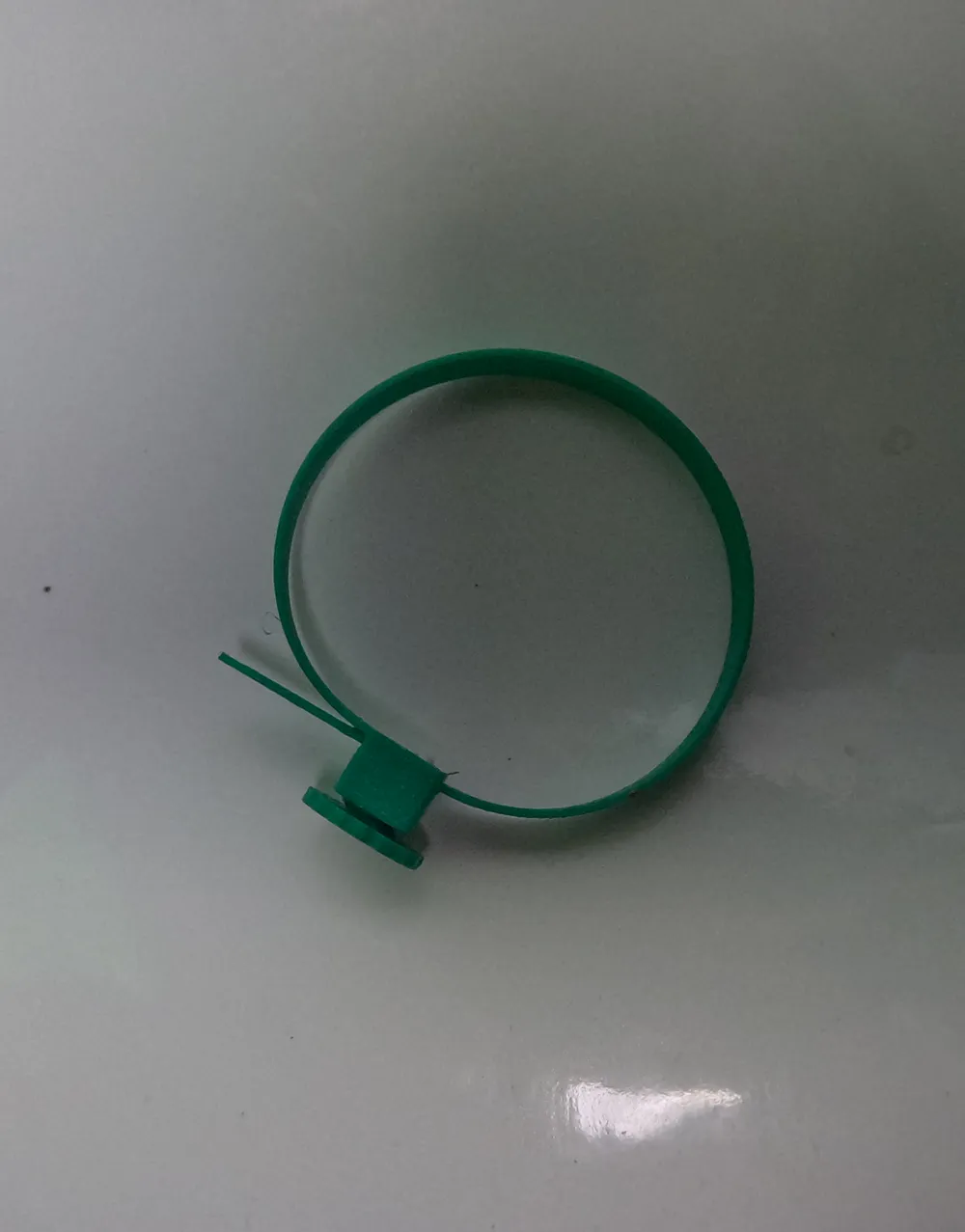

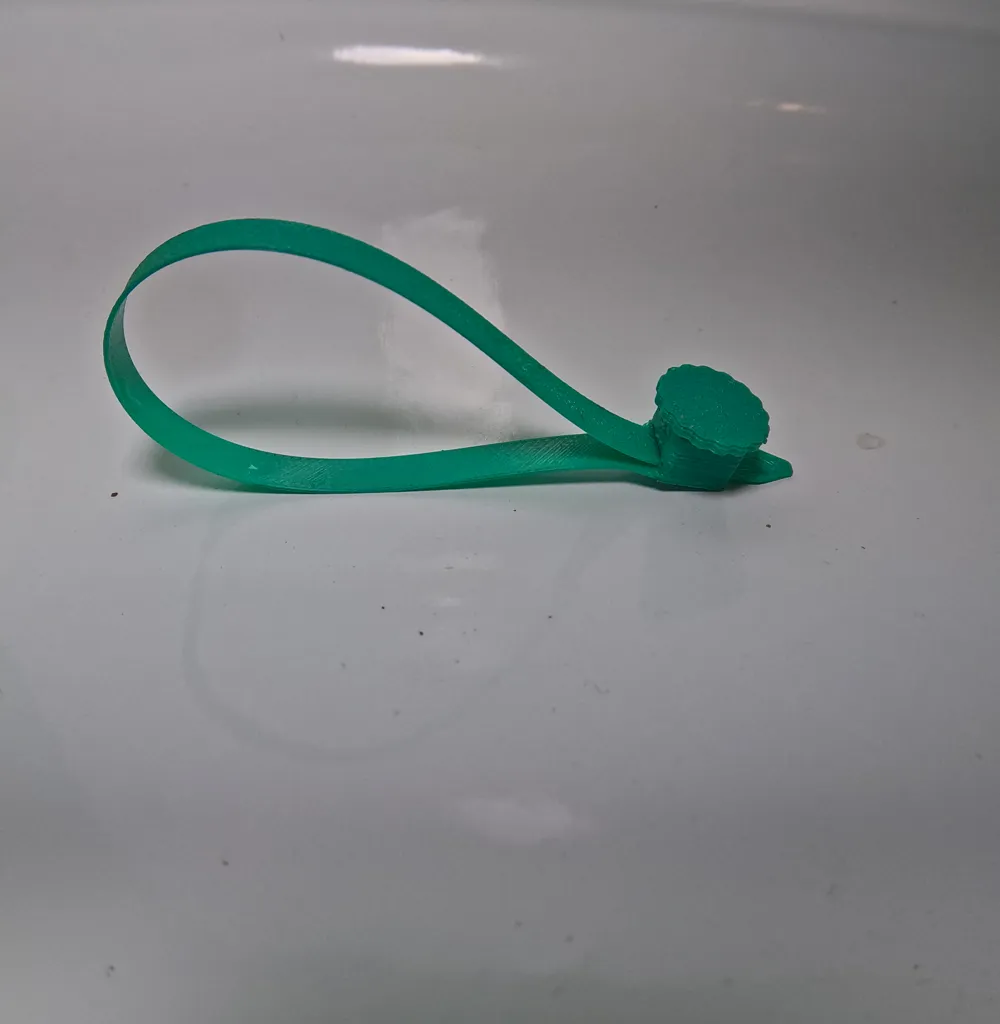

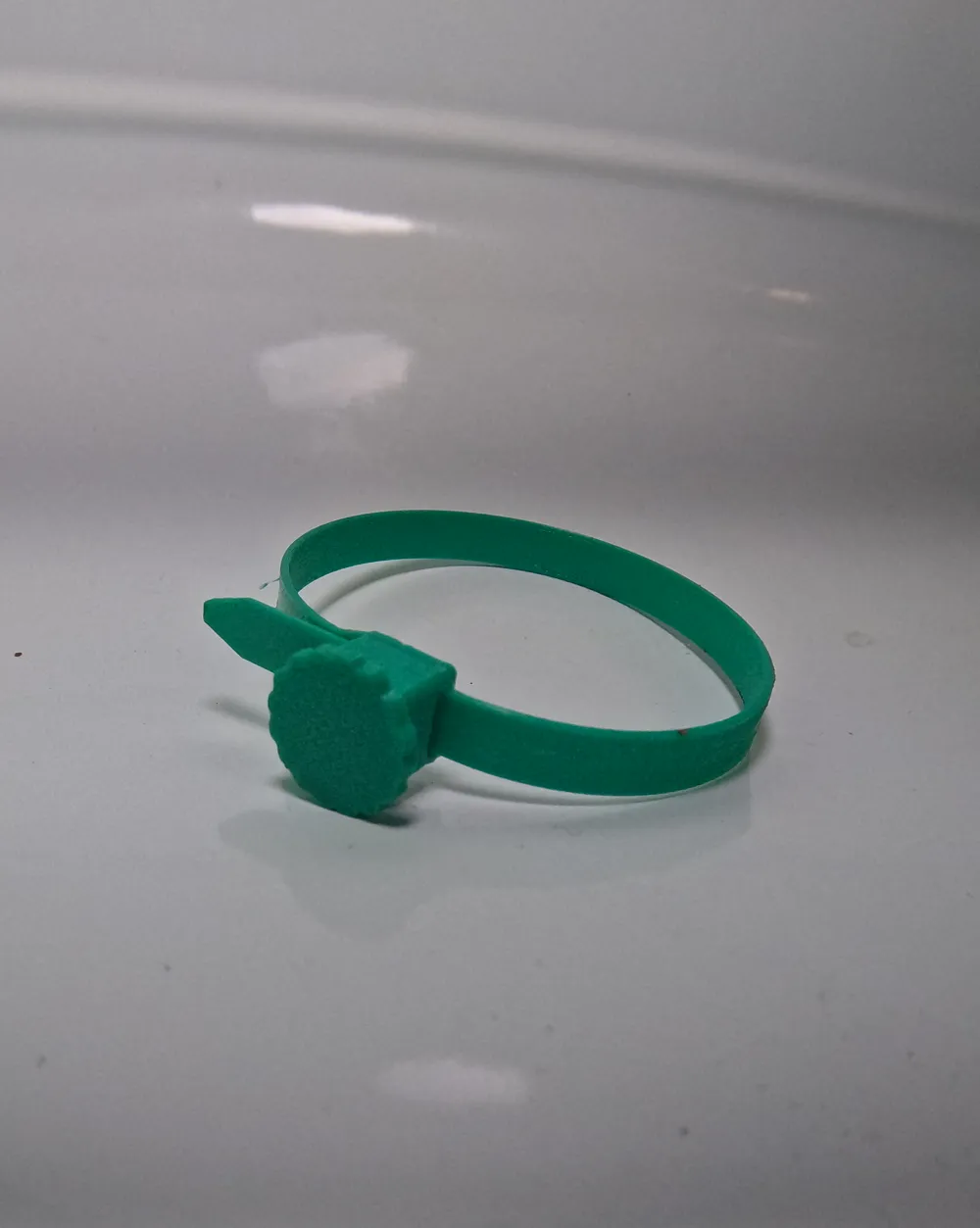

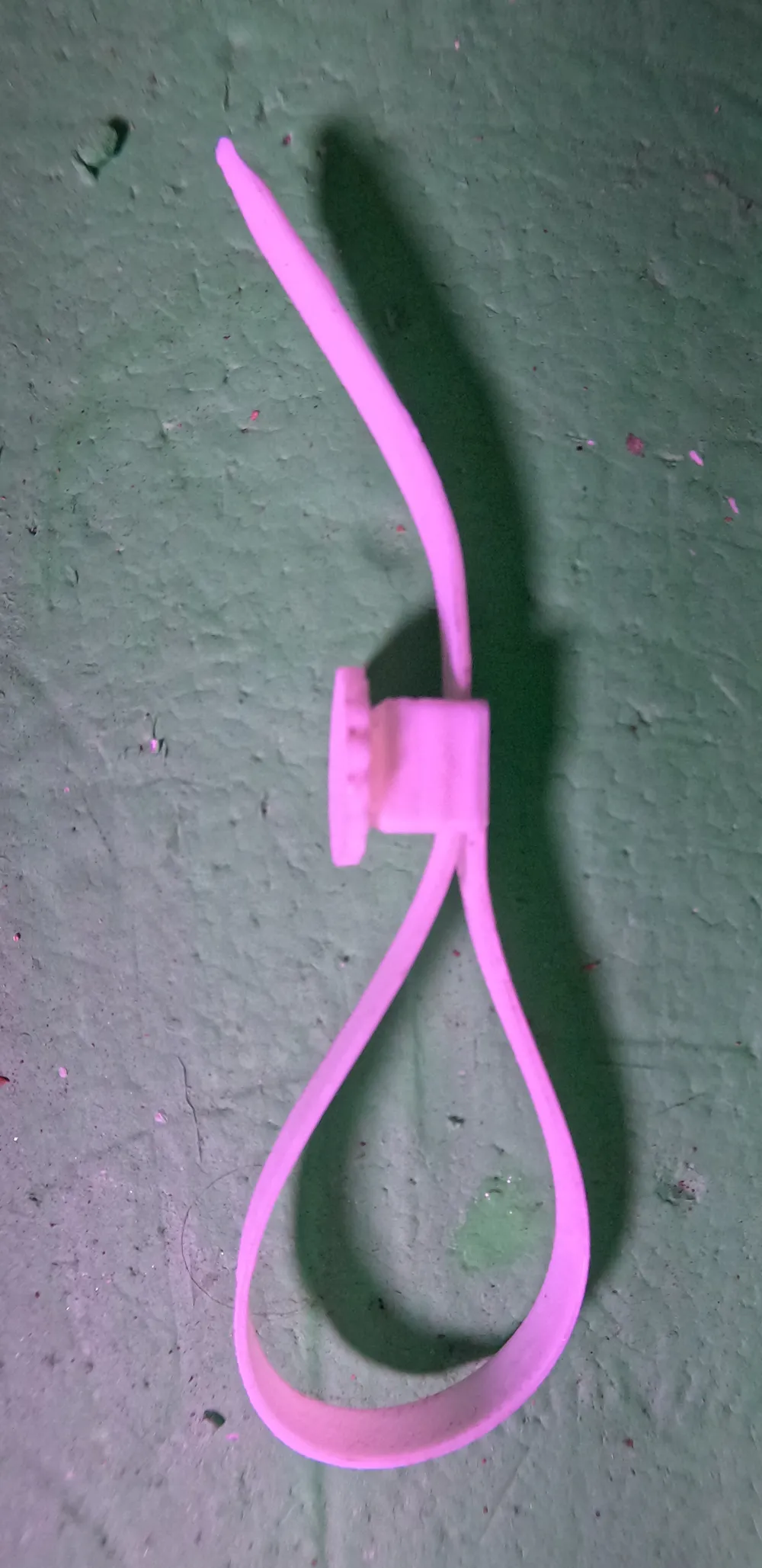

Green tie wrap shown was printed at 2mm^3/sec

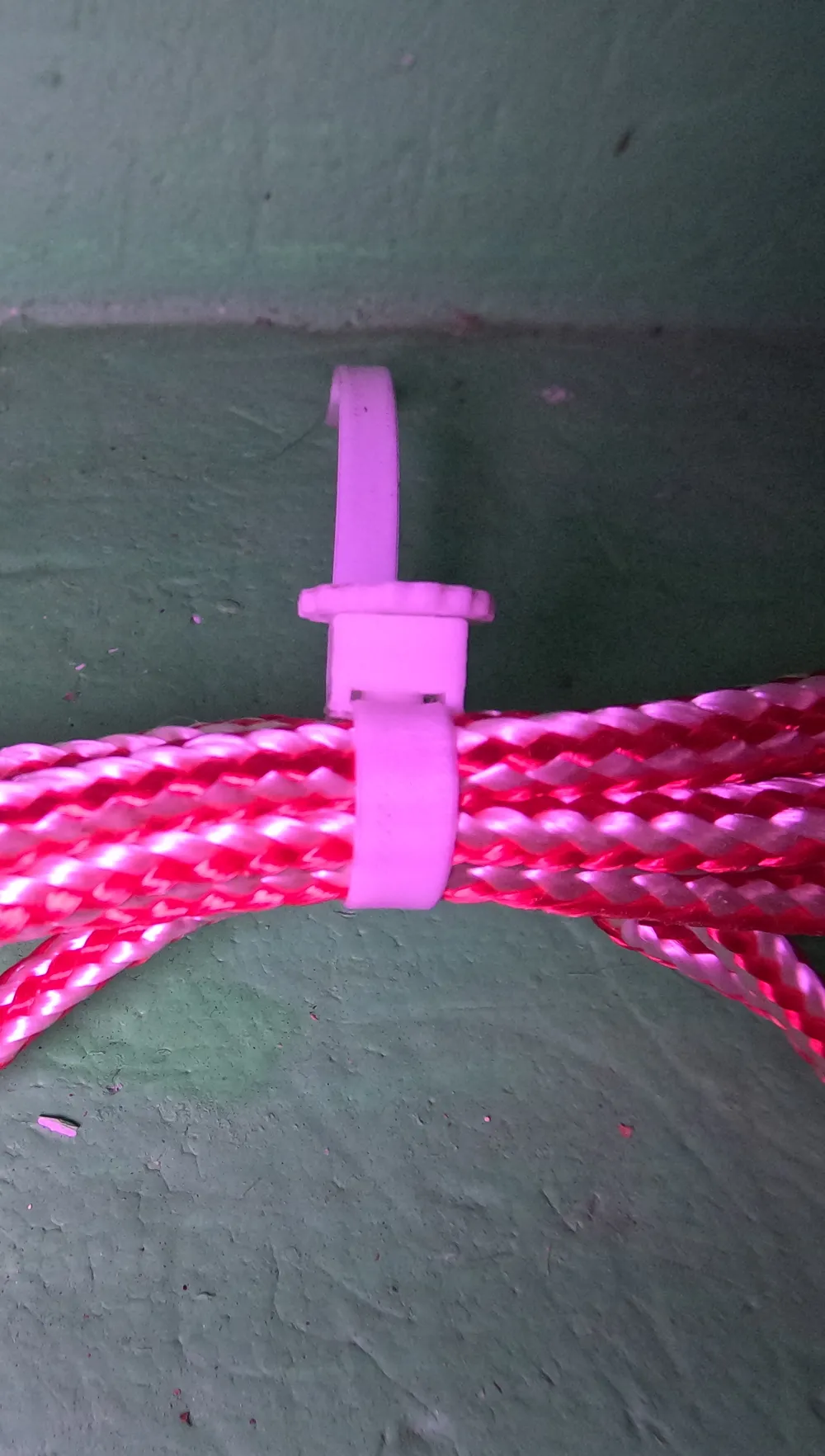

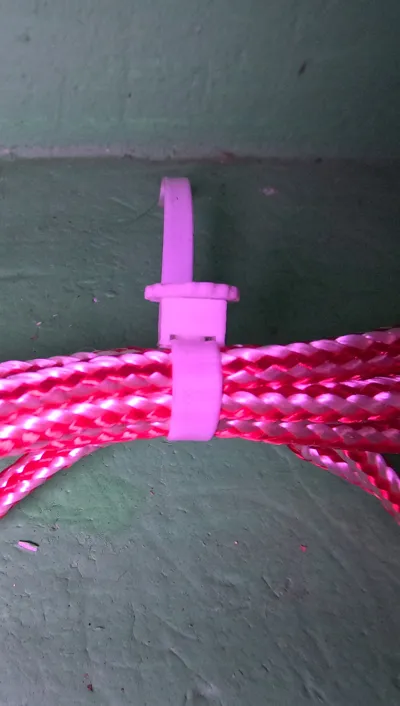

White tie wrap show was printed at 10mm^3/sec (or half default speeds)
