0.2mm layer, 2 walls, 15% infill

emilio

cover





You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

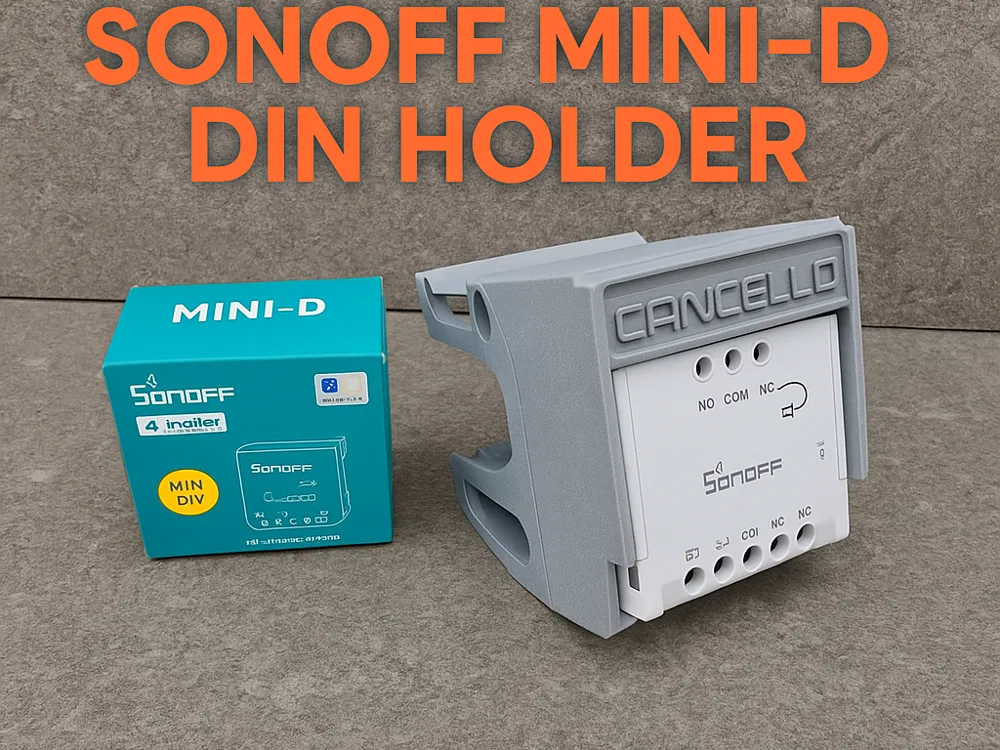

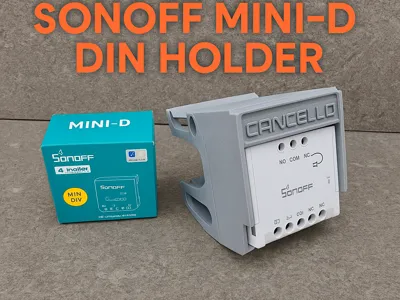

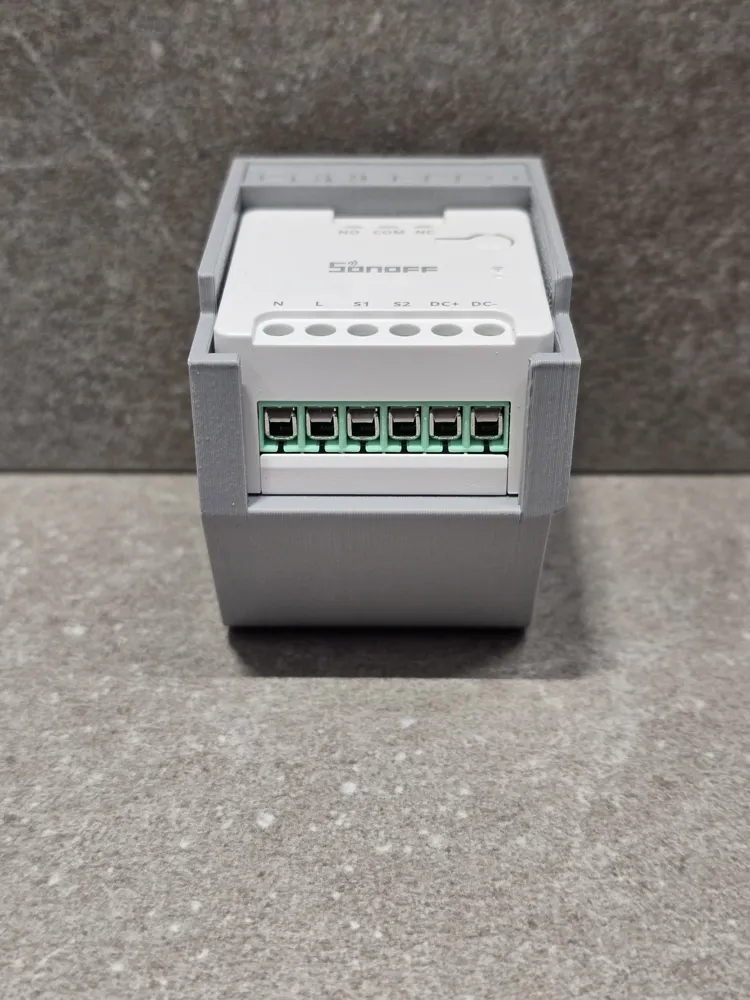

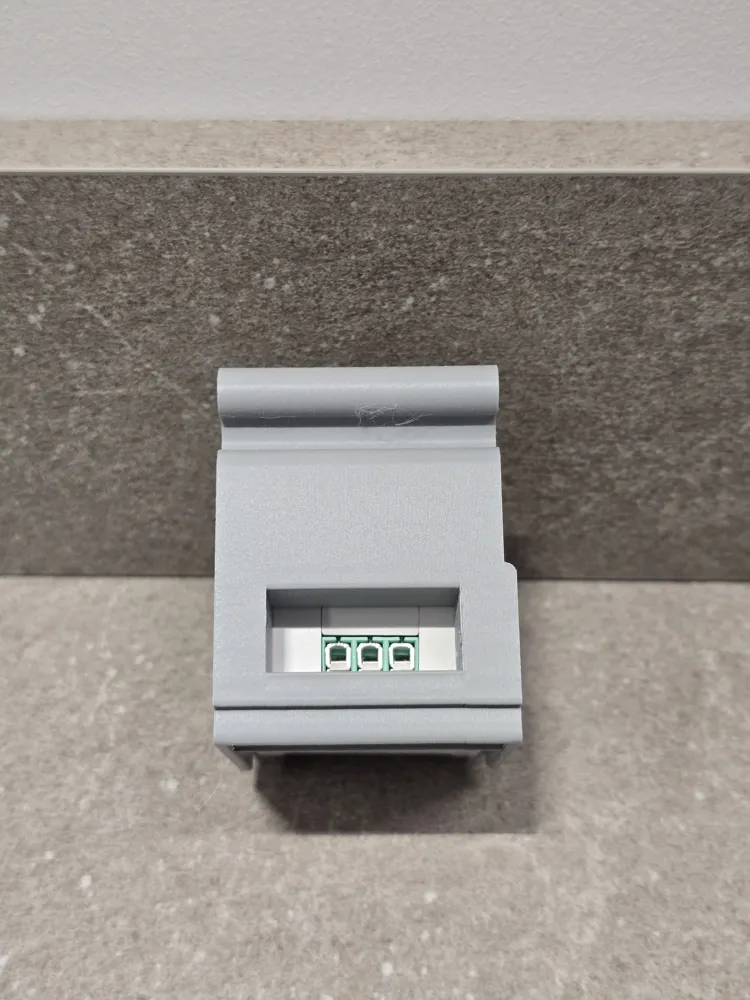

<h3>⚙️ Supporto Sonoff Mini-D per barra DIN – “DIN Rail Mount Bracket”</h3><p>Un pratico e robusto <strong>supporto stampabile in 3D</strong> progettato per ospitare il <strong>Sonoff Mini-D (contatto pulito)</strong> e consentirne il montaggio diretto su <strong>barra DIN standard da 35 mm</strong>.<br>Perfetto per quadri elettrici, automazioni domestiche e installazioni pulite e sicure.</p><h3>🔧 Caratteristiche del modello</h3><ul><li>Alloggiamento su misura per <strong>Sonoff Mini-D (Wi-Fi Smart Switch – contatto pulito)</strong></li><li>Integrazione di una <strong>staffa di aggancio posteriore</strong> compatibile con <strong>barra DIN da 35 mm (standard industriale)</strong></li><li>Sistema di fissaggio stabile che garantisce una presa solida ma removibile</li><li><strong>Iscrizione “CANCELLO”</strong> frontale per identificare rapidamente la funzione del modulo (personalizzabile)</li><li>Design compatto e <strong>stampabile senza supporti complessi</strong></li></ul>

<h3>⚙️ Sonoff Mini-D DIN Rail Mount – “DIN Rail Mount Bracket”</h3><p>A practical and robust <strong>3D Printed mount</strong> designed to house the <strong>Sonoff Mini-D (dry contact)</strong> and allow direct mounting on a <strong>standard 35 mm DIN rail</strong>.<br>Perfect for electrical panels, home automation, and clean, safe installations.</p><h3>🔧 Model Features</h3><ul><li>Custom-fit housing for <strong>Sonoff Mini-D (Wi-Fi Smart Switch – dry contact)</strong></li><li>Integrated <strong>rear mounting bracket</strong> compatible with <strong>35 mm DIN rail (industrial standard)</strong></li><li>Stable fastening system that ensures a solid yet removable grip</li><li>Front <strong>“GATE” inscription</strong> for quick module function identification (customizable)</li><li>Compact design and <strong>printable without complex supports</strong></li></ul>

Print Profile(1)

Description

⚙️ Sonoff Mini-D DIN Rail Mount – “DIN Rail Mount Bracket”

🔧 Model Features
