Modular stroller accessories with suspension

Hello, this project arose from the need for functional and easily adaptable accessories for strollers. Most available holders are either universal or fixed, but few allow for quick replacement or combination of multiple accessories at once. That's why I designed a modular magnetic system that stands on a single compact base. It attaches to the stroller frame and offers two attachment points – one on each side. This allows you to have, for example, a phone on one side and a bottle on the other, or choose a different combination according to your current needs.

The base is designed to be as universal as possible, but it is clear that each stroller has a different frame shape and different types of attachments. That is why I have also created several adapters that extend the compatibility of the system. Different shapes of clamps and clips allow mounting on most common types of structures – from classic tubular frames to wider and atypical profiles. The goal is for the system not to be tied to one specific stroller model, but to have the chance to work practically anywhere.

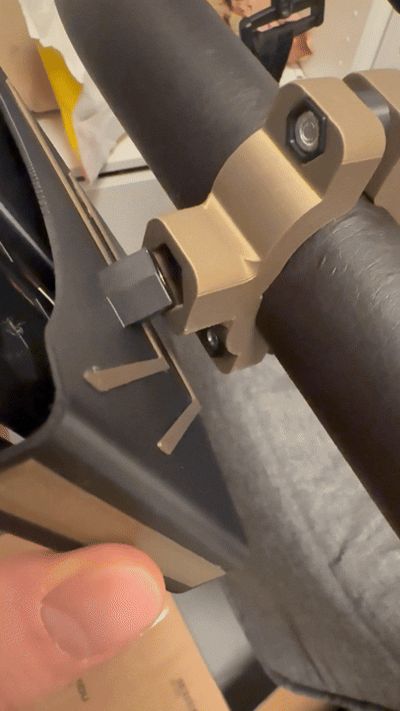

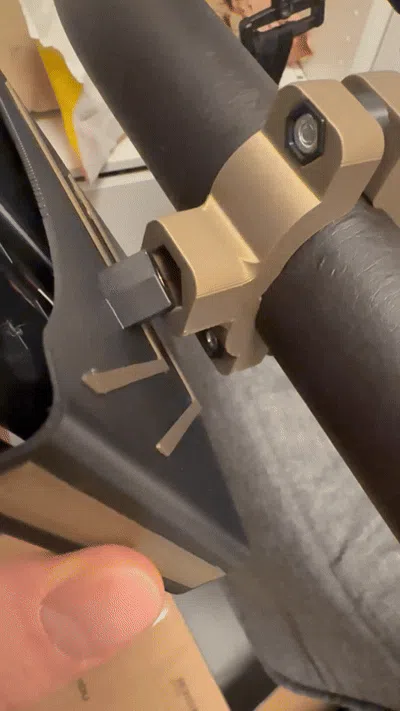

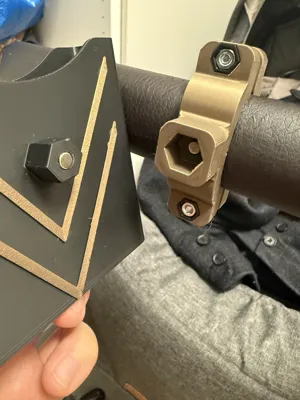

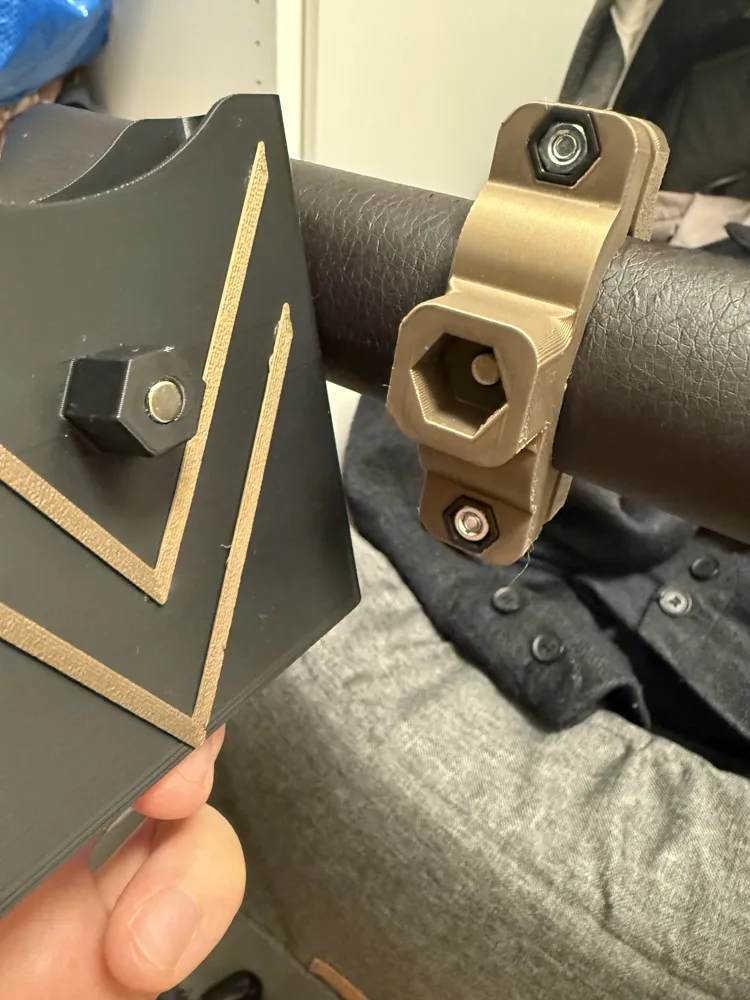

The holders are attached to the base with magnets, which allows for very quick movement or replacement. They hold up surprisingly well while driving, as the magnets hold firmly, but they are still easy to handle. The intention was for the system to be intuitive and for the replacement of individual modules not to cause delays in situations where a parent needs to do something with one hand.

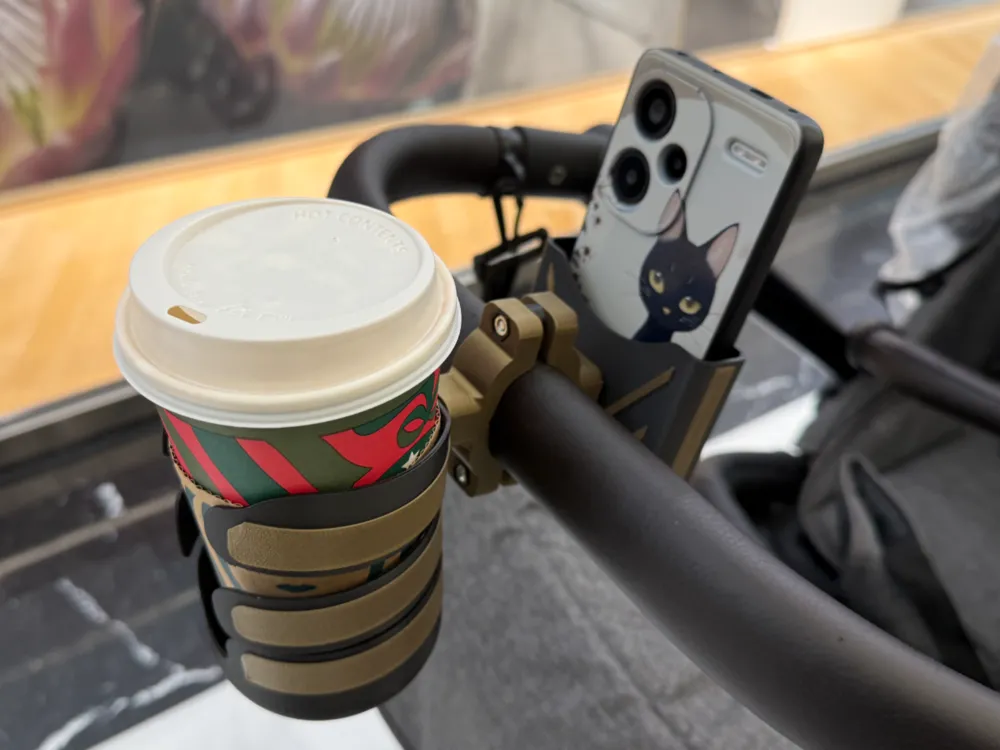

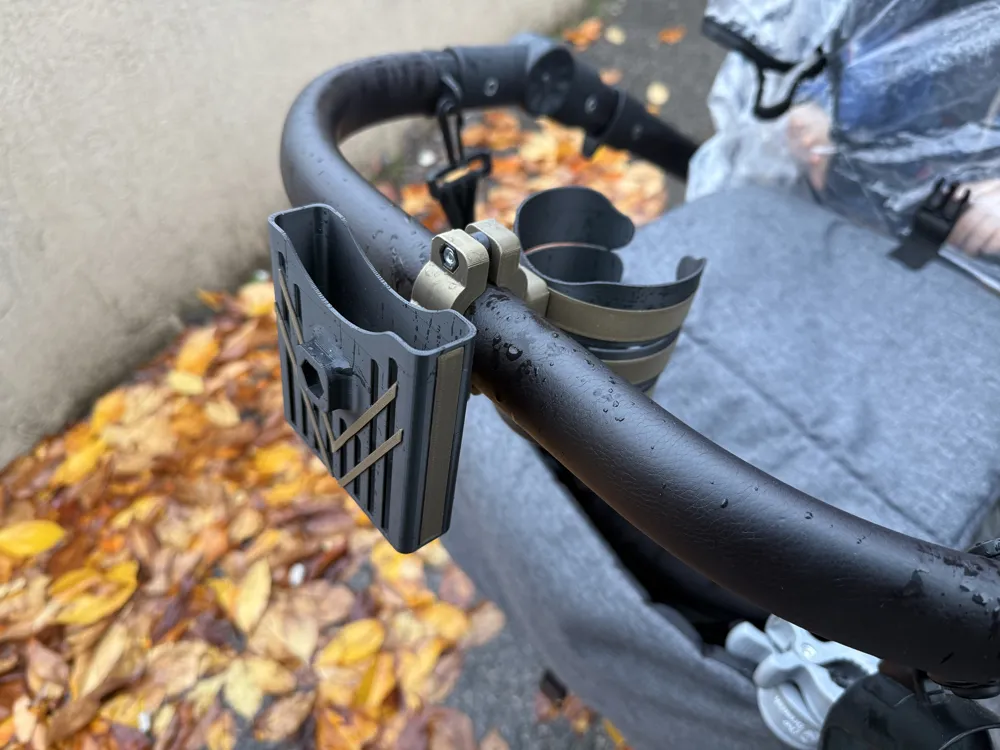

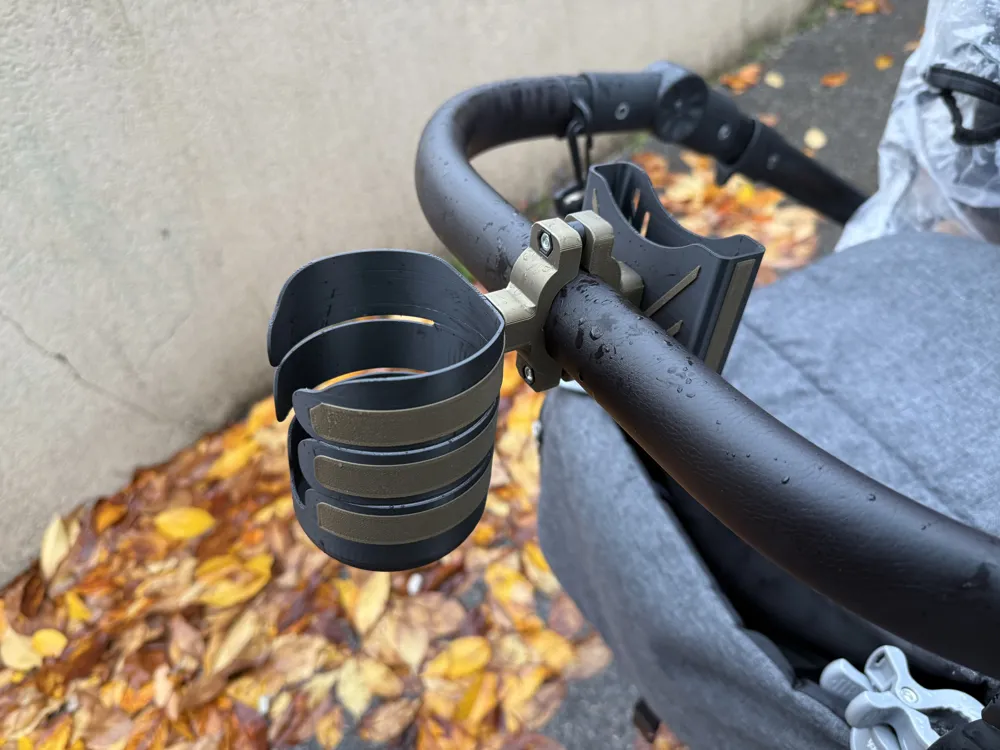

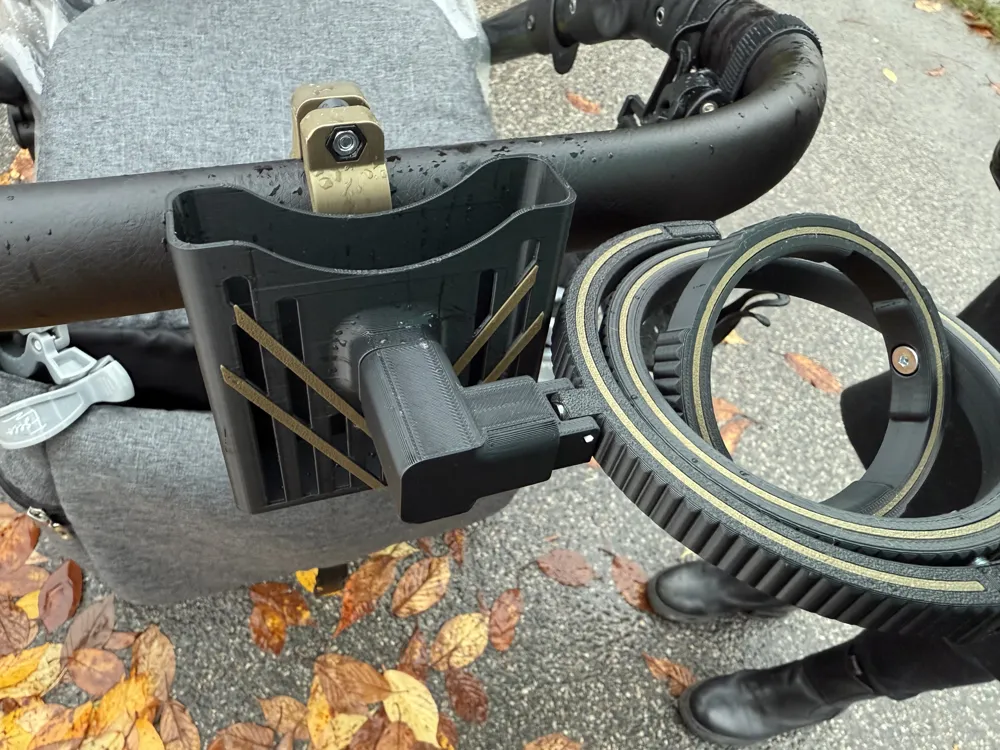

I have created three accessories for the system so far. The adaptive bottle holder, which can be adjusted to different sizes, works reliably even in rough terrain and stabilizes the bottle well. The second element is a phone compartment, which solves the problem of having to store your phone somewhere uncomfortable or in your pocket while riding. This keeps the phone in sight and within reach, which is practical for navigation or music, for example.

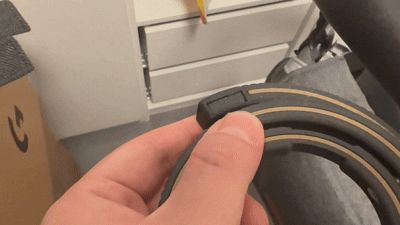

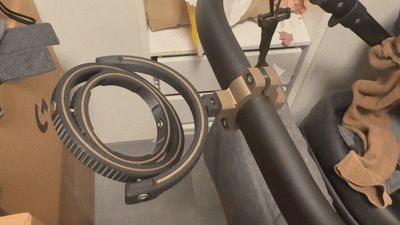

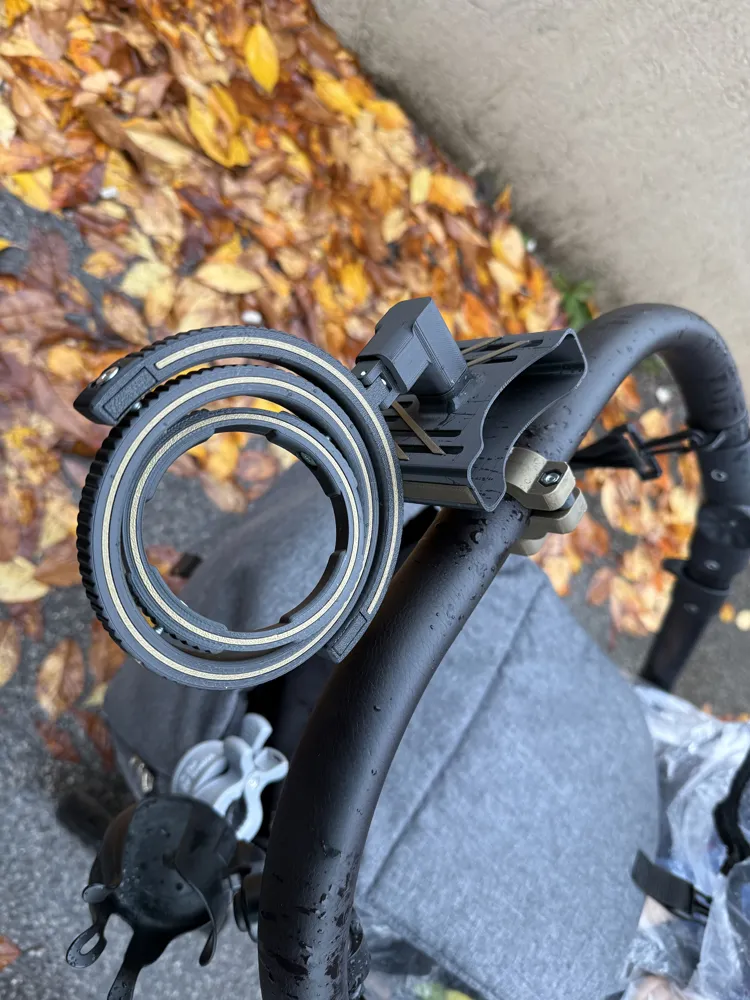

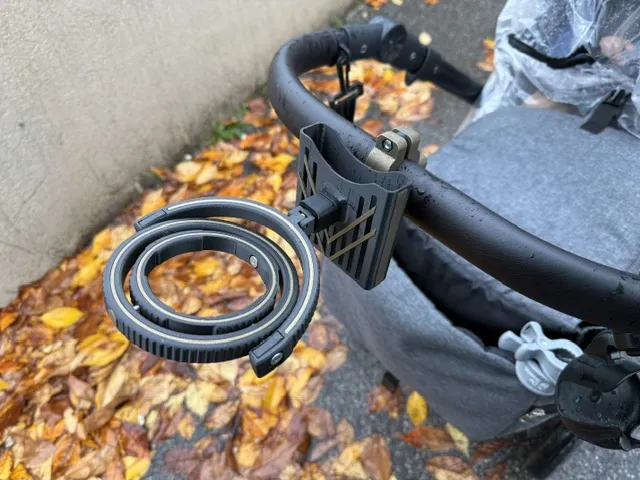

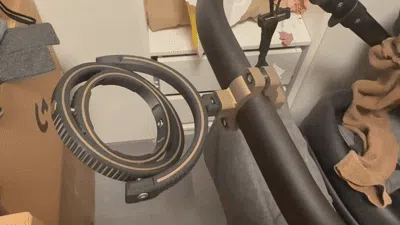

The third and most advanced element is a gyroscopic bottle holder. It was created as an experiment and ultimately proved to be a surprisingly interesting accessory. It combines suspension with gyroscopic movement, so it keeps the bottle as upright as possible even on uneven surfaces. In addition, it is foldable, so it does not take up space when not in use. This module is somewhat "premium," but it adds character and technical interest to the entire system.

The entire project is designed to look clean and functional and to be expandable. In the future, I would like to add more accessories, such as a light, a pocket for small items, or a cup holder. But the basic idea is simple: to allow parents to configure the stroller to suit their needs and change it at any time, quickly and effortlessly, regardless of the type of stroller they are currently using.

Happy printing :)
