5pc Build Plate Rack - Bambu X1/P1 by toolmantim313

toolmantim313

3D Printer>3D Printer Accessories

Print Profile(10)

All

X1 Carbon

P1S

P1P

X1E

0.24mm layer, 3 walls, 25% infill

Designer

13.2 h

4 plates

4.8(126)

actually 5 plate Fast 8hr42m 0.24mm layer, 3 walls, 10% gyroid infill

8.7 h

4 plates

4.9(87)

9 Hr 15 min / 0.2mm layer, 3 walls, 10% gyroid infill

9.3 h

4 plates

4.7(16)

0.6mm nozzle, 0.42mm layer, 2 walls, 15% infill

7 h

4 plates

4.9(10)

Click to see more

Boost

631

1115

290

2.6 k

2.9 k

Released

Description

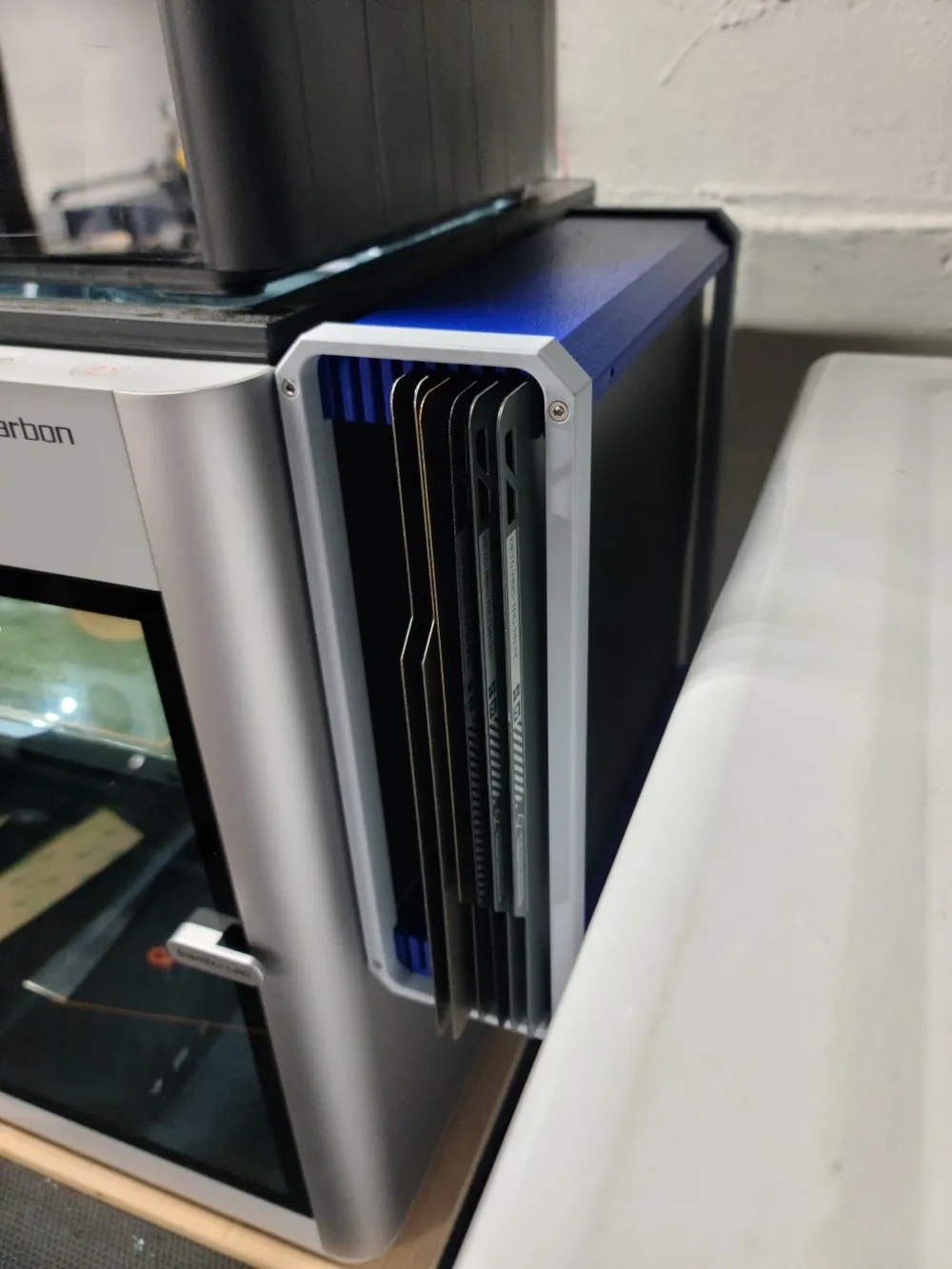

Same setup as the 10pc plate holder, but in a compact 5 plate model! Link to the 10pc setup below. The model picture is of the 10 plate version attached to the side of the X1.

Simple rack to hold up to 5 build plates. Screws together with 3mmx14mm socket head cap screws. I included both 3mf and stl files with a multi color stand 3mf file. The 10 plate holder stands on it's own, but this 5 plate version will most likely need the stands if you wish to have it vertical, or opte to use 3m tape and attached it to the side of the X1 like I did. Although since the stand does bolt onto the rack, you can use it to mount to the underside of a bench or shelf in the vertical position.

And be sure to check out my Hex system adapter mounts so you can mount the rack to the a hex wall!

https://makerworld.com/en/models/28605#profileId-24995

10 pc Rack system

https://makerworld.com/en/models/19526#profileId-18252

Comment & Rating (290)

@Cloudz

Print Profile

actually 5 plate Fast 8hr42m 0.24mm layer, 3 walls, 10% gyroid infill

i think the model could use brim. it lifted from the plate I was printing on and got a bit skew.

The designer has replied

@ethanmckellar12

Probably just you. No one else has had this issue

@huntingtonbuild

I had the same issue.

(Edited)

@jaminvanderberg

Replying to @ethanmckellar12 :

I had that problem with the feet. Even with a freshly cleaned bed, those corners lift off the bed almost immediately.

(Edited)

@PHSSTEAMLab

Print Profile

0.24mm layer, 3 walls, 25% infill

The print quality and design are great. However both the main and second print profile are scaled incorrectly. EDIT: The scaling is correct, it was pointed out to me that I printed 2 back plates instead of one of each. I'm not sure how it happened because I used just use the send to printer button. I'm sure it was probably human error on my part. I'm leaving this in here so others know to watch for the same mistake. I have updated the photos and ratings to reflect the proper print results.

(Edited)

@TerrorBelow

Not the Scaling is the problem, you printed the endframe two times, the front and backpieces are diffrent, on the pictures its clear to see you printed the Backpiece two times.

(Edited)

@PHSSTEAMLab

Replying to @TerrorBelow :

Thanks for the point out. I'm not sure how that happened using the send to printer function. It seems to be a recurring issue for others as well. I updated my rating and description to reflect the property printed version.

(Edited)

@PHSSTEAMLab

I just used the "0.24mm layer, 3 walls, 25% infill" print profile and it came out looking great. The only problem is it is sized incorrectly so it prints too small for plates to fit. (Photo attached) I checked the STL files and they are sized correctly. So use caution when printing with the added profiles or you may end up wasting time and material.

@wikitinl2

I has this problem too :( i commented it on the other version of this and it was deleted...

@TerrorBelow

Replying to @wikitinl2 :

Scaling ist correct, look for printing both back and front piece, they are different pieces, when you print the back piece two times no plate will ever fit, it's the same for both versions 5pc or 10pc

(Edited)

@Nomad07

Just turn it around! I thought there was a front and a back.

(Edited)

@theRaz

Print Profile

actually 5 plate Fast 8hr42m 0.24mm layer, 3 walls, 10% gyroid infill

Really nice design, added those sidewalls with black logo on matte grey

The designer has replied

@ethanmckellar12

Where are the side walls found? am i blind ? lol those look nice, id like to make some myself

@theRaz

Replying to @ethanmckellar12 :

https://makerworld.com/models/36305#profileId-34149

@rutherfordk

Print Profile

0.24mm layer, 3 walls, 25% infill

Really happy with how this one turned out. Great Model!

@changeling.mue

Print Profile

actually 5 plate Fast 8hr42m 0.24mm layer, 3 walls, 10% gyroid infill

First a failure with extreme warping. Now a nice plate holder. Reduced the infill to 8%. Printed with brim. Thanks for sharing

@Fennrox

Print Profile

actually 5 plate Fast 8hr42m 0.24mm layer, 3 walls, 10% gyroid infill

Very nice print & profile. the design fits for the X1C and the plates slide in and out without trouble. Exactly what i was looking for. I used Extrudr PLA NX2 grey and Sunlu PLA+ black, which i had laying around, within the AMS - printed like a charm without errors.

(Edited)
