1U Rack Drawer System

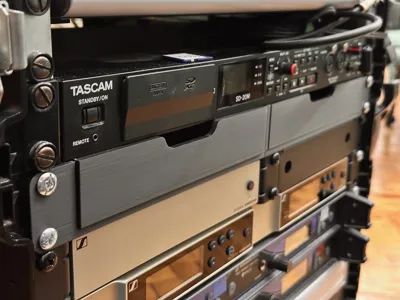

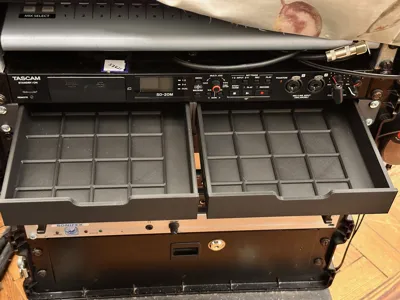

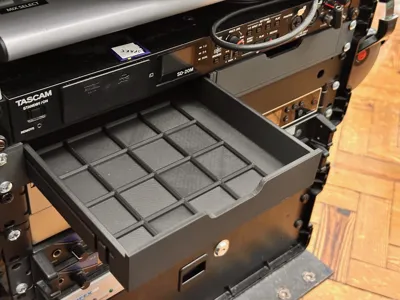

Here is my complete rack mount drawer system. I have combined each of the models into one file so that you can download and print in one place. I designed these from the ground up to be longer than other systems I've found and also to run on rails that stop the tray from pulling out in your hand during use. This has been designed for a live environment where you cannot expect people to baby the drawer, hence the notch cutout for opening as opposed to a handle which would likely be broken off eventually.

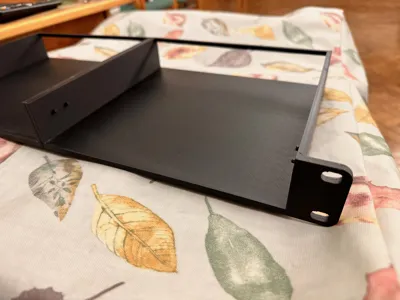

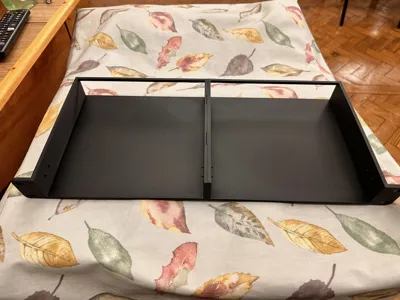

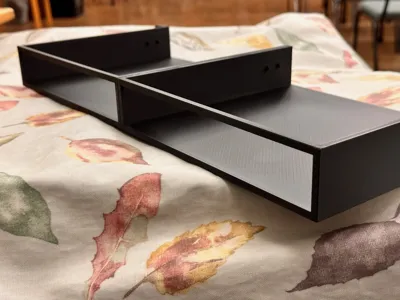

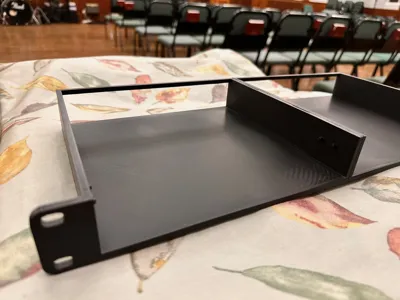

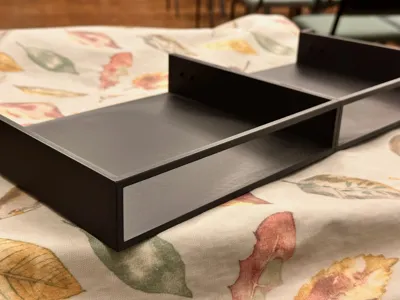

• The trays are designed to slot together with the opposing side - I also recommend gluing them together for additional strength and rigidity.

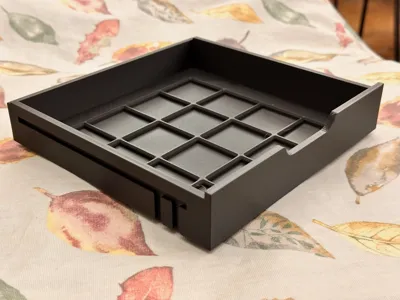

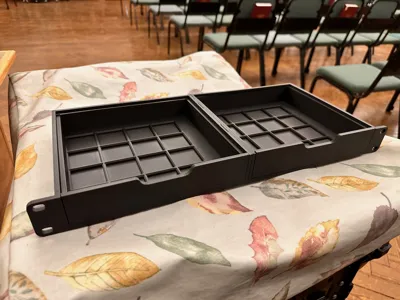

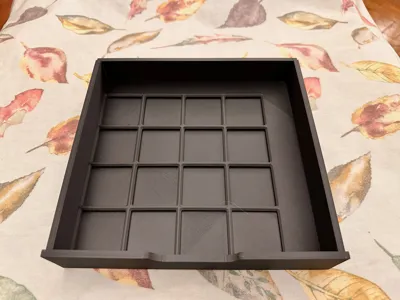

• The drawer has both a clean version and also one with a gridfinity grid in the corner. You can fit 4.5 standard gridfinity boxes in either direction.
• I've had no issues with strength so far, just using two wall loops but feel free to add more if you want to. I've printed in PLA without issue but you may want to print in PETG depending on your environment.

Due to the size, I cannot guarantee that it will fit onto the A1 Mini print bed.

Let me know if there are any modifications you'd like to see, otherwise please enjoy and feel free to leave a comment!

If you like this model and would like a 2U version, check it out here! https://makerworld.com/en/models/2007466-2u-rack-mount-drawer-system
