Description

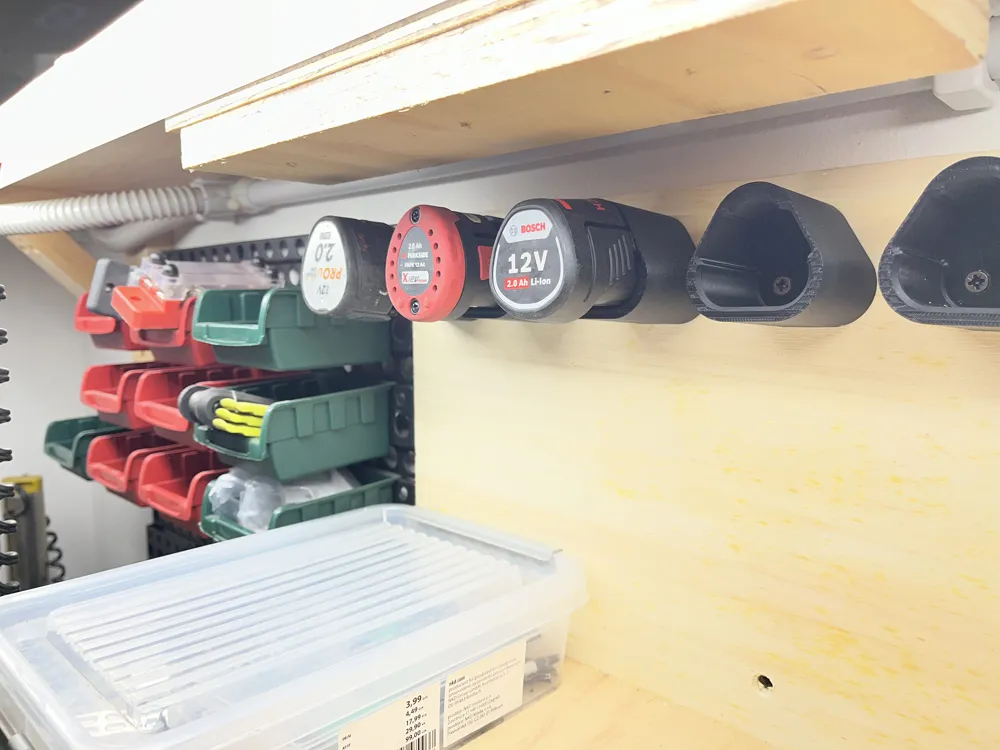

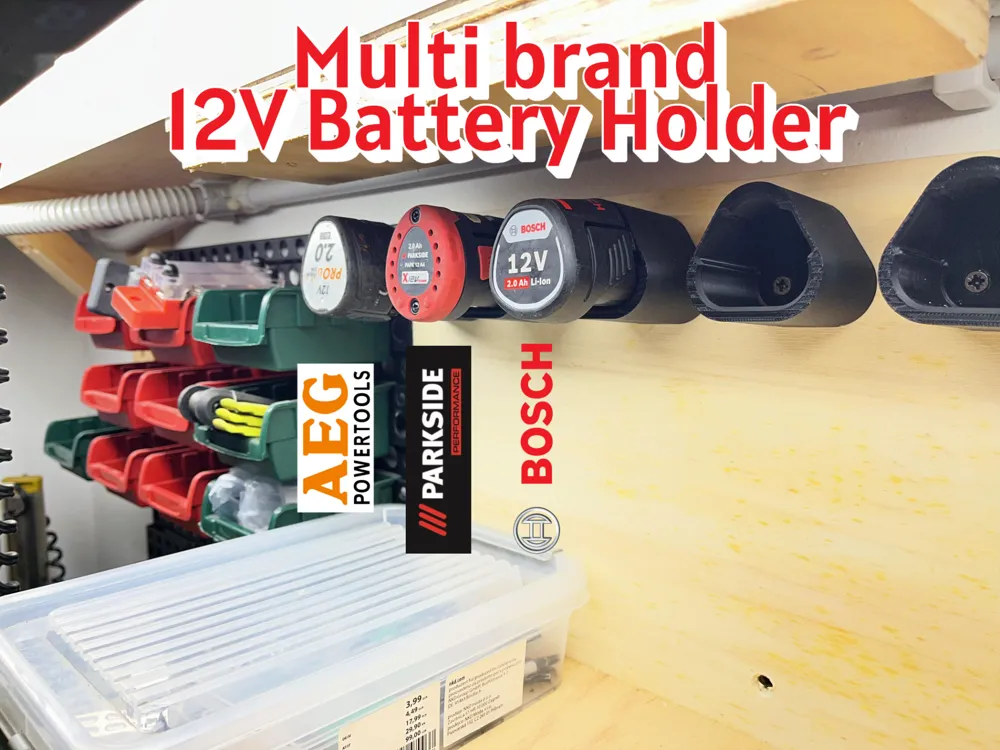

I currently own 3 different 12V powertool brand and they all share the same triangular-rounded battery shape, so I tried to design a battery holder which was suitable for all of them.
And here it is, my design is currently compatible with:
- AEG
- Bosch
- Parkside
- Milwaukee
- Dremel
I do not have other brands available, but if you have it, try download the design and let me know if it fits. Otherwise, try to give me the information that I need to make it suitable for other brands too.
Mounting Instructions:
Option 1: free hand
- print the holders
- fix them with 2 4mm screws where you need them

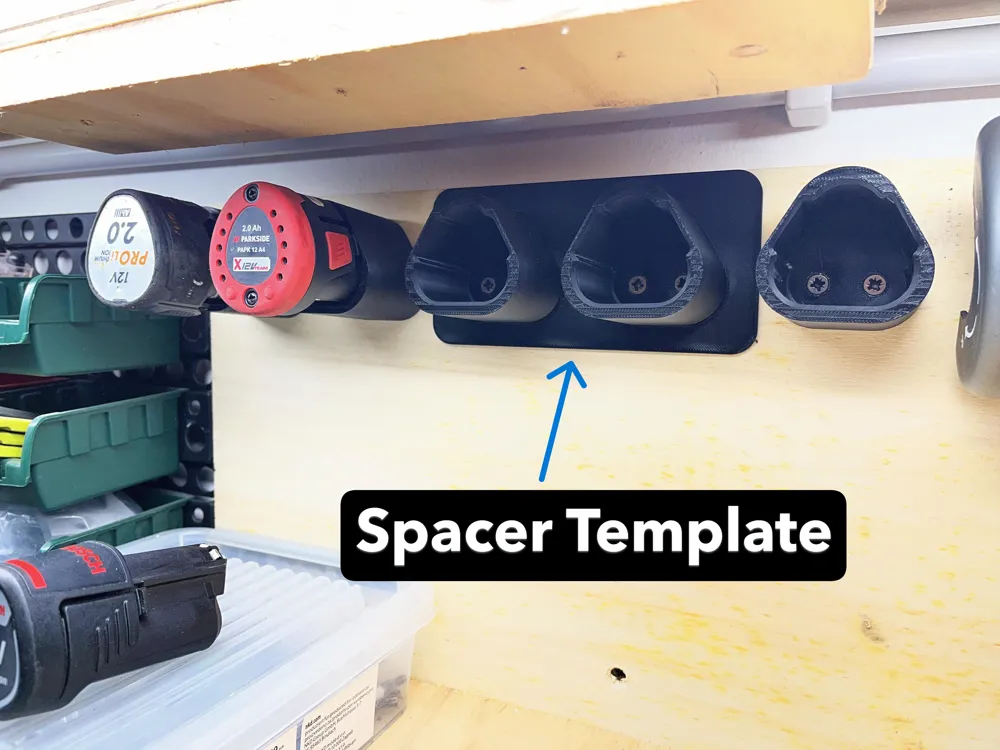

Option 2: using template

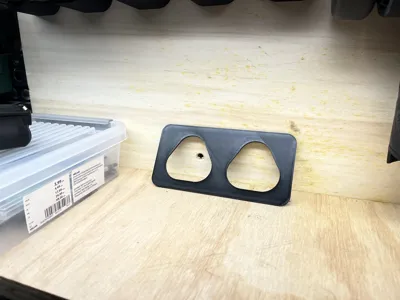

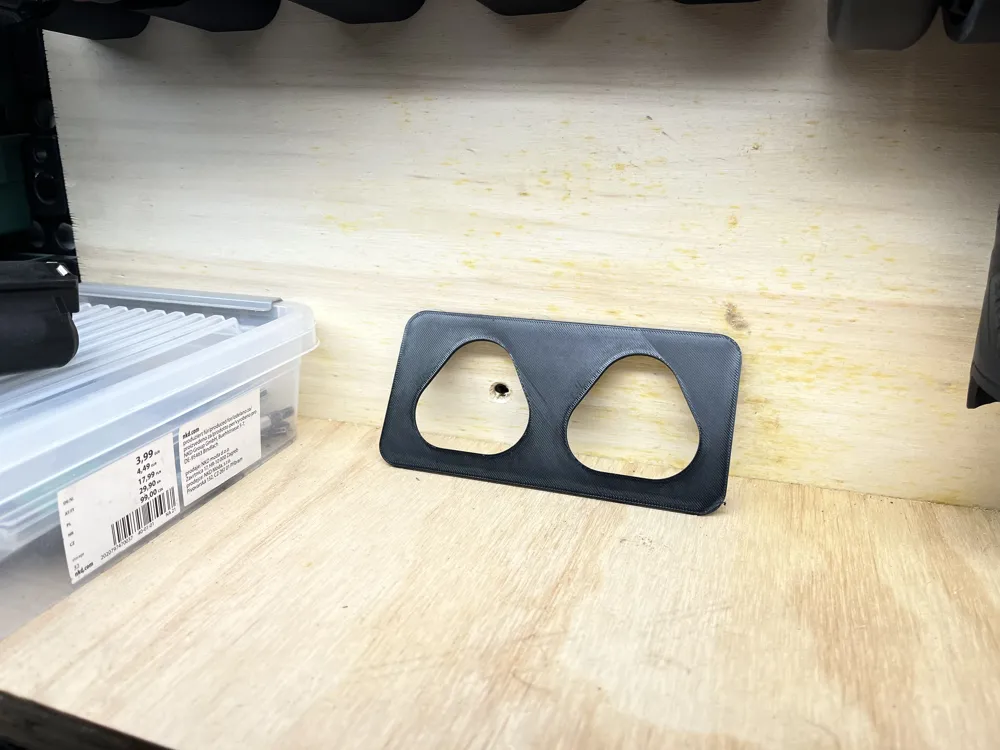

- In the print profile you will find a template. Print 1 template and all the holder that you need
- Align the top or the bottom of the template to some horizontal reference
- put the first holder in the first template hole and fix it with 2 4mm screws
- now put the second holder in the second template hole and fix it
- move the template ahead to the second holder and use it to fix the third one and so on…
See my powertools and battery management system here
Enjoy
