Easy G9 holder and WAGO connector block
Print Profile(1)
Bill of Materials
- Single WAGO blocks x 2: https://www.amazon.co.uk/221-2411-Reusable-Electrical-Connector-Compact/dp/B0DMWQS3P9/ref=asc_df_B0DMWQS3P9?mcid=355d0ed4fc823b23b000e80d0890b765&hvadid=744245591477&hvpos=&hvnetw=g&hvrand=4283990679136050489&hvpone=&hvptwo=&hvqmt=&hvdev=c&hvdvcmdl=&hvlocint=&hvlocphy=1006483&hvtargid=pla-2428565396560&hvocijid=4283990679136050489-B0DMWQS3P9-&hvexpln=0
Description

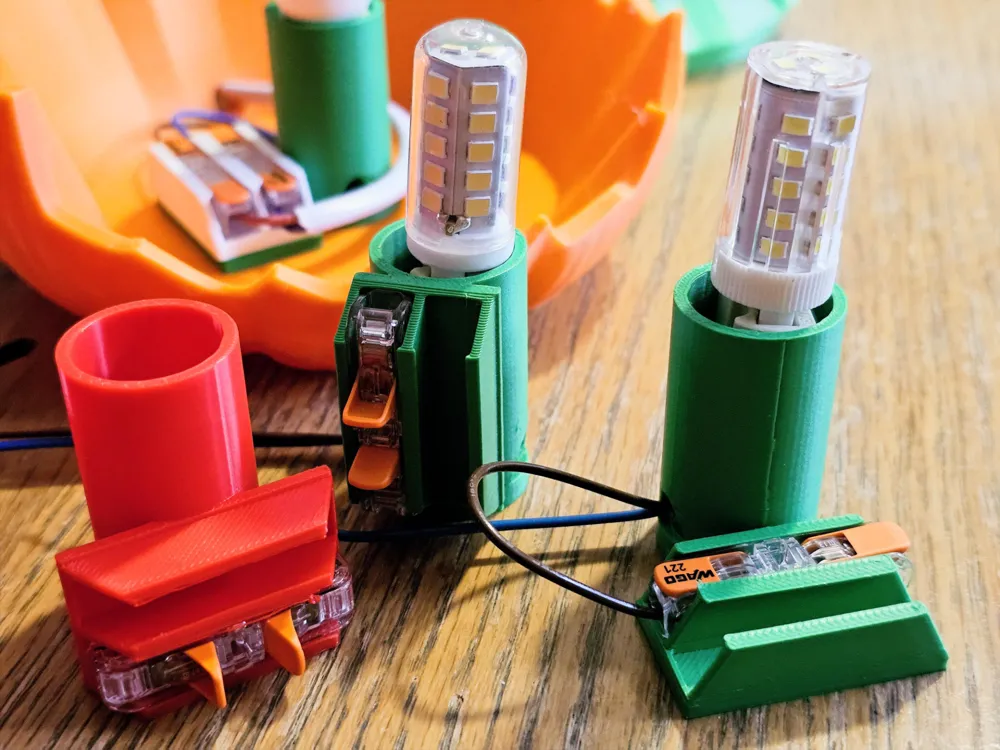

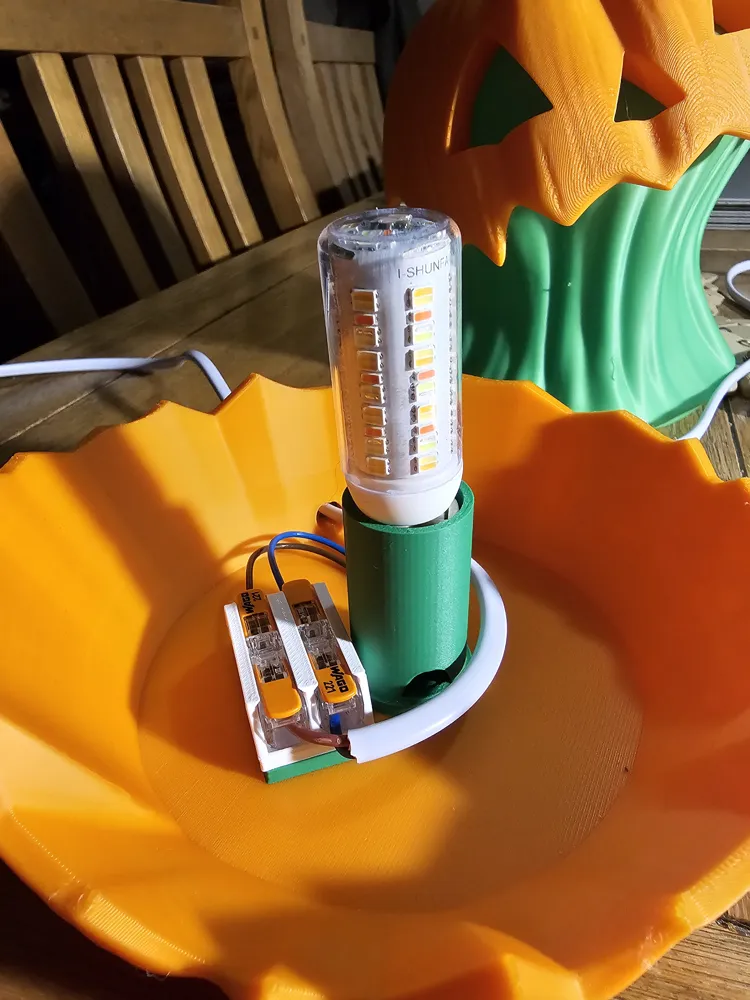

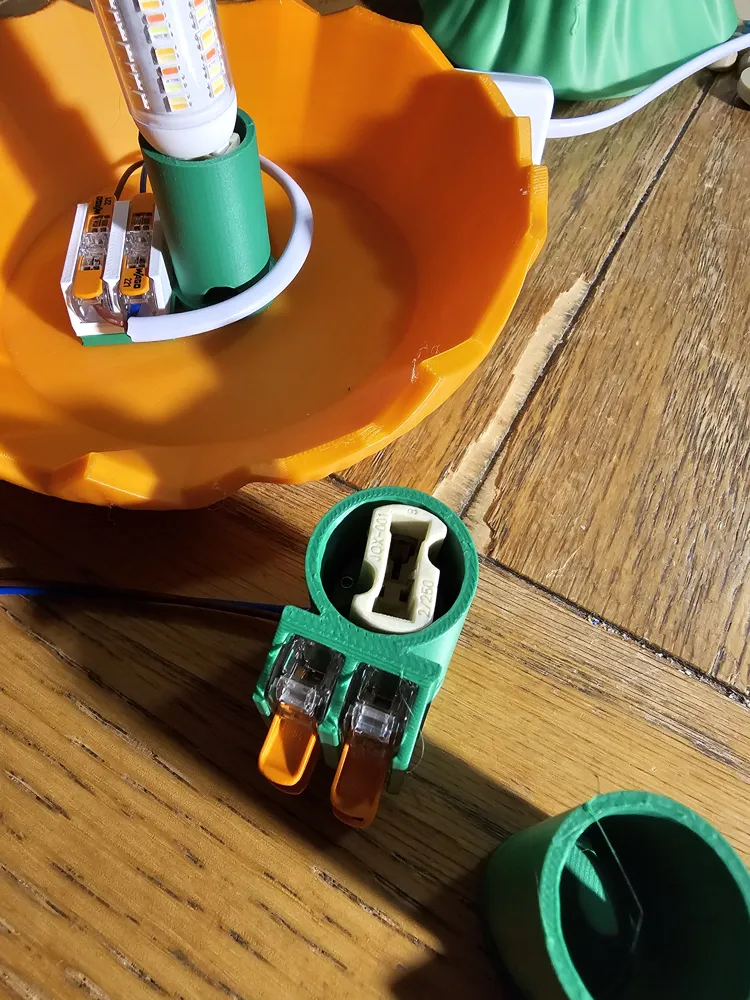

This G9 bulb holder is for all standard G9 capsule bulbs, mounted in the standard the small round ceramic base. It includes a convenient WAGO-style push-fit connector for quick, tool-free wiring — making installation faster and more secure. I have left them a little slack because I found a 1mm variance in diameter from different suppliers.

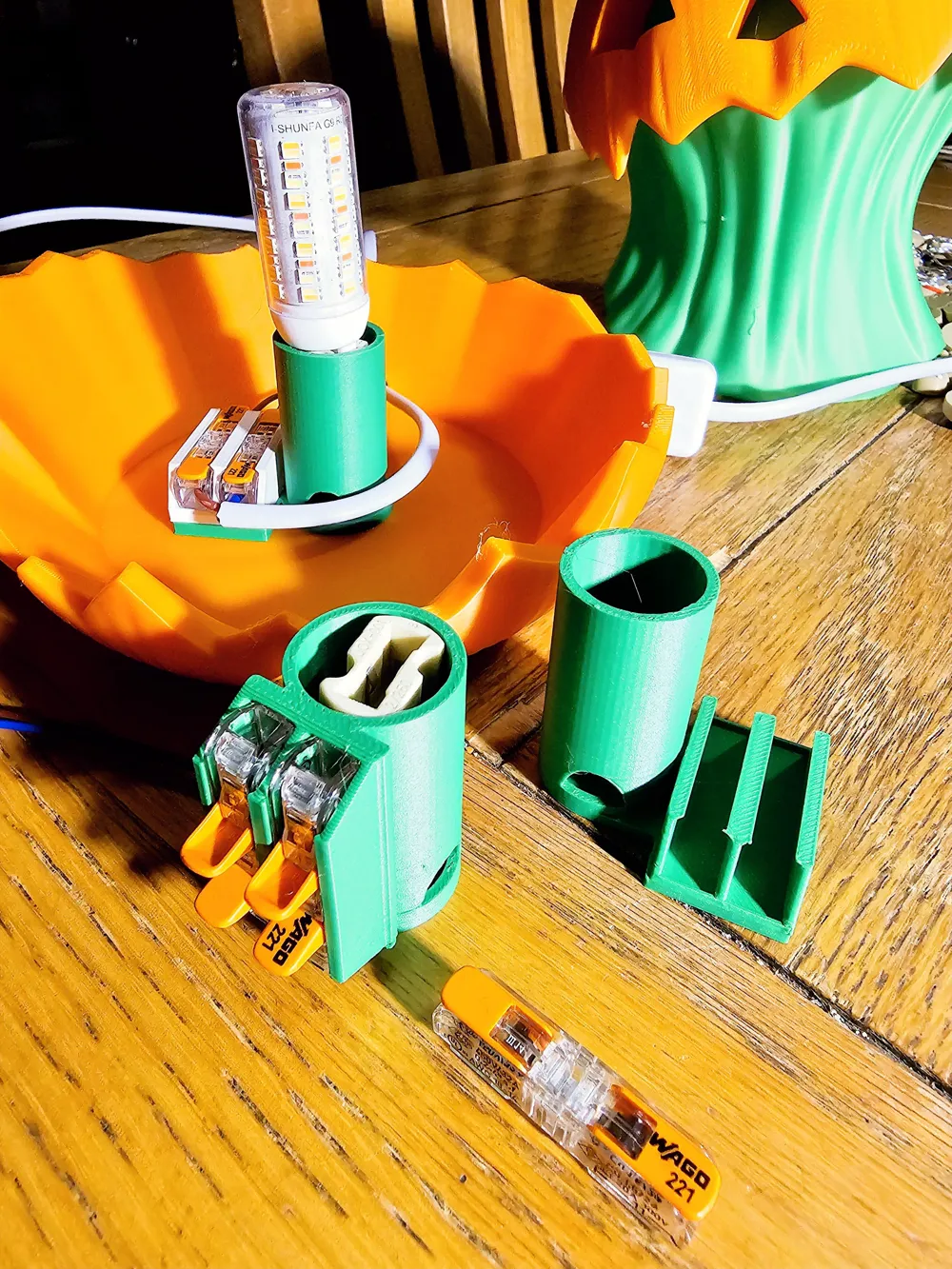

The integrated side-mounted WAGO clip allows easy fixing to surfaces, brackets, or lighting housings, helping you mount your bulb safely and neatly in any position. Ideal for spotlights, downlights, and custom lighting projects.

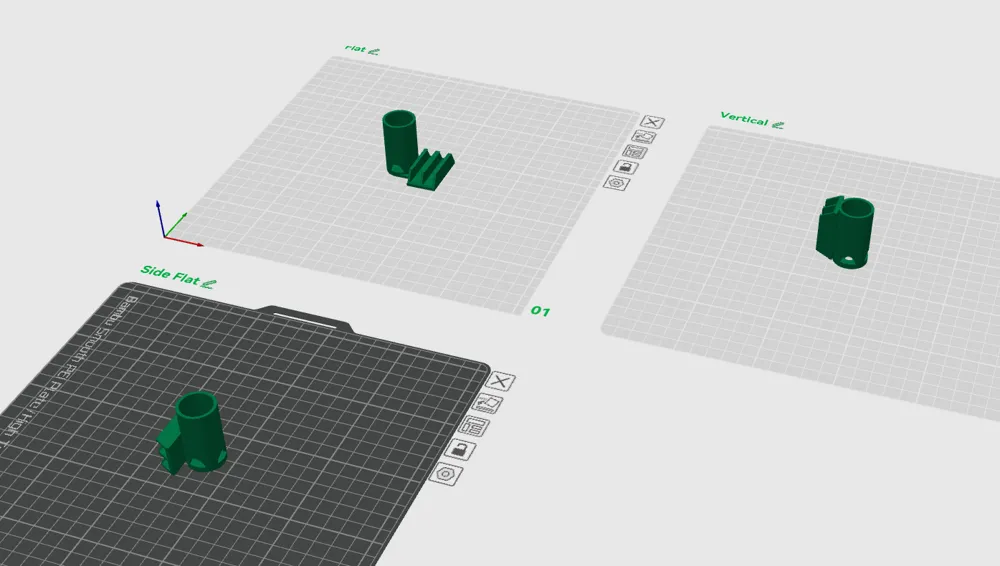

There are 3 designs for different uses, 2 with countersunk holes to mount them, but for ease in 3d printing, I just glue them in.
I personally printed using PLA-HT - high temp for my own peace of mind, but LED bulbs do not tend to get hot, so you might use PLA, PETG or any other if you chose.
Please let me have any suggestions to improve them!
