Jonsbo N4 Slim Front Cover with fans

Printed with Bambu lab White ABS on a Bambu lab X1C

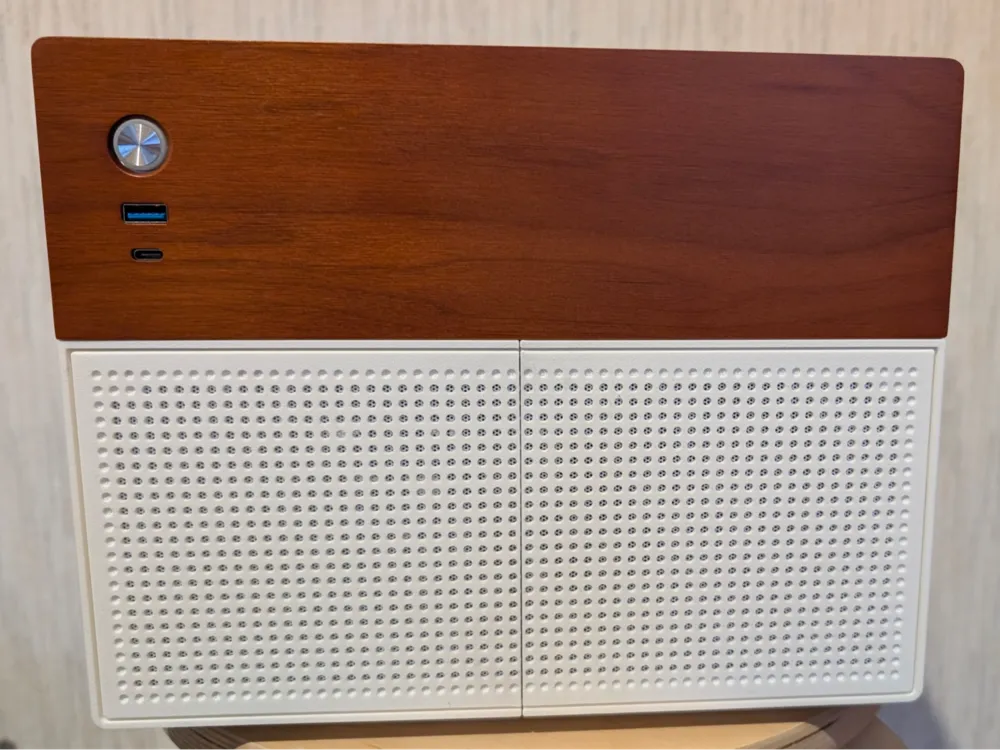

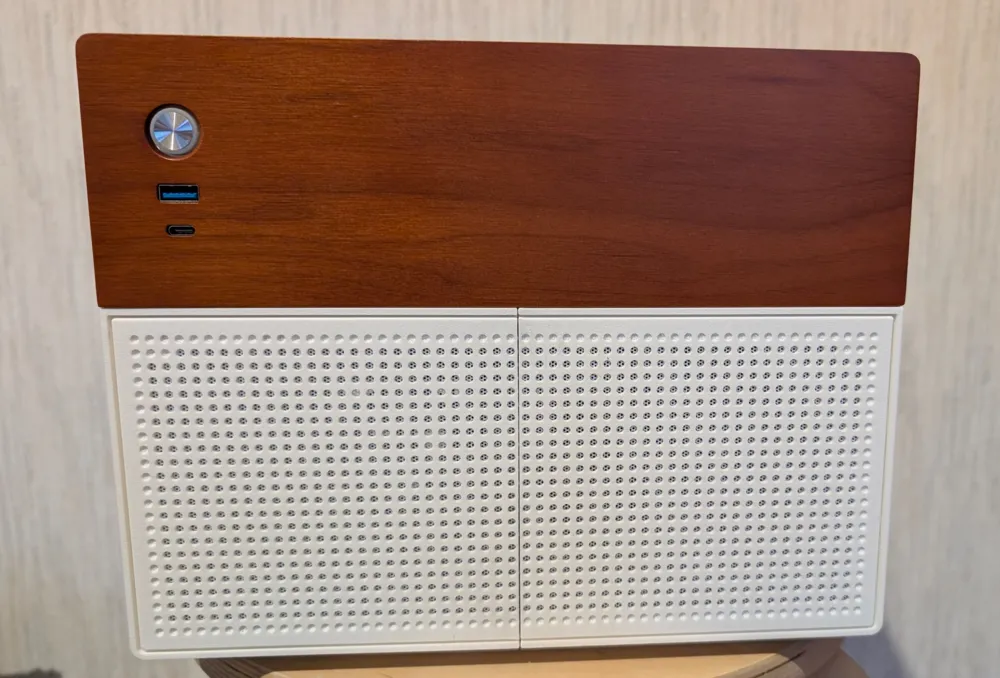

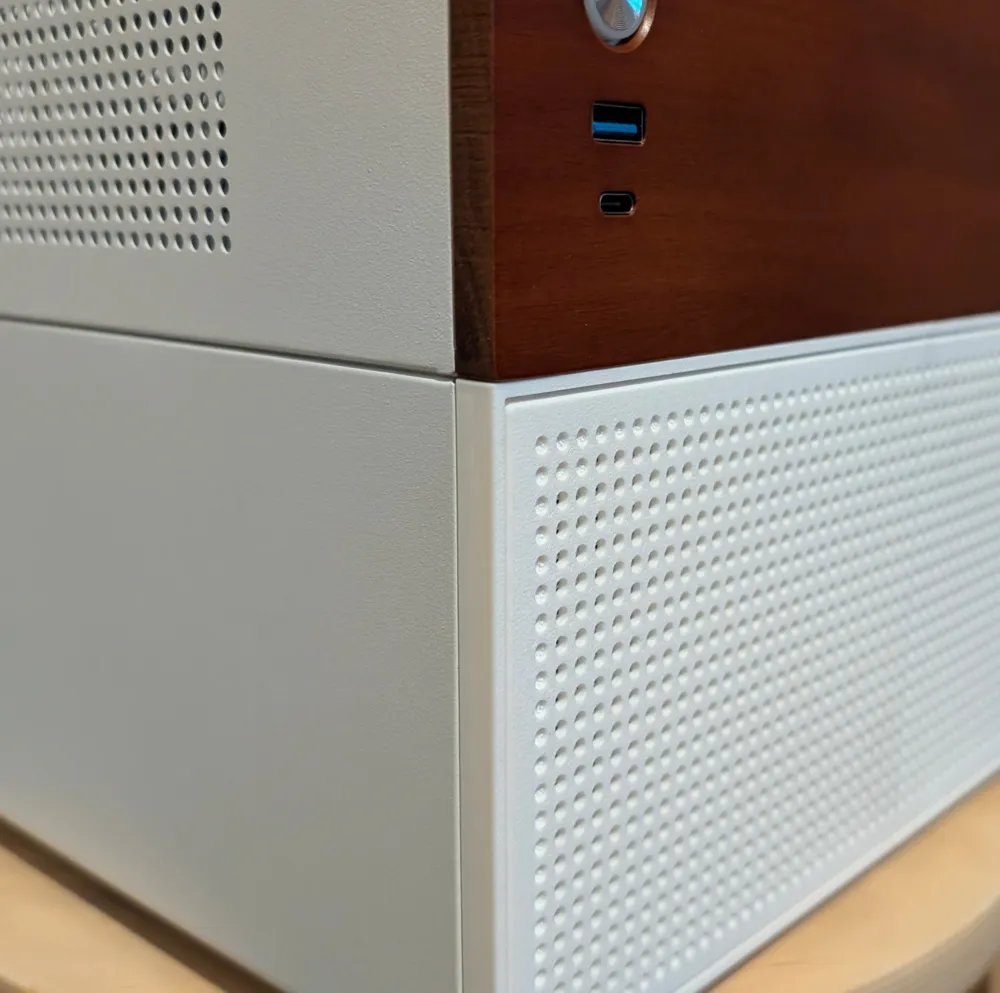

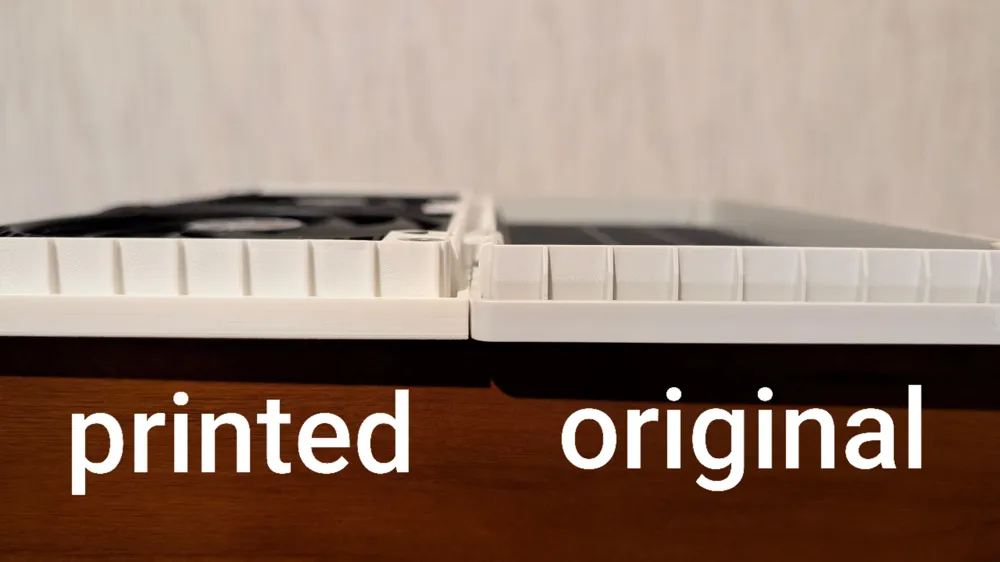

The current solutions using extensions don't look very appealing, so I decided to design a front panel that accommodates fans - it's a complete replica of the original, except for the Jonsbo logo. This solution will most likely conflict with the rubber hard drive mounts, which is why I don't plan to use them; there are no issues without them.

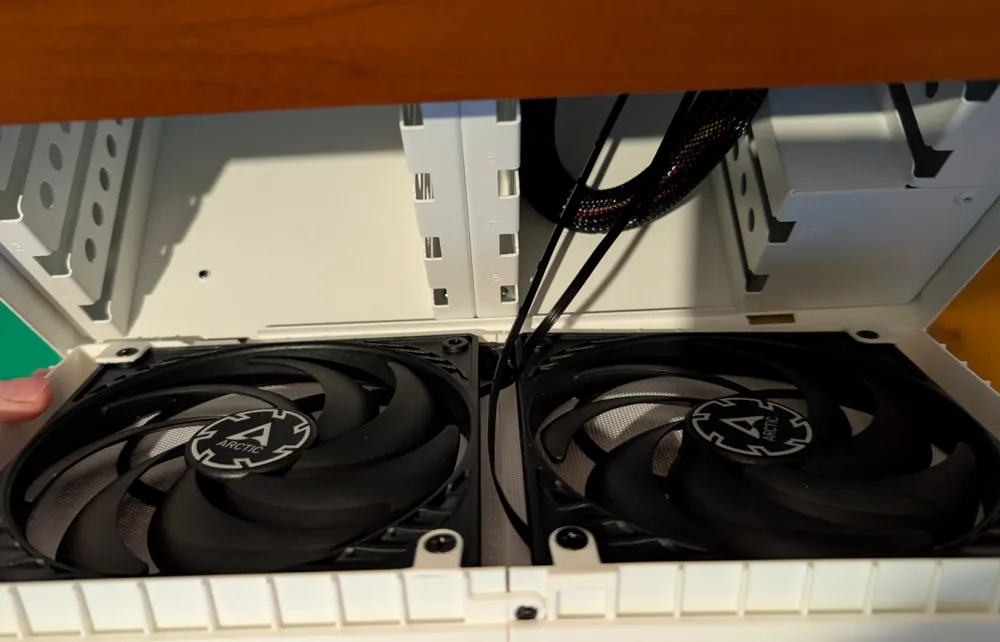

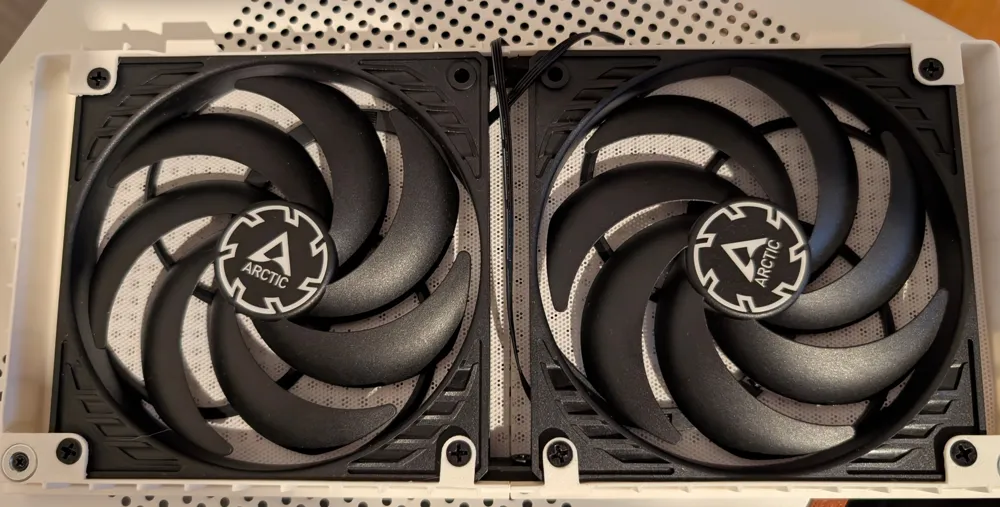

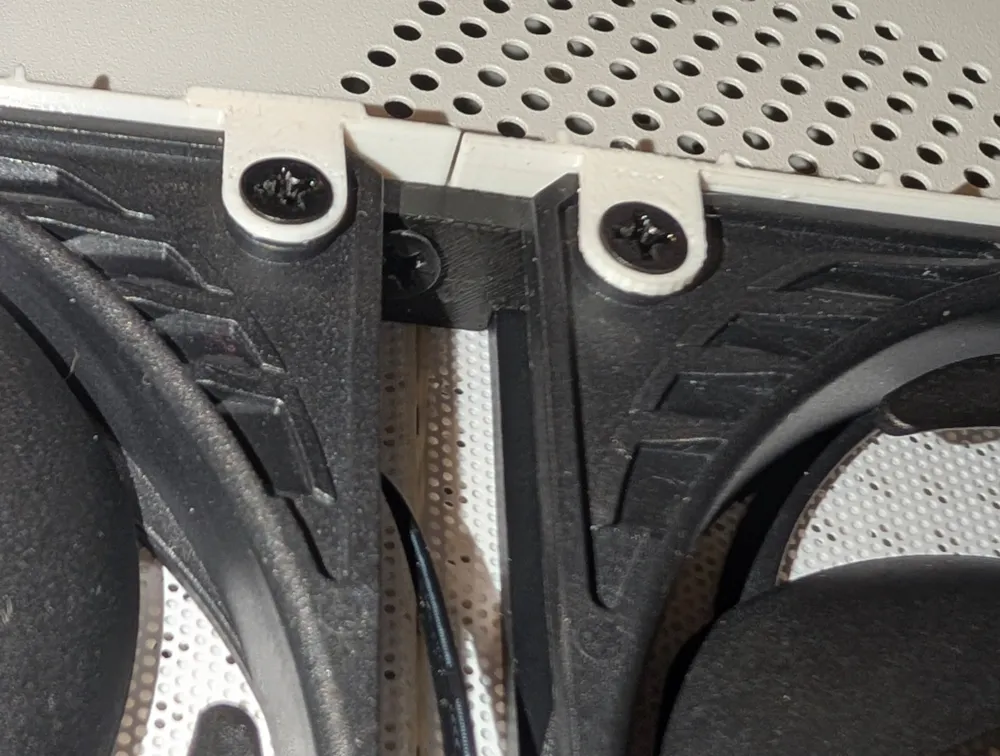

The fans are ARCTIC P12 Slim PWM PST (ACFAN00187A) - 120*15mm. Each one comes with 4 screws, and 3 are used for the panel (the bottom side doesn't allow for a mount, so the 4th screw is used for connecting the halves and installing the Connector).

The project includes models without holes (in the _blank directory) for your experiments.
A version of a solid panel has been uploaded for larger printers. It's unknown how the center mounts will behave, so a version without them has been drawn (Type 3).
Also, I've added Type 4, where the split is based on the print bed size, and the smaller part attaches to the larger one via the fan. And Type 5 - honeycomb pattern.
