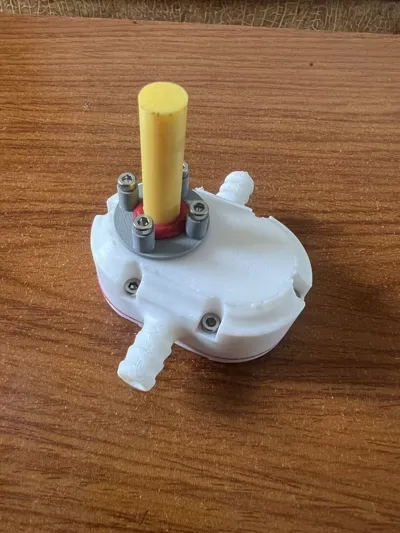

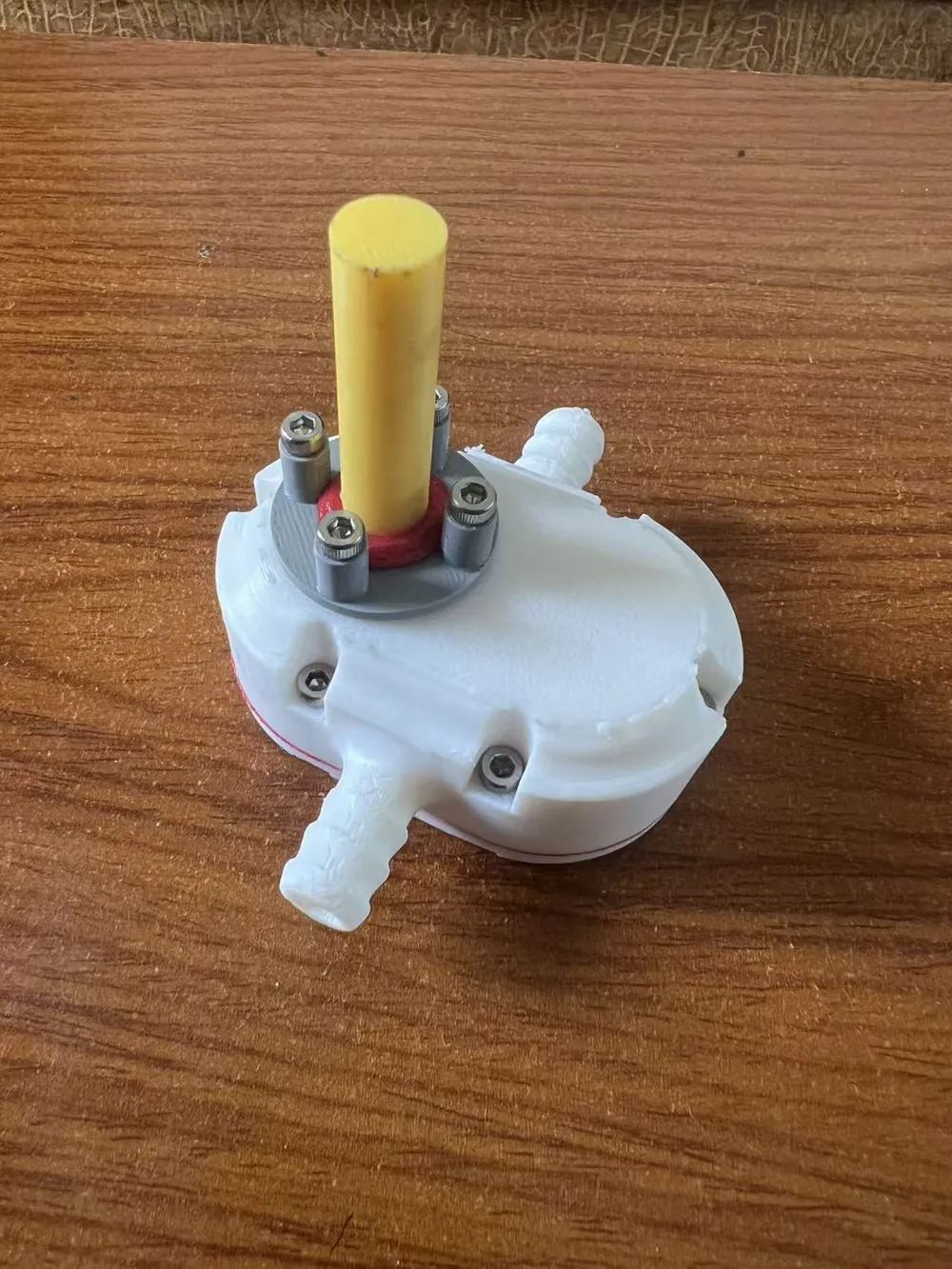

MINI Hand Drill Water Pump
Print Profile(1)
Bill of Materials
Description
All components of this design are designed for 3D printing, so no external purchases are required (assembly only requires 10 M3*16 hex screws and nuts) The principle of this pump is that when two gears mesh and separate at high speed, a pressure difference is generated between the teeth, and this pressure difference can be used to create a powerful self-priming force
| Item | Parameter |
|---|---|
| Product Name | Drill-driven external gear pump |
| Gear module | 1.5 mm |
| Number of teeth | 17 |
| Tooth width | 20 mm |
| Center distance | 25.5 mm |
| Theoretical displacement | 16.4 mL/rev |
| Theoretical flow rate (3000 rpm) | 49.3 L/min |
| Actual flow rate | 30–35 L/min |
| Maximum recommended pressure | 0.3 MPa |
| Working medium | Water |
| Housing material | PLA (3D Printed) |
| Sealing material | TPU gasket (3D Printed) |

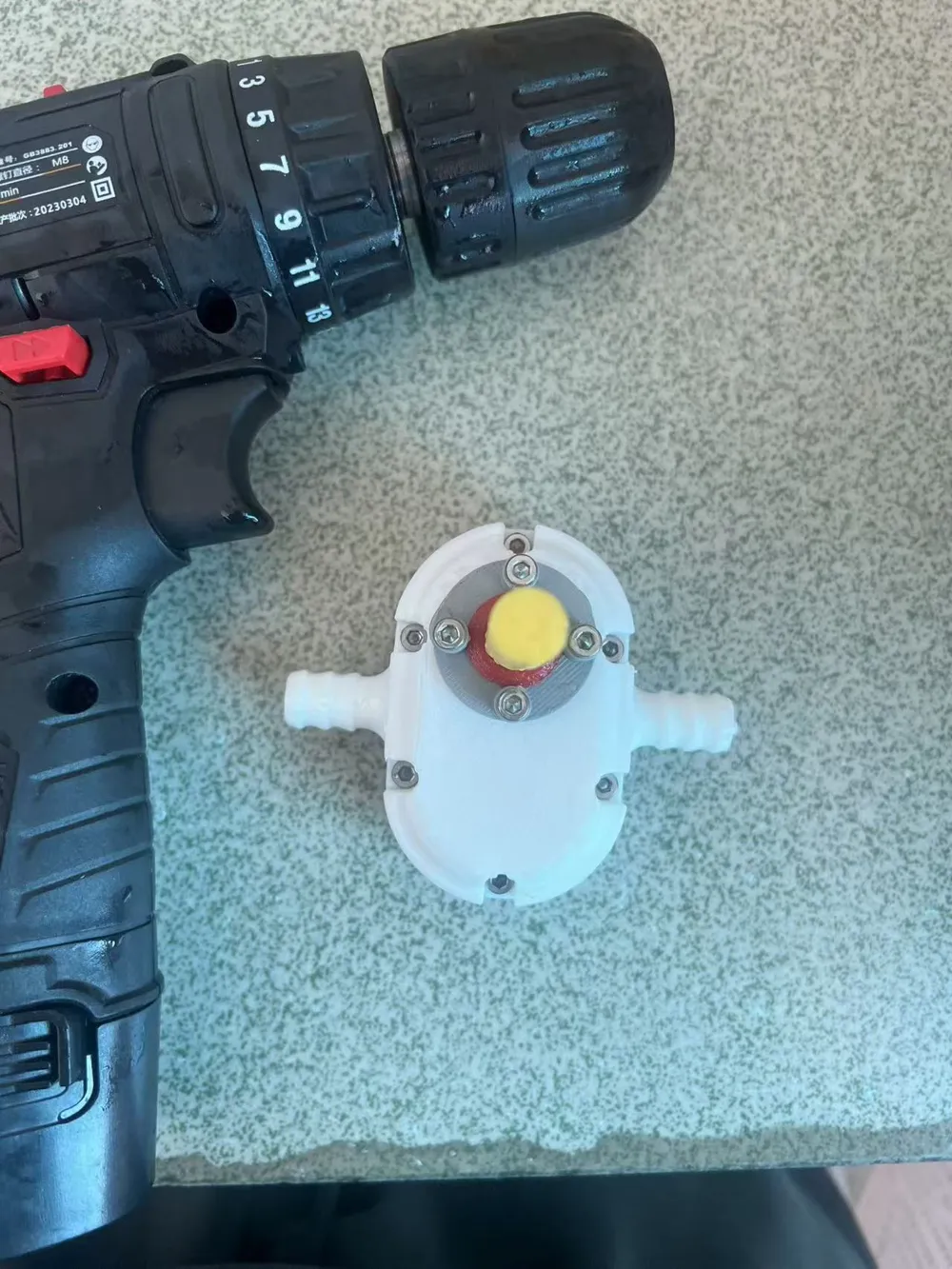

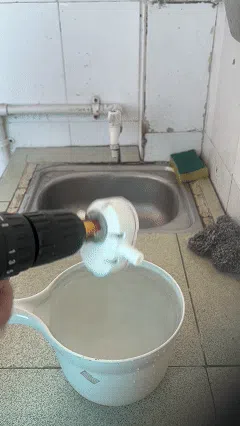

| Drive method | Drill interface driven |
| Drill speed | ≈3000 rpm |
| Drill max torque | ≈30 N·m |
| Inlet/outlet diameter | Ø5 mm |
| Compatible hose inner diameter | Ø10---9 mm |
| / | / |
| / | / |
The above parameters are derived from theoretical calculations Actual use may be relatively 20% lower
Original model format is SOLIDWORKS2022 Assembly guide PDF supports Chinese and English
