Flipdeck - The Multiboard Cyberdeck

What if your multiboard was portable? And also a PC/Steamdeck case? Or whatever cyberdeck like thing you can imagine? This is it!

Please see the PDF assembly guide for more details.

Features

• Built on Multiboard (http://multiboard.io/) components - add whatever mounts work for you, customize the size of the case as needed.

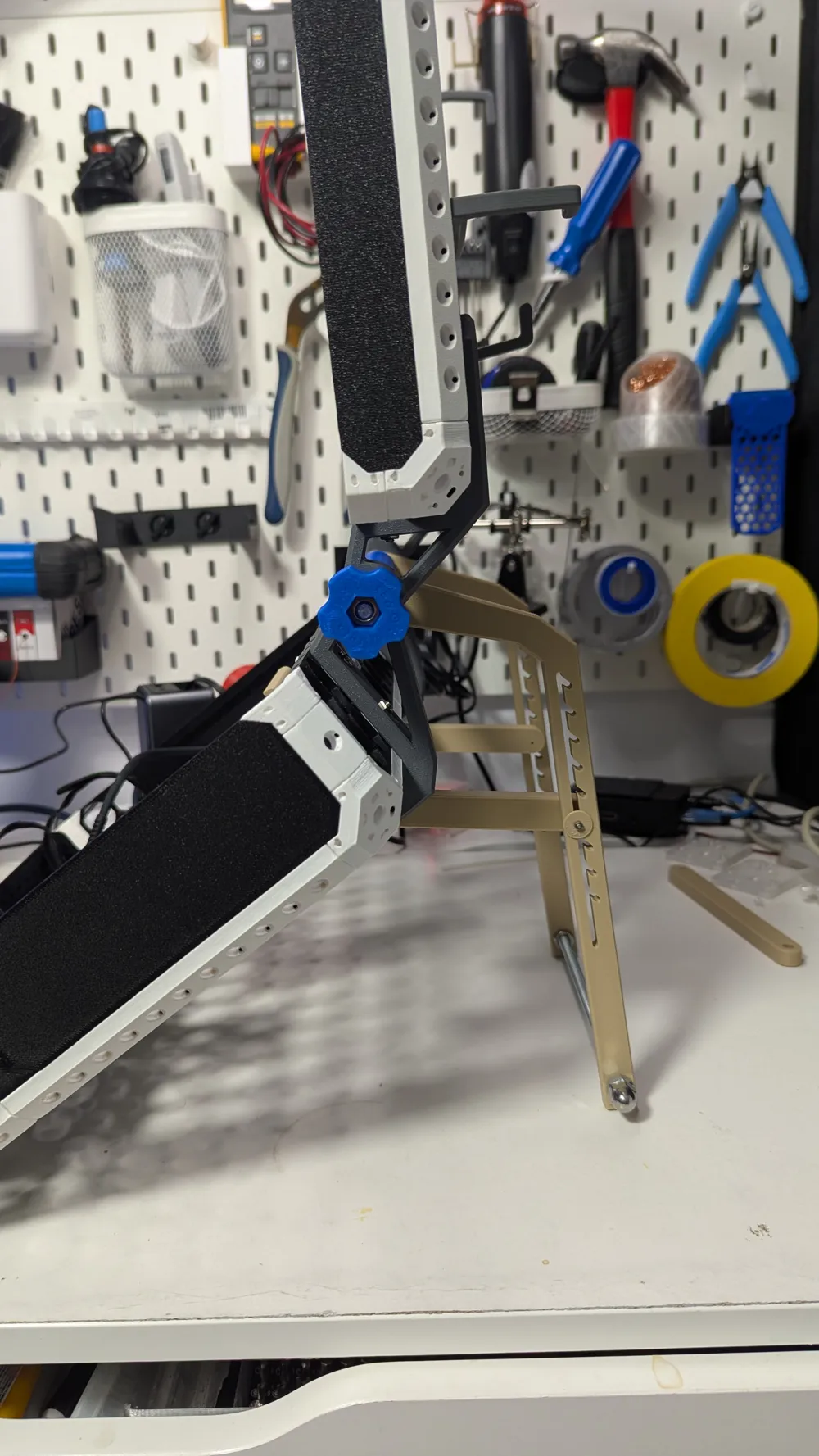

• Adjustable stand.

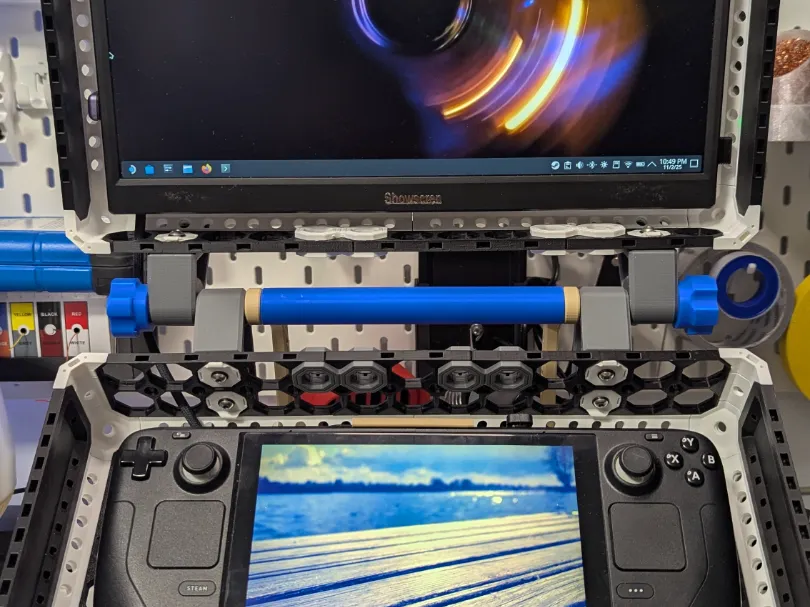

• Triple function hinge - the case hinge, the carrying handle, and the stand pivot.

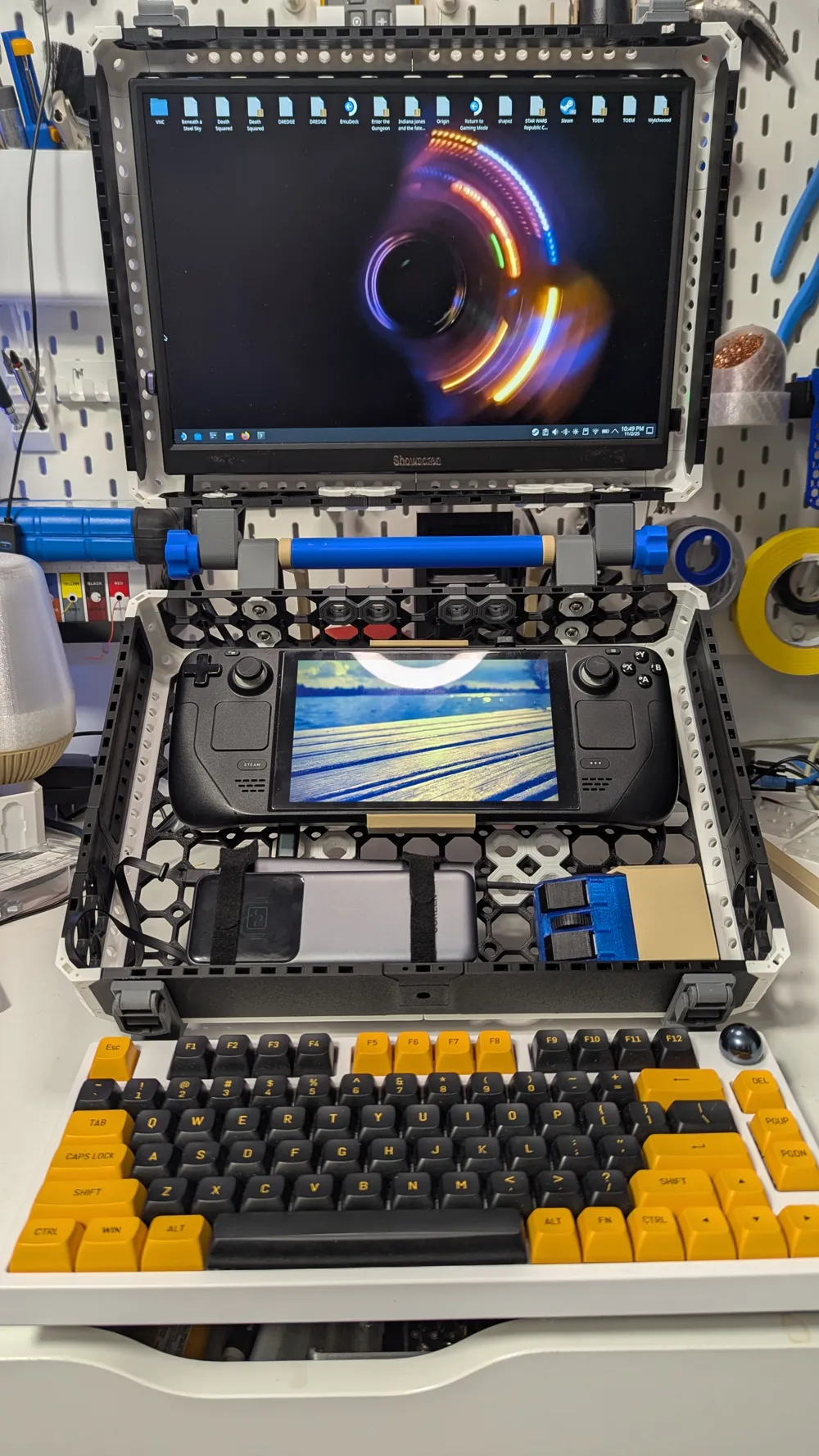

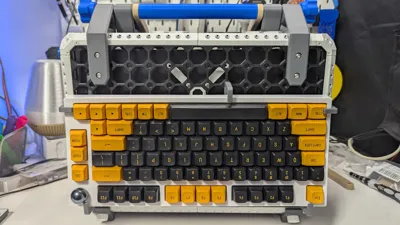

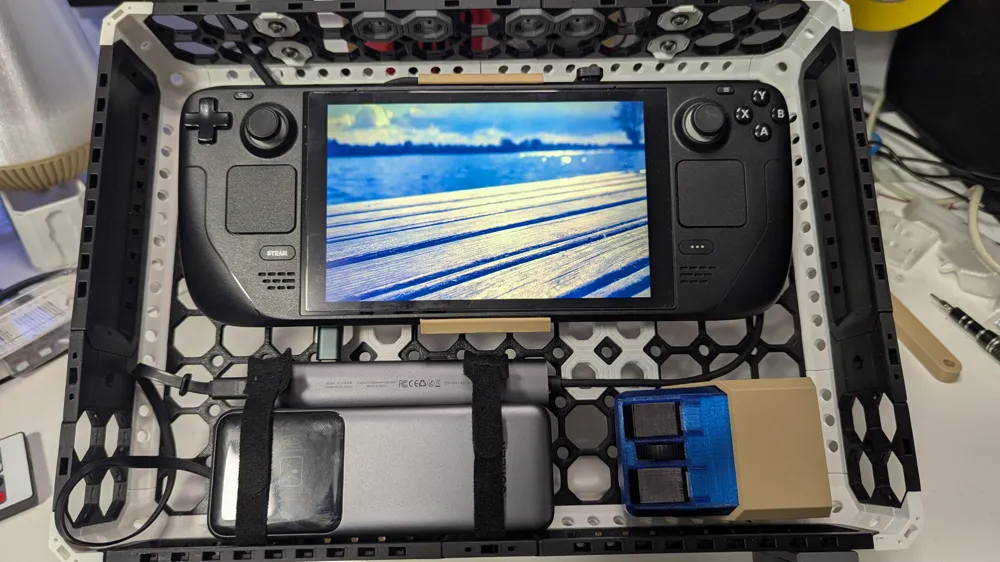

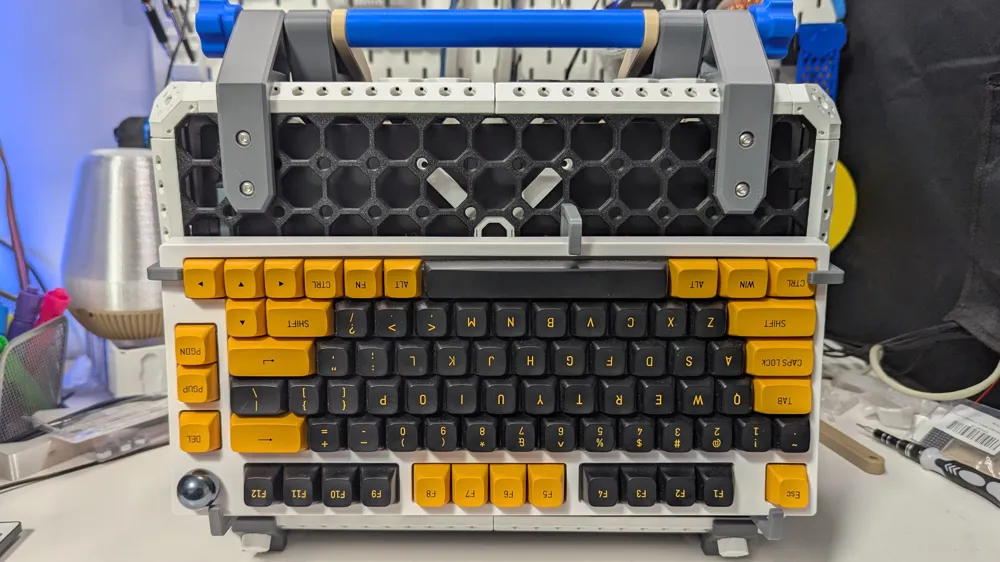

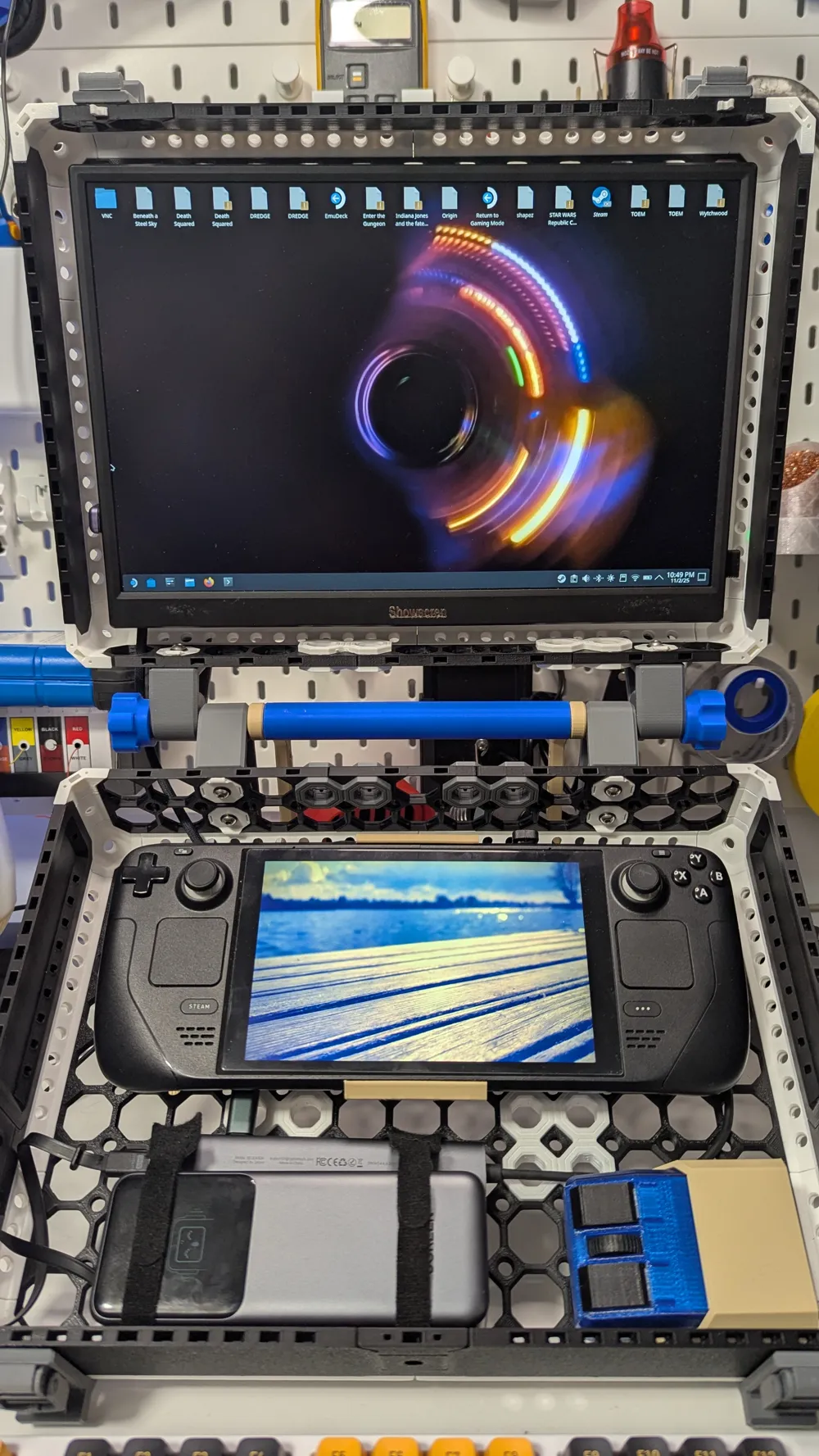

• Fits a 14” screen in the top, a steamdeck, mouse and battery pack in the bottom, and a keyboard clasp on the front.
• Possible to revamp contents completely to make it your own.

Bill of Materials

• 14 x M4 nuts
• 14 x M4 12mm bolts
• 10 x ¼” nuts
• 2 x ¼” cap nuts
• ¼” threaded rods (best to get a long rod and cut it up)
  • 300mm
  • 155mm
  • 190mm
• 2 x M2 x 16mm
• 8 x M2 x 8mm bolts
• 8 x M2 nuts
• The steamdeck mount (you can use your own instead) - https://www.printables.com/model/1469890-steamdeck-multiboard-mount-low-profile-clip-in-adj

Multiboard Lid and Case

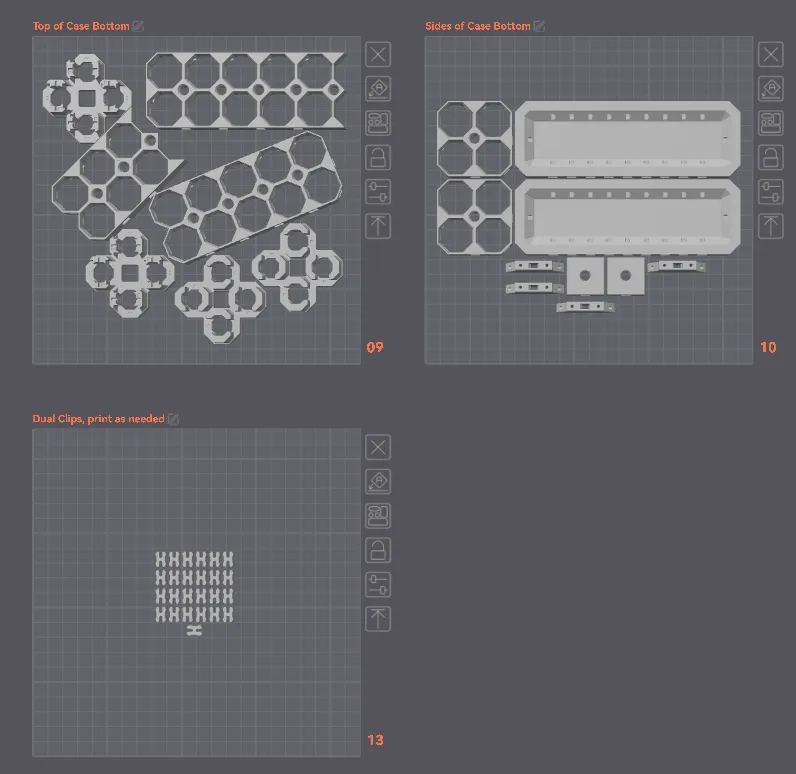

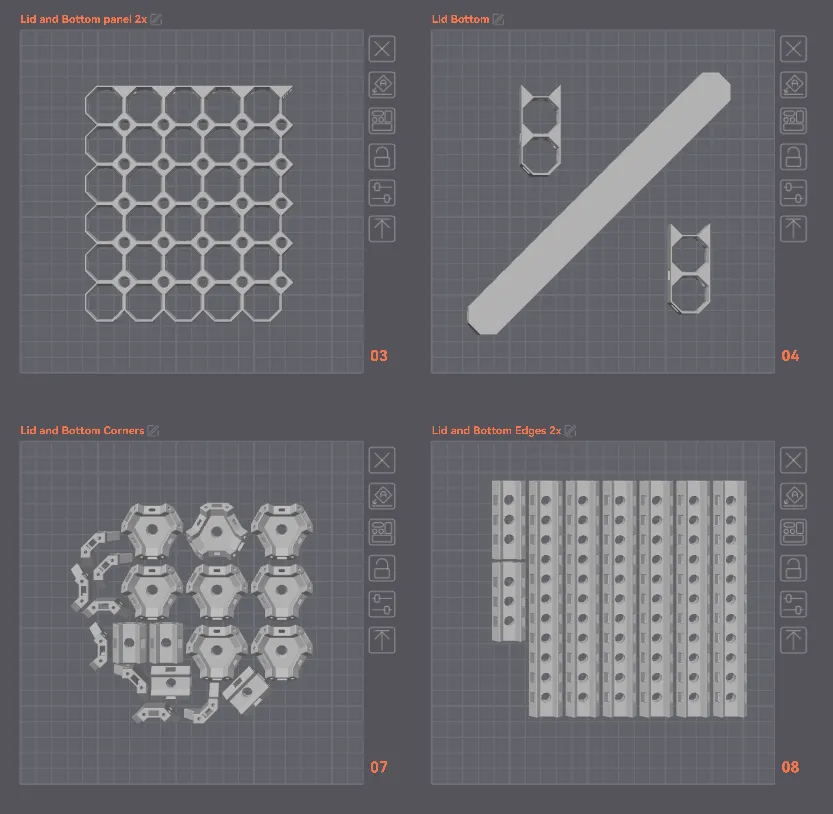

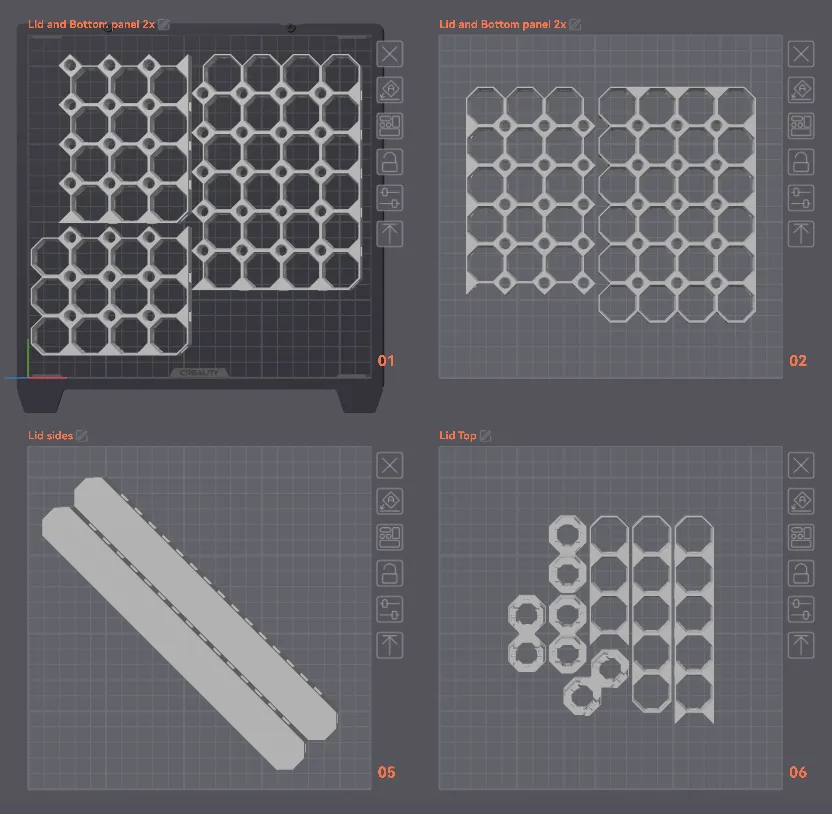

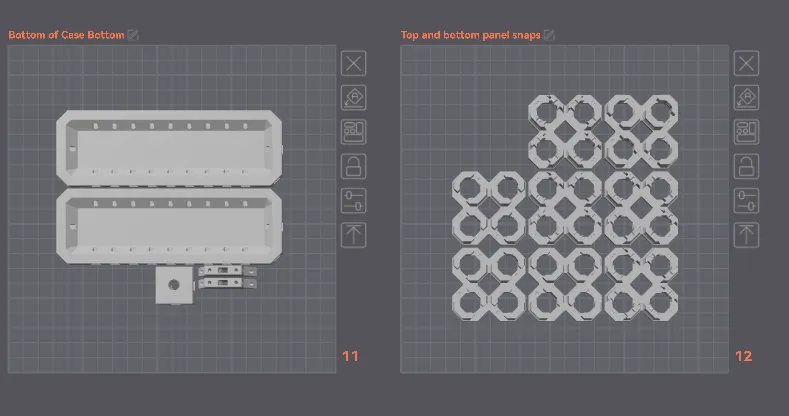

You can make your own configuration, but this build uses the following pieces. A 3mf file is not included because it's not allowed under Multiboard terms. See the pdf assembly guide for details.

Print Settings

• 3 walls, 15% infill
• No supports
• All parts oriented for printing

There are 2 project files

• flip deck.3mf: the hinge and clasps
• flip deck - multiboard mounts.3mf: the multiboard mount fittings used in this build

Donate!

Tips appreciated for future projects (especially filament costs) - https://ko-fi.com/snazzer0434

Credits for STL’s

The following models made this project possible

• https://multiboard.io
• https://www.printables.com/model/1158005-multiboardunderware-cable-tie-velcro-snap/files
• https://makerworld.com/en/models/480053-knob-1-4-hex-head-screw-or-nut#profileId-391527
• https://makerworld.com/en/models/582260-multiconnect-part-generator-master-collection#profileId-633542
• https://makerworld.com/en/models/471517-retro-mini-mouse-retro-mini-mouse?from=search#profileId-381142
• https://www.printables.com/model/130254-sturdy-print-in-place-draw-latch
• https://www.printables.com/model/904213-multiboard-pegboard-click-hooks-in-various-sizes
