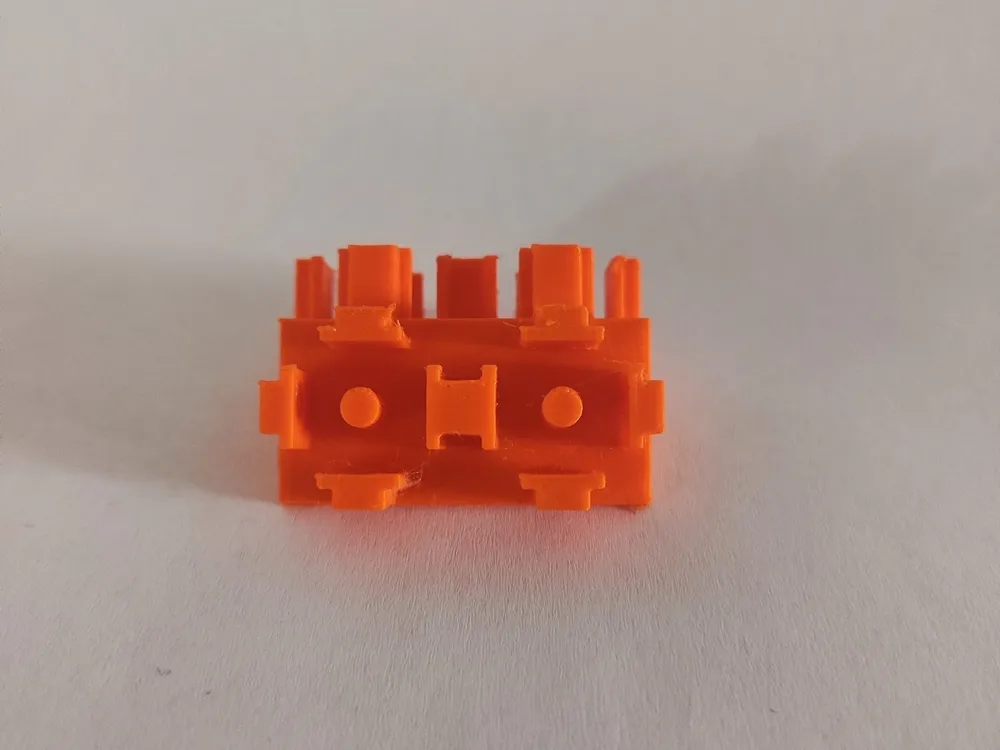

V-Slot 2040 External Corner Connector (Tall)

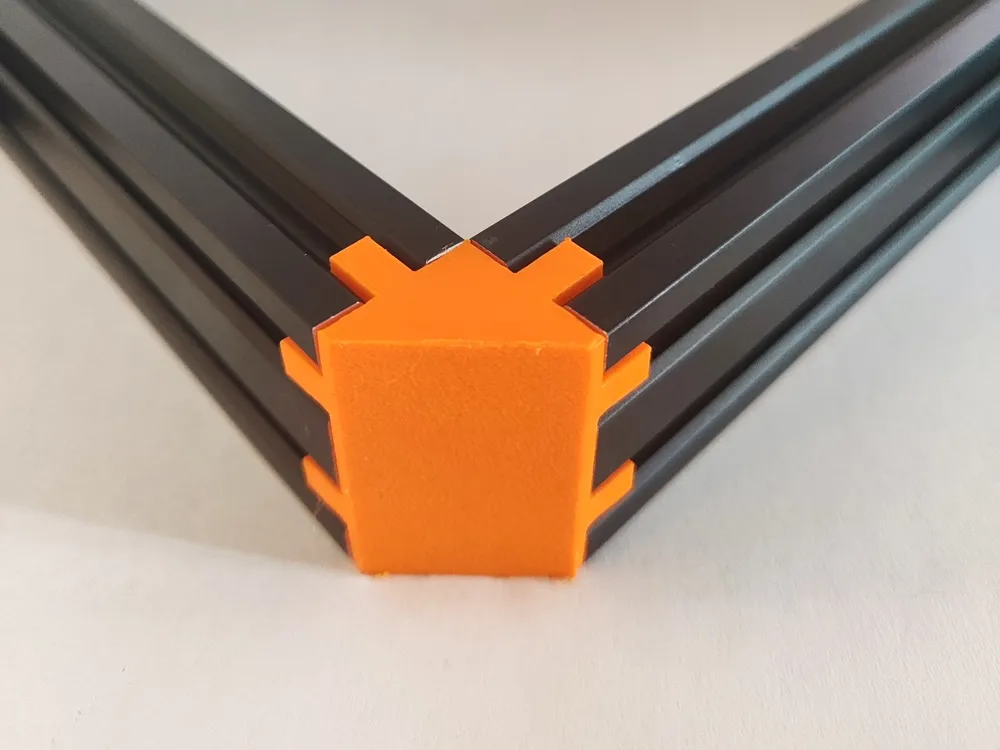

This is a tall external corner connector for 2040 V-slot aluminum extrusion profiles (or two stacked 2020 profiles).
It connects two profiles at a 90° angle from the outside, keeping the corner open and structurally clean.

The part extends over two profile heights (40 mm), making it stronger and more stable than the single 2020 version — perfect for larger frame builds or enclosures that need added rigidity.

The design is snap-fit / friction-fit, meaning no screws or T-nuts are required.
You can scale the Z-axis in your slicer to make the bracket taller if needed.

✅ Features

Designed for V-slot / OpenBuilds 2040 profiles

External 90° corner connector (L-shape)

Height = 40 mm (two 2020 units)

Clean open interior corner, no overlap

Snap-fit design, quick assembly

Printable flat, no supports

Stronger and stiffer than single 2020 version

🧰 Applications

Reinforced frame corners

Tall enclosures or double-profile structures

CNC, laser, or 3D printer builds

Modular furniture or machine frames

🛠 Recommended Print Settings

Material: PETG / ABS for strength

Layer Height: 0.2 mm

Infill: 40–100 % (depending on load)

Supports: Not required

Orientation: Flat on bed

📏 Compatibility

V-slot / OpenBuilds 2040

Works with stacked 2020 profiles
