Tamiya lunch box double wishbone suspension
IP Report
Print Profile(2)
0.08mm layer, 2 walls, 100% infill
Designer
4.2 h
1 plate
0.08mm layer, 3 walls, 100% infill
Designer
4.5 h
1 plate
Open in Bambu Studio
Boost
33
89
5
0
69
40
Released
Description
Content has been automatically translated.

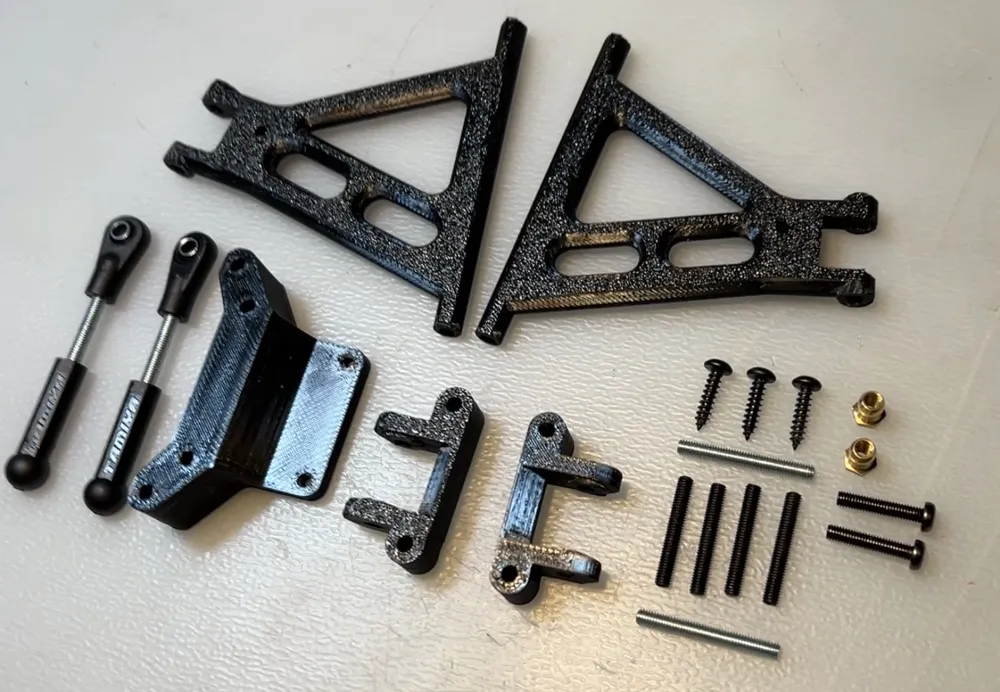

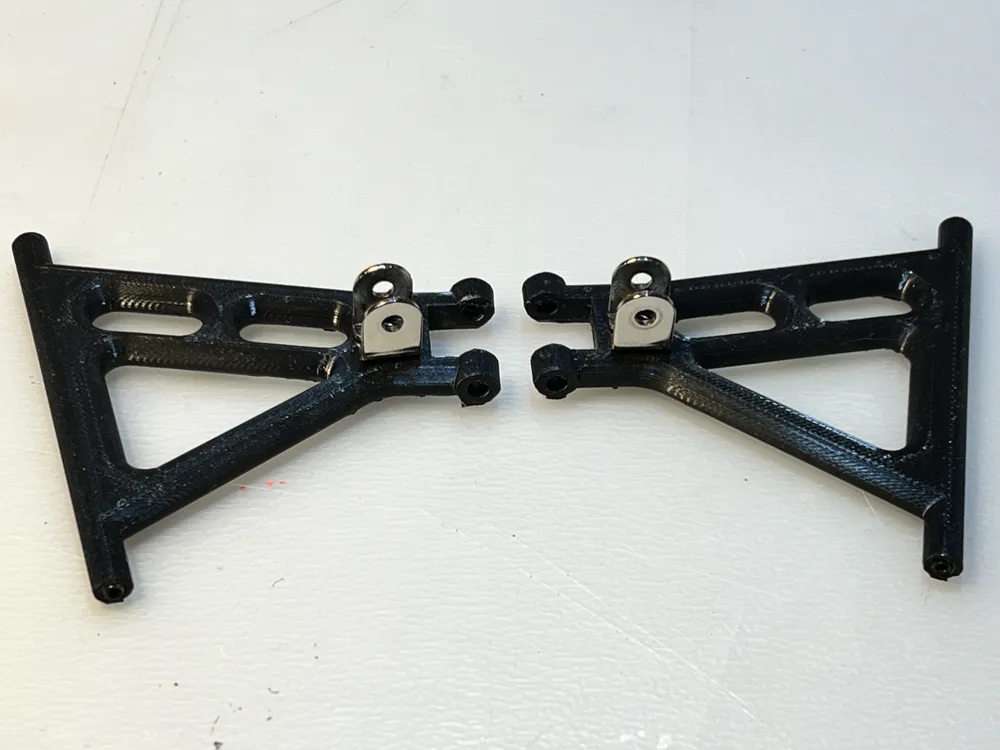

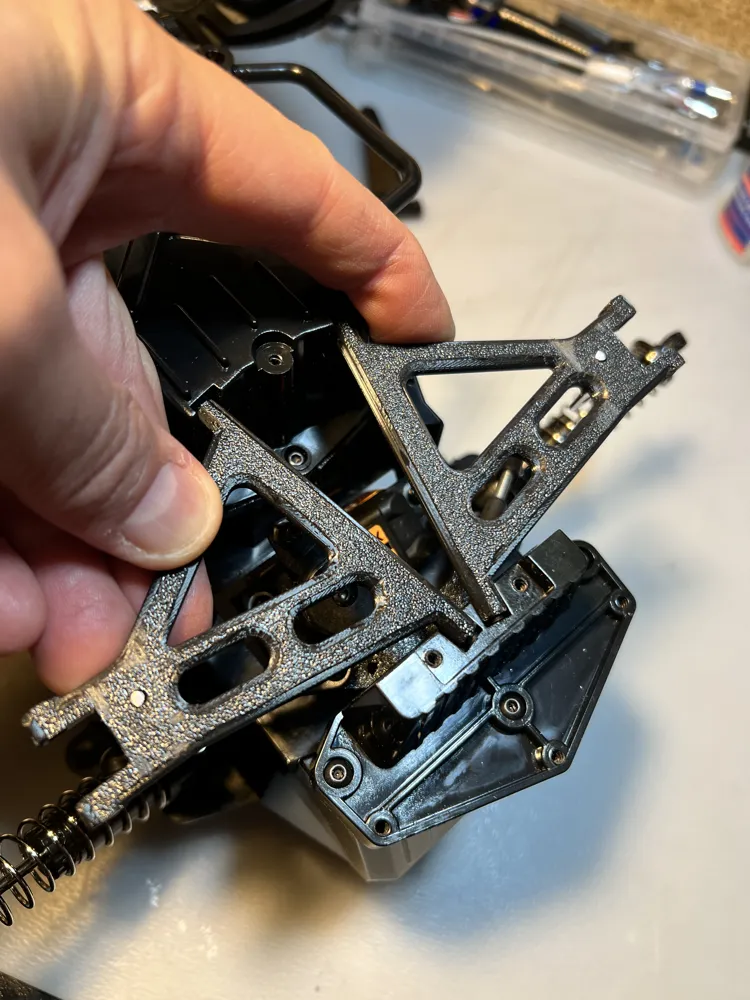

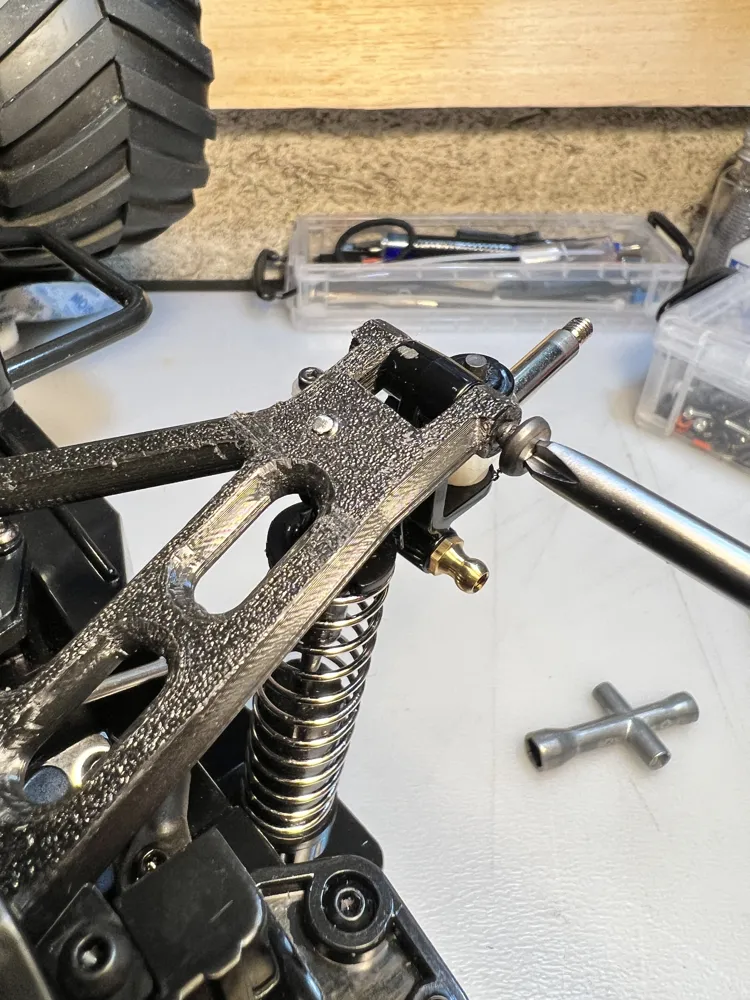

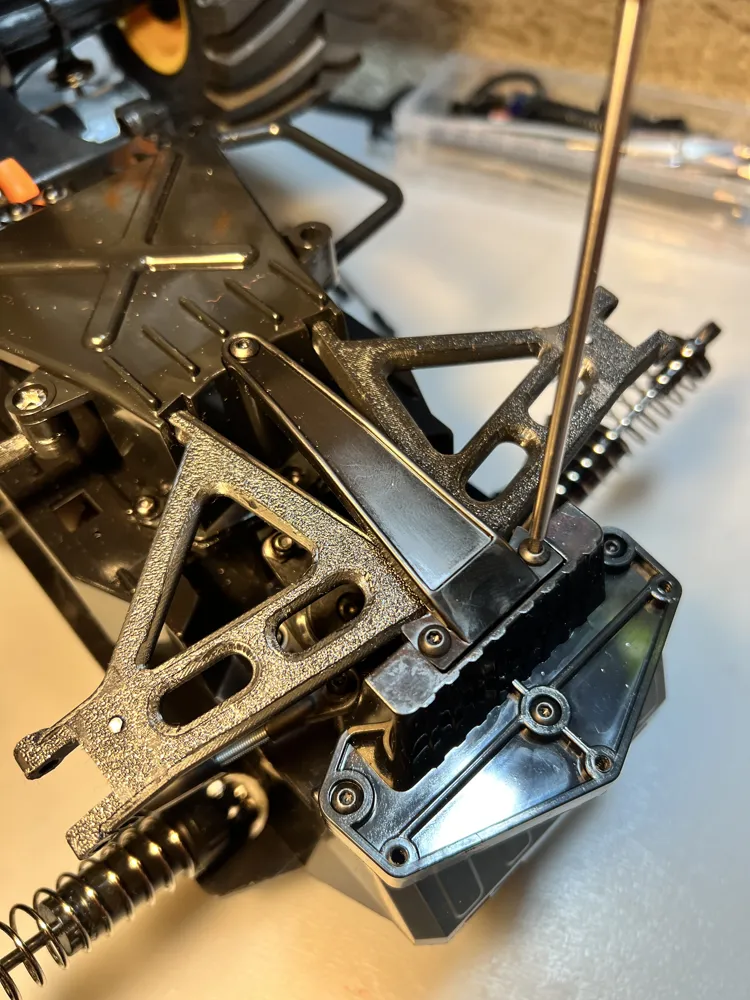

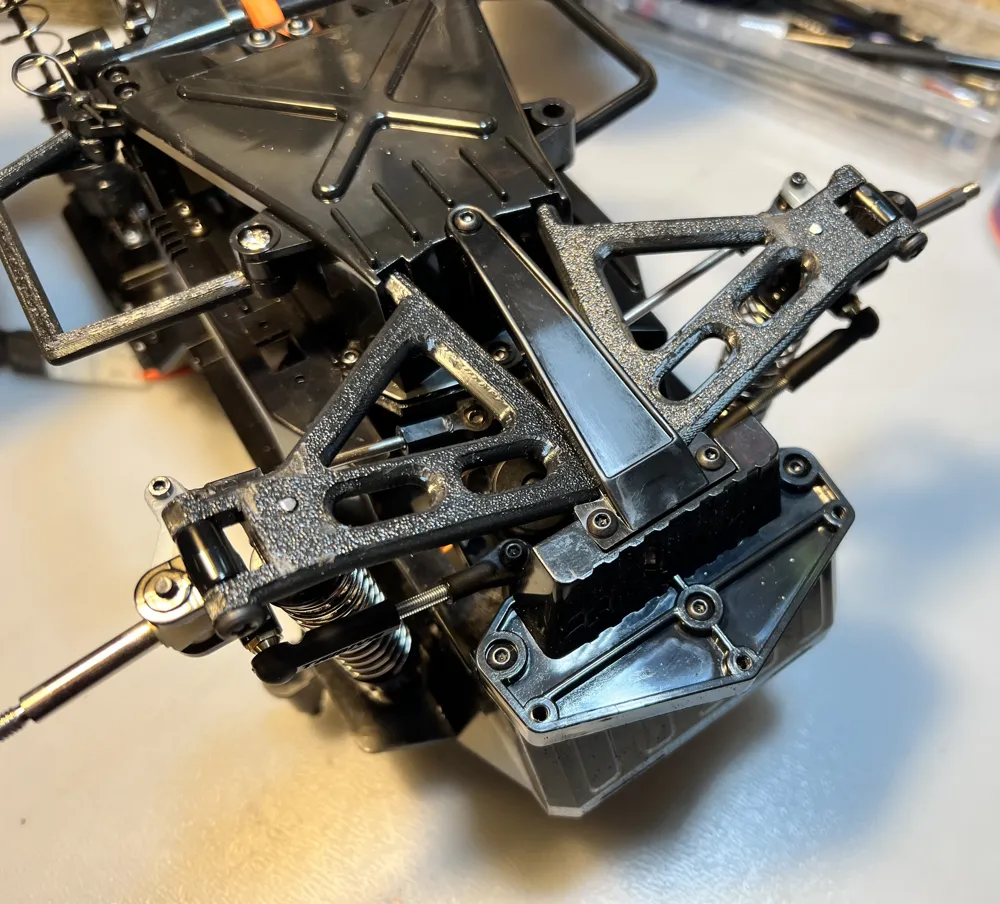

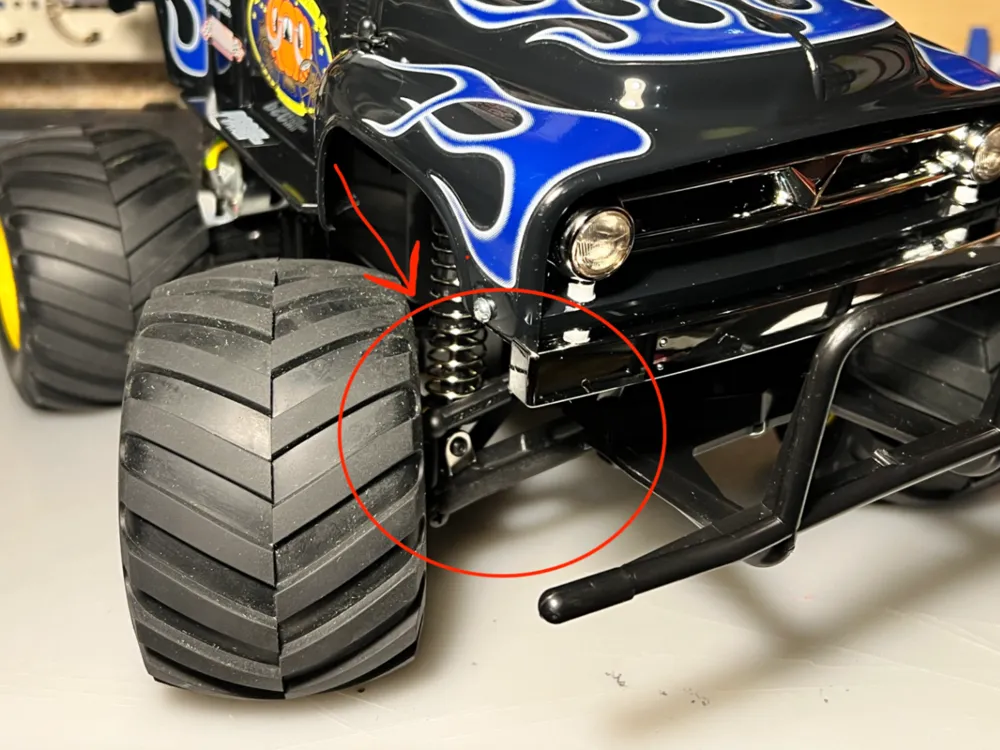

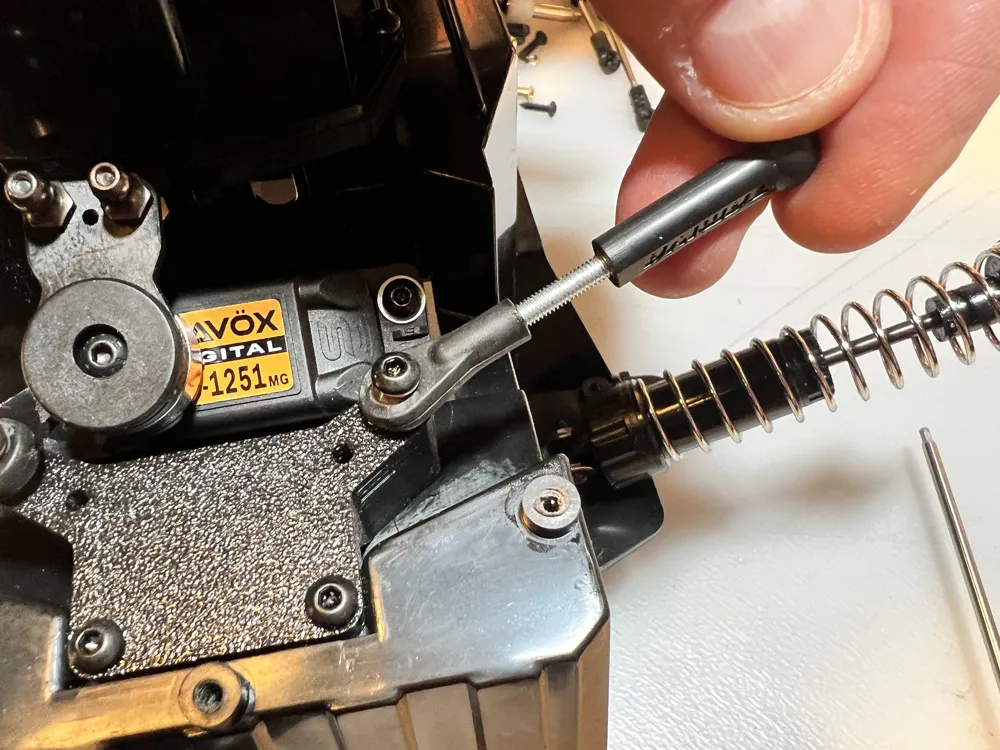

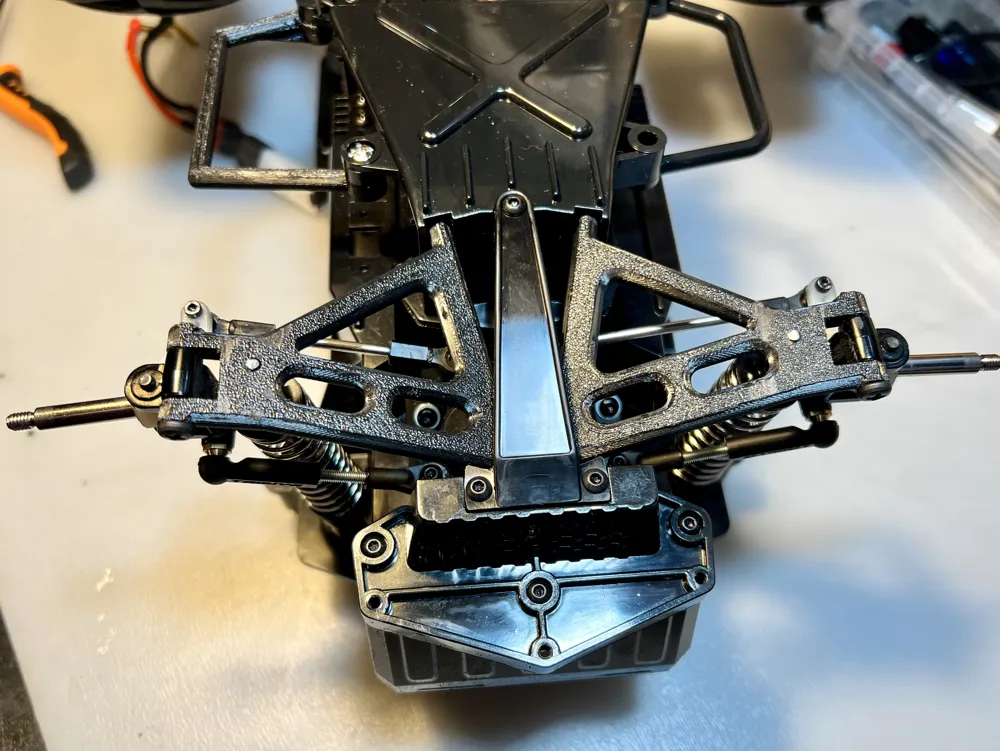

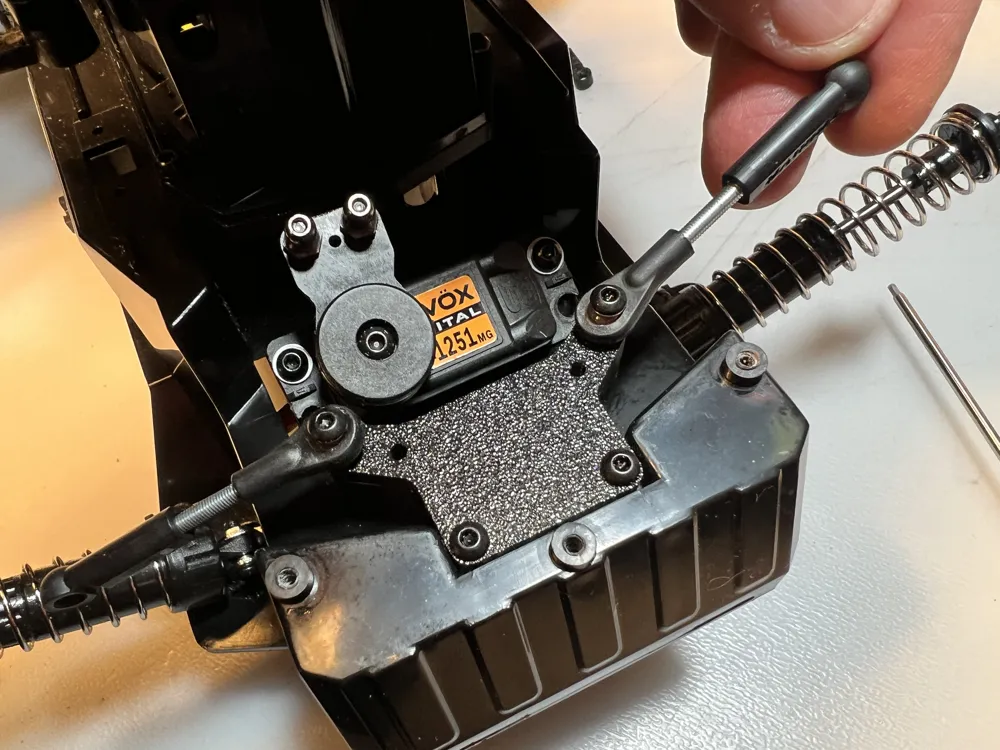

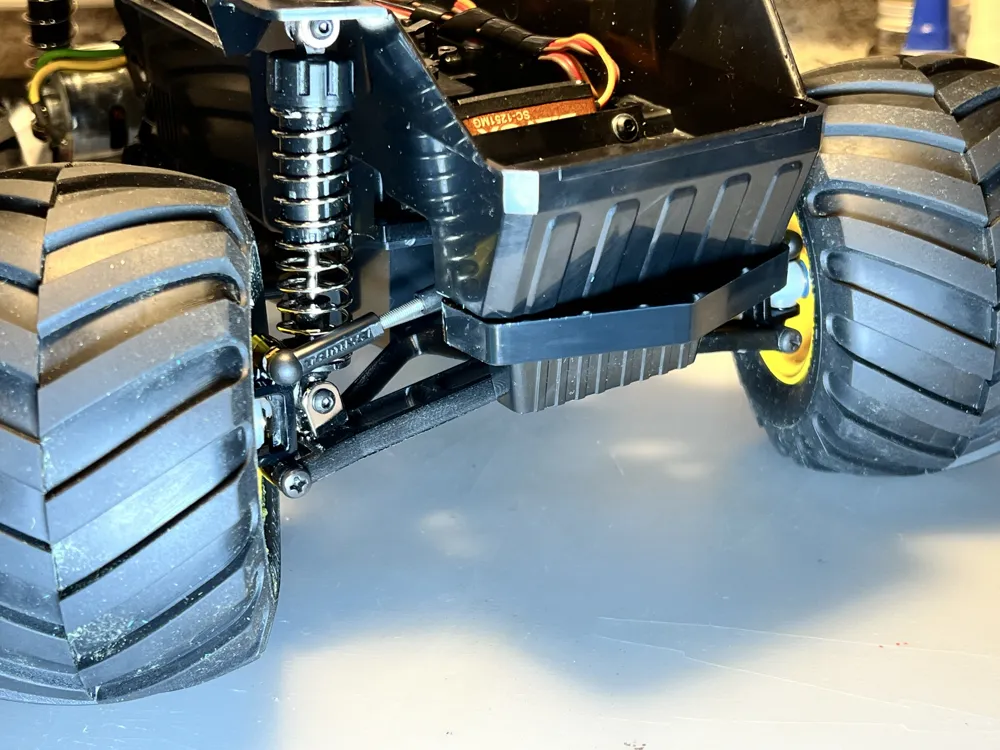

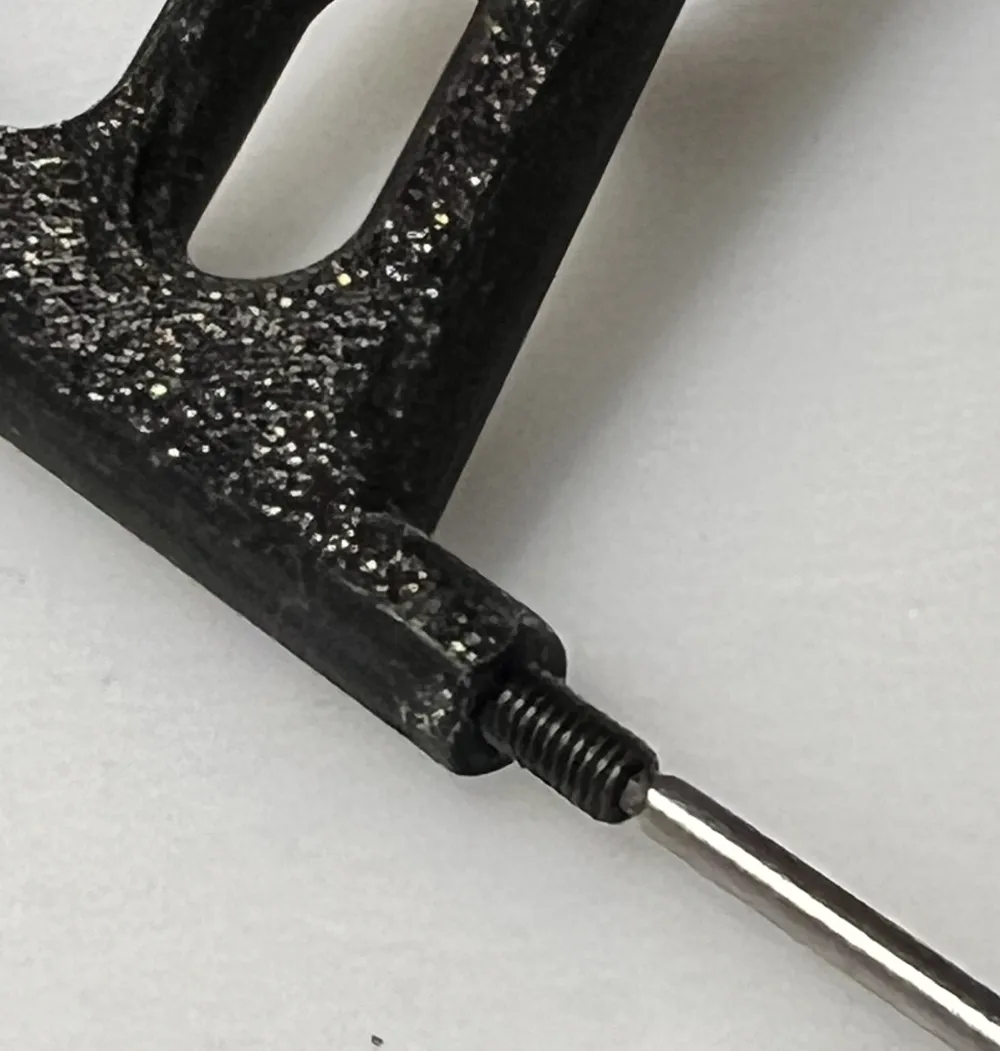

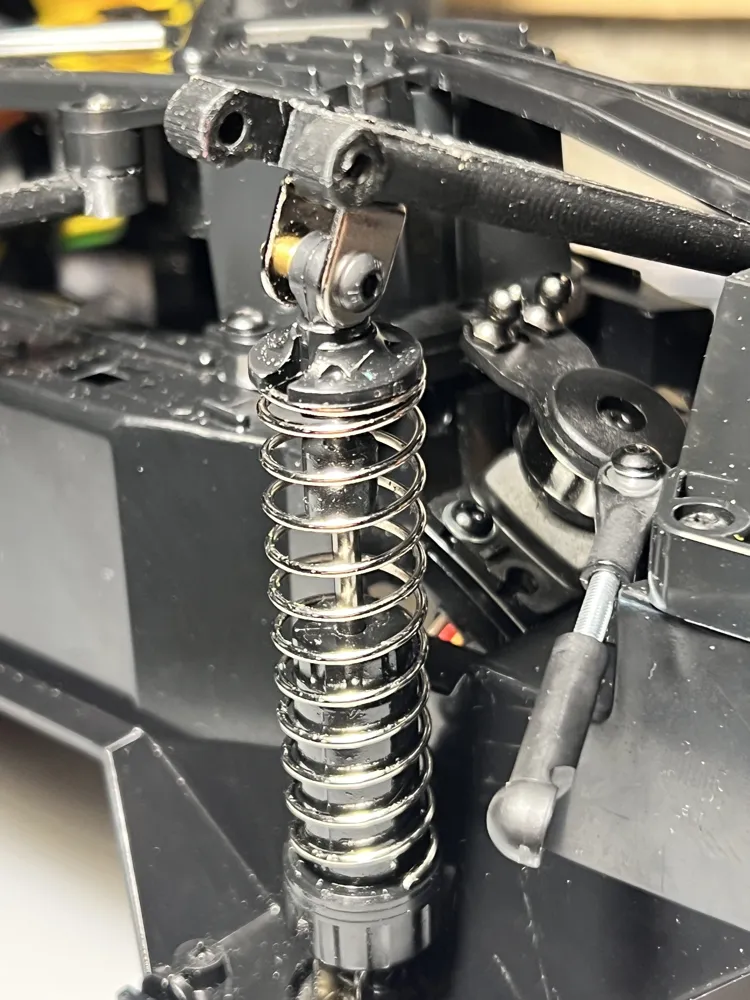

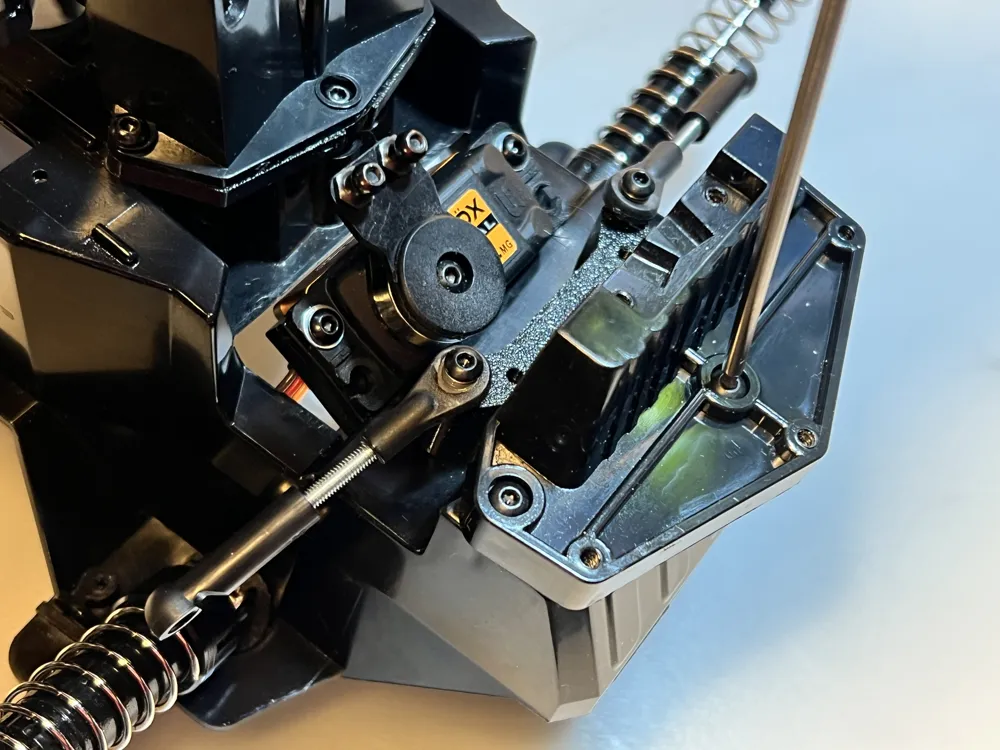

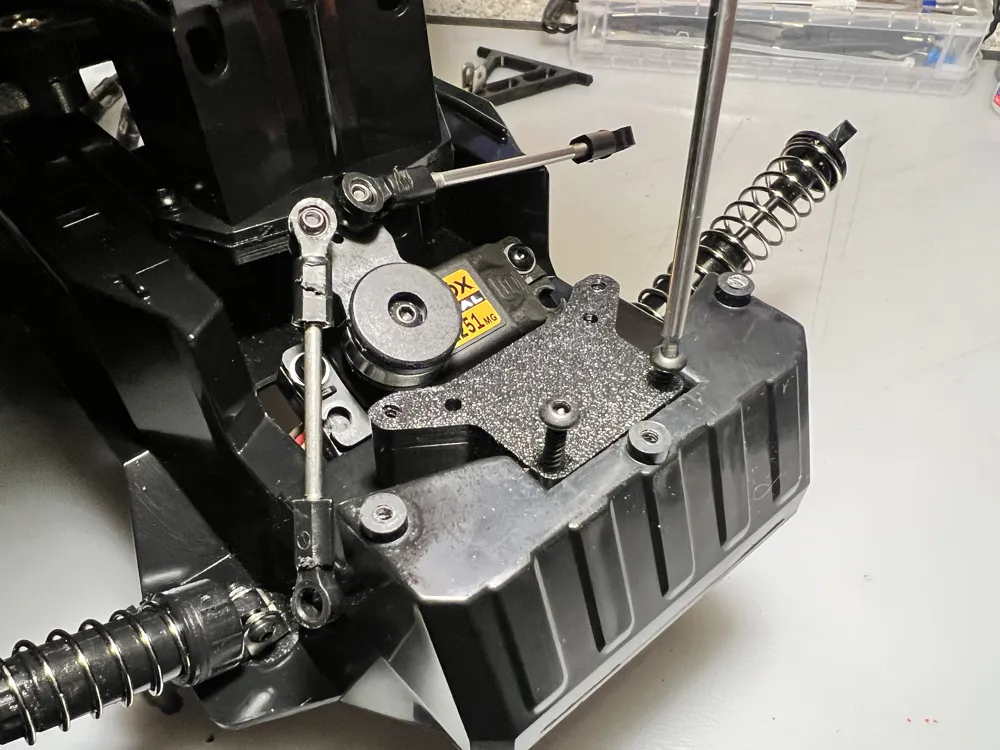

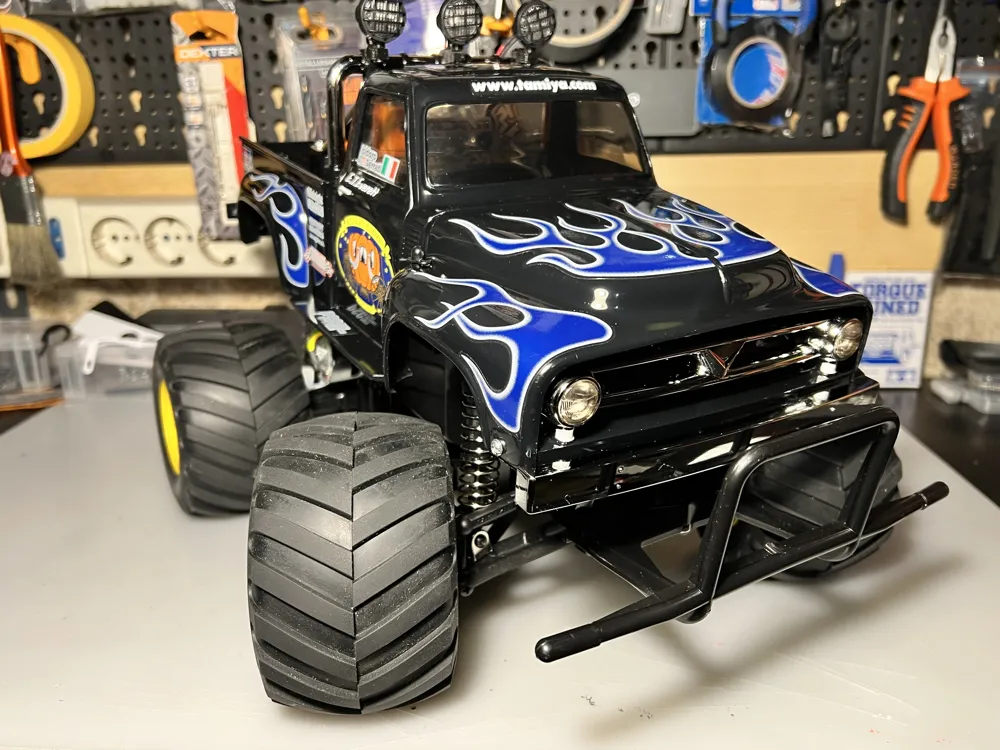

This modification for your Tamiya CW-01 chassis (Lunch Box, Midnight Pumpkin, or others) is very easy to print and install! It allows you to have a pair of "double wishbone" type suspensions on the front of your model, which provide significantly better road holding compared to the model's original suspensions. To install the kit, you need 2 M3 "captive" screws 30mm long and 2 25mm long, then you need 2 long and 2 short Tamiya plastic adjusters for ball joints + 2 ball connector nuts with a 3mm threaded hole + 2 normal M3 screws 20mm long + 4 self-tapping M3 screws 12mm long. See photos for assembly instructions
