Brass cartridge Length Gauge for Case Reloading

While exploring available brass length gauges, I realized I didn’t need a full multi-caliber set. That sparked the idea to design individual gauges for each caliber—slightly thicker for durability and quick, easy printing.

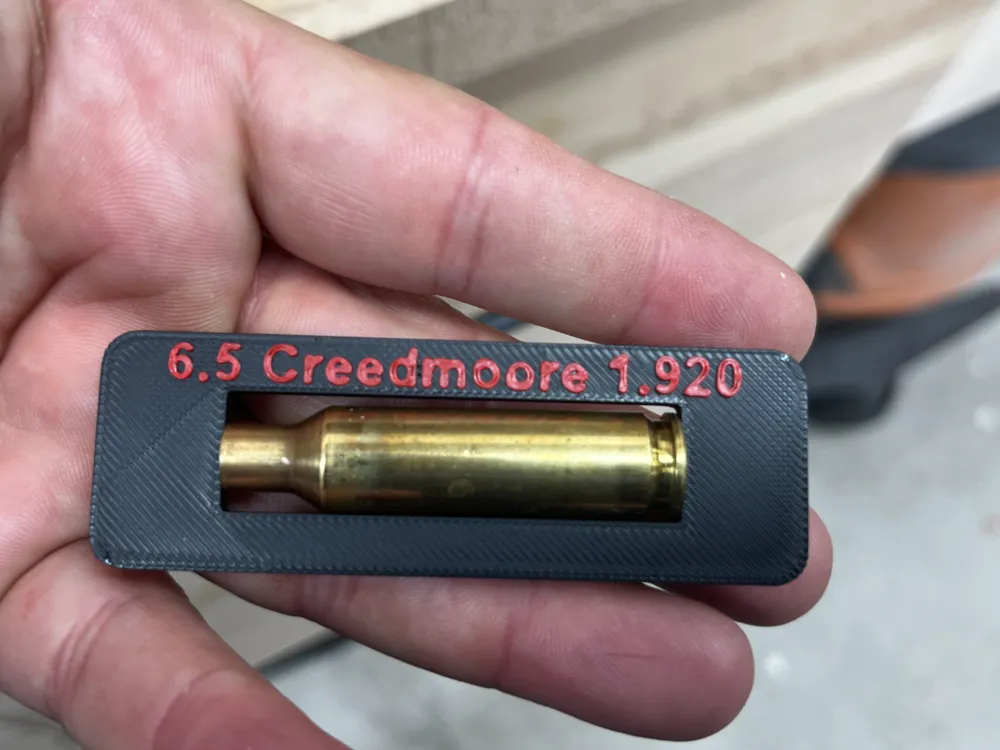

Each gauge is standardized to a 1 x 3 inch format and 1/8" thickness, making them sturdy and consistent in size. The caliber markings are raised by 1/64", ensuring they’re easy to read and identify at a glance.


For added customization, you can pause your print and swap filament to create high-visibility, multi-color labels. Each gauge takes approximately 20 minutes to print, making it simple to build out only the calibers you need.

 If you don't see your caliber, please send me a msg and I'll create and post them as request come in

Current calibers:

.22 Creedmoor 1.920
.38 Special 1.155
.45 ACP 0.898
10mm Auto 0.992
22-250 Remington 1.912
222 Remington 1.700
223 Remington 1.760
243 Winchester 2.045
270 Winchester 2.540
30-06 Springfield 2.494
30-30 Winchester 2.039
300 AAC Blackout 1.368
300 Winchester Magnum 2.620
308 Winchester 2.015
33 Winchester 2.105
338 Lapua Mag 2.724
44 Remington Mag 1.285
6.5 Creedmoor 1.920
6.5 mm PRC 2.030
6.5X55 Swede 2.165
6mm ARC 1.490
6mm Creedmoor 1.940
7 mm PRC 2.280
7mm Remington Mag 2.500
8X57 Mauser 2.240
9mm Luger 0.754

300 Winchester Short Mag 2.100

204 Ruger 1.850

270 Winchester Short Mag 2.100

7mm-08 Remington 2.035

40 Smith & Wesson 0.850

.45-70  2.105

.357 Magnum 1.290

.280 Ackley Improved 2.525

45-70 Government 2.105
