OBSIDIAN - SKADIS Pegboard Boxes and Holders

OBSIDIAN RANGE

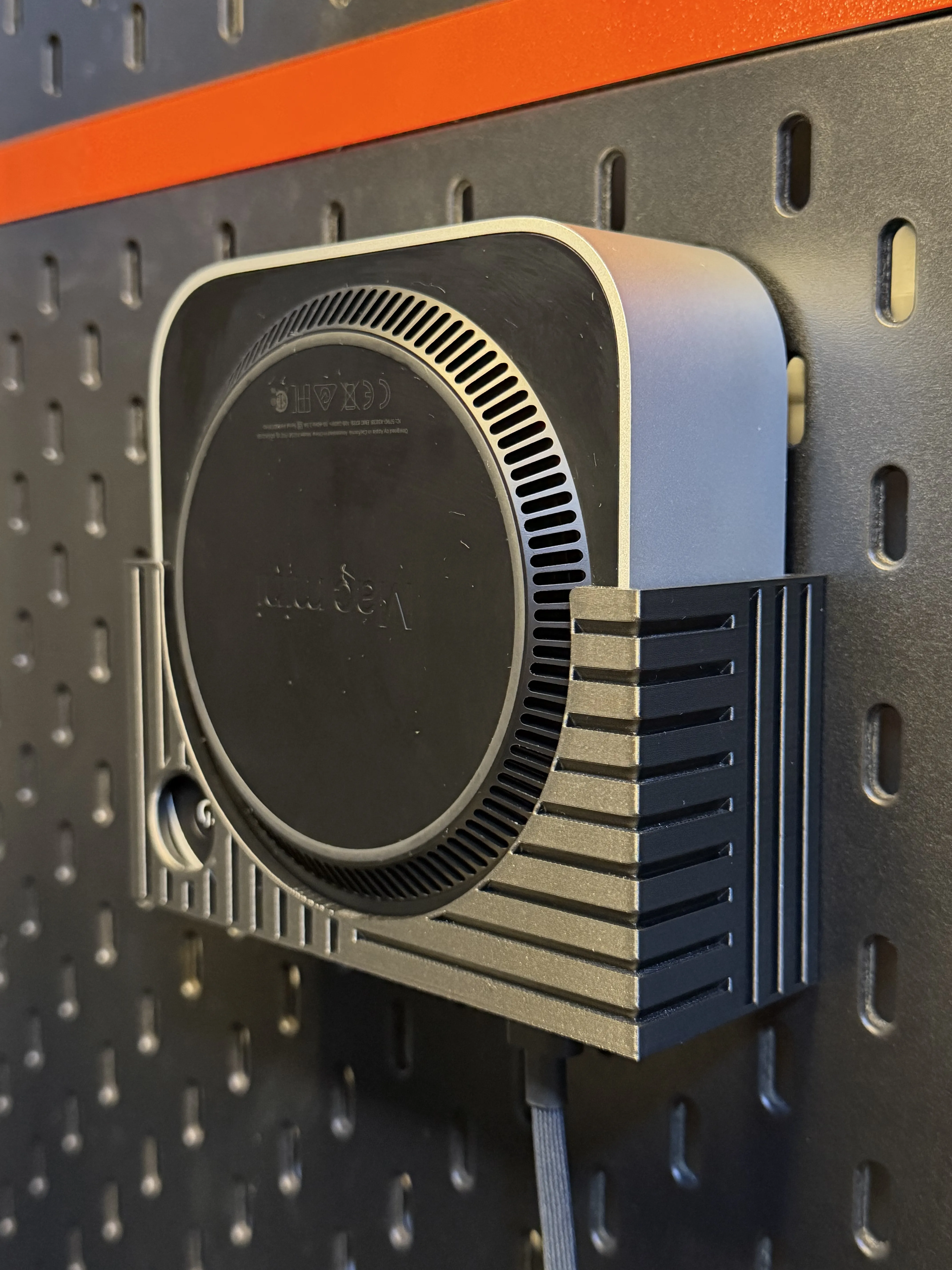

Update 12 May 2026: added a Apple Mac Mini Holder

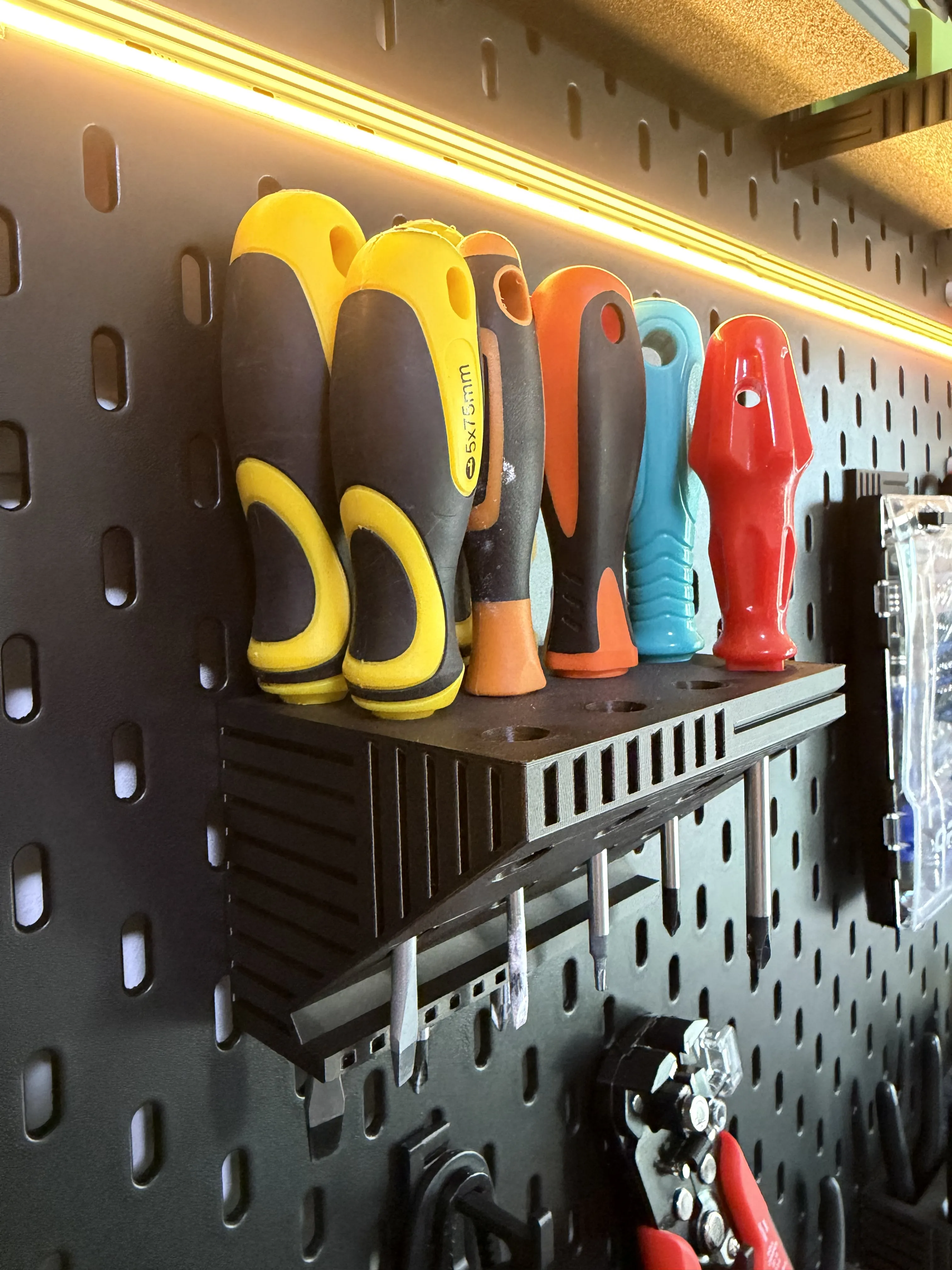

Update 10 May 2026: added a screwdriver set holder for 12 screw drivers

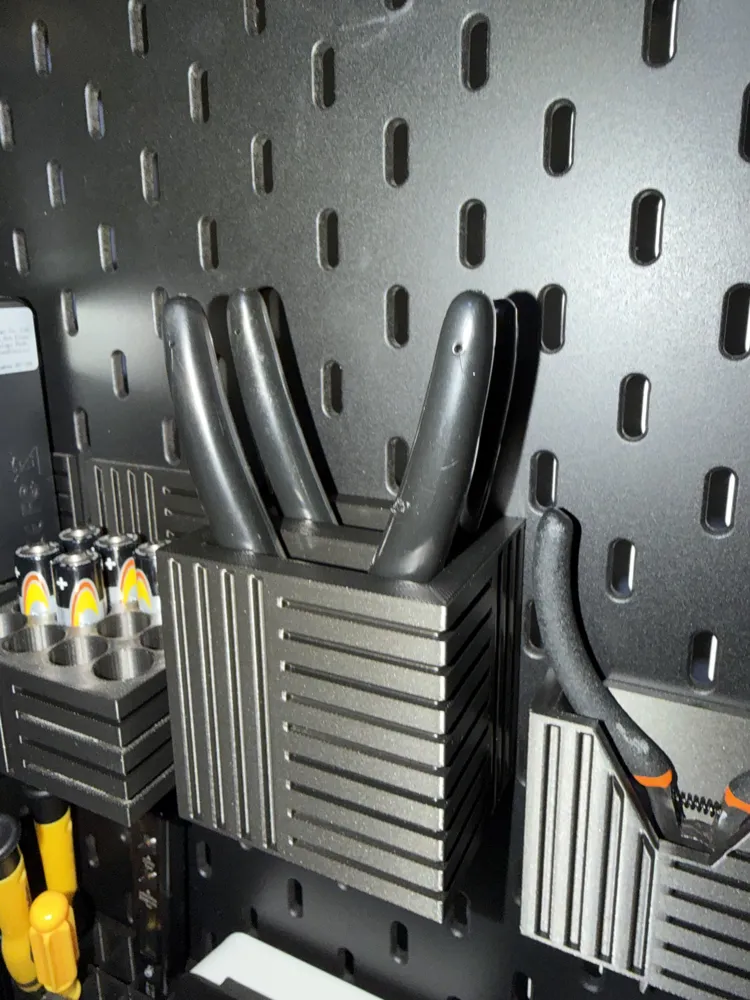

Update 21 April 2026: added Paint Brush holder - 4 Plier Set Holder - Large Shelf 110 x 115mm

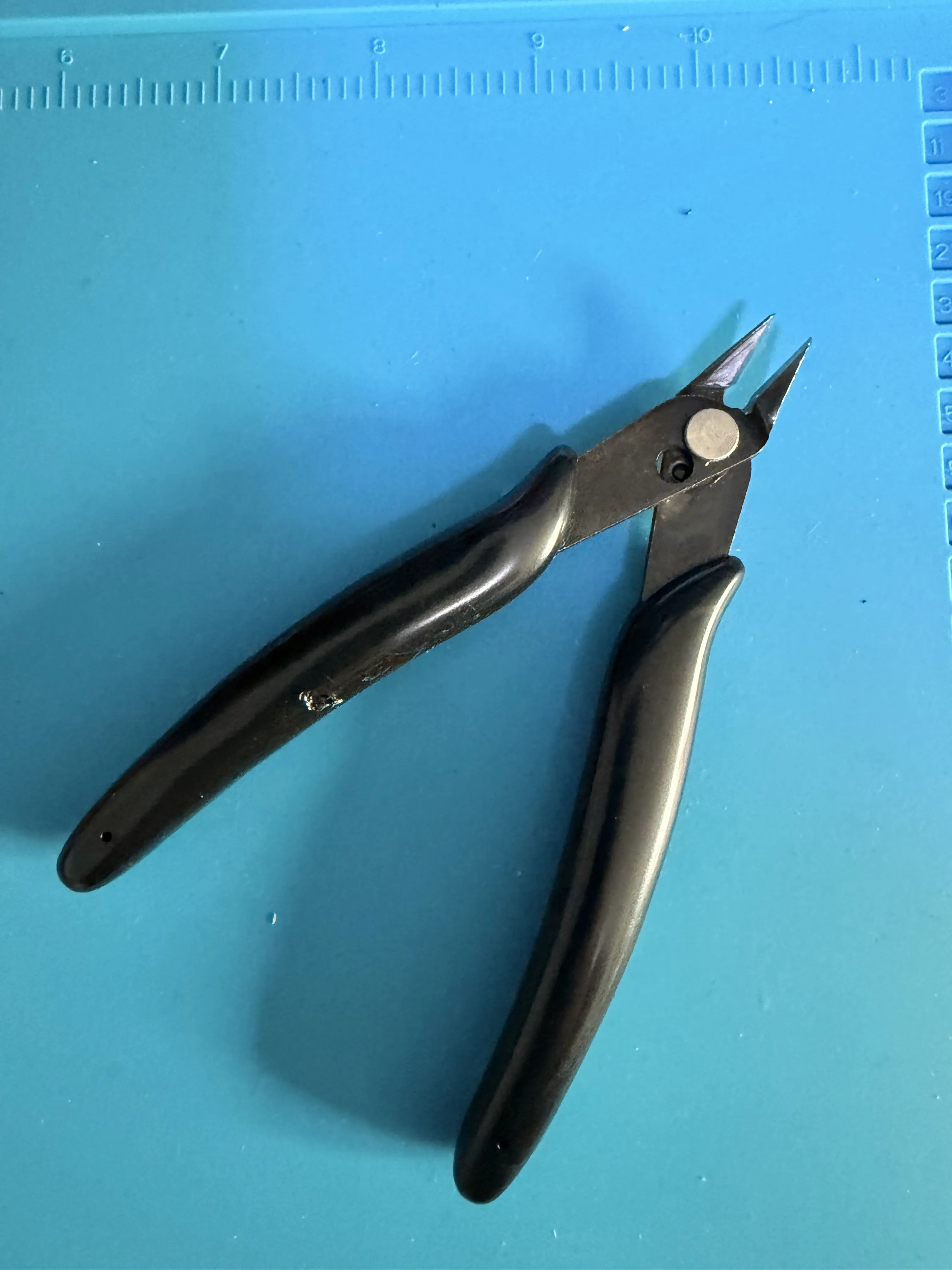

Update 16 March 2025: added a Holder for Filament Snips.

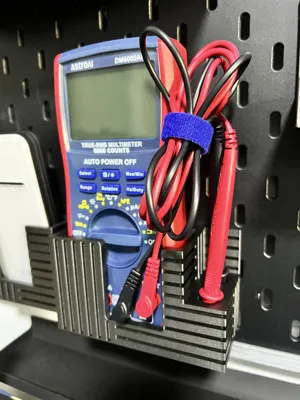

Update 7 Jan 2026 : added a Multi Meter holder to Profile Six.

The inner dimensions are 90mm x 40mm x 70mm

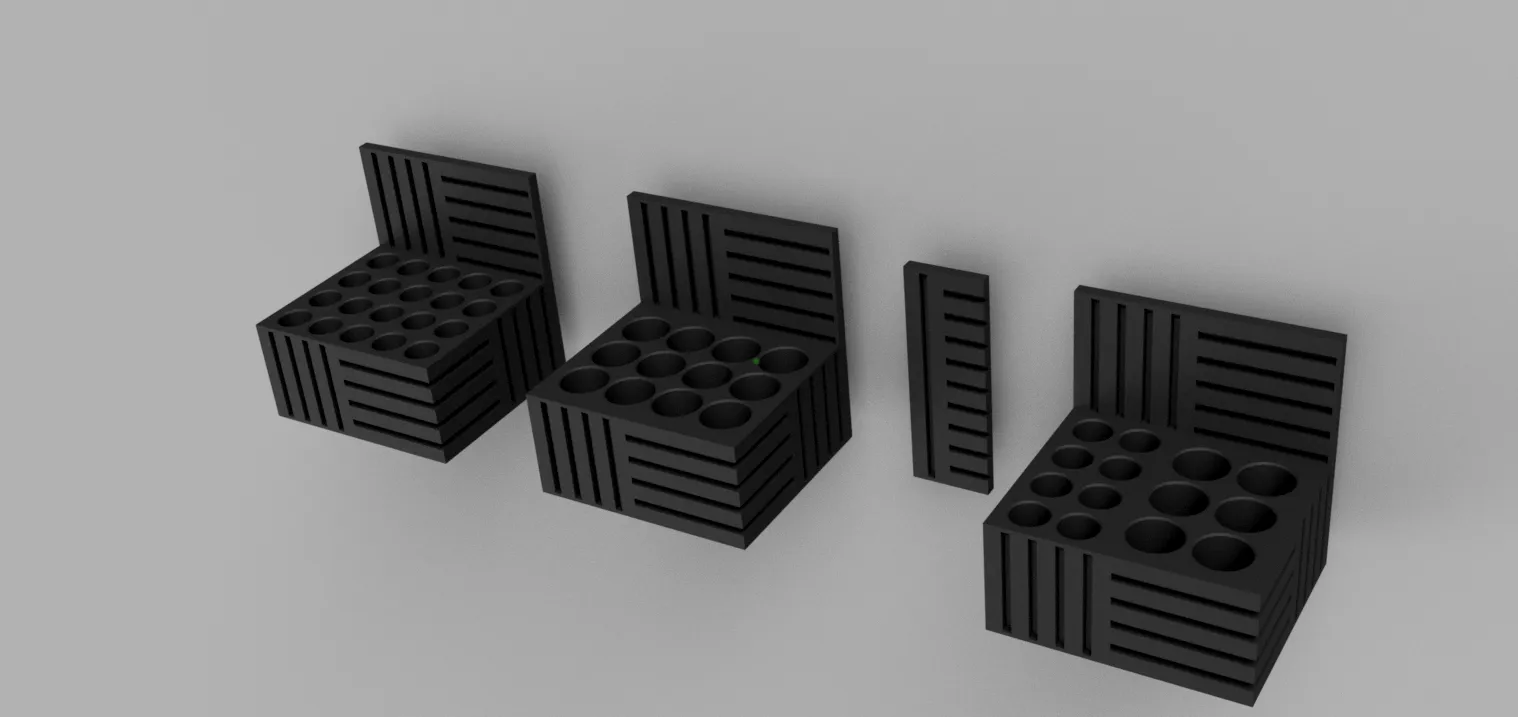

Update 31 Dec 2025 : added Profile 6 : Battery Holders and Vertical Board Connector.

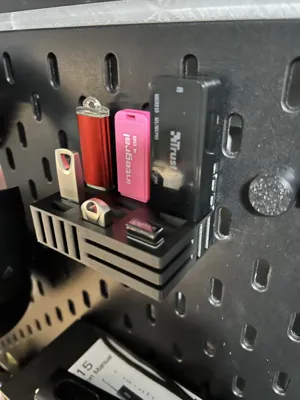

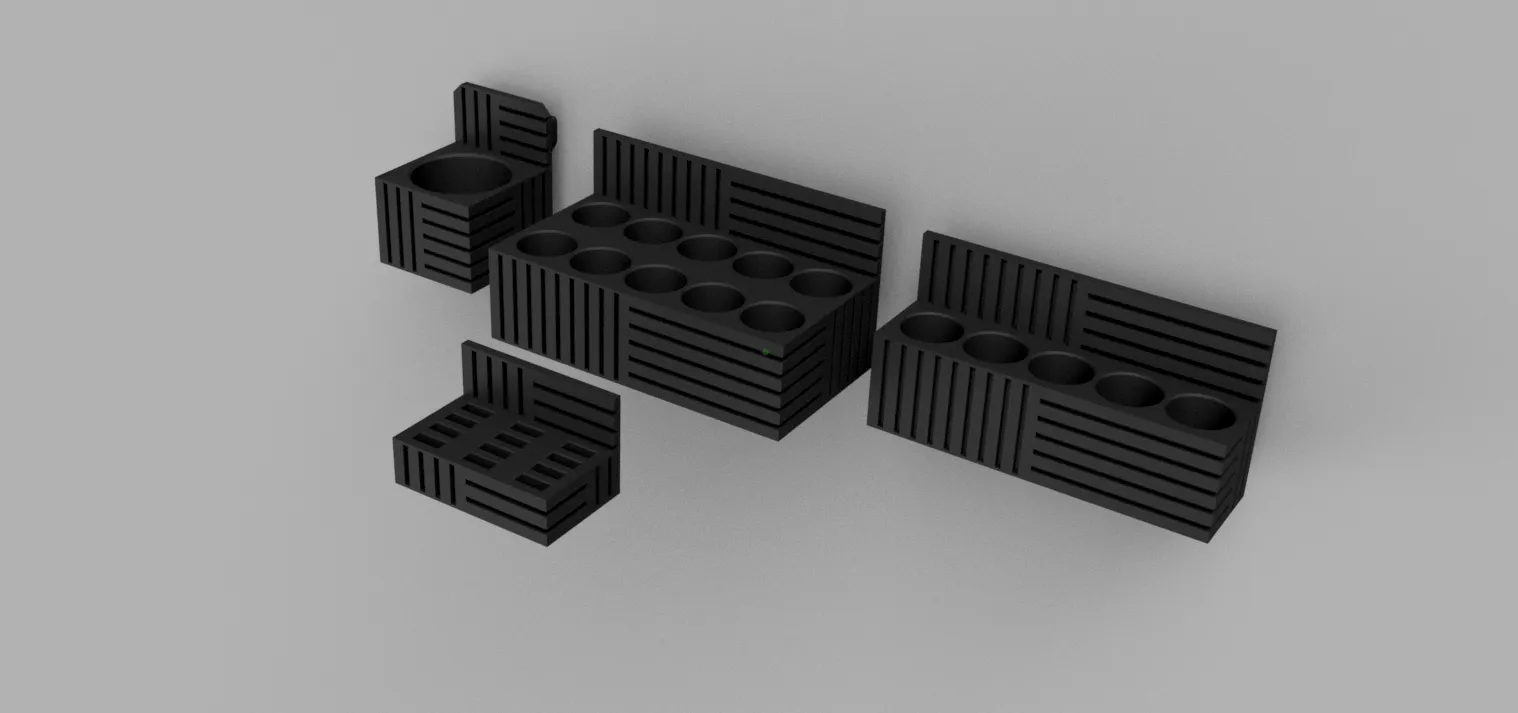

Update 13 Dec 2025 : Added Profile 5 : Army Paint Holders x 5 and x 10, USB Flash Drive Holder and a 45mm diameter Bottle Holder.

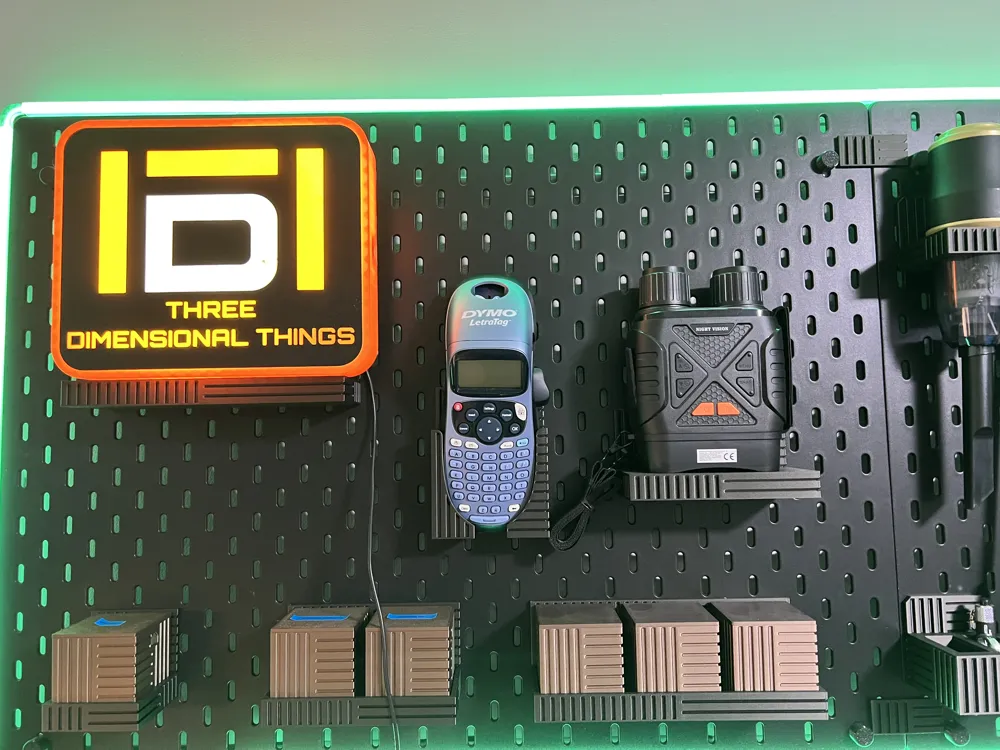

Update 23 Nov 2025 : Added a holder for the DYMO LetraTag Label Printer on a separate print profile.

A range of matching items for the Ikea Skadis Pegboard.

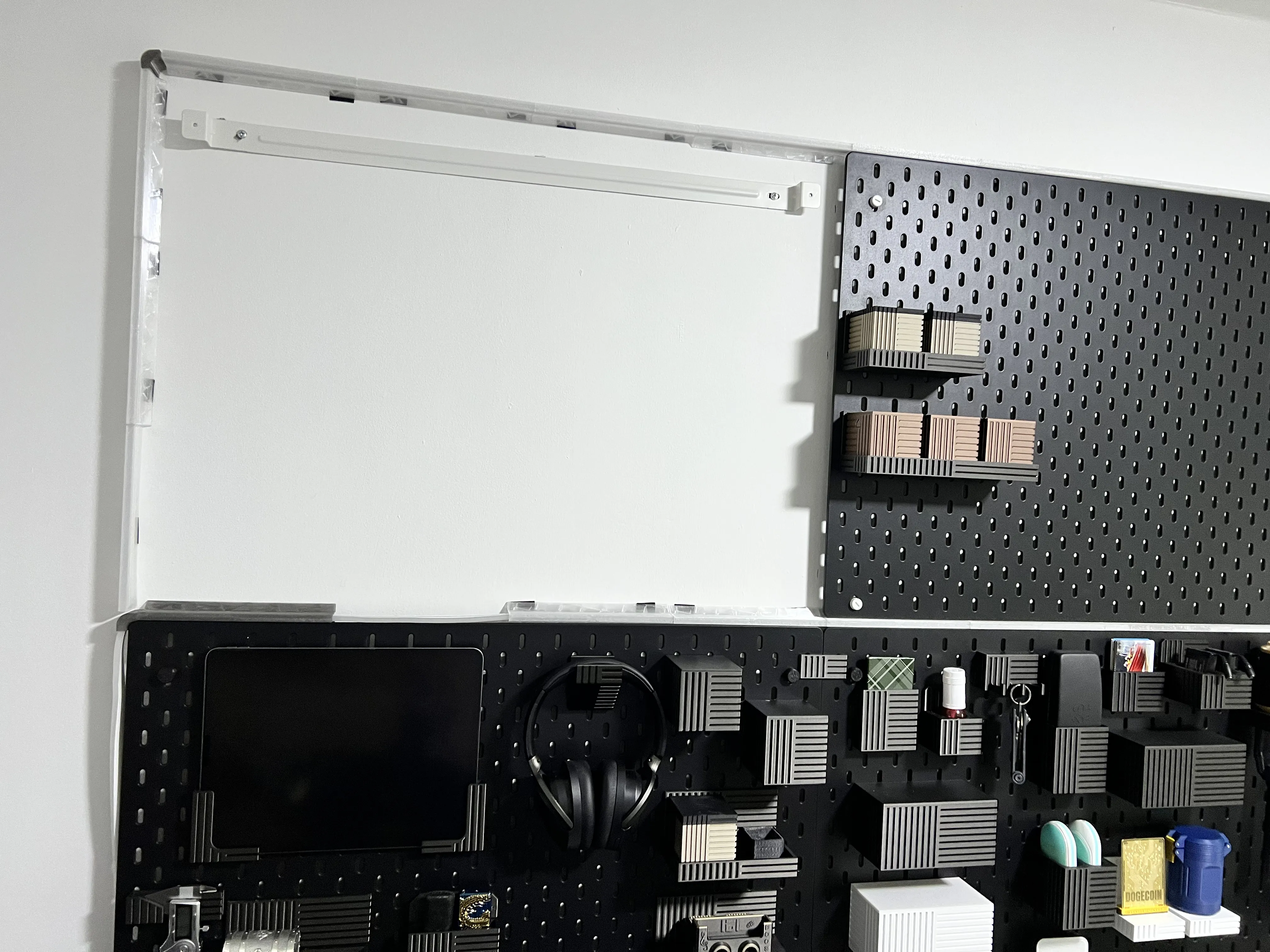

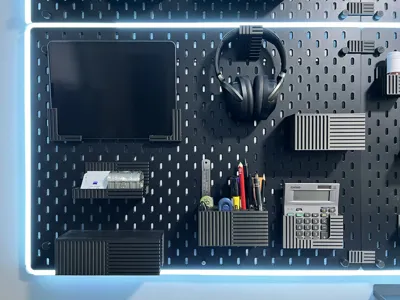

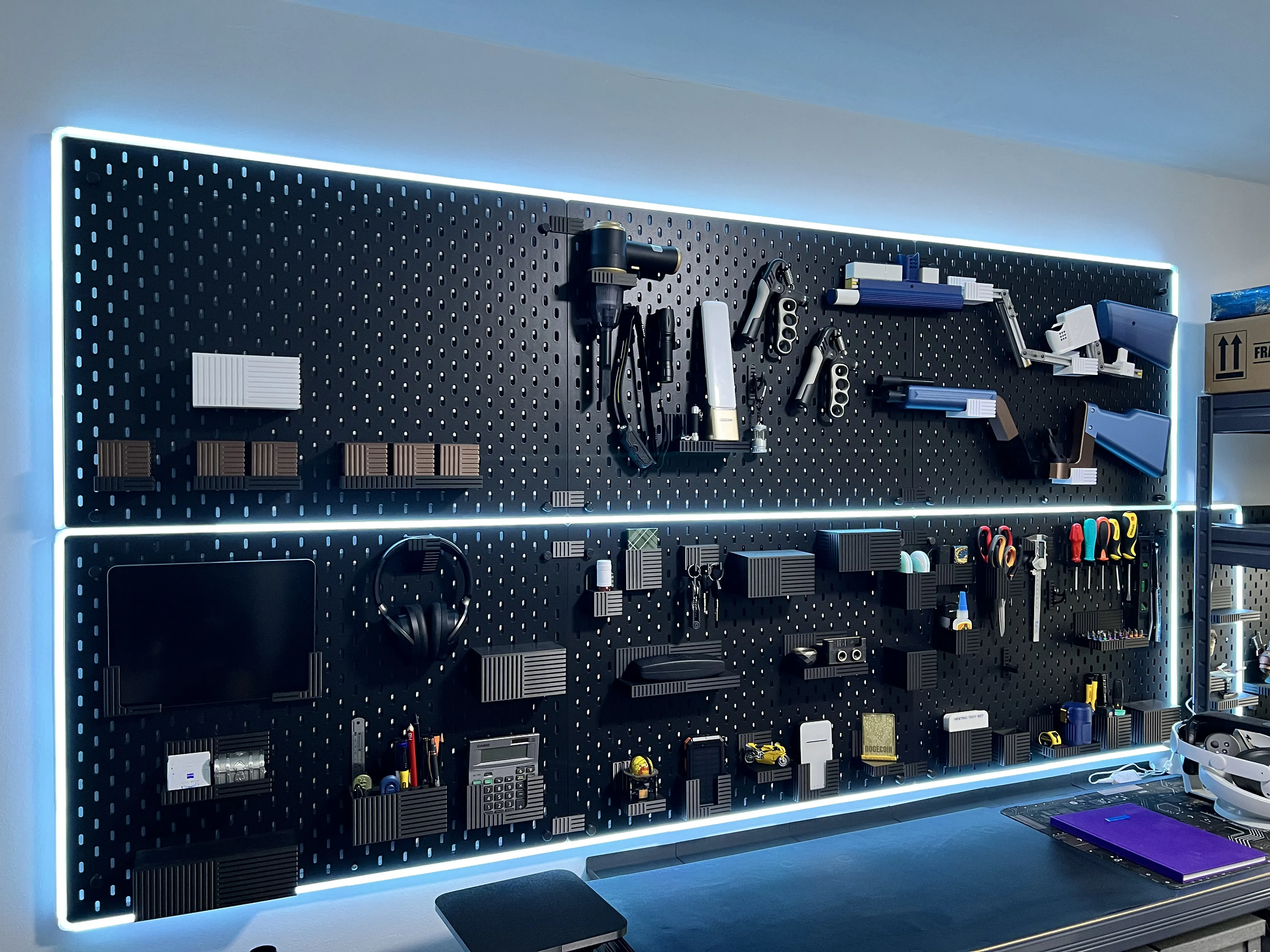

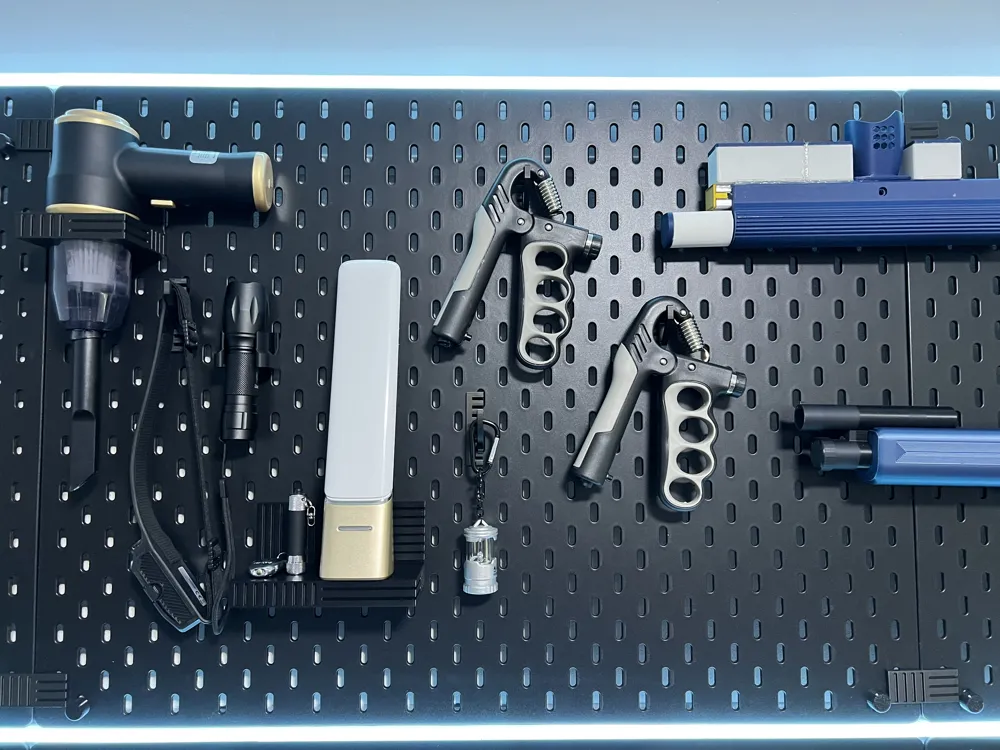

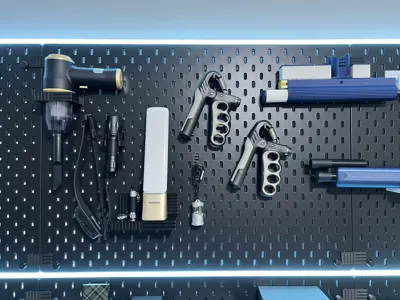

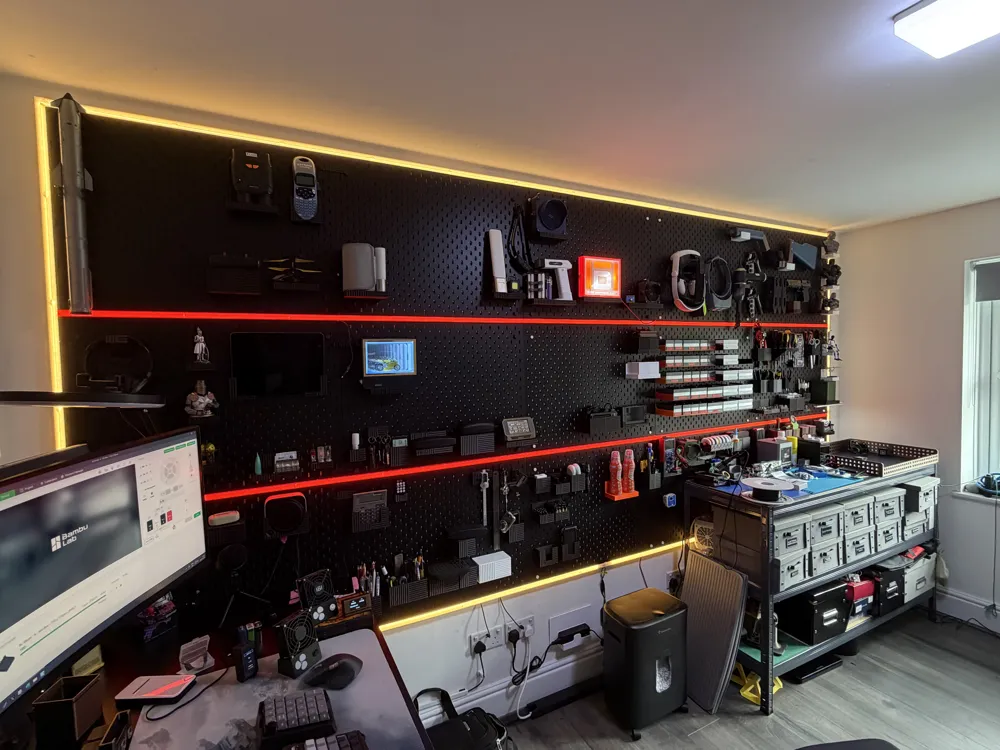

I wanted all my stuff to hand without cluttering my desk so I bought a few pegboards from Ikea and I used a Neon light strip I had knocking around for a year but couldn't find a use for to create this set up. Still a bit of re-arranging and printing to go but its now useable.

 The individual models are not designed to be a quick print or be frugal with the filament, more to look good and be sturdy ( I used 15% Gyroid infill and 3 walls with organic supports active).  All the pegboard fixings have a gap of 5.25mm except the hooks which are only 5.10mm and seem to work best for me using Bambu Labs PLA Metal Iron Gray or PLA Matt. Thought I would share them just in case anyone else liked the look.  If you like the look and would like a particular matching holder I will see what I can do, time permitting.

Below is a list of the items in the various print profiles. I have also attached a PDF with pictures of each item in the Range.

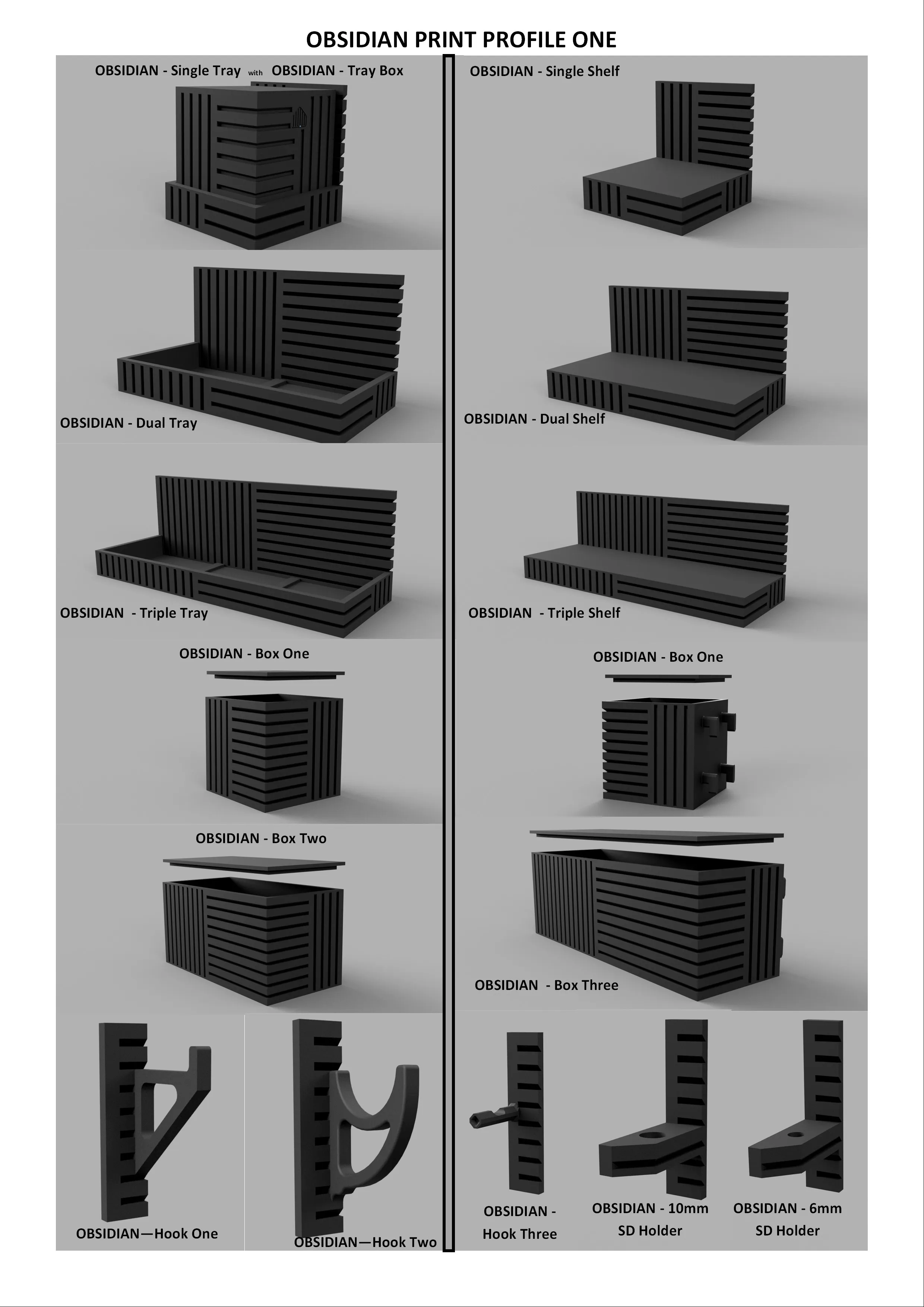

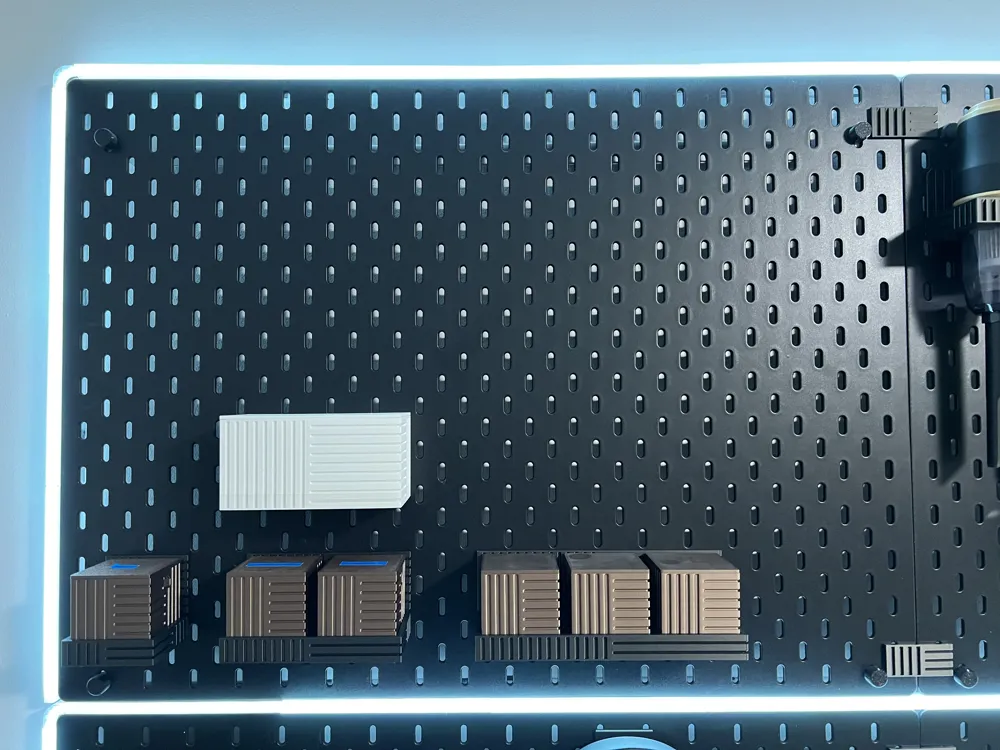

ITEMS IN PROFILE ONE :

Tray Box and Lid - 63.50 x 63.50 x 65 mm - usable  58.70 x 58.70mm

Single Tray  72.5 x 72.5 x 72.5 mm - usable size 64.50 x 64.50mm

Single Shelf  - 72.5 x 72.5 x 72.5 mm - usable size 72.50 x 68.50mm

Dual Tray  - 72.5 x  145 x 72.5mm  - usable size 137 x 64.50mm

Dual Shelf    - 72.5 x  145 x 72.5mm  - usable size 145 x 68.50mm

Triple Tray  - 72.5 x  217.50 x 72.50mm - usable 209.50 x 64.50mm

Triple Shelf   - 72.5 x  217.50 x 72.50mm - usable 217.50 x 68.50mm

Box One  - 72.5 x 72.5 x 72.5 mm - usable size 64.50 x 64.50 x 68.50mm

Box Two - 72.5 x  145 x 72.5mm  - usable size 137 x 64.50 x 68.50mm

Box Three  - 72.5 x  217.50 x 72.50mm - usable 209.50 x 64.50 x 68.50mm

Hook One

Hook Two

Hook Three

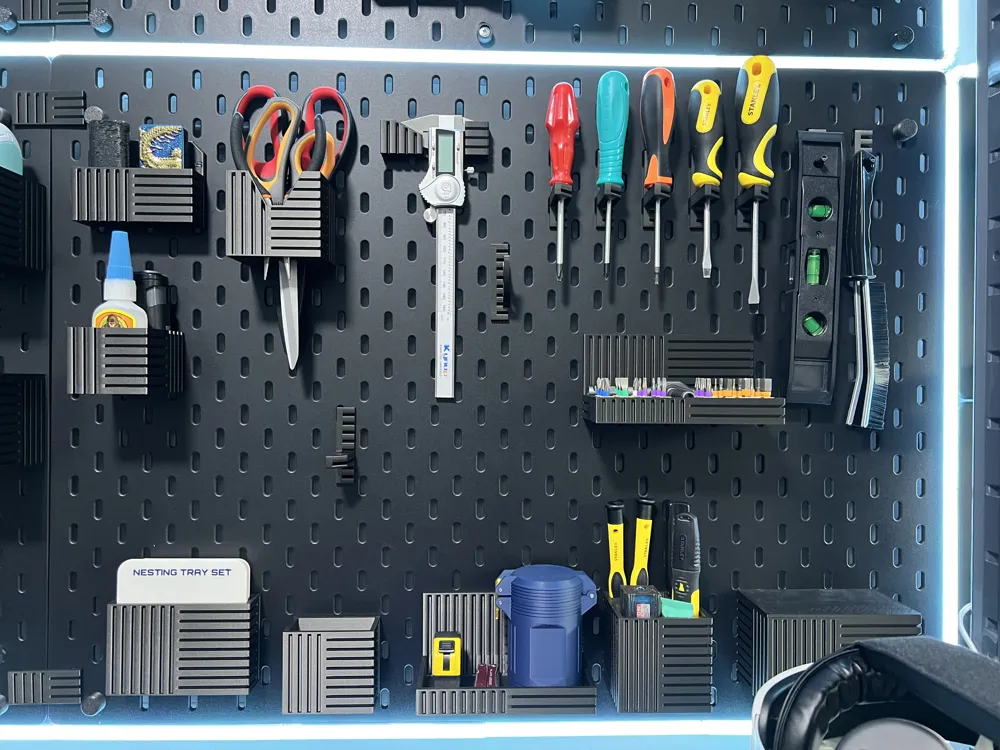

10mm Screw Driver Holder

6mm Screw Driver Holder

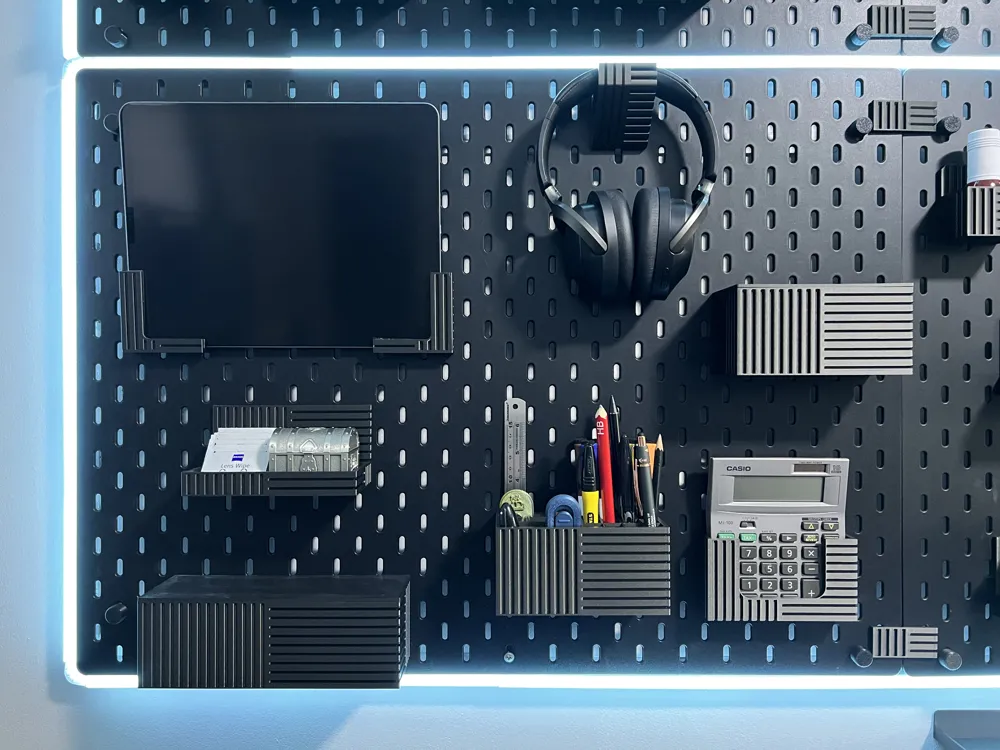

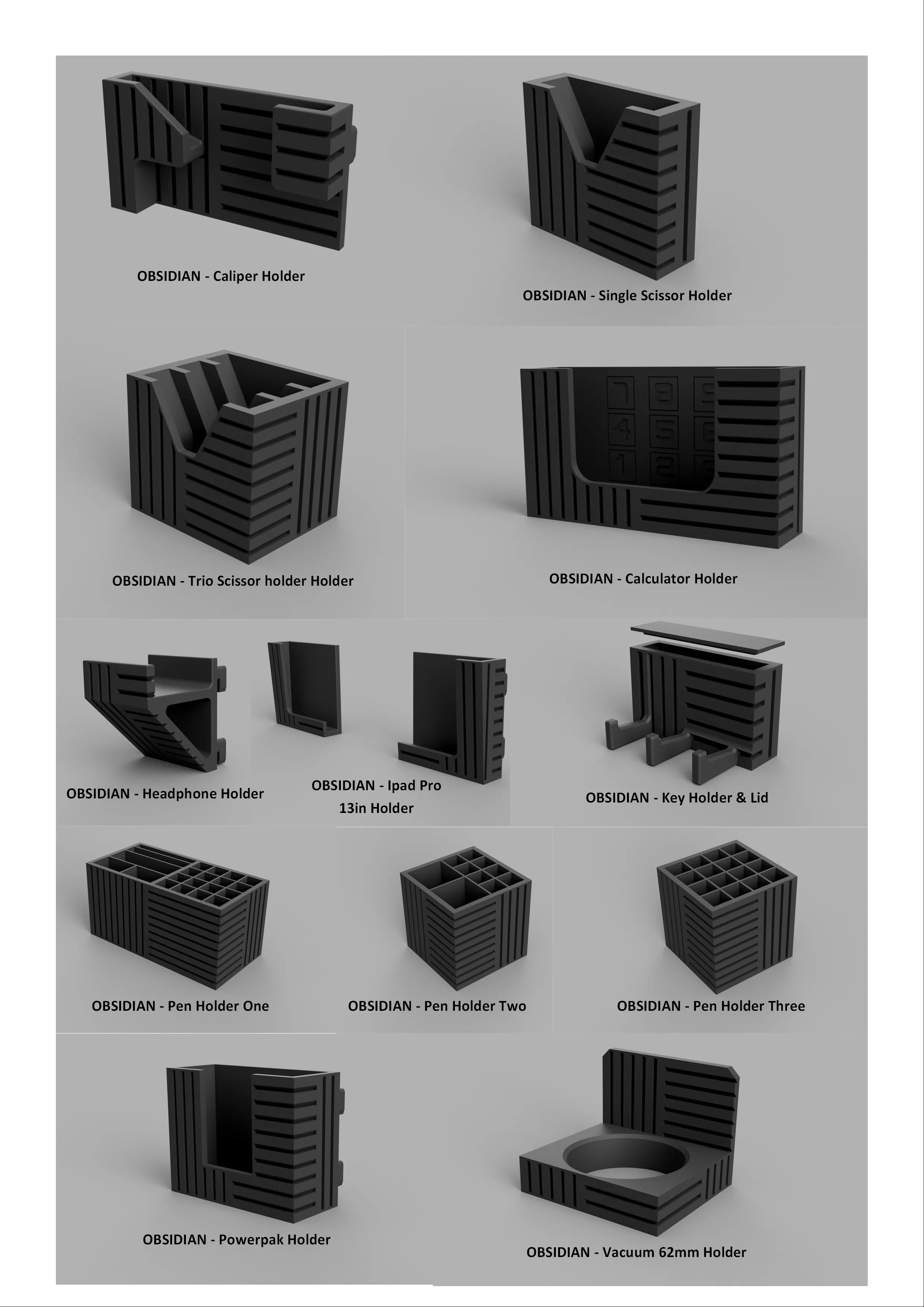

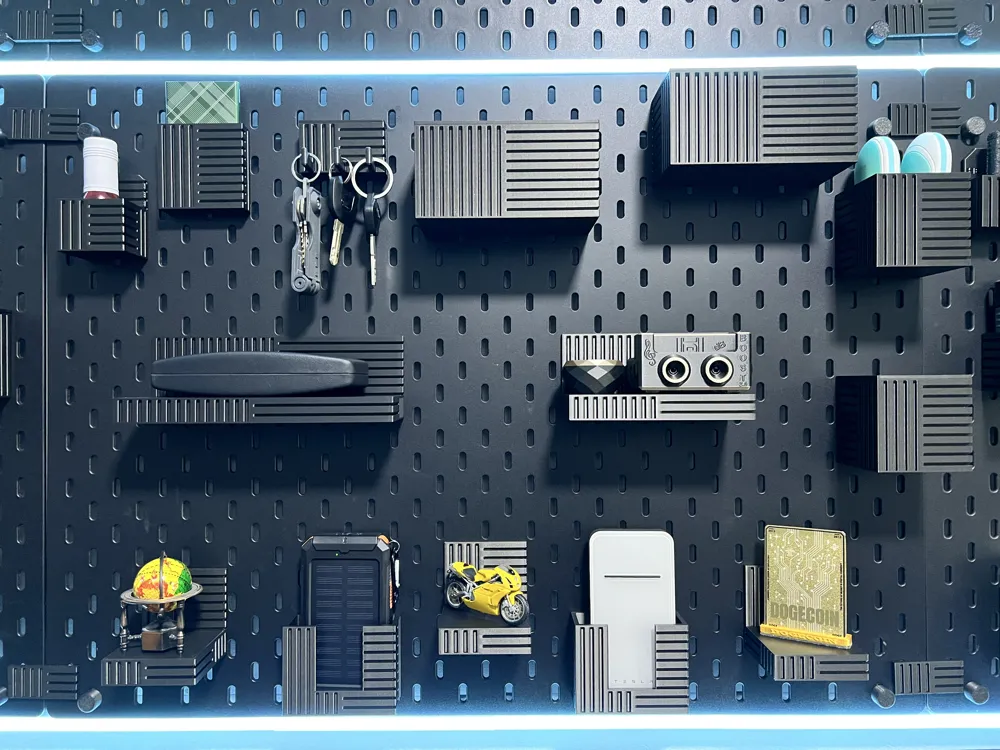

ITEMS IN PROFILE TWO :

Caliper Holder

Single Scissor Holder - can also hold pliers

Trio Scissor holder

Calculator Holder - 124mm x 21mm x 69.50mm

Headphone Holder - 41mm wide gap for headband

Ipad Pro 13inch Holder -

recommend using 1mm self adhesive felt on the inside to prevent scratching.

Key Holder with small compartment - holds three keys.

Pen Holder One

Pen Holder Two

Pen Holder Three  (fits pens upto 15mm diameter)

Powerpak Holder -  85mm x 30mm x 68.50mm

Vacuum Holder - 62mm diameter hole.

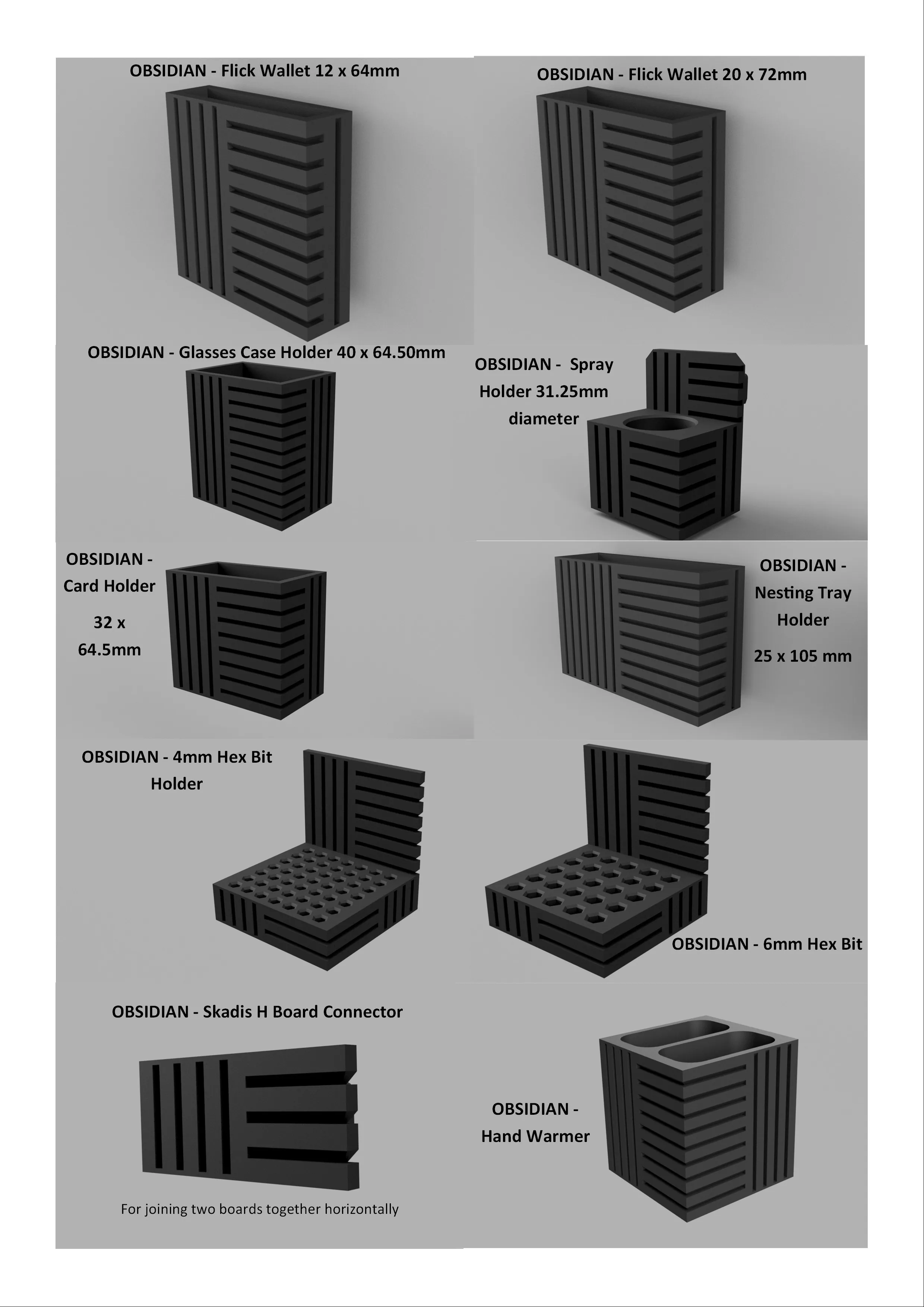

PROFILE 3

Flick Wallet 12mm x 64mm

Flick Wallet 20mm x 72mm

Glasses Case holder  40mm x 64.50mm

Spray Bottle 31.25mm wide

Card holder (credit or business) 32mm x 64.50mm

Nesting Tray Holder (in my other models) 25mm x 105mm

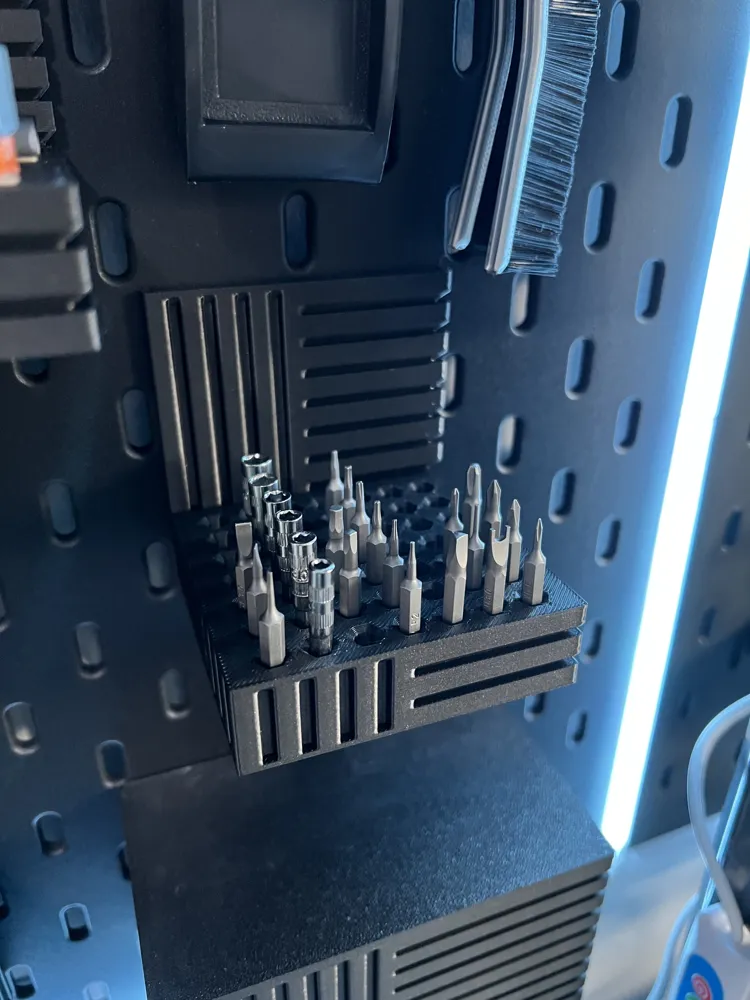

4mm (ish) Hex bit Holder

6mm (ish) Hex bit holder

Skadis H Board Connector - Connects Skadis boards Horizontally.

Hand Warmer holder (for Rechargeable hand warmers)-

30mm x 60mm with rounded corners

thought I would add these odd ball items on a separate profile.

PROFILE 4 - Neon Light Strip Holder

I used a standard neon light strip, that I placed inside a PETG Translucent Holder (this is on a separate print profile) and stuck it to the wall using 3M double sided tape. Not sure if this will work with all Neon strip lighting strips so just print a test piece to try first. I used Translucent Clear PETG because of the slight heat coming of the light strip.  Its just a corner piece and a straight piece, you can alter the length of the straight piece easily in Bambu slicer, just untick the uniform scale box and alter the 181 number to the length you need in mm.
