Kid's Scuba Diver Costume
Print Profile(1)
Bill of Materials
- Backpack Straps x 1: https://www.amazon.ca/dp/B08NYJGLD3?ref=ppx_yo2ov_dt_b_fed_asin_title
- Silicon Tubing 2.5mm ID x 3.5mm OD x 1: https://www.amazon.ca/dp/B0DTTZSSBN?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
- JST-PF 2.0 Male/Female Connectors x 1: https://www.amazon.ca/dp/B07NWD5NTN?ref=ppx_yo2ov_dt_b_fed_asin_title

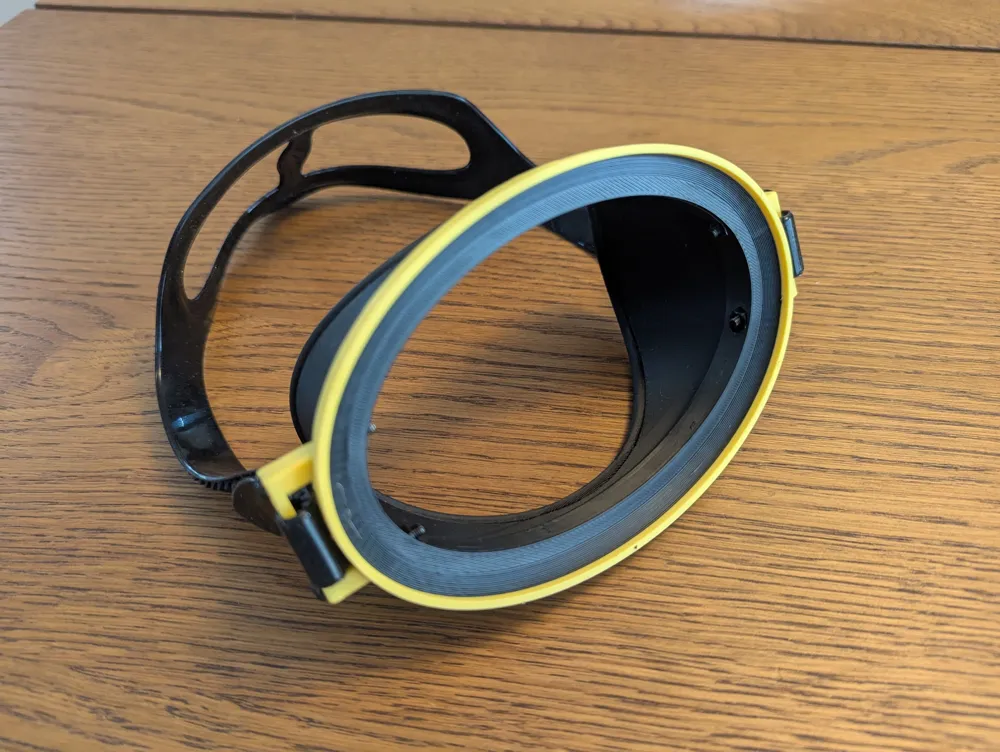

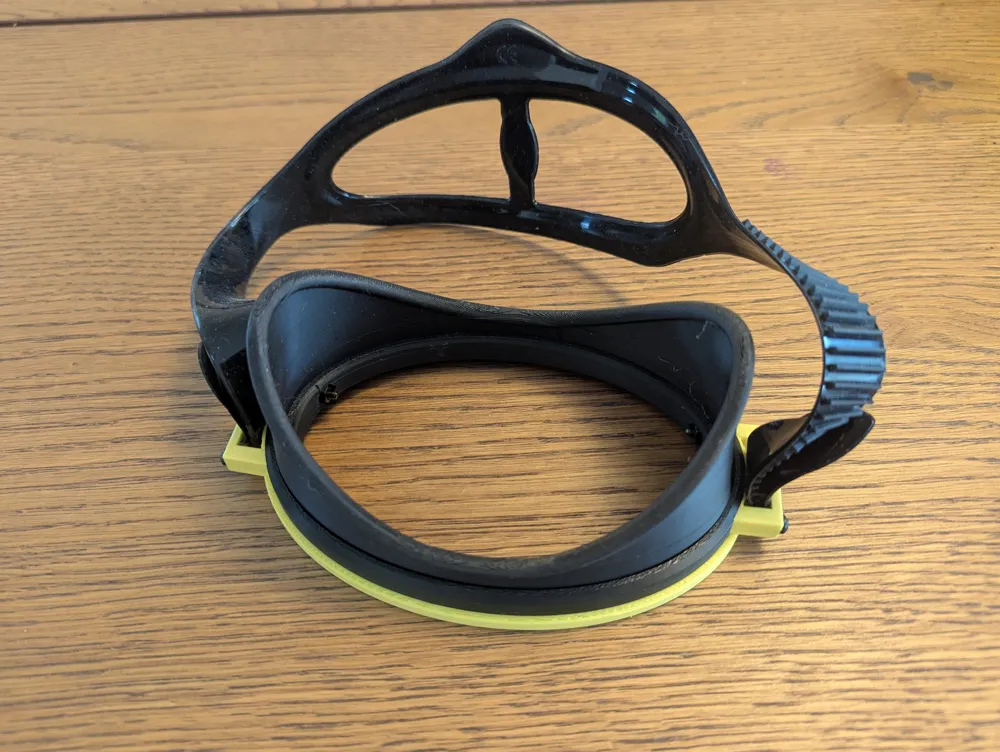

- Dive Mask Strap x 1: https://www.amazon.ca/dp/B0CXSBFK9B?ref=ppx_yo2ov_dt_b_fed_asin_title
- Black Silicone Rubber Tubing 1/4" ID x 3/8" OD x 1: https://www.amazon.ca/dp/B0D969XHX7?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

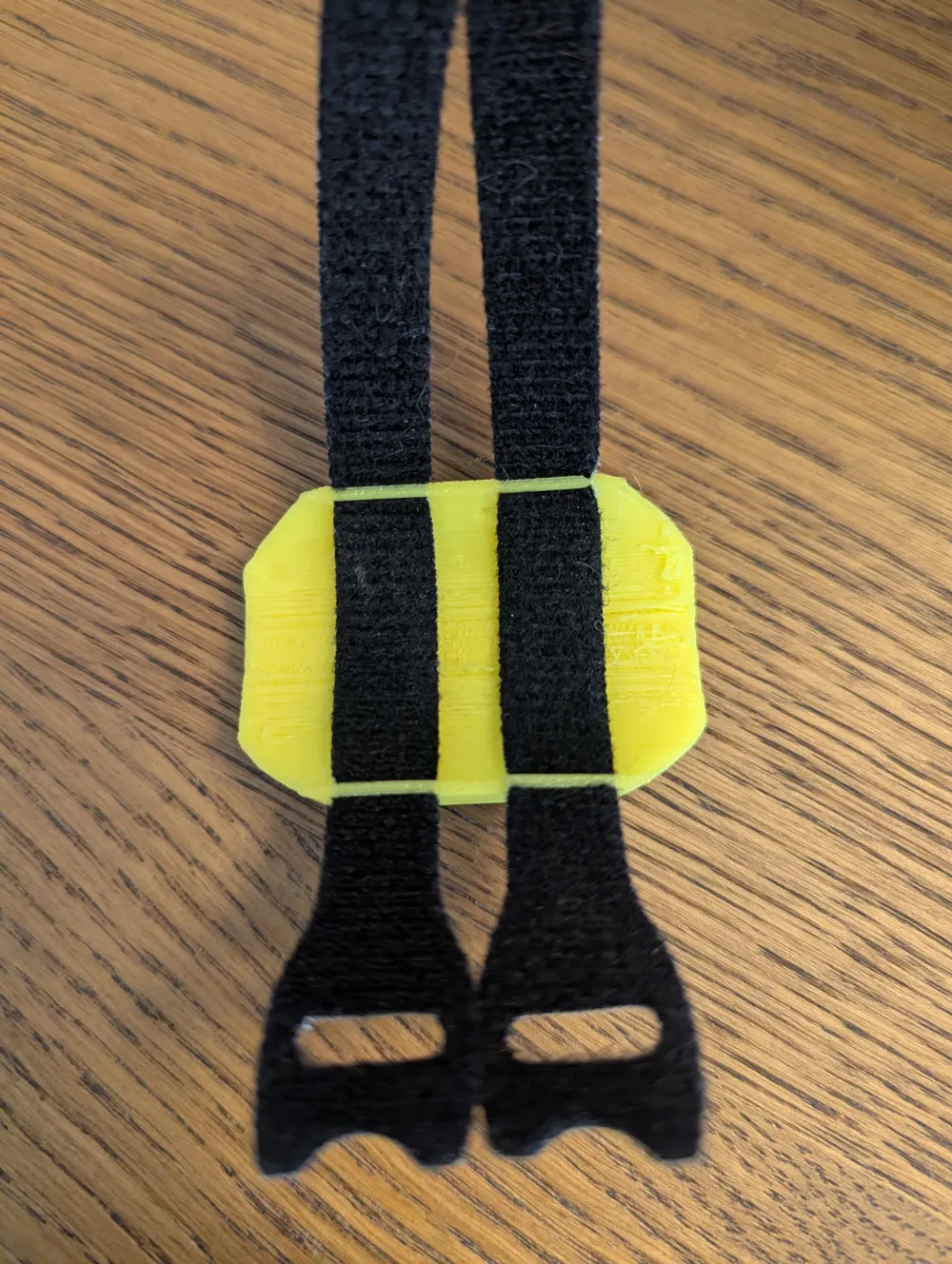

- Yellow Canvas Belt x 1: https://www.amazon.ca/dp/B073XH2PY5?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
- Misc M3 Screws x 1: Black M3 button head screws of various sizes
- Micro Slide Switch x 1: https://www.amazon.ca/Lord-Tools-Position-Accessories-Instruments/dp/B0CB5TS1CM/ref=ci_mcx_mr_mp_m_d_sccl_2_7/143-4889028-5849659?pd_rd_w=TItQg&content-id=amzn1.sym.3f0e3e21-f41b-47ae-9a2b-6ccda06d59fd:amzn1.symc.27c848cf-47ab-487b-bd07-91bc659e0119&pf_rd_p=3f0e3e21-f41b-47ae-9a2b-6ccda06d59fd&pf_rd_r=NNEE0J1NME0NAE0J34GP&pd_rd_wg=qMcAO&pd_rd_r=fc21deaf-afb1-4842-a732-ae79e46616ae&pd_rd_i=B0CB5TS1CM&psc=1
- 20 awg wire x 1:

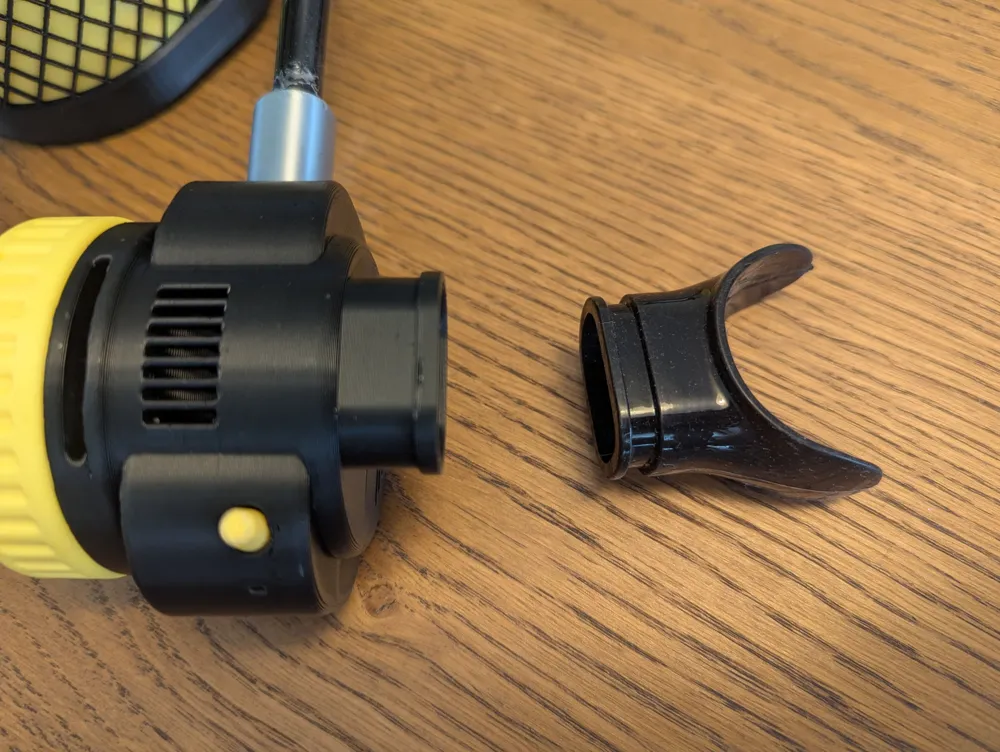

- Regulator Mouthpiece x 1: https://tinyurl.com/svpss4kj
Description

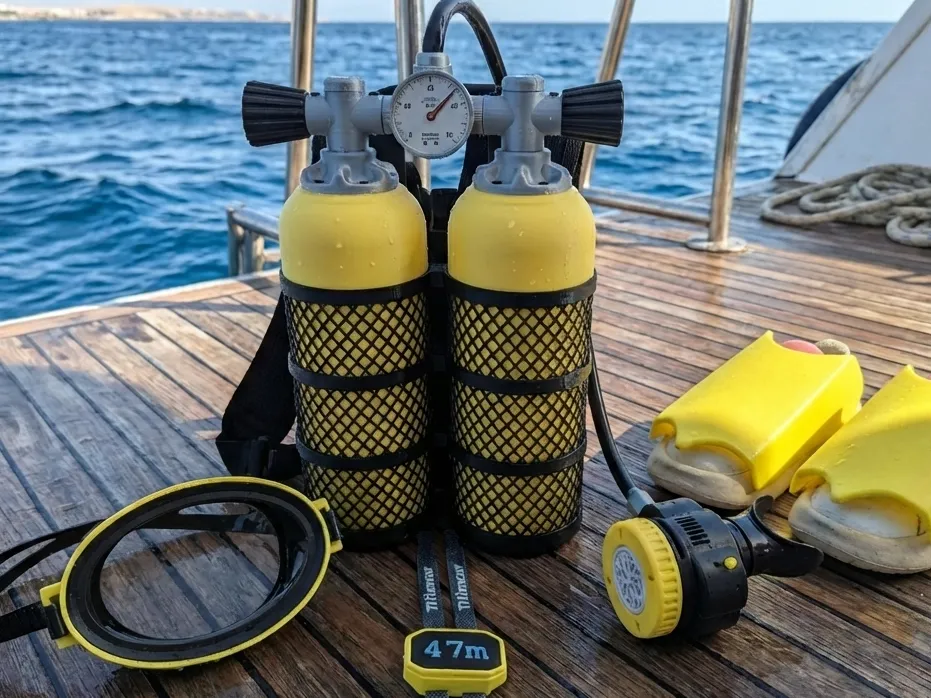

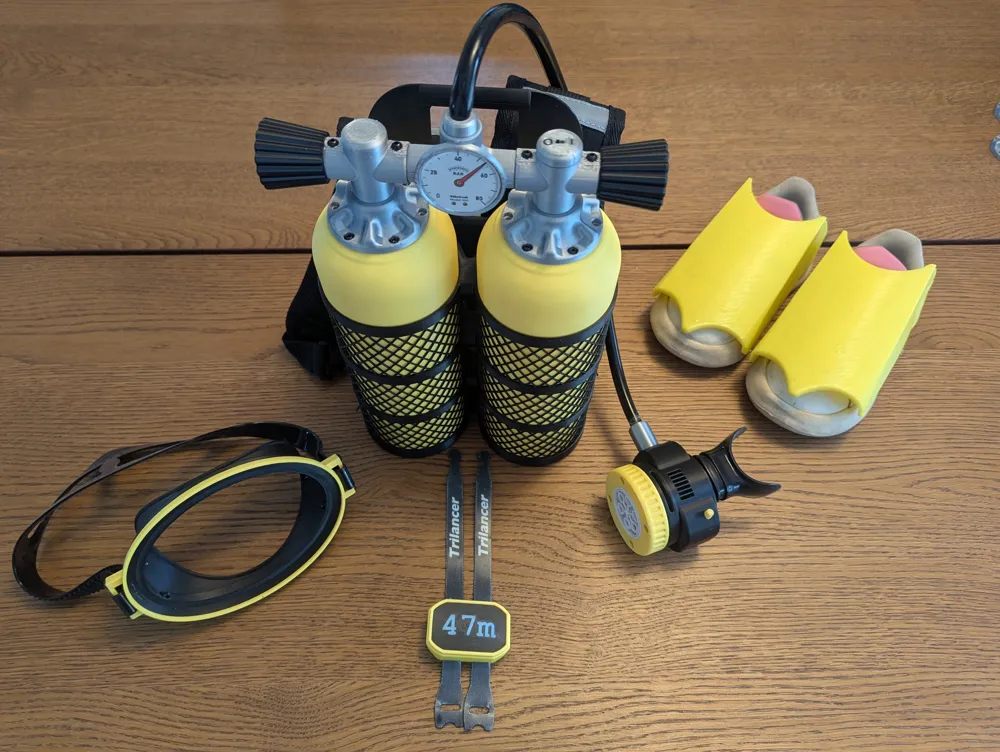

Scuba Diver Kid's Costume

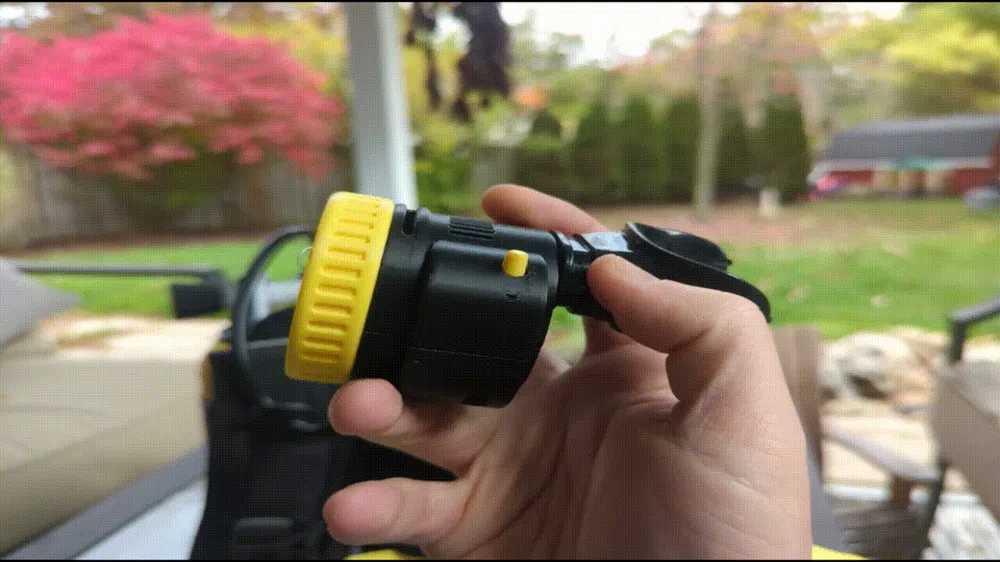

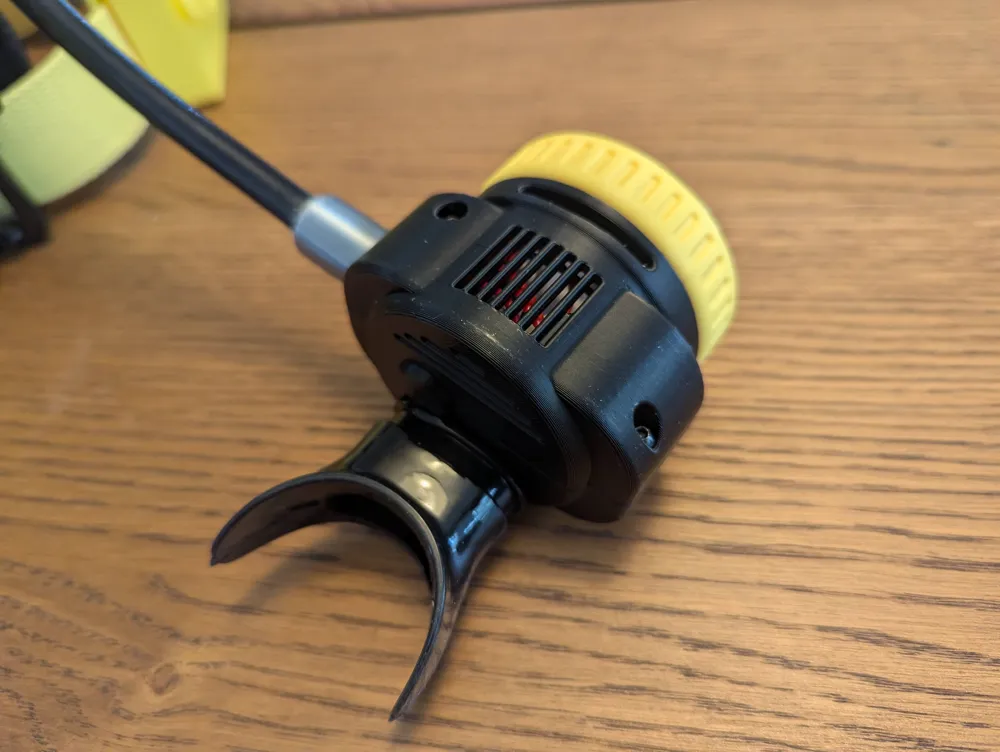

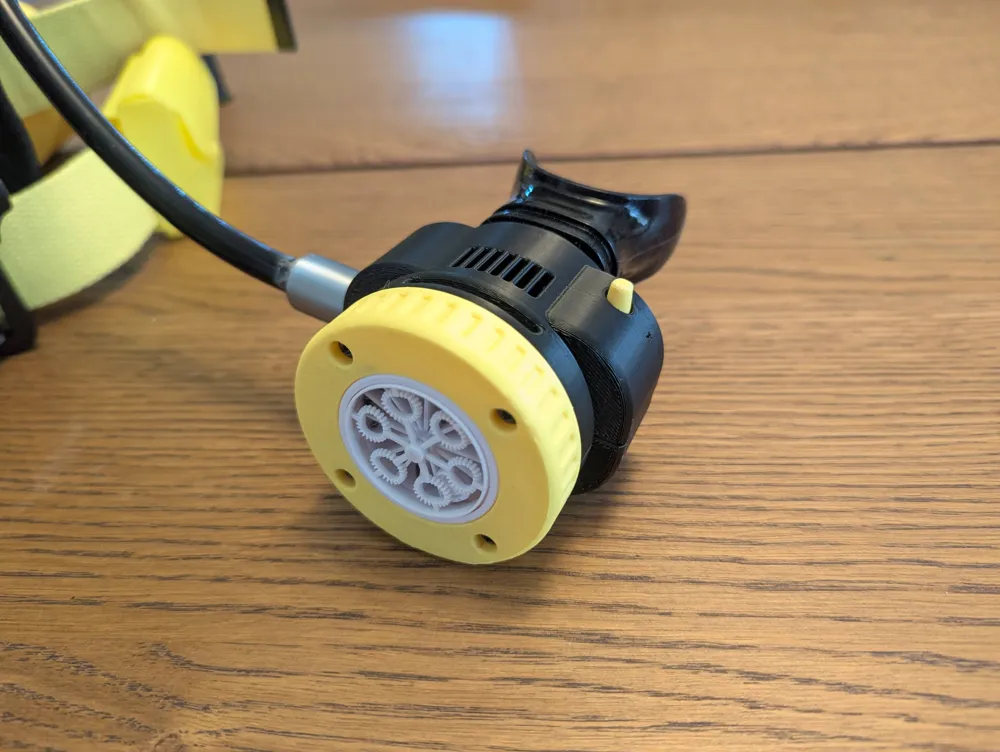

This is a Scuba Diver halloween costume originally designed for a 4 year old (~105cm tall, ~17kg, US child size 10 shoes). It uses the maker supplies bubble kit to blow bubbles from the regulator when the button on the regulator is pressed.

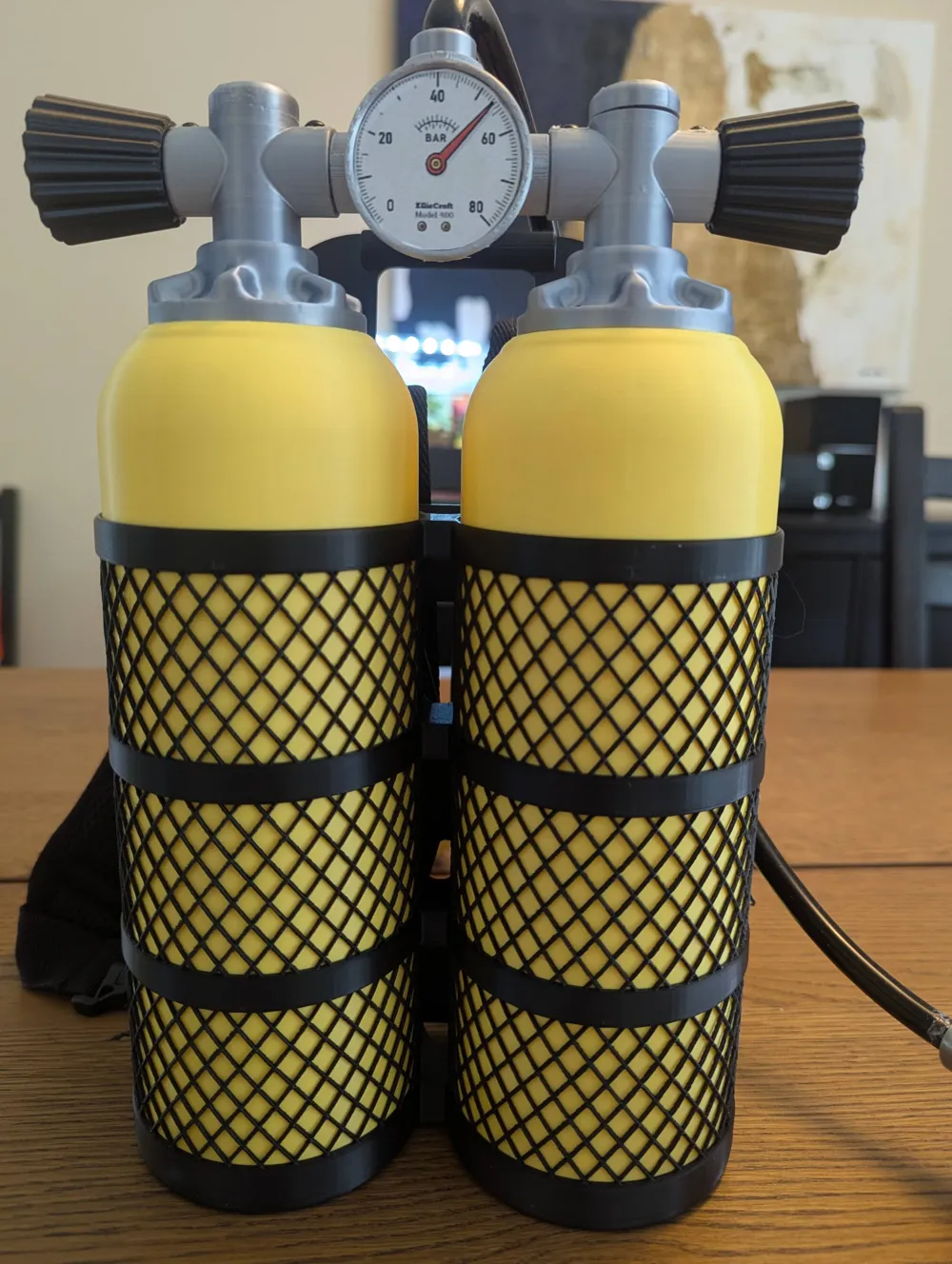

The backpack tanks contain the bubble liquid and battery as well as an added power switch, making the regulator relatively light and compact.
Features:
- Compatible with the Electric Bubble Maker Kit 01 from maker supplies

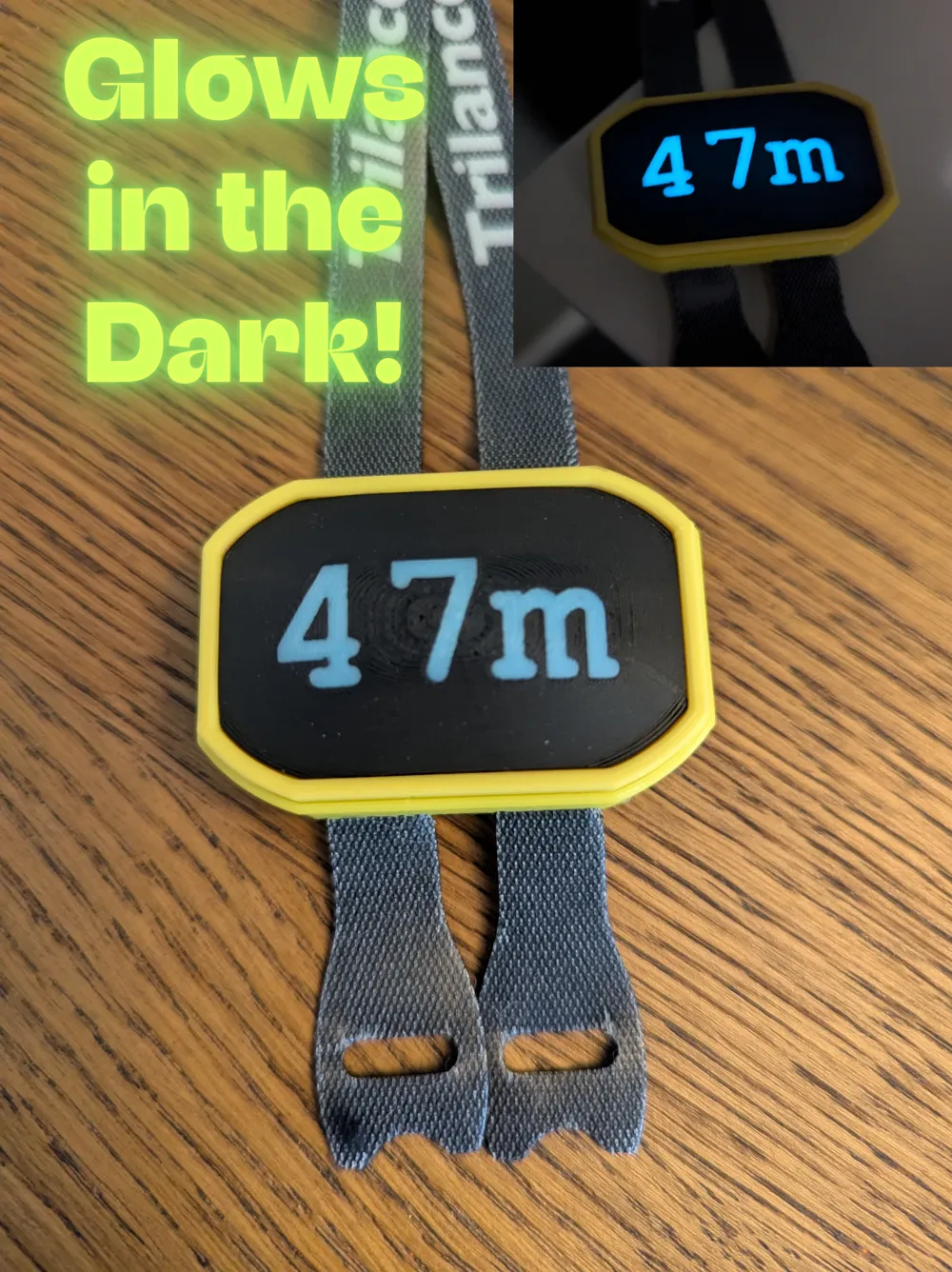

- Glow in the dark wrist display

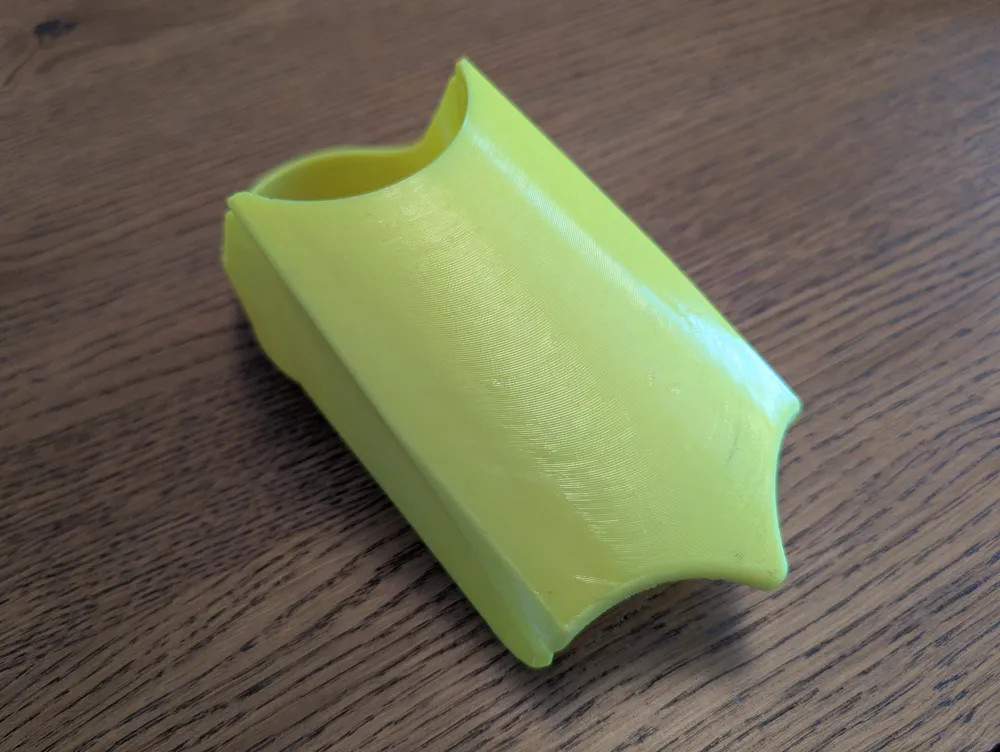

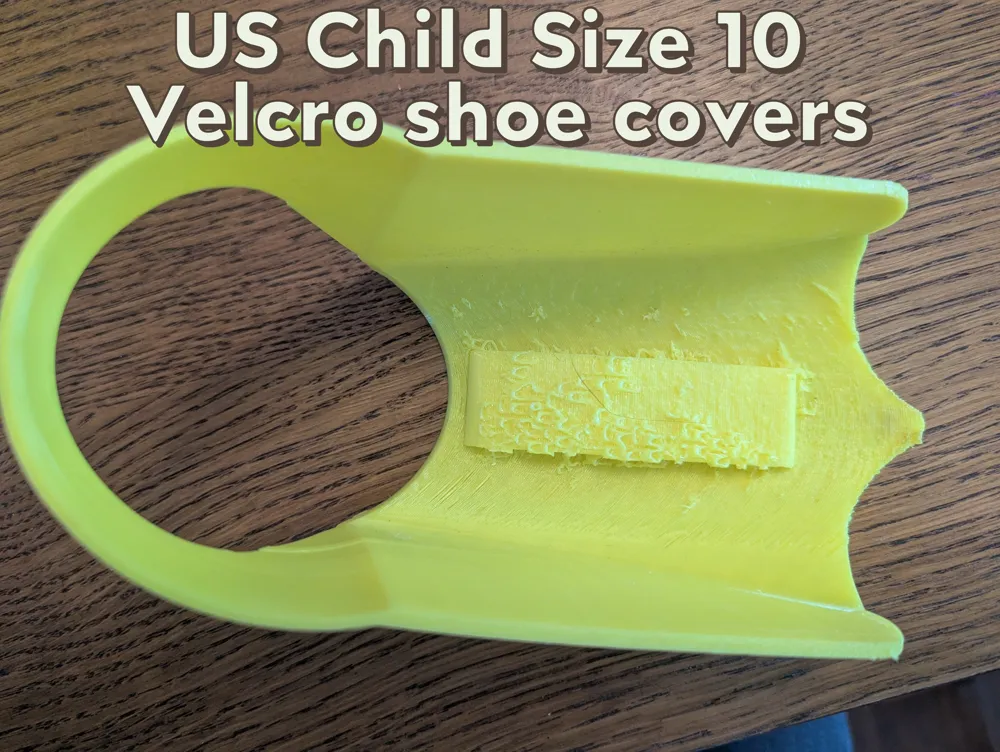

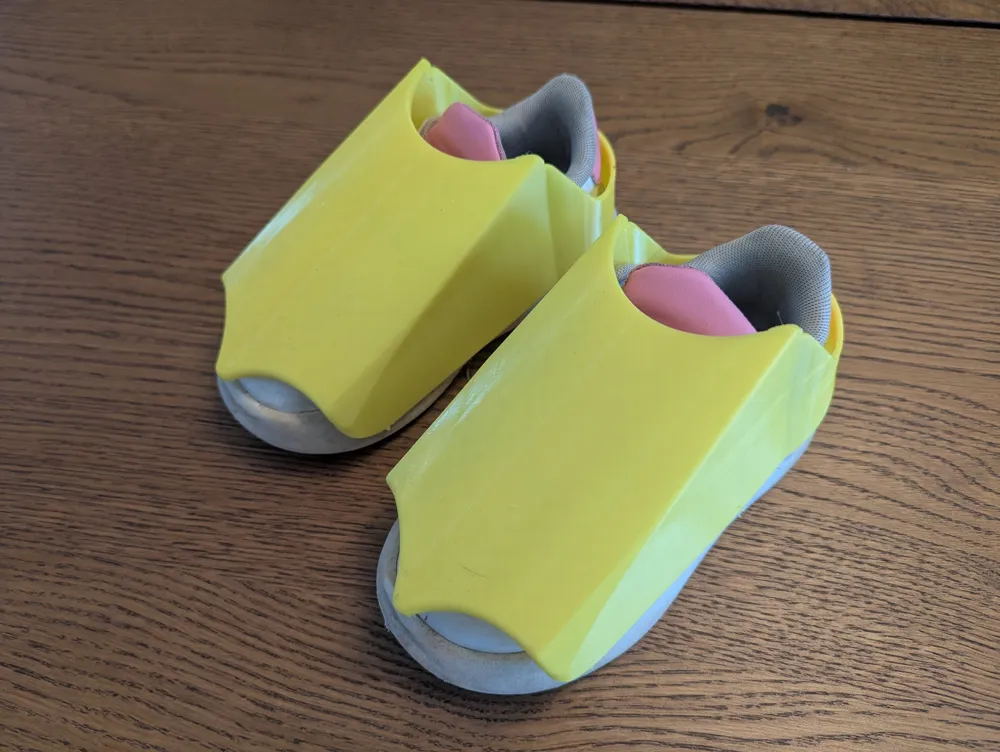

- TPU flipper shoe covers

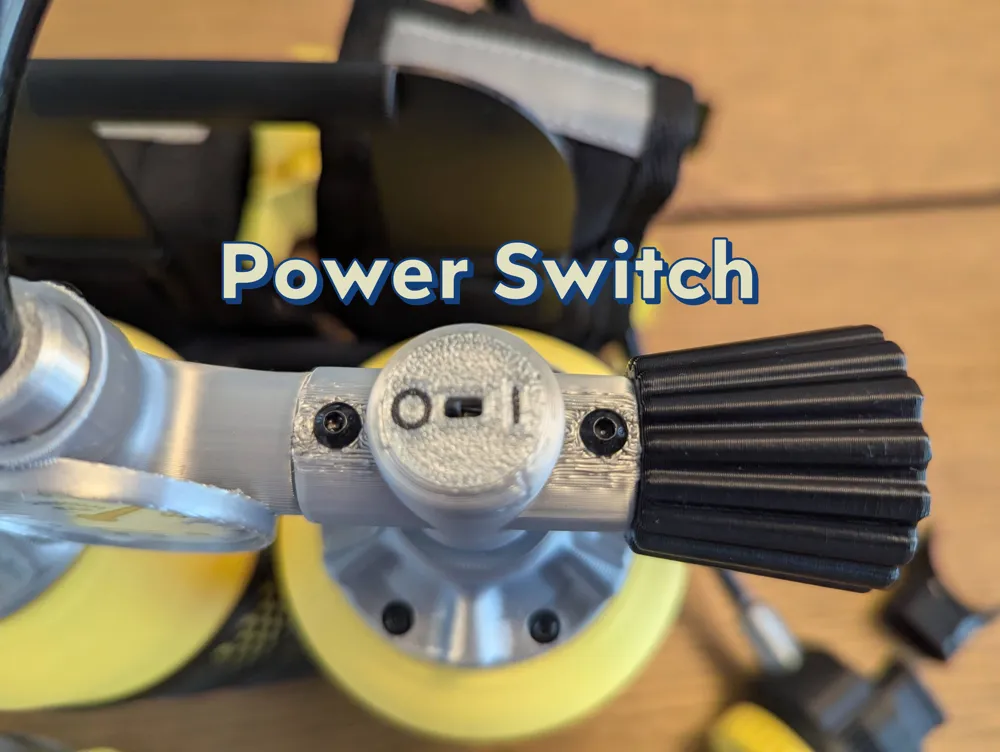

- Convenient power switch location

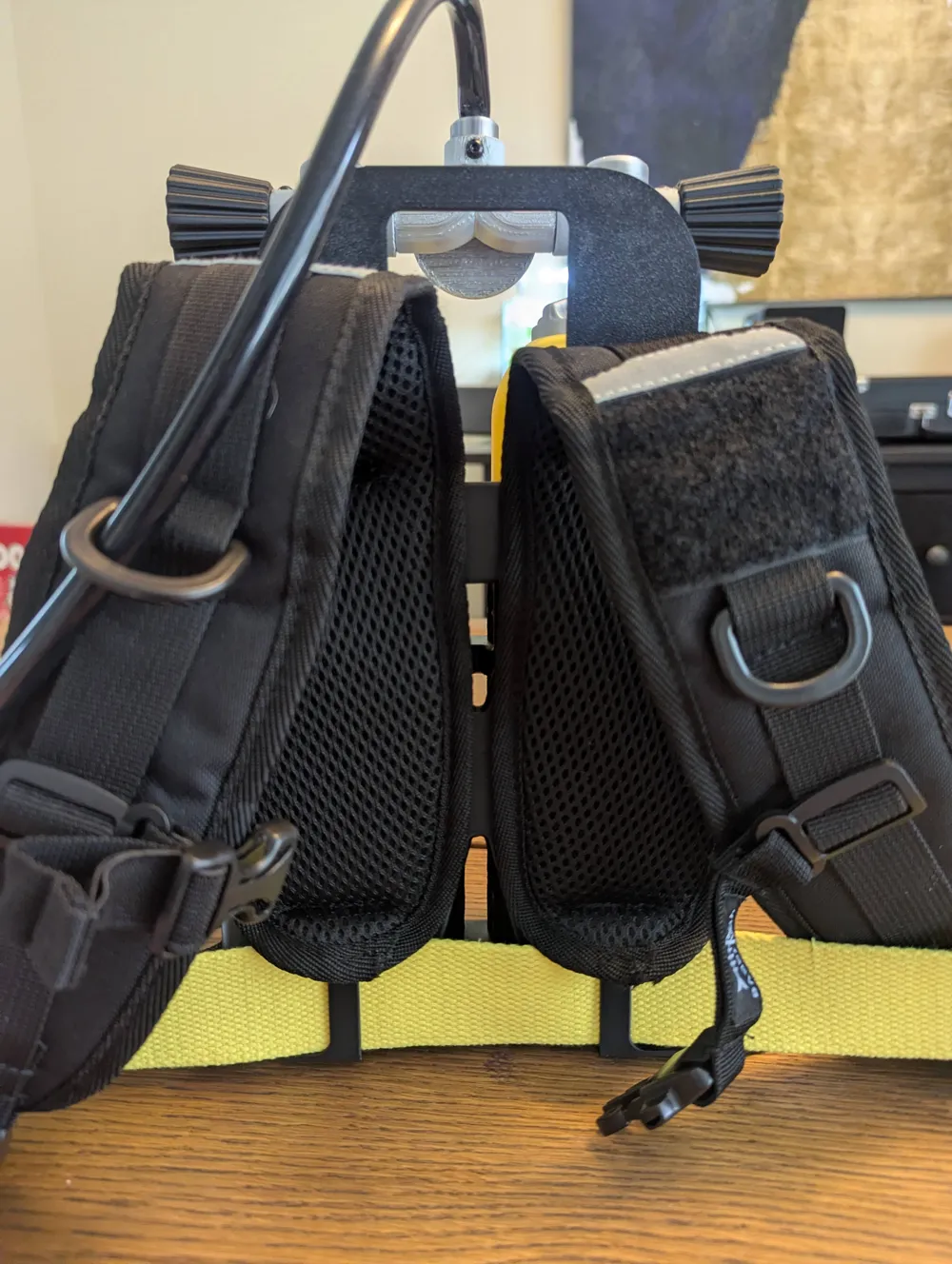

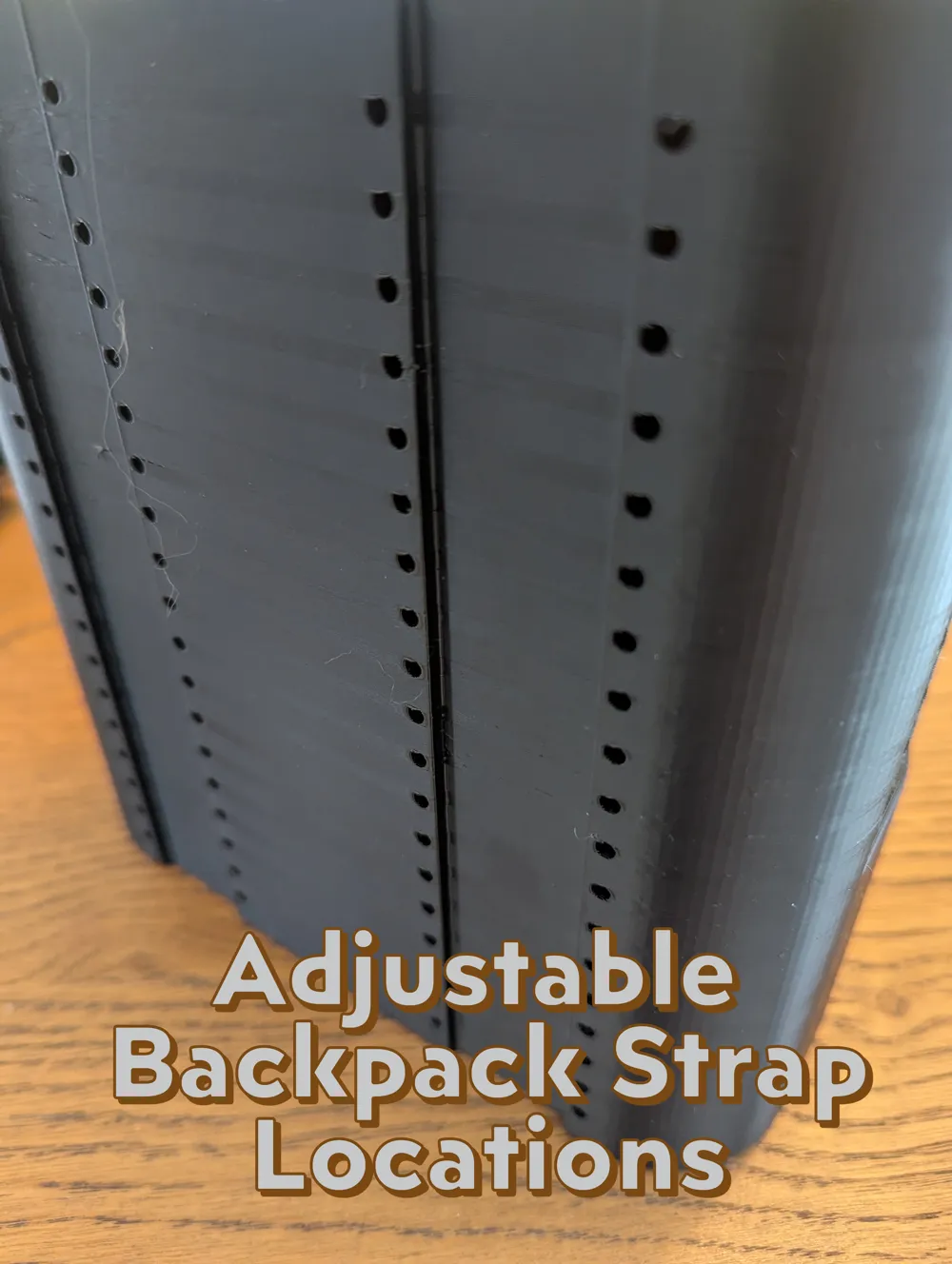

- Adjustable backpack strap attachments for use with various backpack straps.
- Printable pressure guage image attached
Boost Me (for free)
Assembly Notes:
- Important: Repeated insertion/removal of the bubble maker and switch from the regulator enclosure will weaken the solder joints and they will eventually fail. A few times is fine, but while iterating the desgin I did break one kit.
- To more easily feed the bubble tubing and wires through the larger black tubing, first feed through the wires and then lubricate the silicove bubble tubing with soap so that it will slide through.
- M3 screws are used throughout varying from 2.5mm to 25mm
- The guage image was printed on an inkjet printer, laminated and glued in place.
