Stevenson screen for weather station

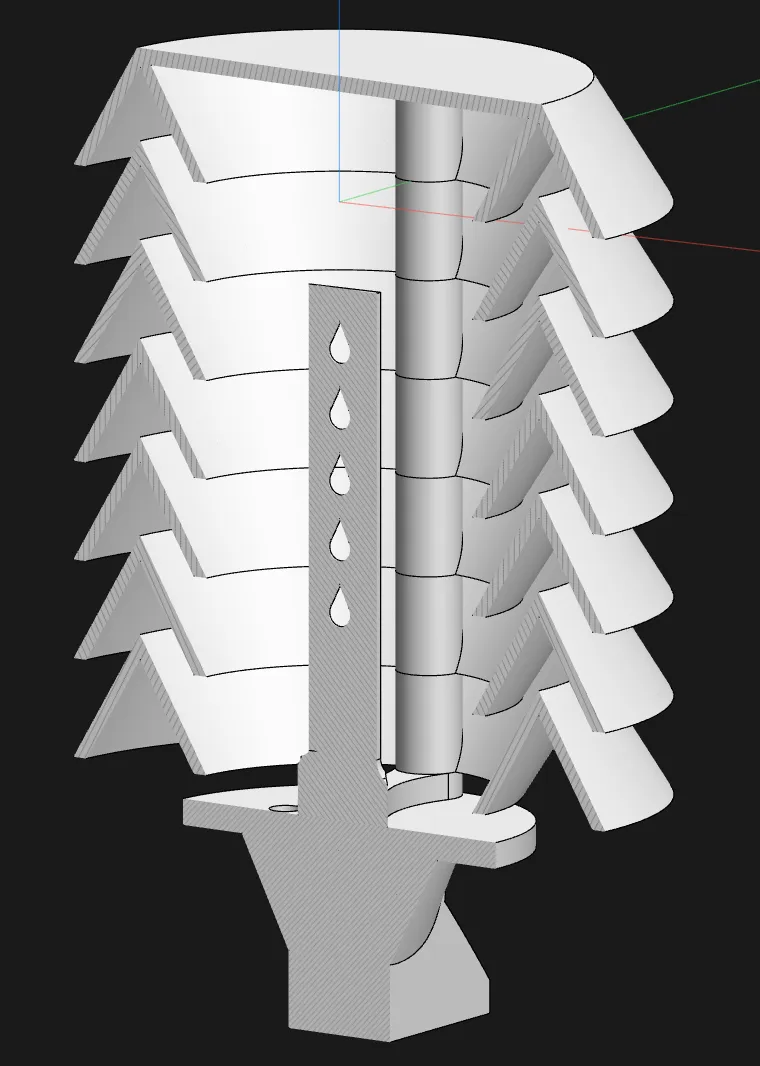

Stevenson screen for my weather station. I made my model because most of the ones I've met weren't waterproof enough. I ran the test with a garden hose. Even with a horizontal flow, the water flowed down the inner walls and did not reach the sensor in the center.

I use it with a bme280 temperature/humidity/pressure sensor several months. You can use it with any sensor you require.

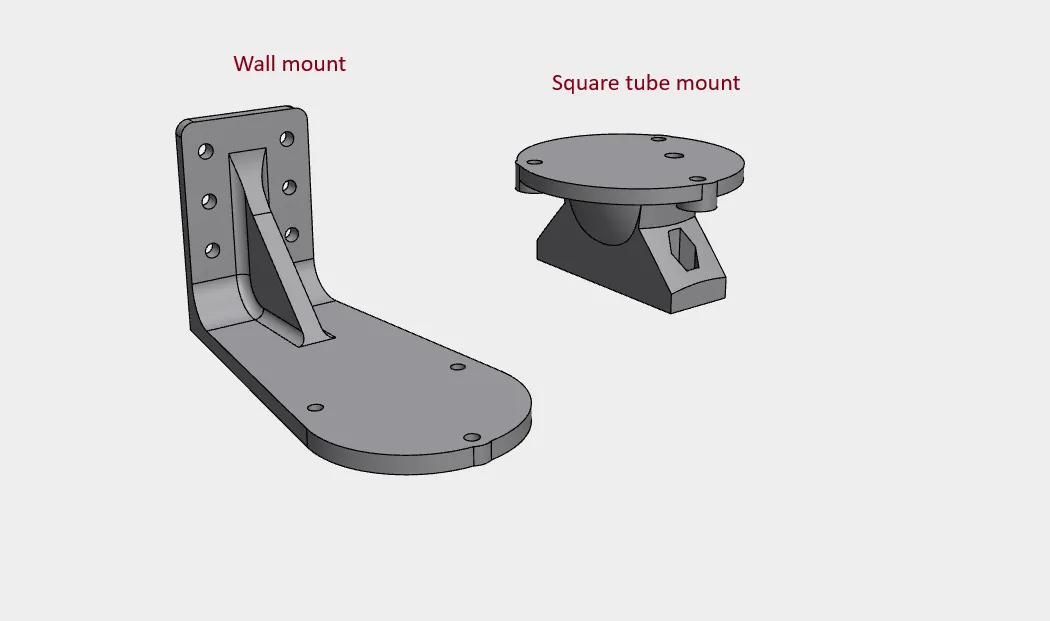

There are 2 types of mounts. On the wall and profile tube. Select one to print:

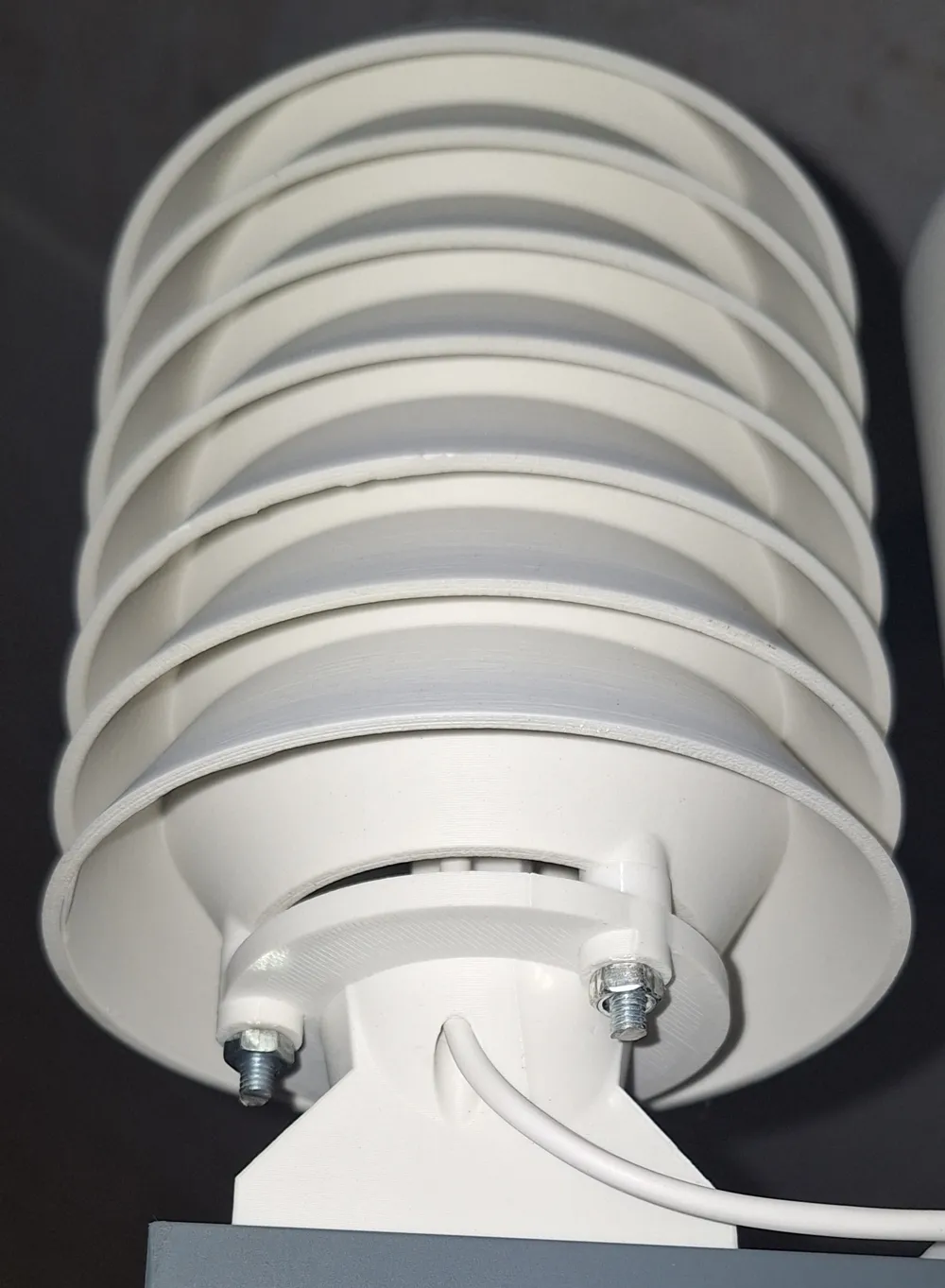

Three M4 rods are needed for assembly.

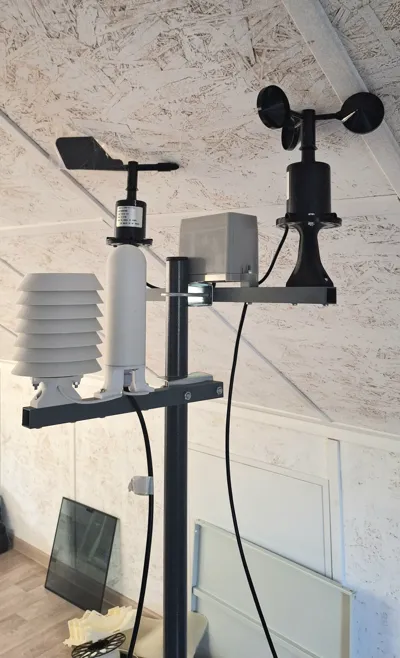

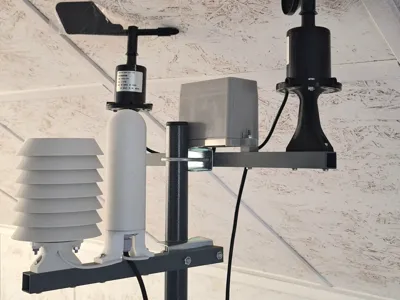

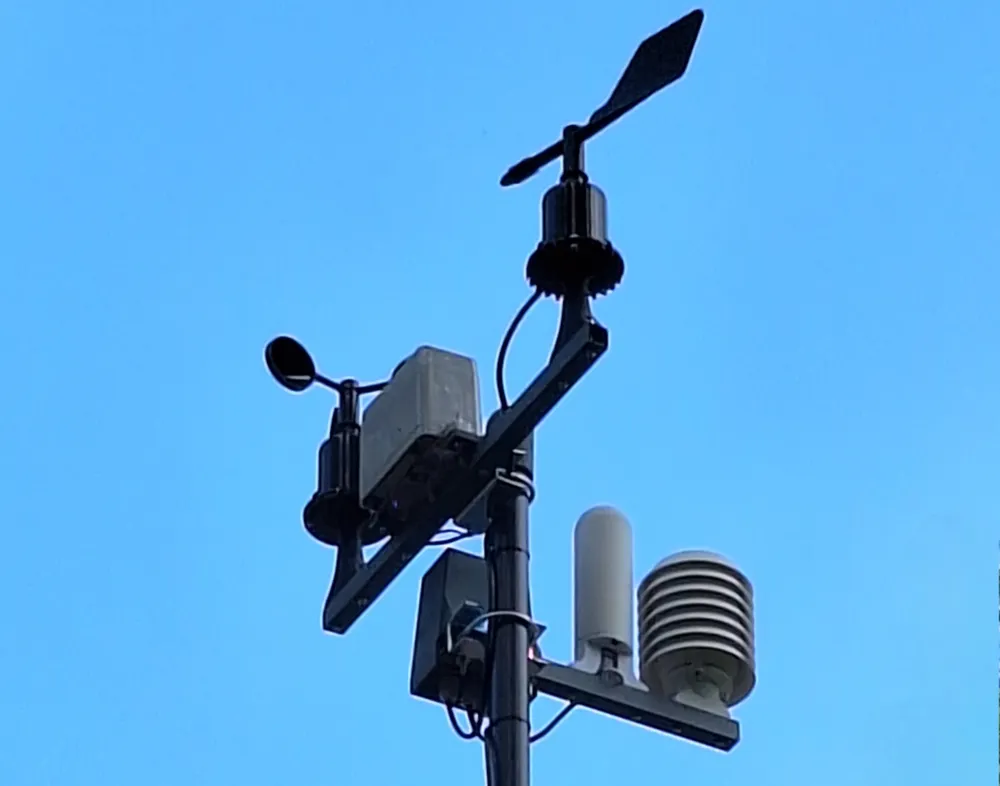

Link to weather sensor measures https://imarh.ru/iqha.html )

Update 13/03/2026:
I've slightly modified the wall mount. Now it's not directly attached to the booth, but through a pipe mount. This means that both parts must be printed for wall mounting.

Additionally, I've added a logo to the model due to its unauthorized sale. The logo is not visible on the assembled model.
