Rog Ally Z1 Extreme Ram Cover

Print Profile(1)

All
P1S
X1 Carbon
P2S
H2D
H2S
X1
H2D Pro
A1 mini
P1P
X1E
A1
H2C
X2D
A2L

0.12mm layer, 4 walls, 100% infill
0.12mm layer, 4 walls, 100% infill
Designer
17 min
1 plate

Open in Bambu Studio
Boost
2
11
0
0
12
2
Released

Description

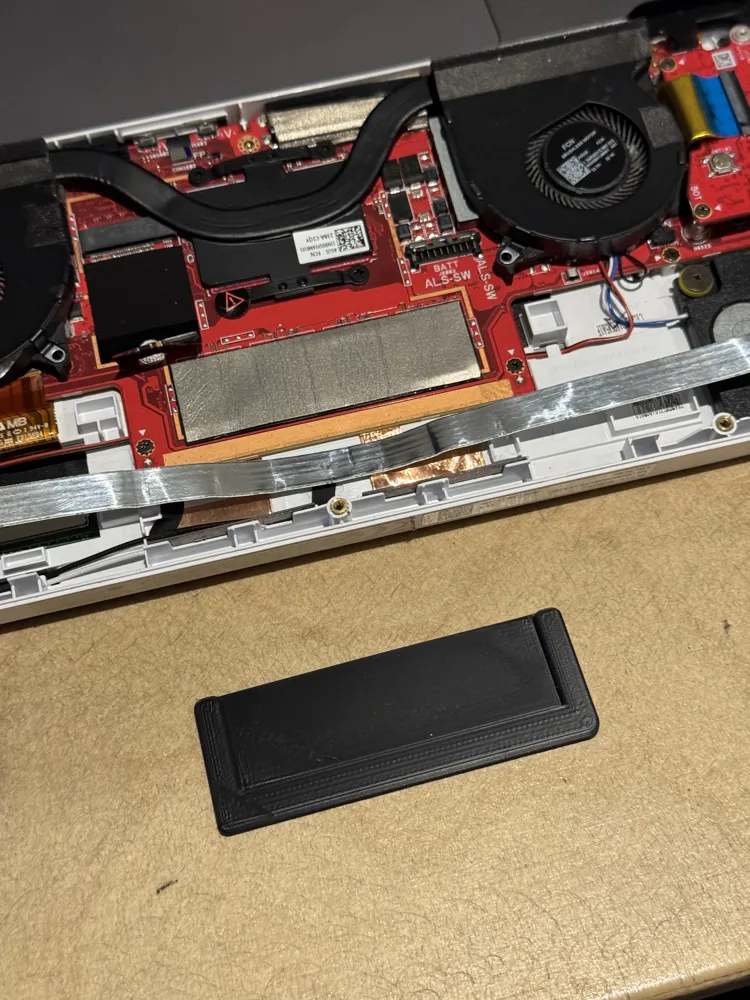

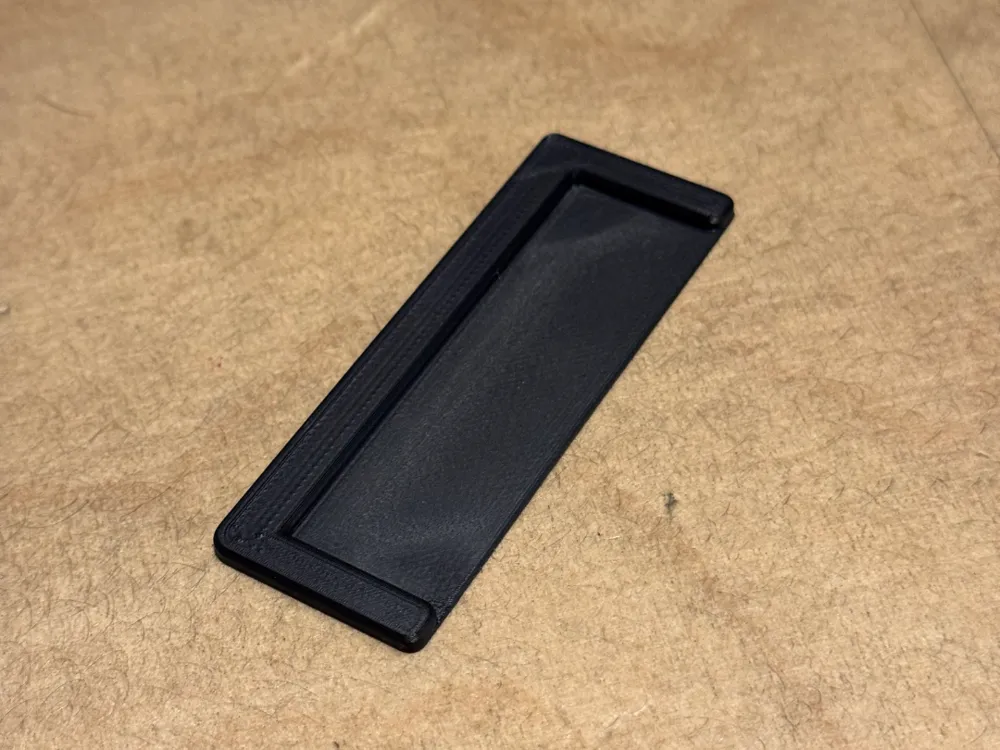

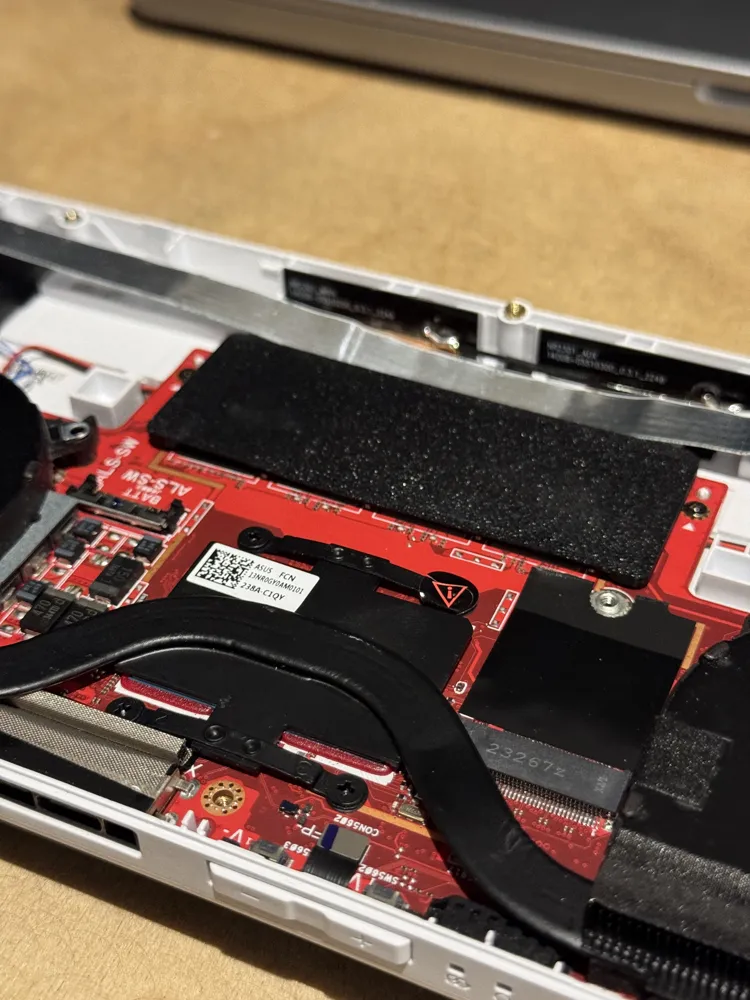

I recently purchased the 74WH battery for my Rog Ally and the see through back MODCASE off of amazon. After installing the case i began to run into issues with the Ally, it wouldn't boot first time and was doing all sorts of weird stuff. I thought it was an issue with the 2280 SSD i had installed but after numerous windows installs i narrowed it down to the battery putting too much pressure on the ram chips. I quickly drew this up and chucked it in the Ally and all my troubles have disappeared. This print disperses the pressure off the battery and onto the board rather than onto the ram. Note if you ware also using the MODCASE where the kick stand is located there is a lot of plastic about 2-3mm that also contributes to pushing the battery on the ram so i would also recommend either cutting it out or sanding it flush. Recommend you print in ABS or ASA.
