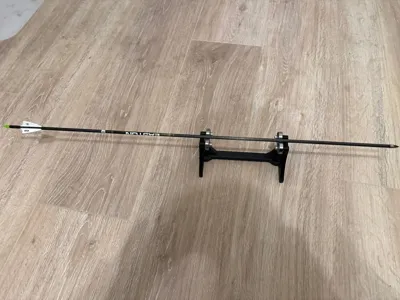

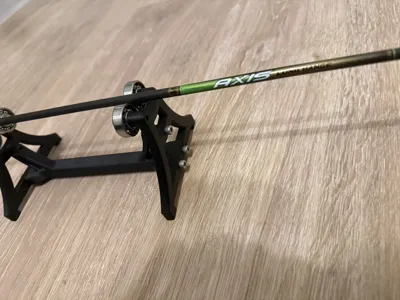

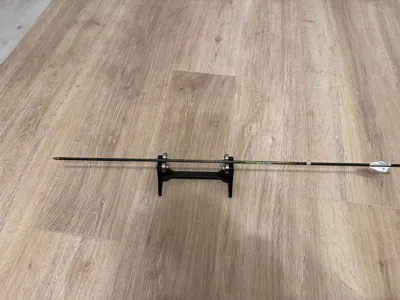

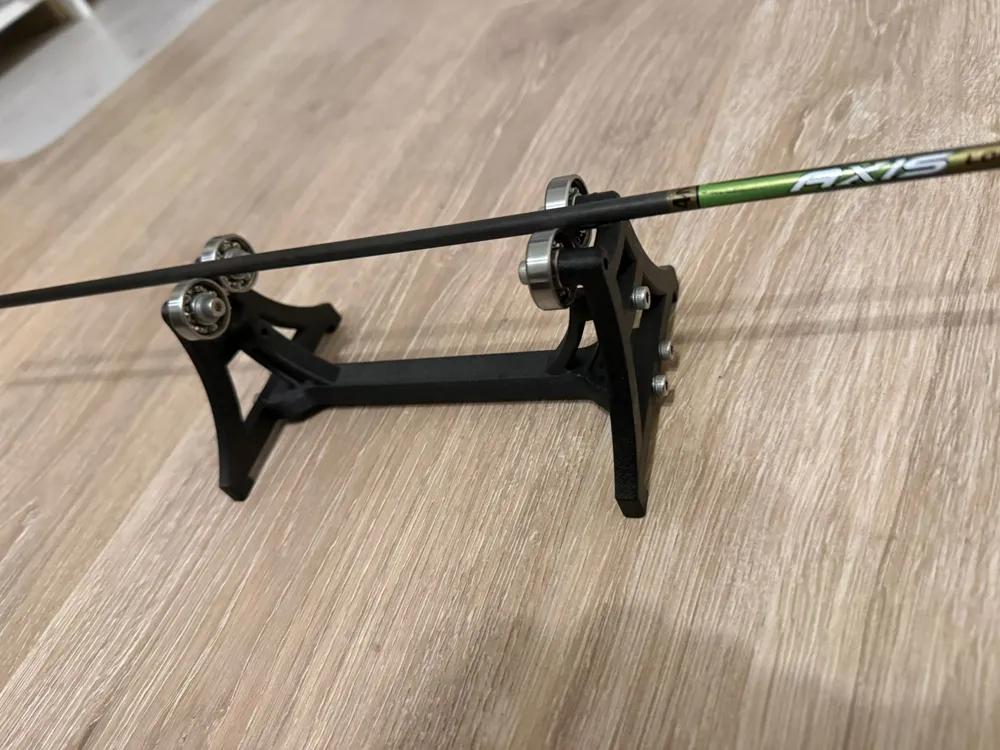

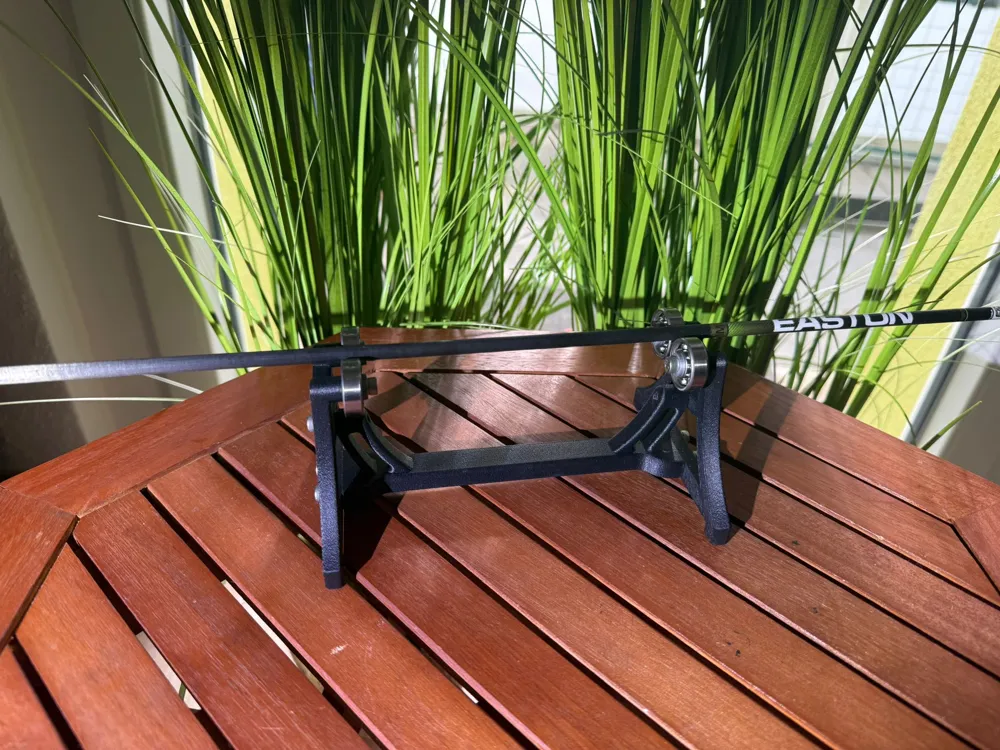

Arrow Spinner for Archery

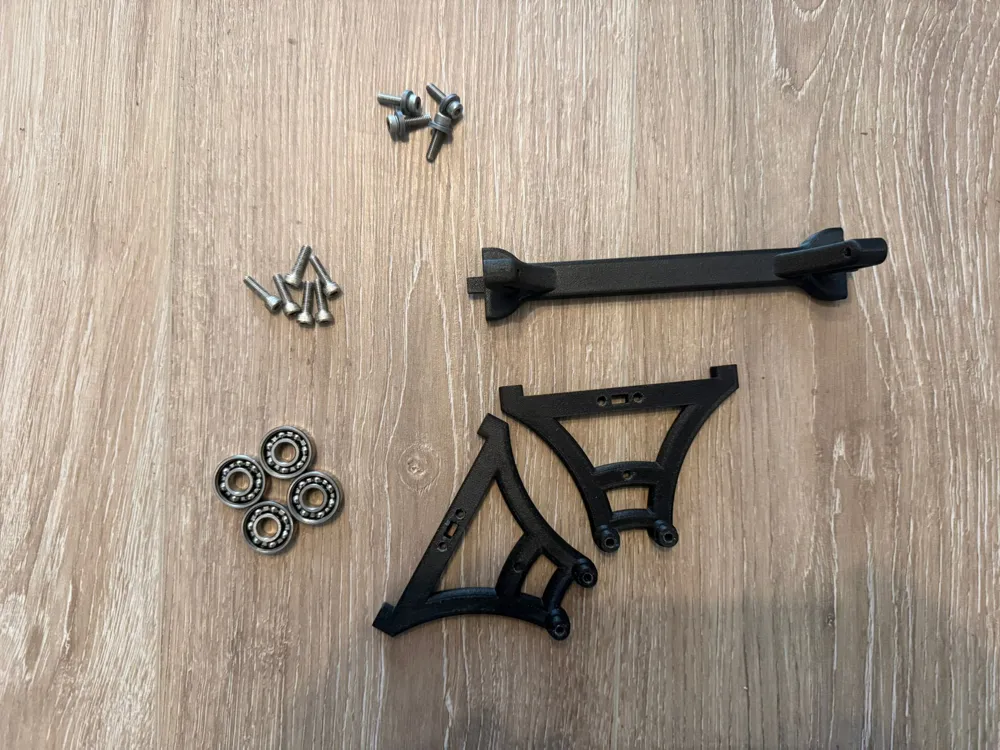

Parts List:

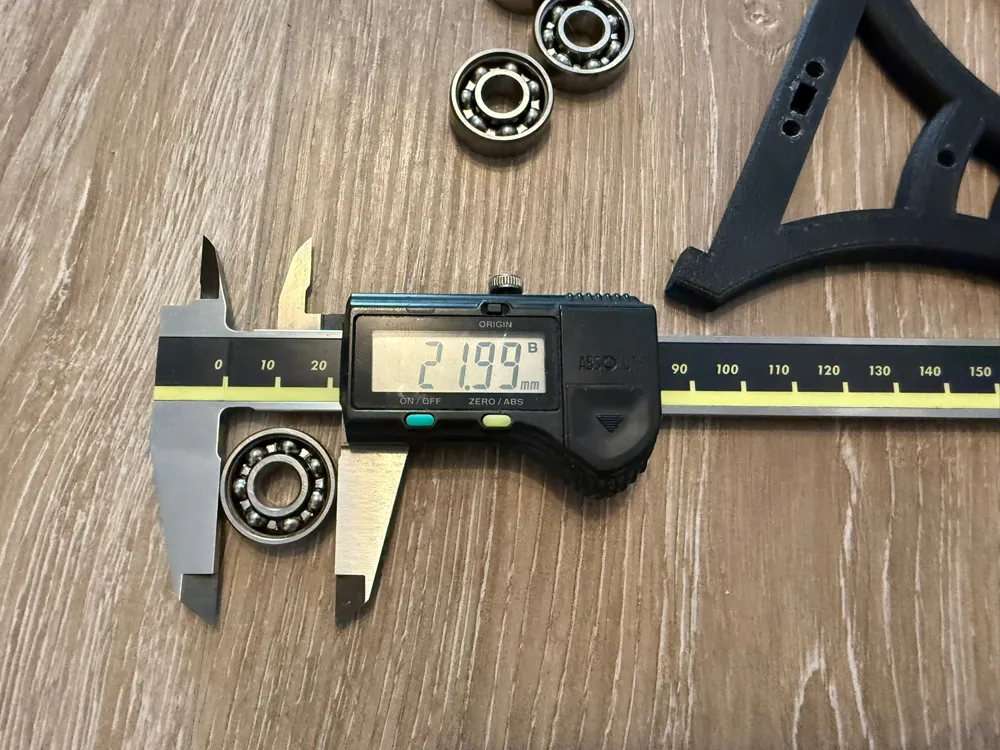

- Bearing: ID 8mm OD 22mm

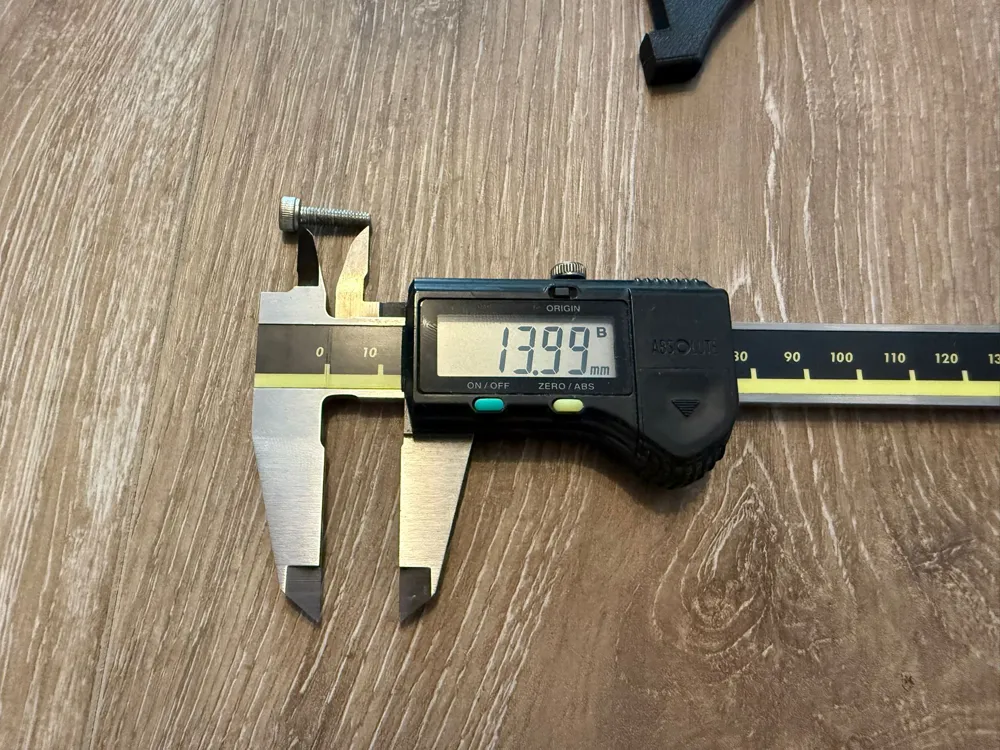

- Screw: M4 x 14mm
Assembly instructions:

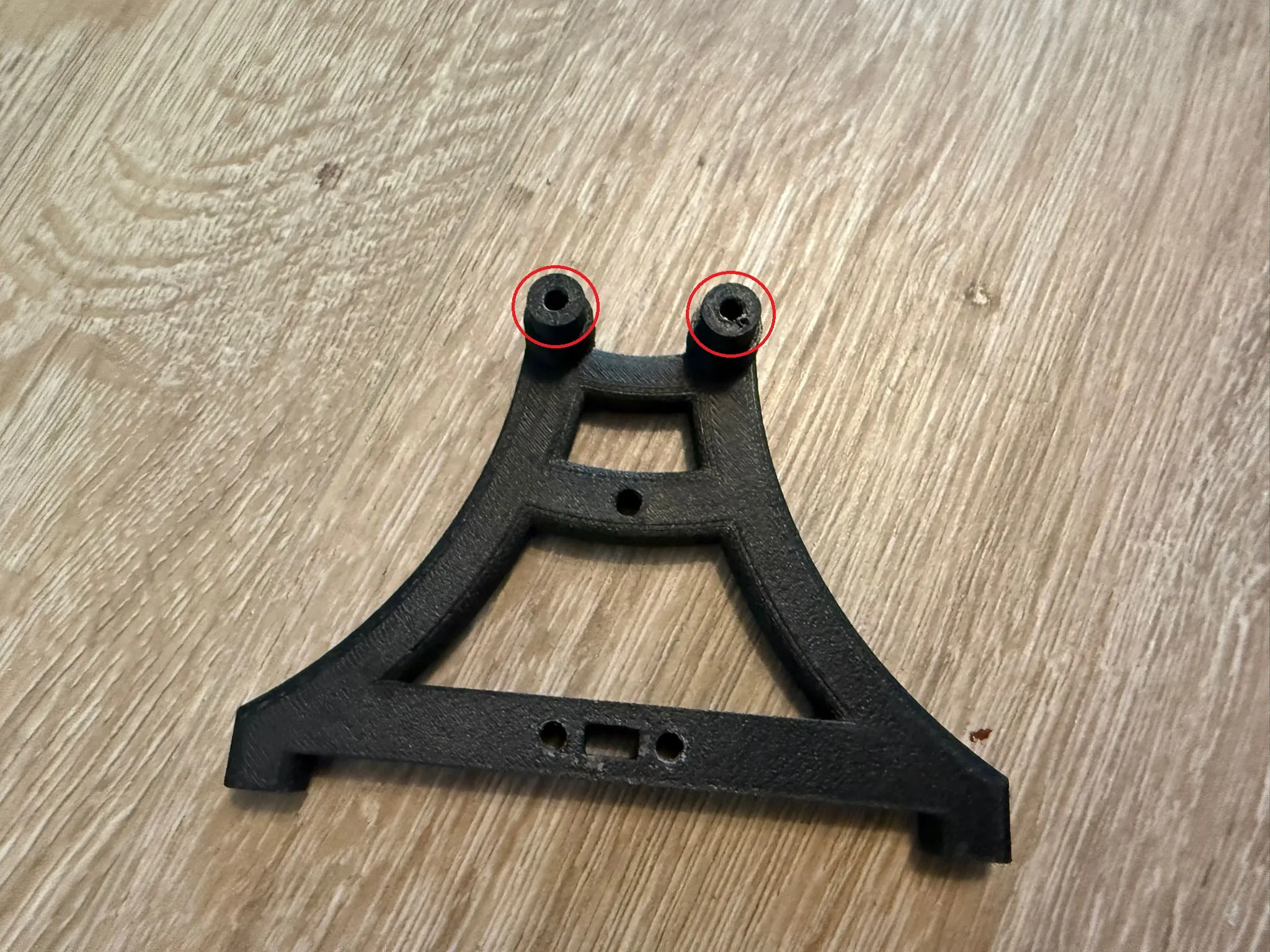

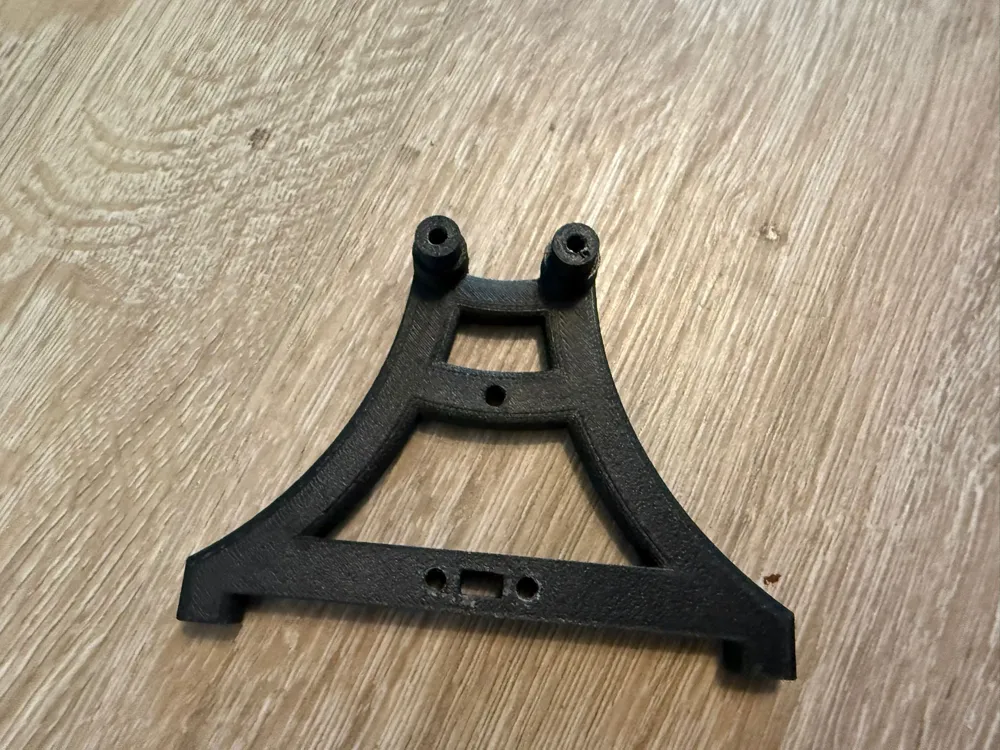

Use a Tap M4 and drill the following hole.

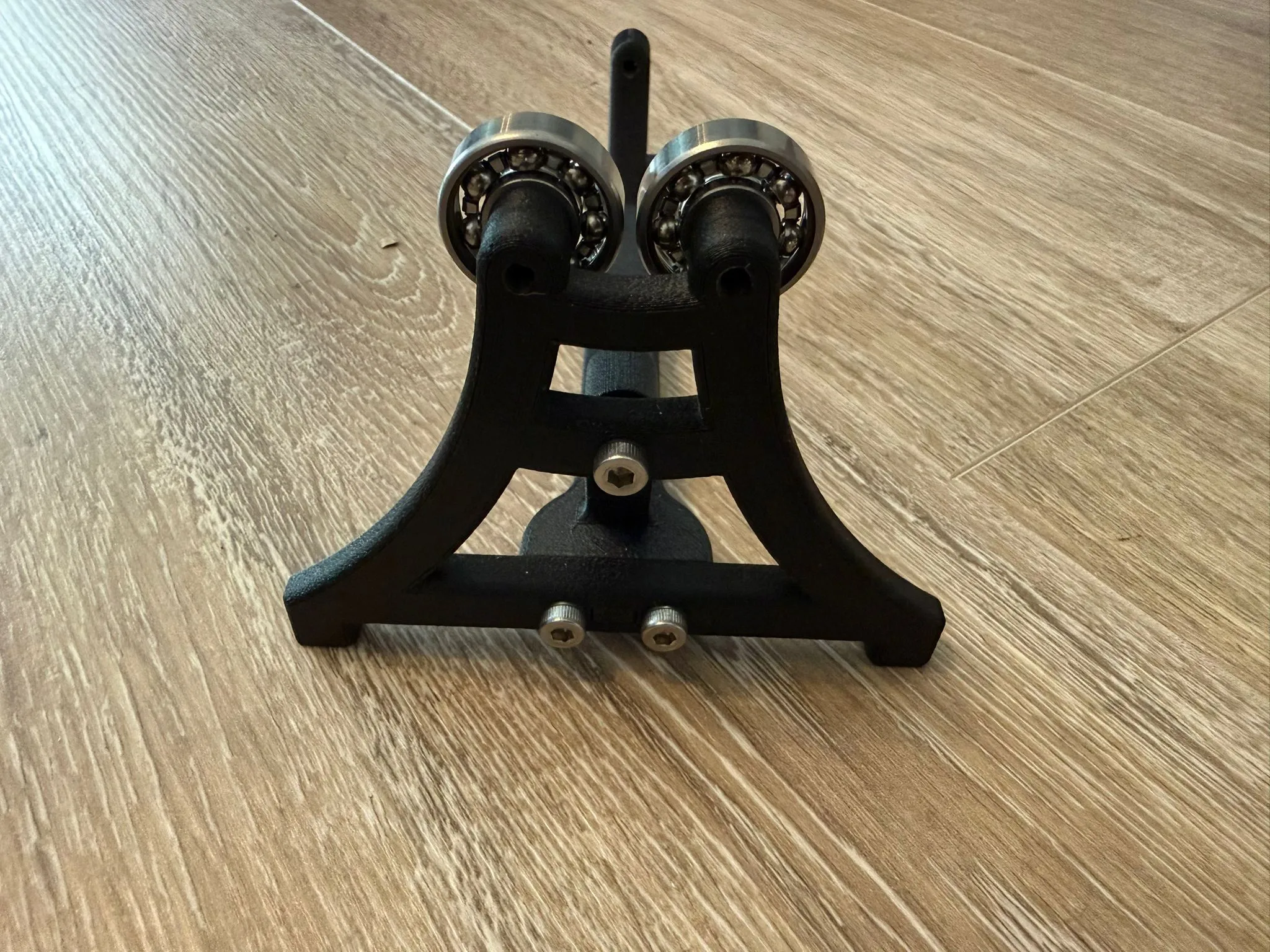

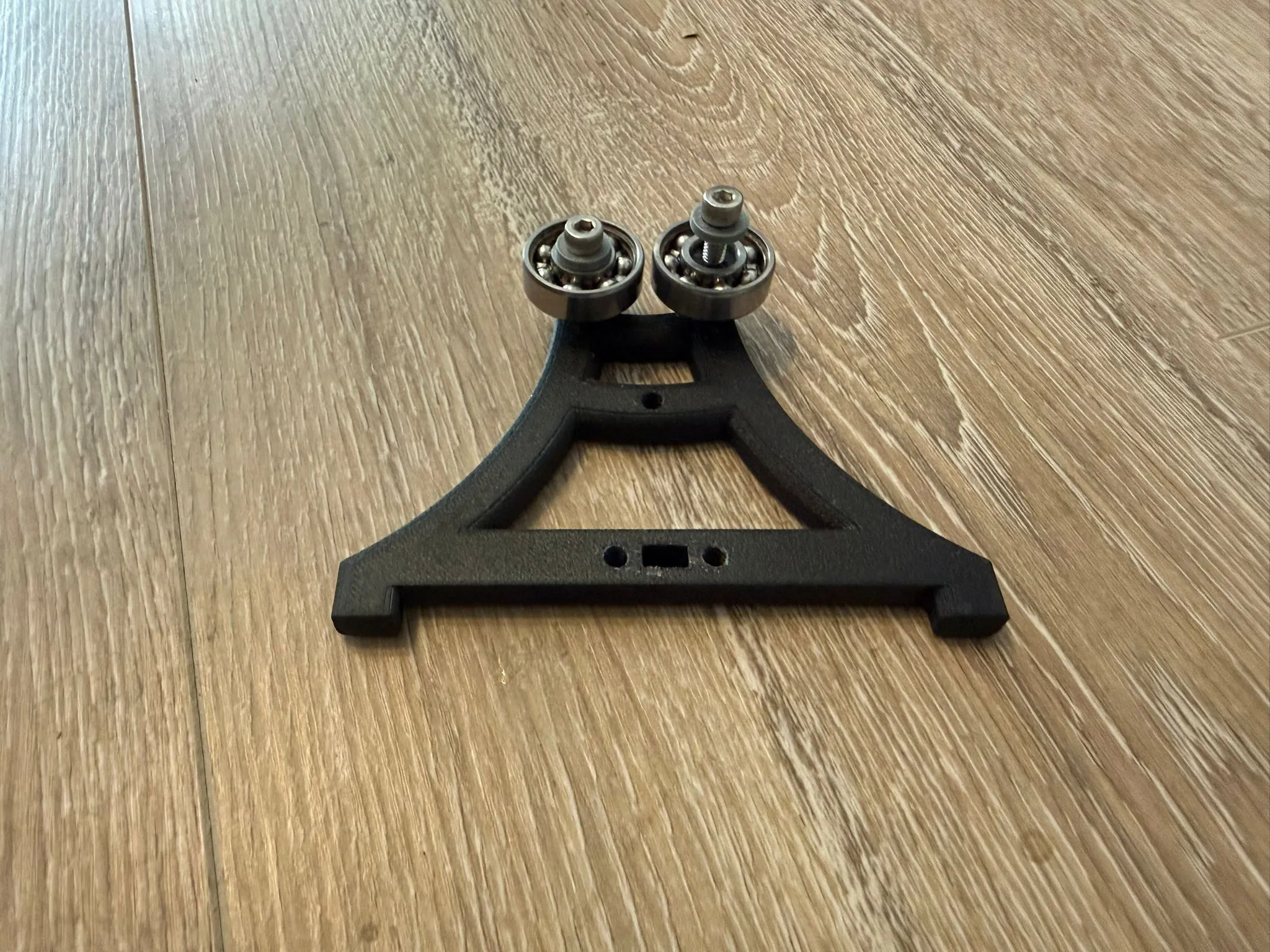

Place the four printed washers on the screw to fix the bearings in place.
Note: Do not over-tighten them.
Tip: For a bearing that spins more freely, carefully remove the plates that keep the lubricant inside and thoroughly clean the bearing with isopropanol.

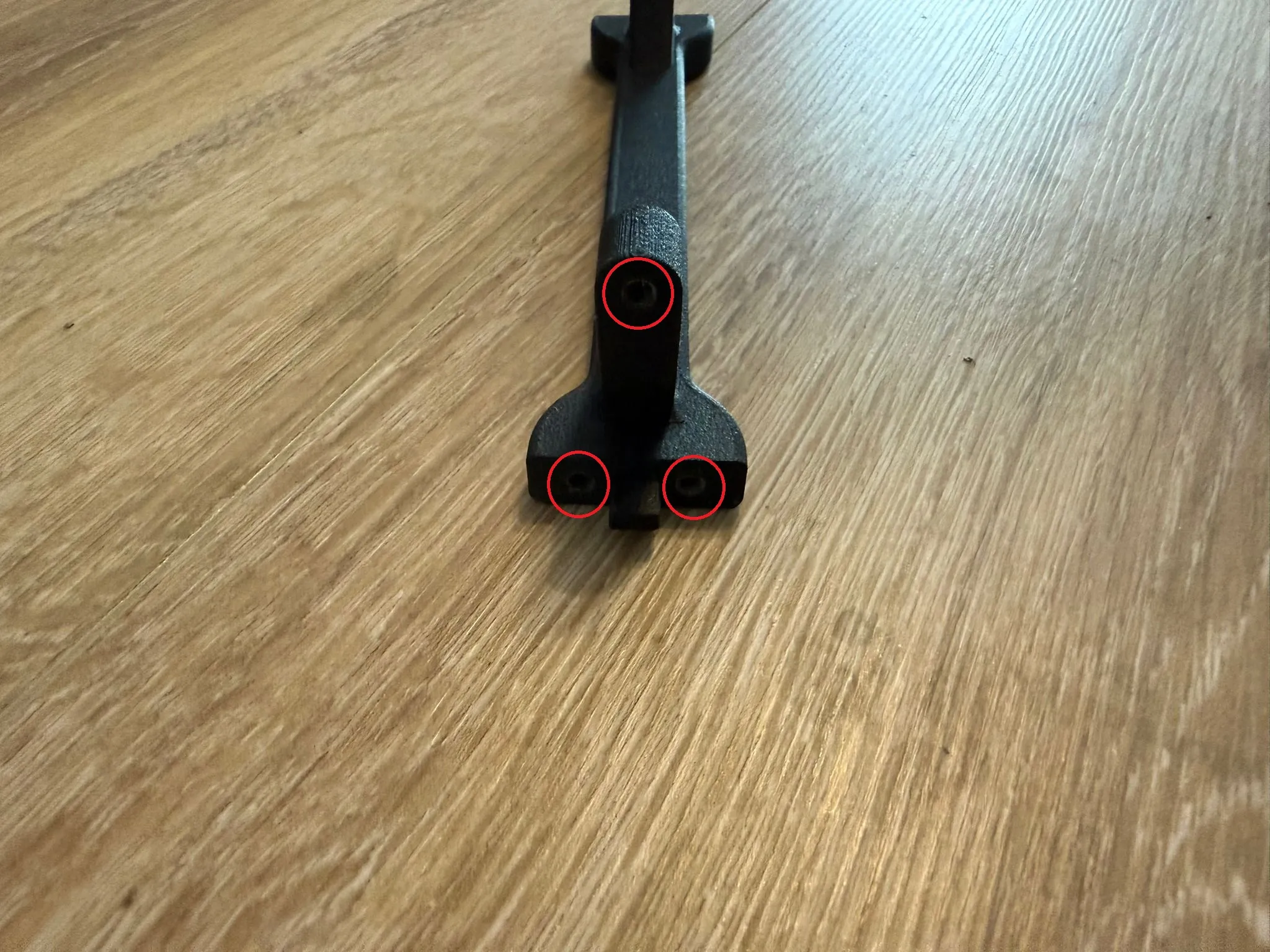

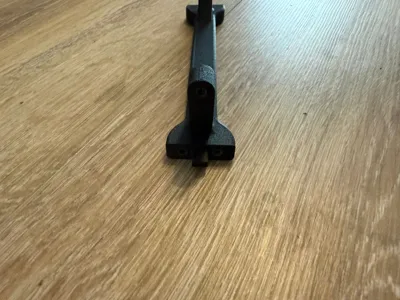

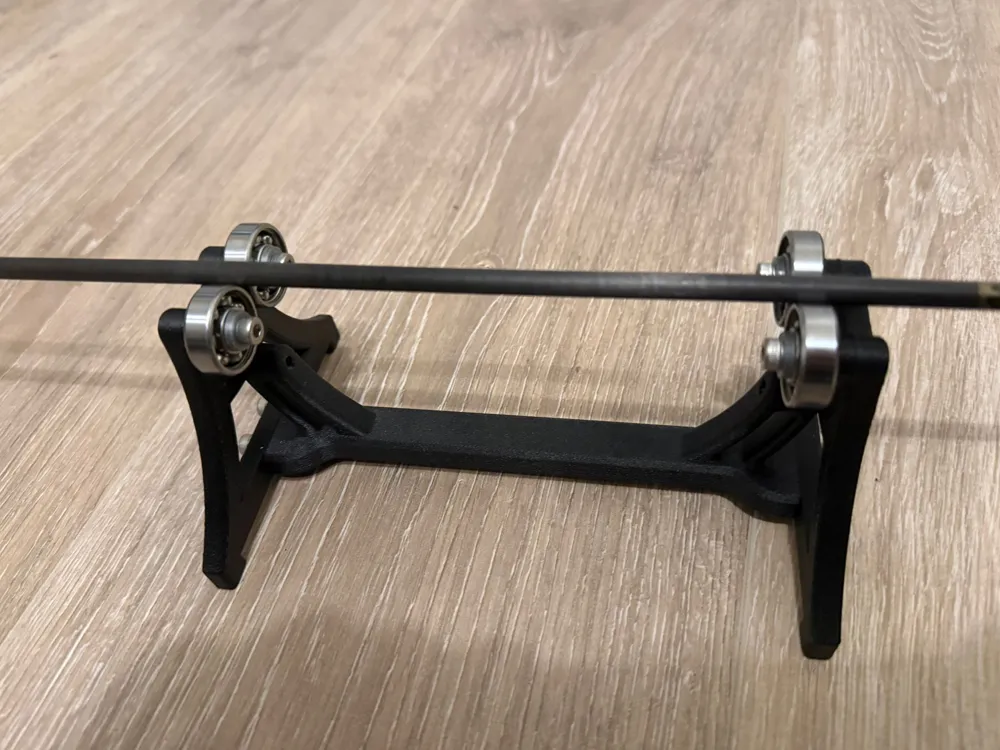

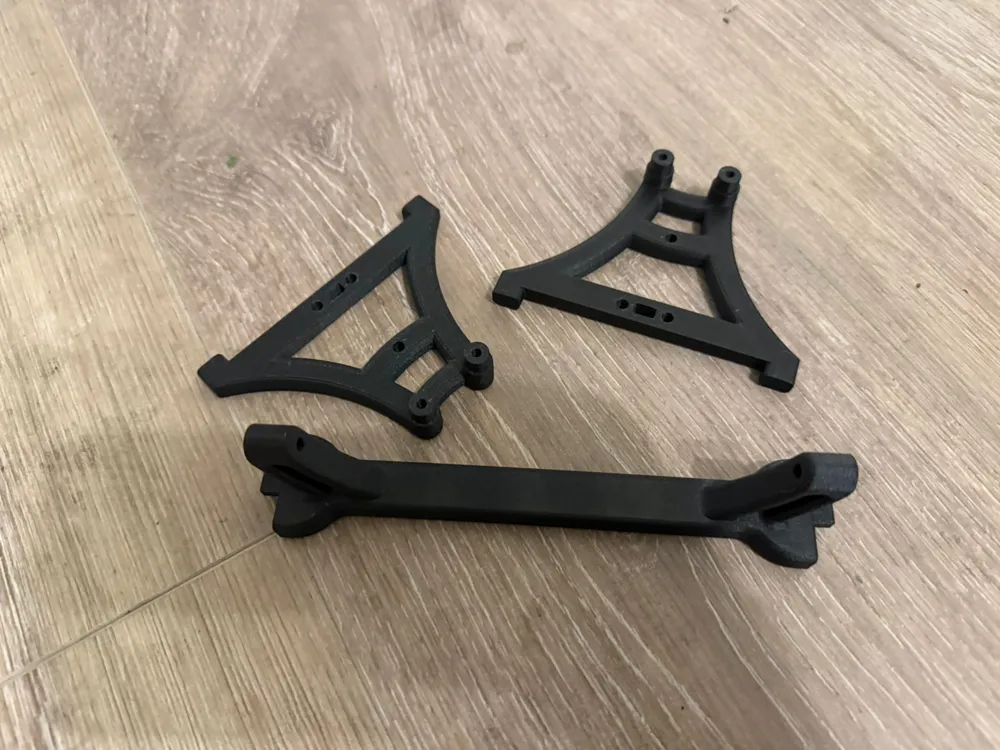

Connect the Armes with the Base
- Enjoy
