LILYGO T-Beam Case Meshtastic LoRa
Print Profile(1)
Description

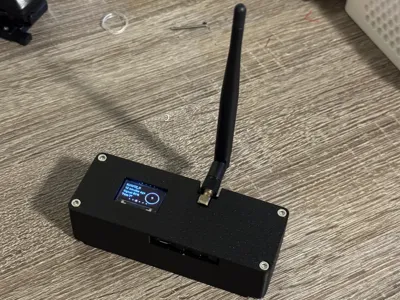

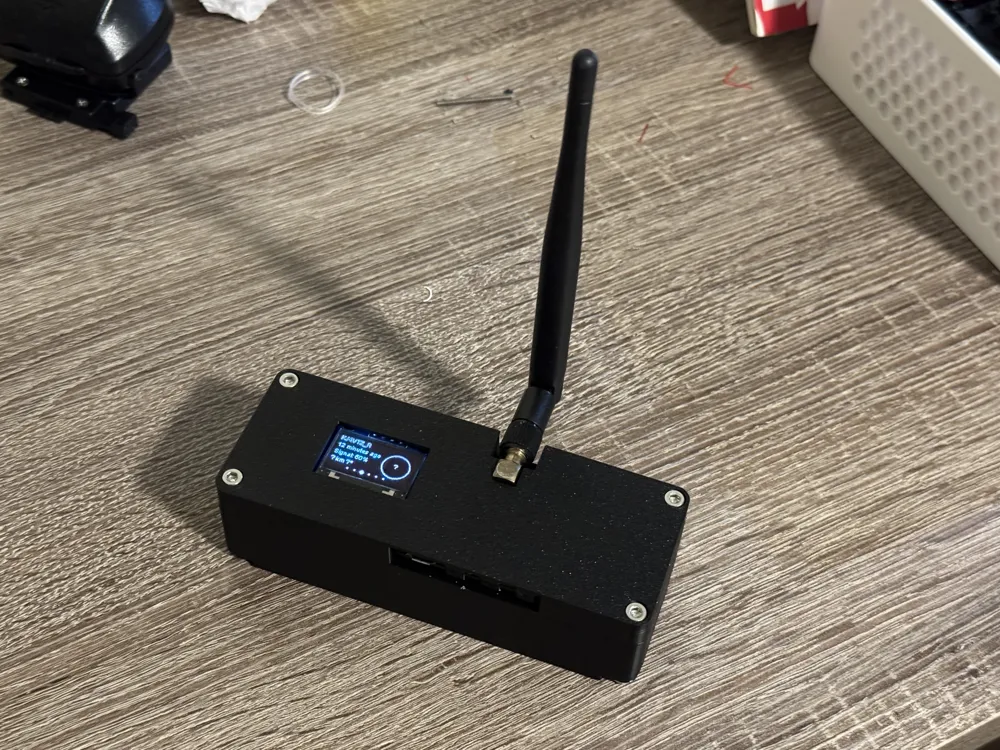

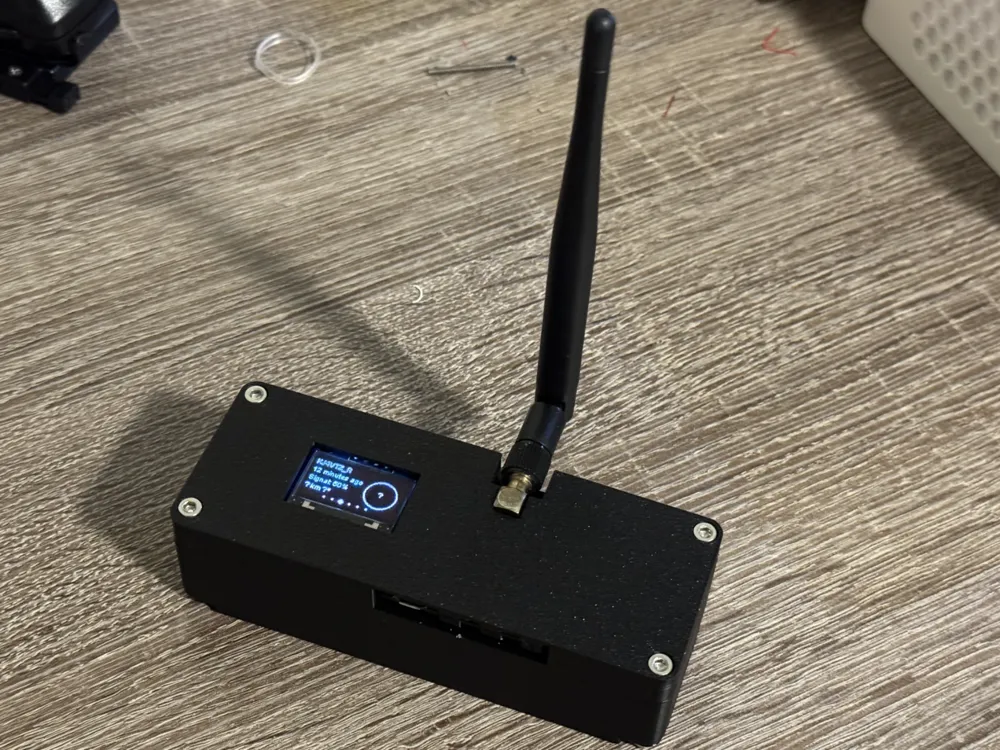

A custom LilyGO T-Beam LoRa Meshtastic Case designed for a clean fit. This enclosure protects your T-Beam Meshtastic node while keeping all ports, buttons, and antennas fully usable.
Top Cover Features:
- Integrated power and function buttons
- Precise micro-USB cutout
- Smooth, low-profile design for backpack or bike mounting
Bottom Shell Features:
- Internal GPS antenna recess for improved satellite lock
- Four M3 mounting holes
- Reinforced base for outdoor or mobile LoRa nodes
Hardware Requirements:
- 4× M3 x 30mm screws
- 4× M3 nuts
Assembly:

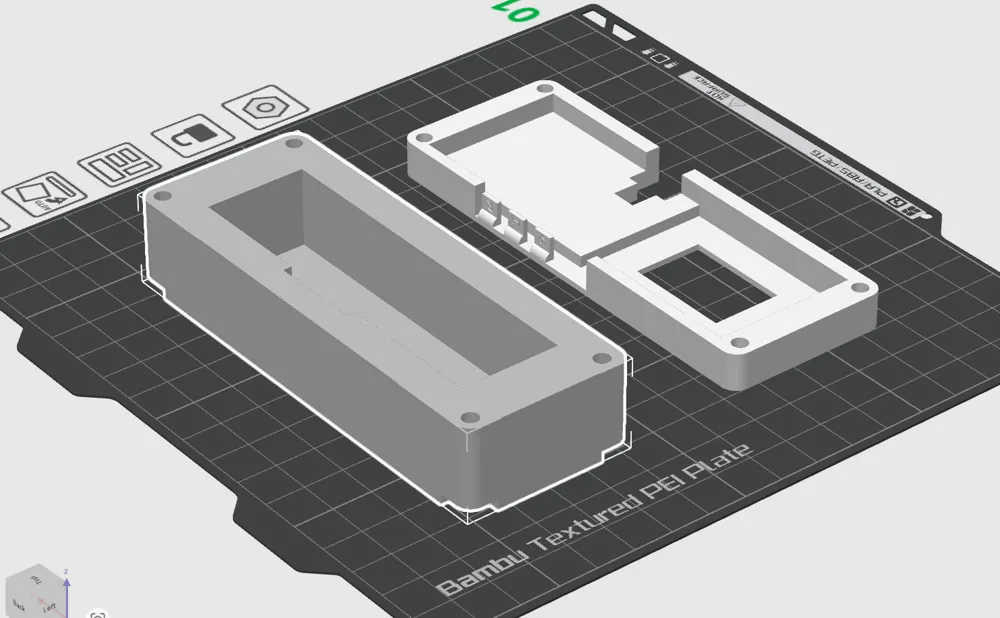

Print using the provided profile, place the LilyGO T-Beam into the bottom section, and secure the top using the four M3 screws.
