DJI Osmo Quick Releases (Action/ Nano Series)
Print Profile(1)
Description
Hey,
i modeled a quick-release for the dji osmo nano. Should also work for the action 4 and 5 but havent been able to test them.

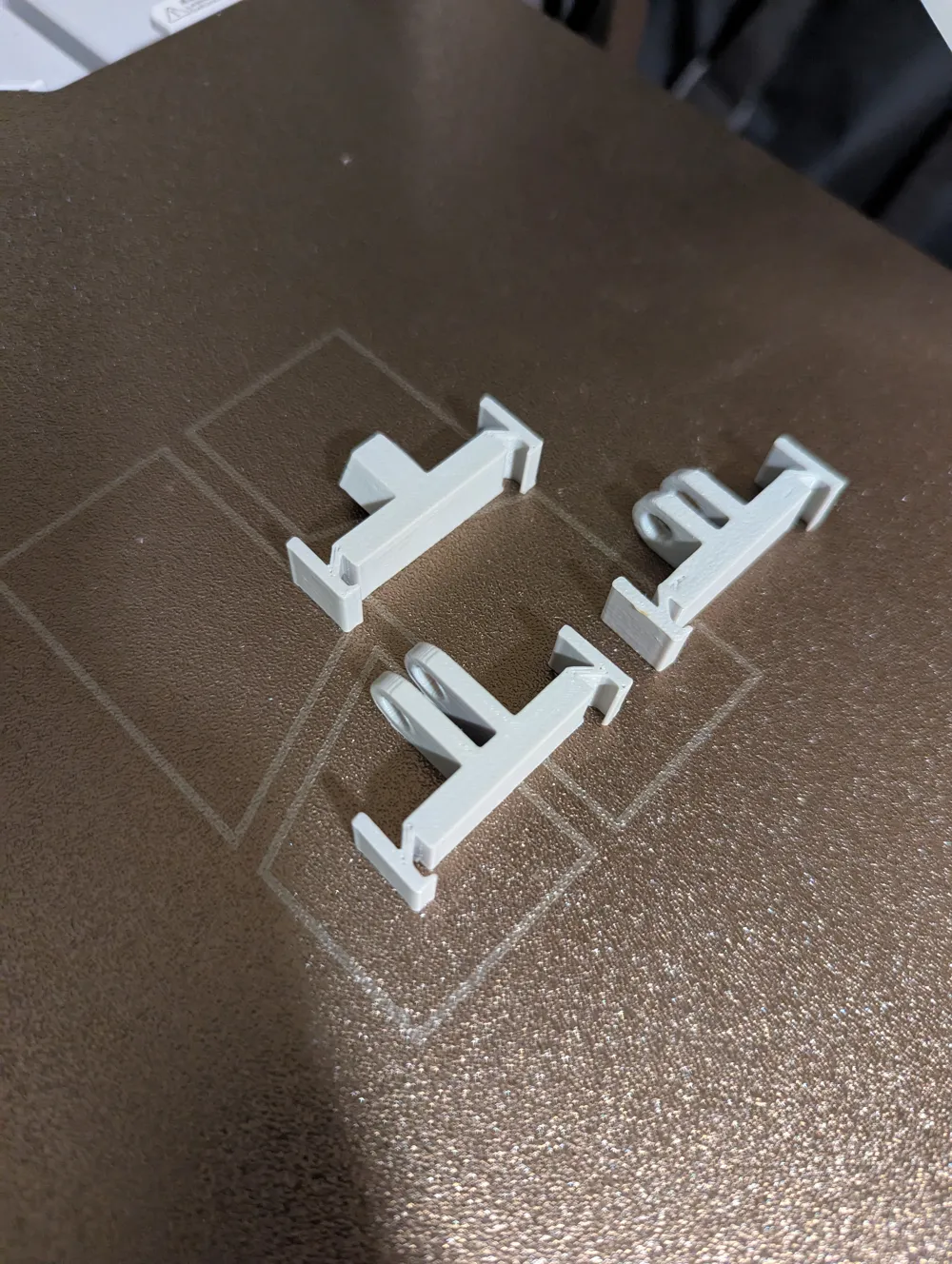

I have 3 Build Plates with different mount options 2 of them are modeled to use the standard action cam/ Go Pro mounting with two different length legs. The other one has a ¼" 20 UNC thread to attach to selfie sticks etc.

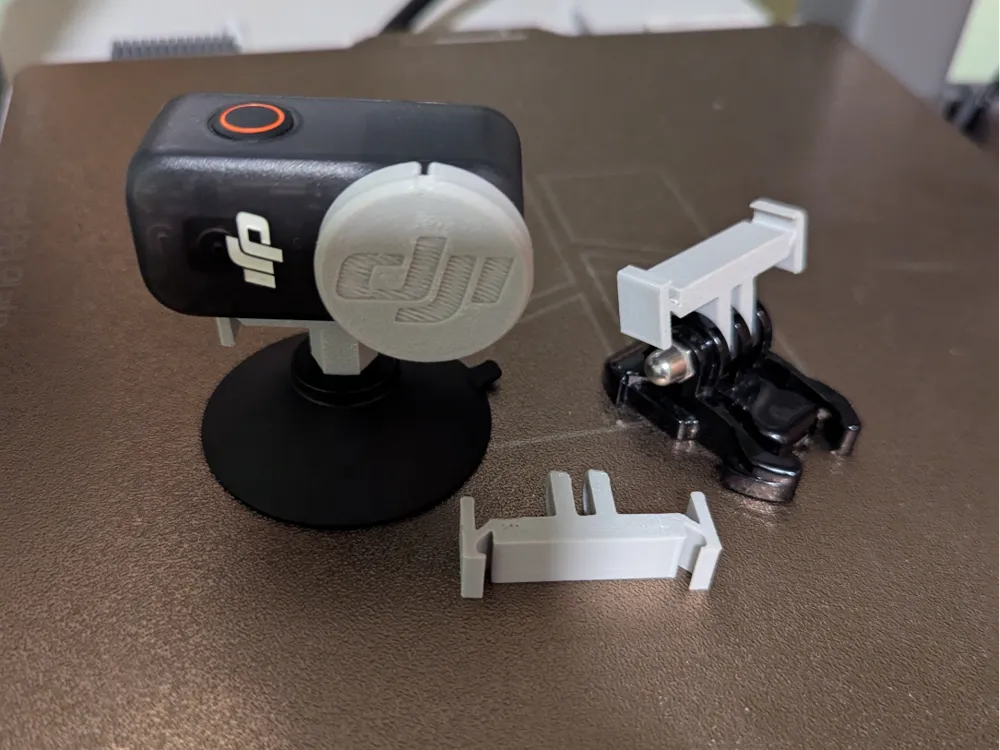

It ataches to the original quick release mount on the cam and vision dock. It has minimal tolerances (worked better, with less wiggle than the original quick releases for me) for added rigidity. I havent had one fail on me yet even tho they arent magnetic.
Printed in PETG-HS and i would recomend using PETG or similar. PLA might be to brittle and for that reason i havent tested it.
Takes only between 3 and 4 grams of Filament per quick-release and roughly 6-8 mins of printing time (10-12 including starting sequence).
Hope you enjoy!
Update!
I uploaded a V2 of this model with different usecases that might suit some of you more. It is a more accurate model of the original dji osmo quick release. To check it out youll find it on my page or using this link:
https://makerworld.com/de/models/1954310-dji-osmo-quick-release-v2-nano-action-series#profileId-2100231
