The Human Eye: 3D Anatomical Cross-Section

The Human Eye: 3D Anatomical Cross-Section

A Detailed, Multi-Color Educational Model of Human Vision

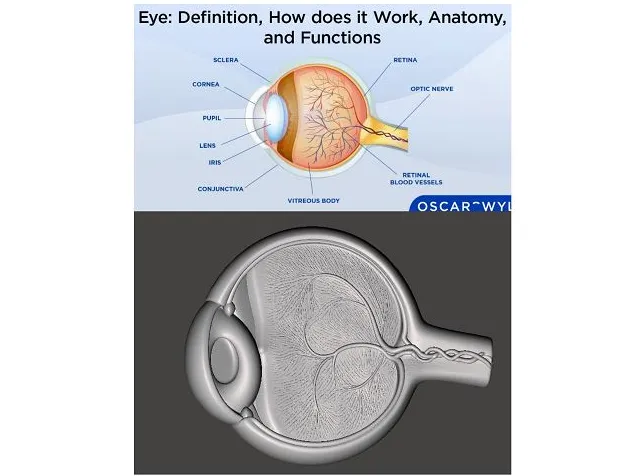

This model is a precision-engineered anatomical cross-section of the human eye, designed to bring biology to life. Moving beyond flat textbook diagrams, this 3D representation allows students, educators, and medical enthusiasts to visualize the complex relationship between the optical components and the neural pathways.

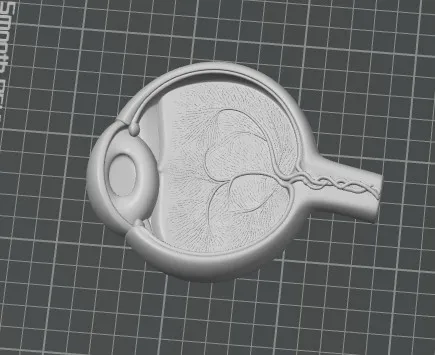

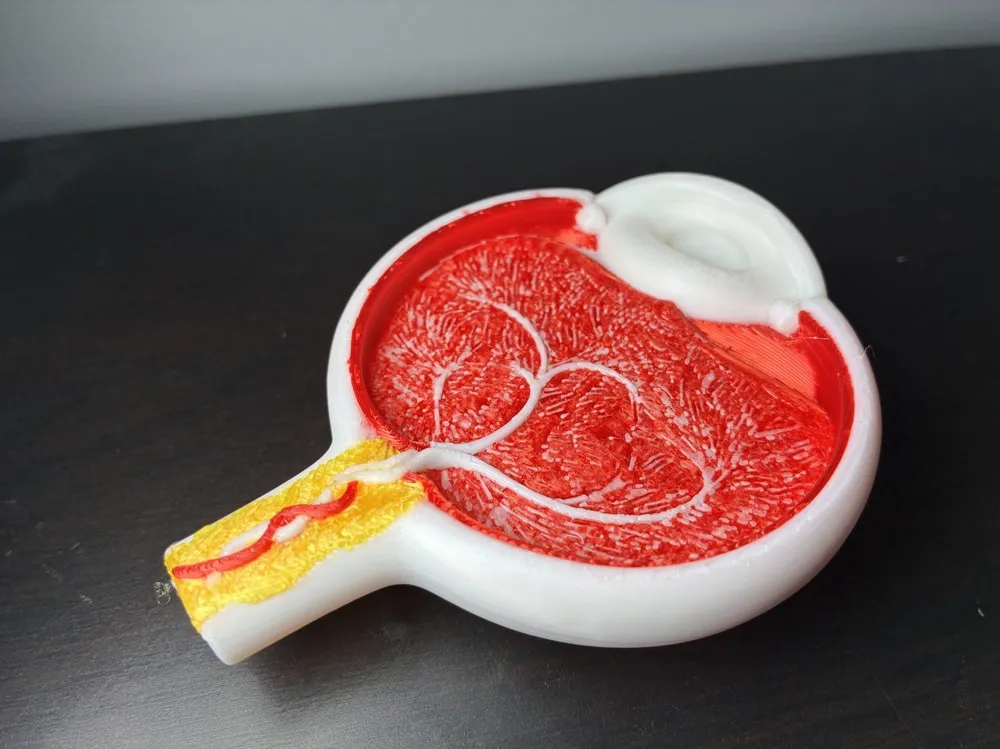

The model features high-relief detailing of the internal structures, specifically optimized for multi-color 3D printing. Key anatomical features included are:

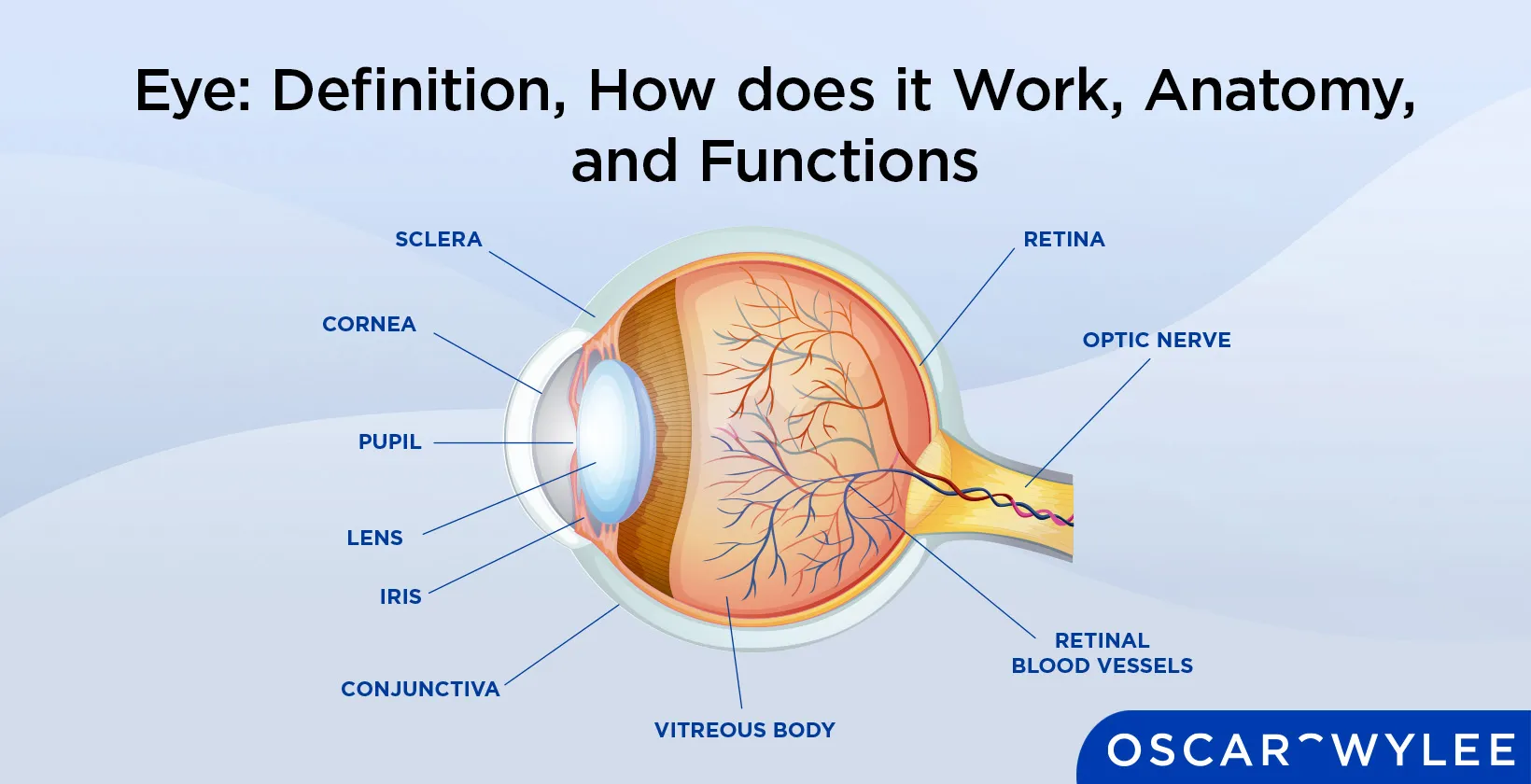

• The Anterior Chamber: Showcasing the Cornea, Pupil, and Iris.
• The Lens: Centrally located to demonstrate focal anatomy.
• The Vitreous Body: The main cavity, featuring a textured "Red" retinal backdrop.
• The Retinal Vasculature: Intricate, raised branching of the retinal blood vessels.
• The Optic Nerve: Clearly defined as it exits the rear of the globe, including the central retinal artery/vein pathways.

Functional Uses & History

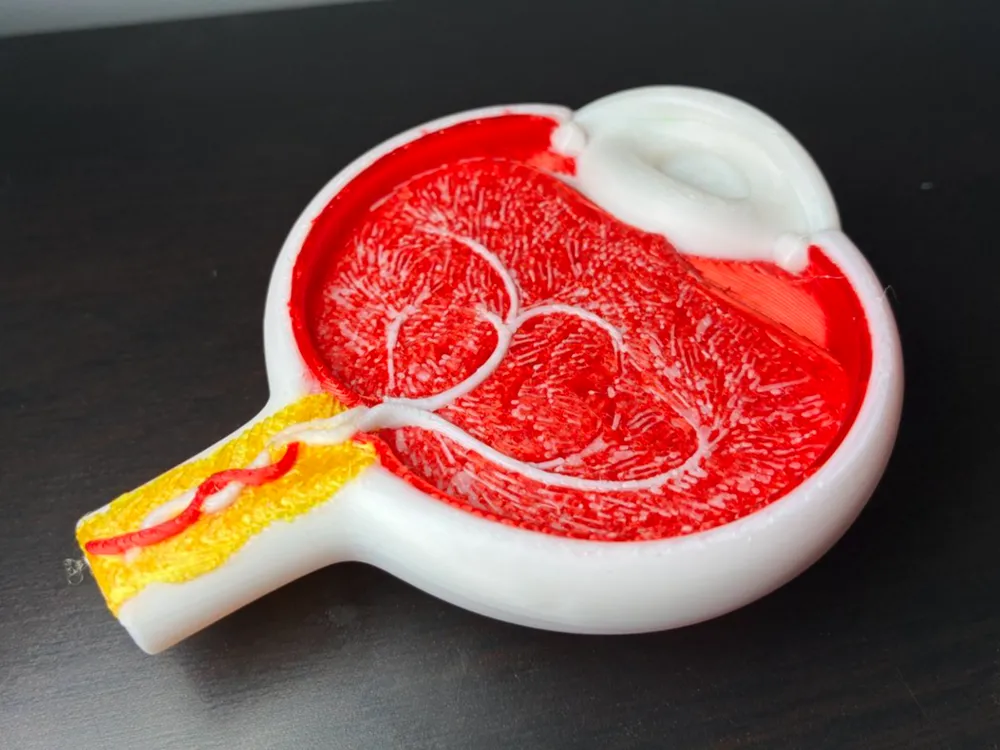

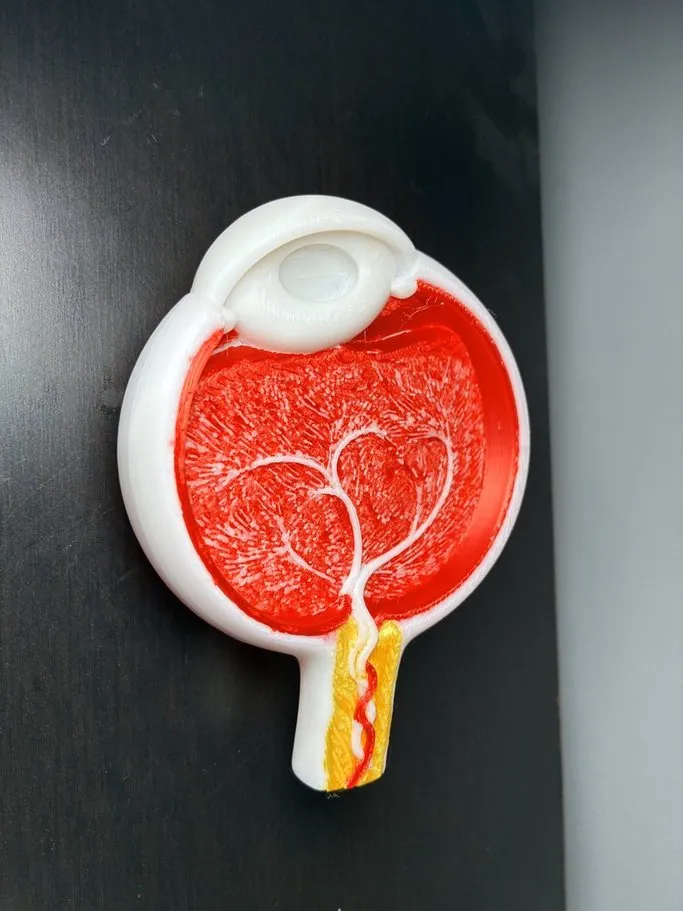

Originally developed as a tactile teaching aid for a local biology classroom, this model was designed to solve the "hidden depth" problem of 2D posters. By using a "top-down" layer approach, even users without an AMS or MMU can achieve the color effects shown in the photos by performing manual filament swaps at specific heights.

It is an ideal tool for:

• STEM Classrooms: A durable, hands-on alternative to fragile plastic medical models.
• Optometry Offices: Use it to explain retinal health or cataracts to patients.
• Tactile Learning: The raised vessel structures provide a sensory experience for low-vision or blind students to understand eye anatomy through touch.

Remix Potential & Creative Applications

This model is a fantastic base for further CAD exploration! Use the following keywords for your own remixes:

• #MedicalArt: Scale it up and add a LED backlight behind the "Retina" to create a unique anatomical wall lamp.
• #CosplayProp: Scale it down, hollow out the back, and use it as a "Cybernetic Eye" component for sci-fi armor.
• #ScienceFair: Print the "Vitreous Body" in a transparent PETG and the vessels in red for a stunning "stained glass" effect.

Printing & Post-Processing

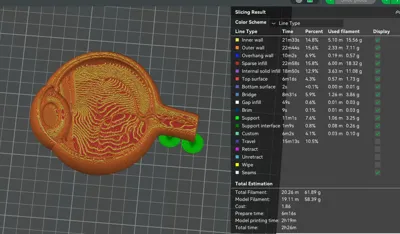

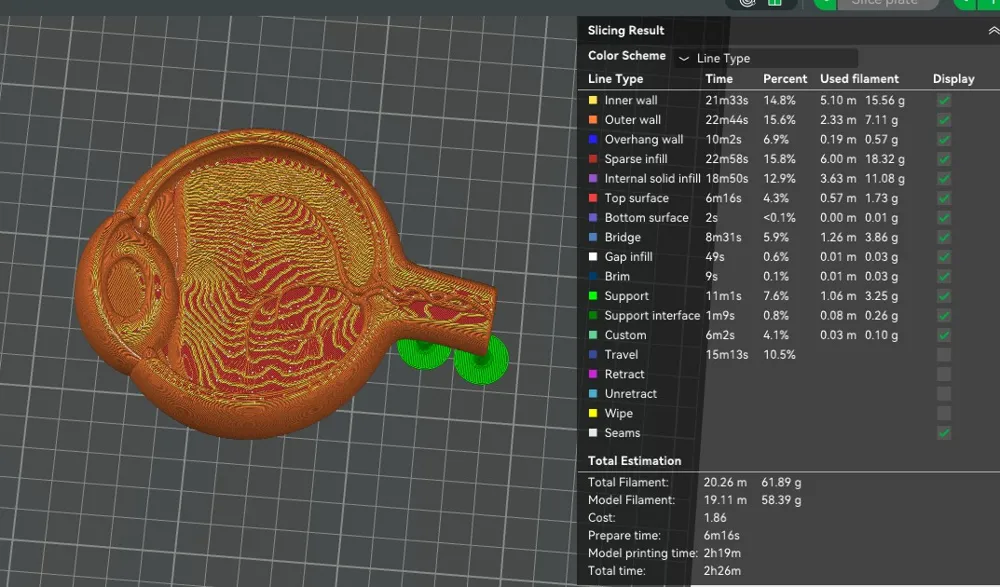

This is a Color Print. To get the best results and ensure your anatomy looks as sharp as the photos provided, please refer to the following resource:

• How to remesh and color prints effectively in Bambu Studio: https://youtu.be/8JV66MnJp-4
