Scalable TPU Conveyor

🏗️ Scalable Conveyor – Modular Belt System

Bring motion to your next project with this Scalable Conveyor, a fully 3D-printable and customizable conveyor belt system designed for makers, robotics enthusiasts, and DIY automation projects.

⚙️ Key Features

• Scalable Design: Easily adjust the conveyor length to fit your needs.

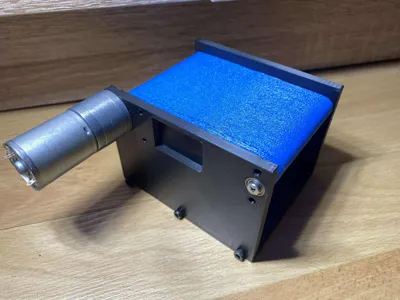

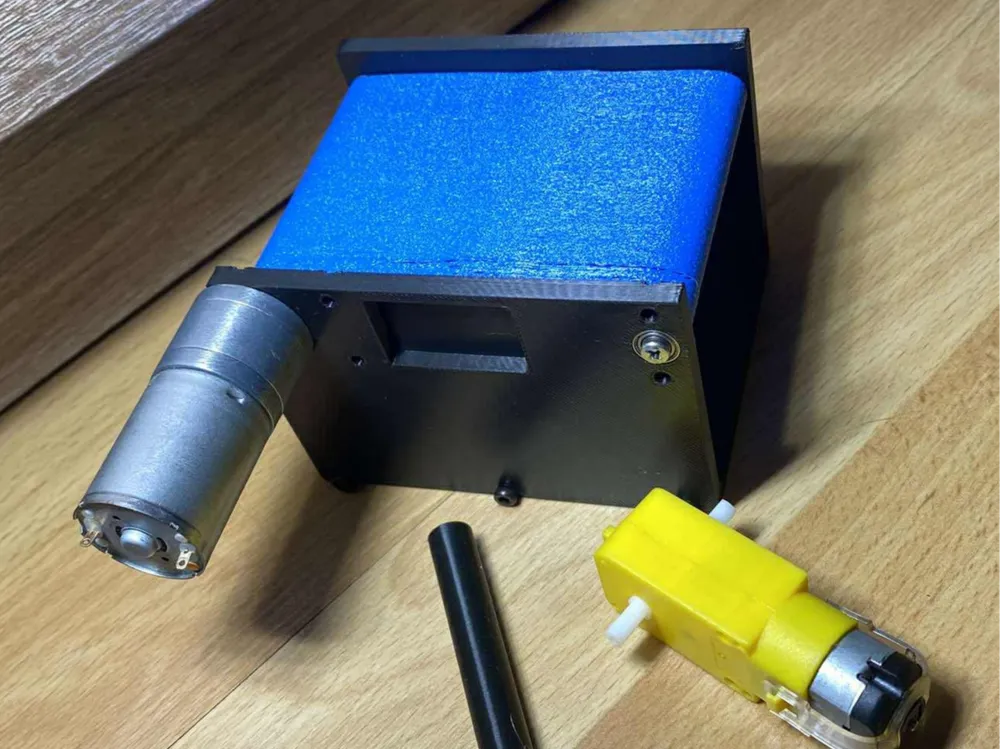

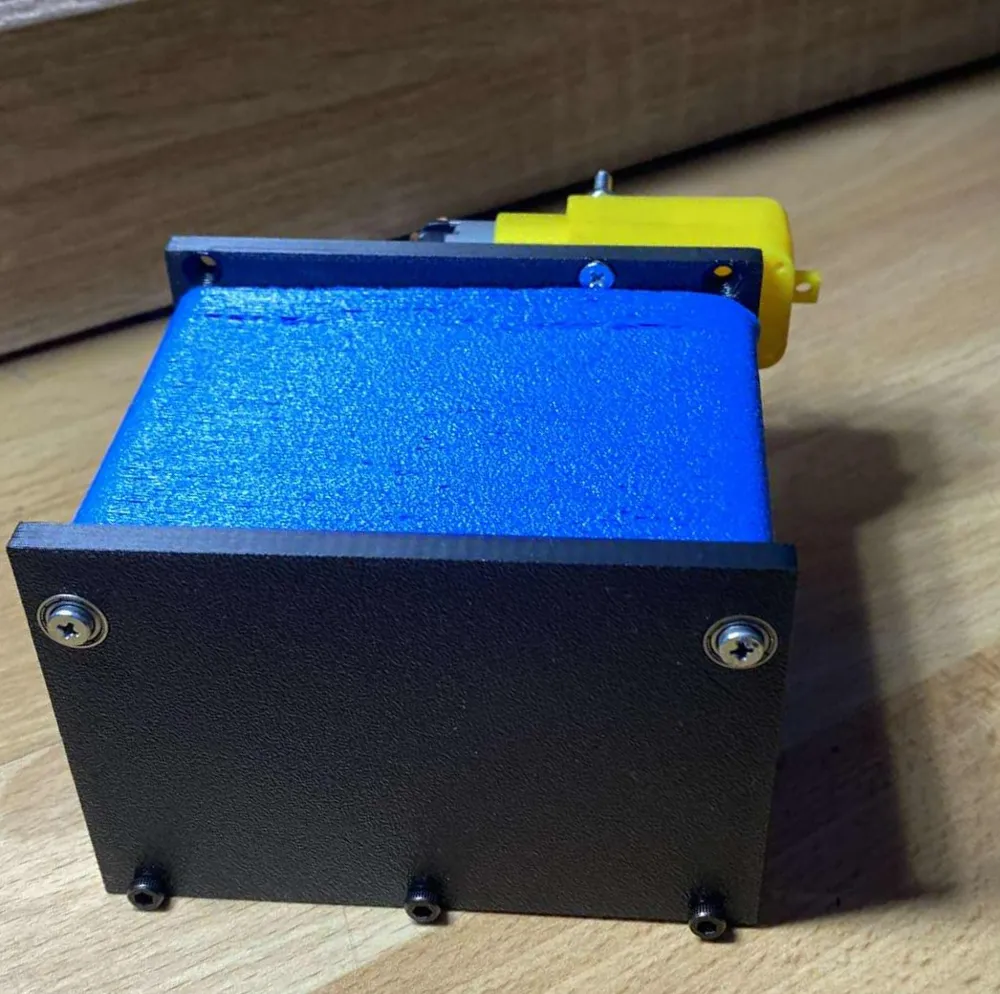

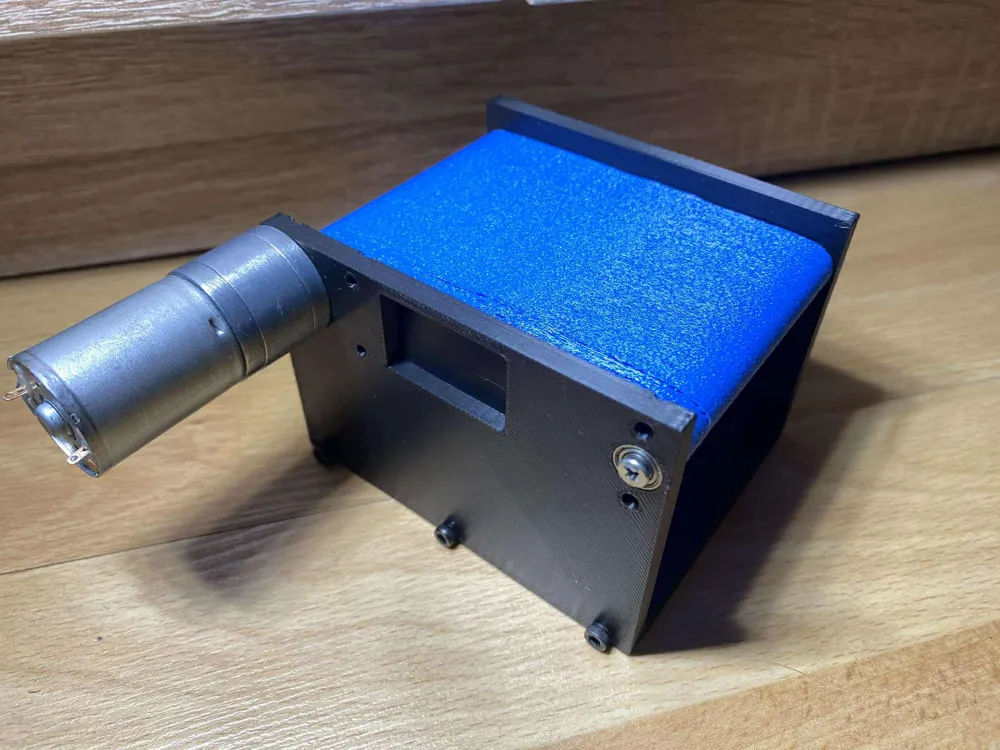

• Dual Motor Compatibility: Works with either a TT motor or a JGA25-370 gear motor — just print the corresponding roller for your setup.
• Flexible TPU Belt: Provides smooth, reliable movement and traction.
• Compact & Modular: Ideal for prototyping, sorting mechanisms, or small automation builds.

🧰 Bill of Materials (BOM)

• 6× M3×10mm screws – Mount walls to the base
• 3× M3×10mm screws – Attach rollers to bearings
• 3× 603ZZ bearings – Support smooth roller operation
• For motor mounting:
  • JGA25-370: 2× M3×6mm countersunk screws

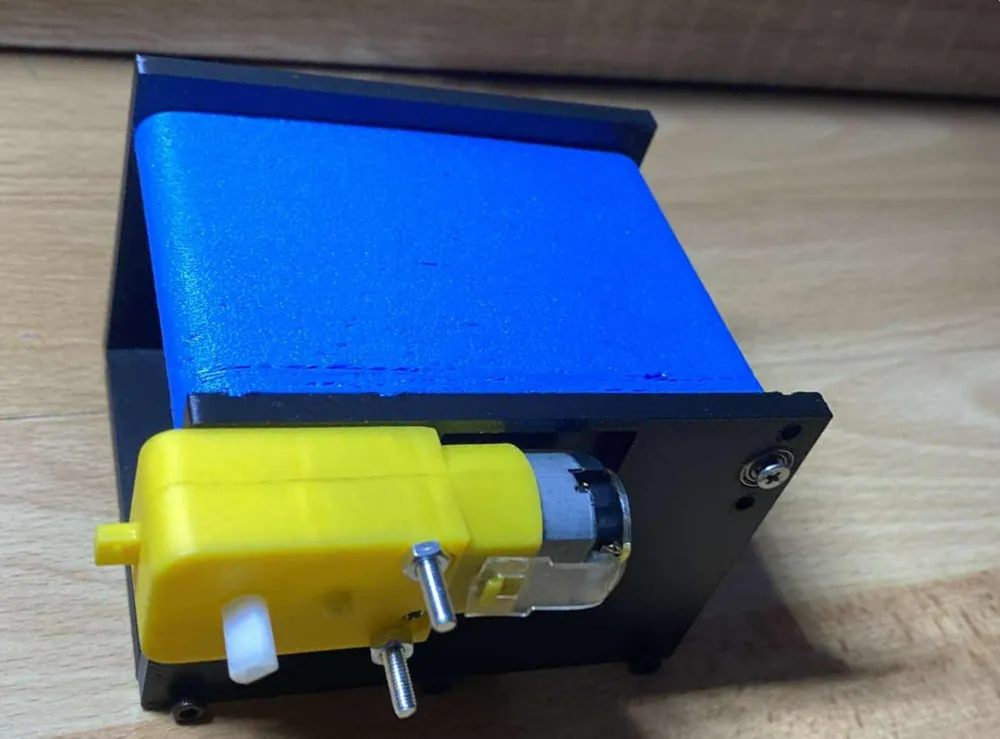

  • TT motor: 2× M3×25mm countersunk screws + 2× M3 nuts
• For belt mounting:
  • M6 countersunk screws (or another preferred method) to secure the conveyor belt to your setup or frame

🖨️ Print Instructions

• Main Parts: Print in PLA for strength and rigidity
• Belt: Print in TPU for flexibility and grip
• Rollers: Choose and print the roller version that matches your motor type (TT or JGA25-370)

🧩 Customization

The conveyor length and frame components can be easily scaled or duplicated to create longer or shorter conveyors, depending on your project requirements.

💡 Use Cases

Perfect for:

• Mini factory or assembly line projects
• Robotics or automation demonstrations
• Educational or STEM applications

Ready to move things forward?
Print your own Scalable Conveyor and make your projects truly dynamic!
