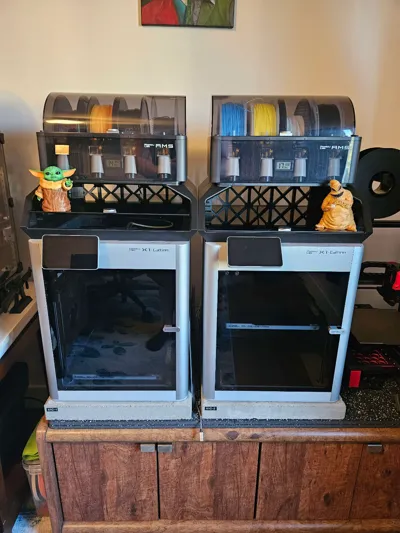

V2 Vented Remix - Updated Bambu Lab Ultimate P1P P1S X1-C X1-E Riser+AMS Stand - Community Build!

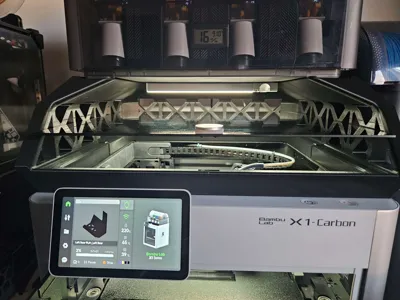

AMS Riser with ledges half way up the riser so the glass will slide in on top of for easy ventilation when printing PLA. Add LED lighting or stick cheap under cabinet lights to the bottom of the AMS for a simple lighting solution.

Rises AMS off machine
Allows visibility through top glass while printing
Allows access through top glass for servicing without disconnecting/removing entire AMS

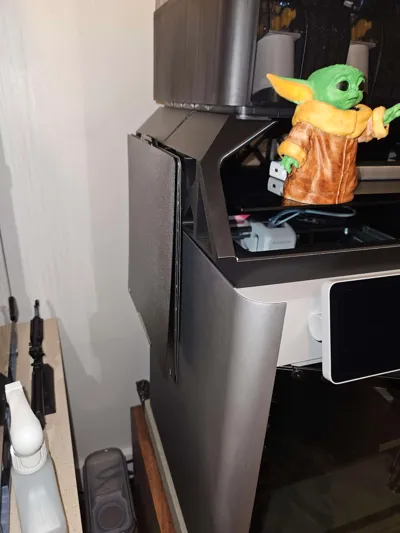

Shelf allows top glass ventilation to prevent heat creep and clogging during PLA prints
Minimizes sharpness of PTFE bend radius's helping mitigate “failure to retract” errors
Stops the PTFE tube from rubbing on the top glass
Easy to add accessories such as lighting and hooks to hang your build plates

03/26/2024: Due to being asked multiple times I have added a plate of just the connectors to the .3mf file. These are separated to reduce the risk of the smaller parts dislodging and ruining the larger prints. Feel free to add them to a plate(s) with the risers as they will fit if you wish.

Additional accessories found under raw models. For all accessories and more details, see: https://www.printables.com/model/557492-v2-vented-remix-updated-bambu-lab-ultimate-p1p-p1s
