DIY Embroidery Hooping Station
IP Report
Print Profile(1)
DIY Embroidery Hooping Station 3mf
29.9 h
12 plates
Open in Bambu Studio
Boost
156
439
15
4
112
33
Released
Description
Print parts:
Leg Inserts x 4
Leg Base x 2
Leg Extender x 2
Leg Top Extender x 2
Top Right x 1
Top Left x 1
Middle Left x 1
Middle Right x 1
Left Bottom x 1
Right Bottom x 1
Back Connector x 7
Insrtuctions :

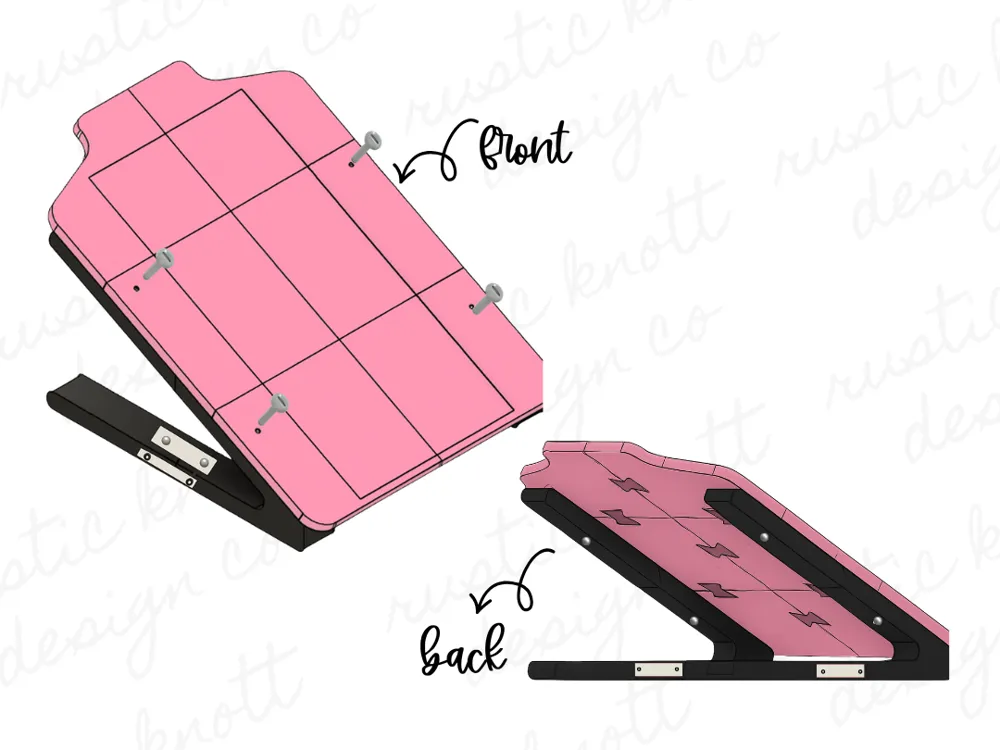

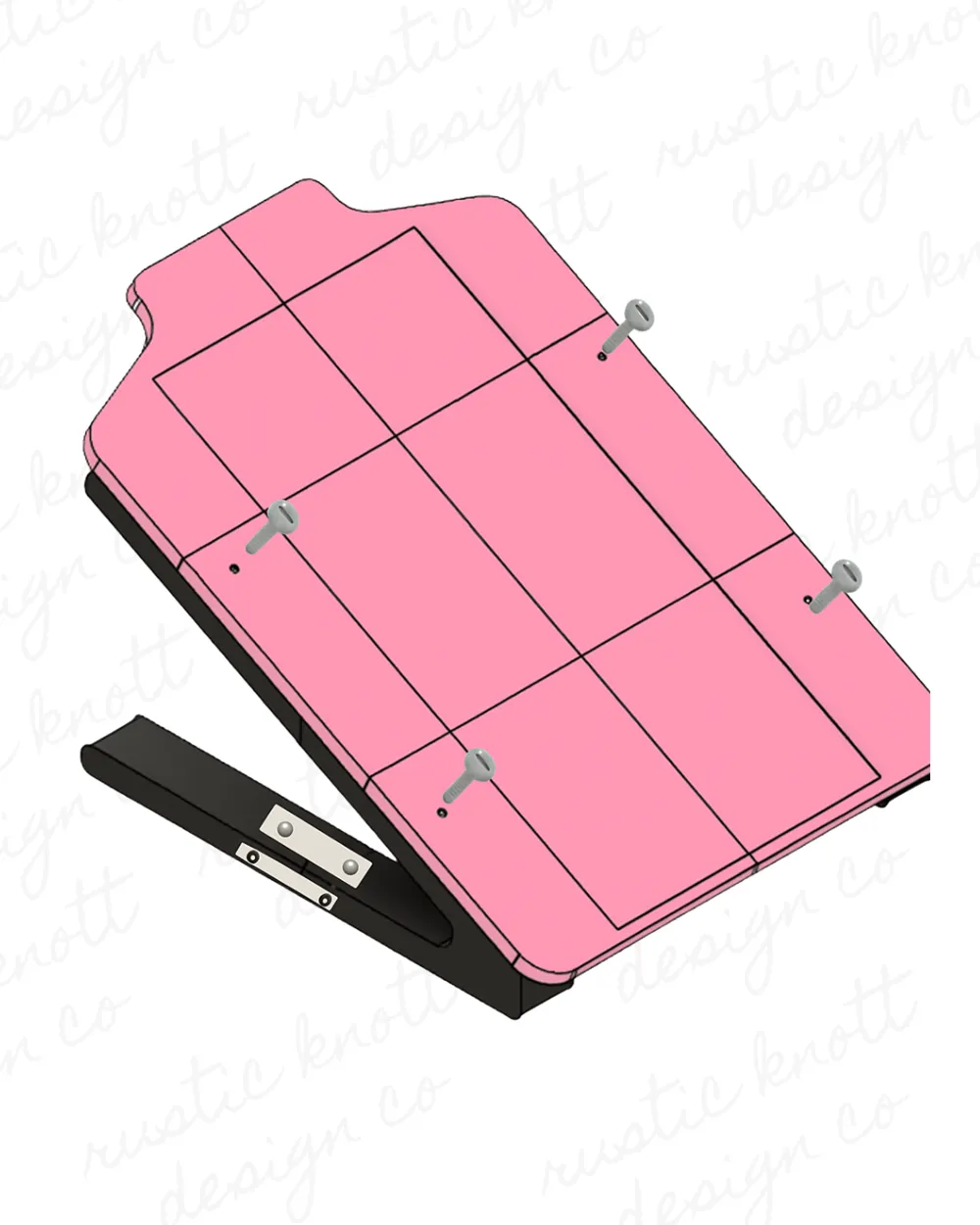

- Lay the pieces out & use glue the plate / connectors

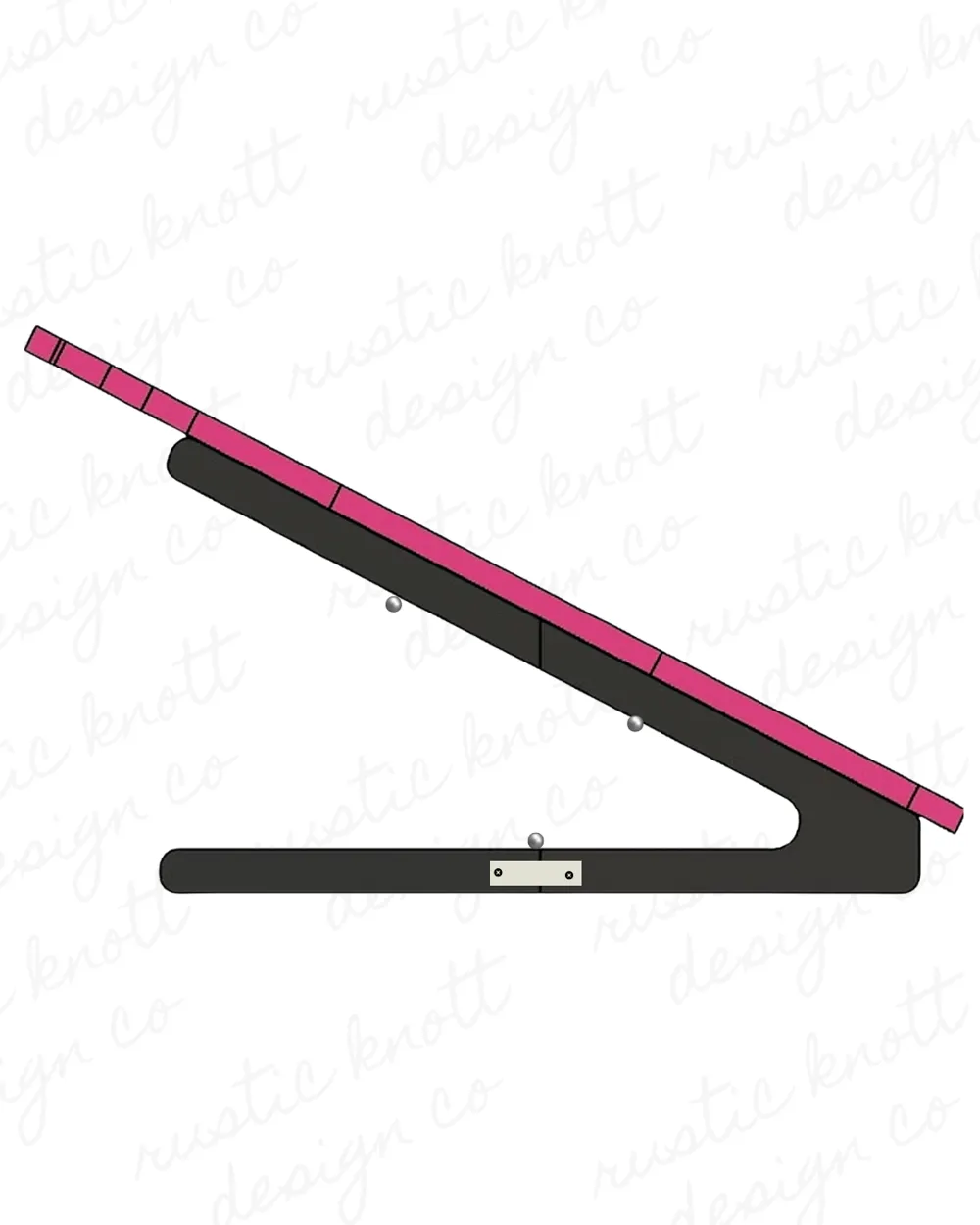

- attach the legs

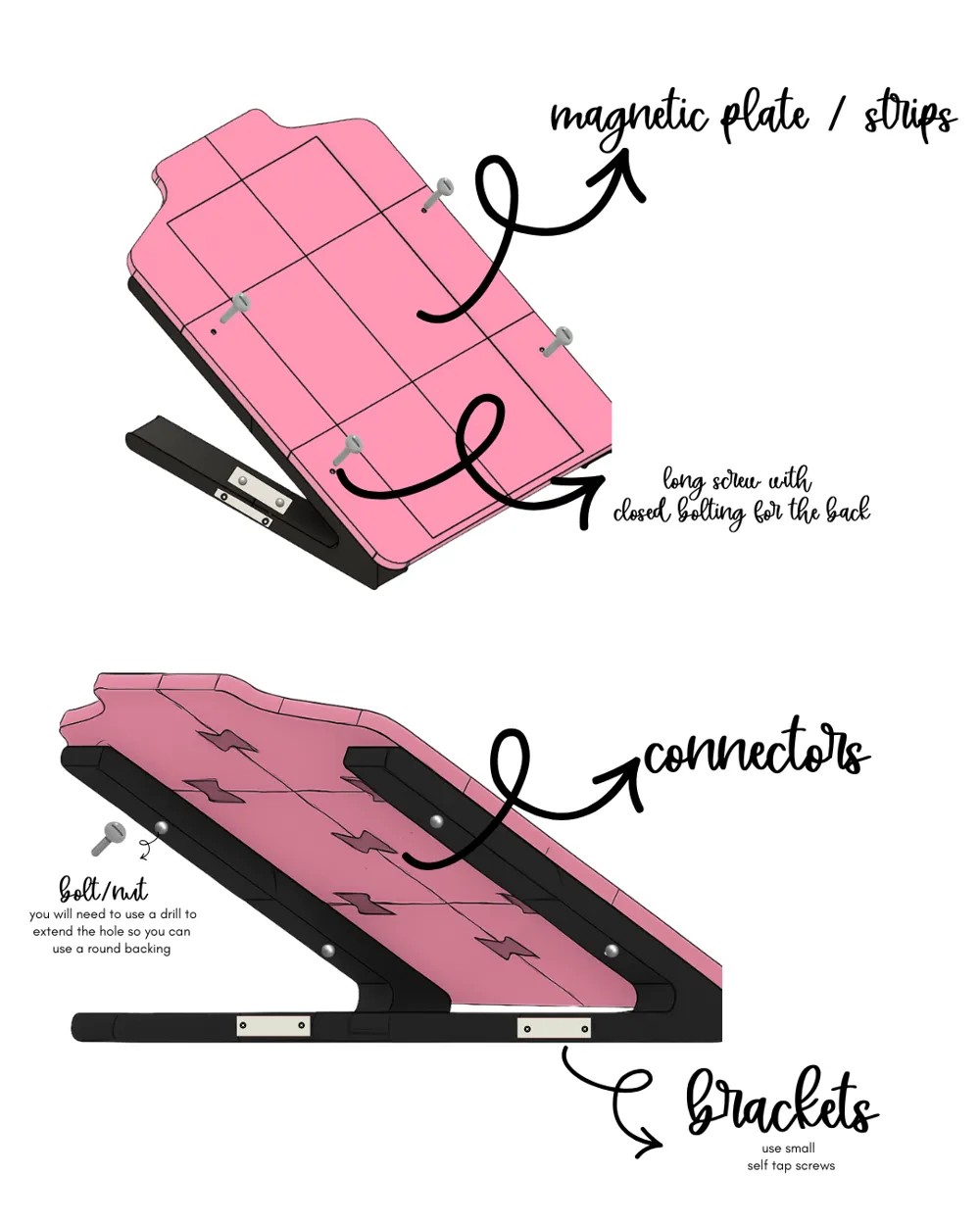

- if you can find the scews that set into the holes use them they should be a M4 screw - unfourtanley i couldnt find them in my area so i took a small drill bit and ran the bolt all the way through and secured with a smooth bolt

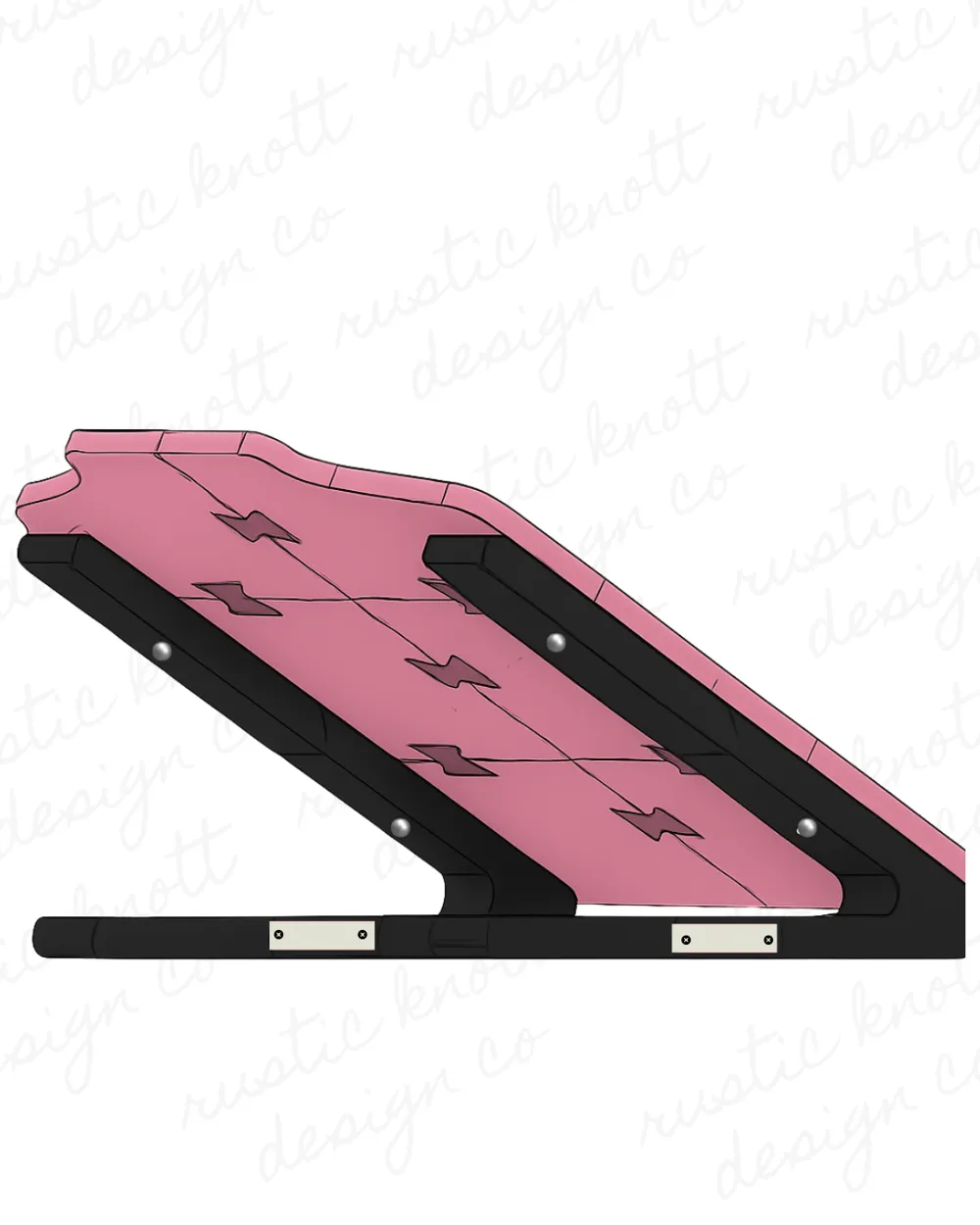

- I added Brackets with self tap screws on the sides of the legs where it connects for more stability

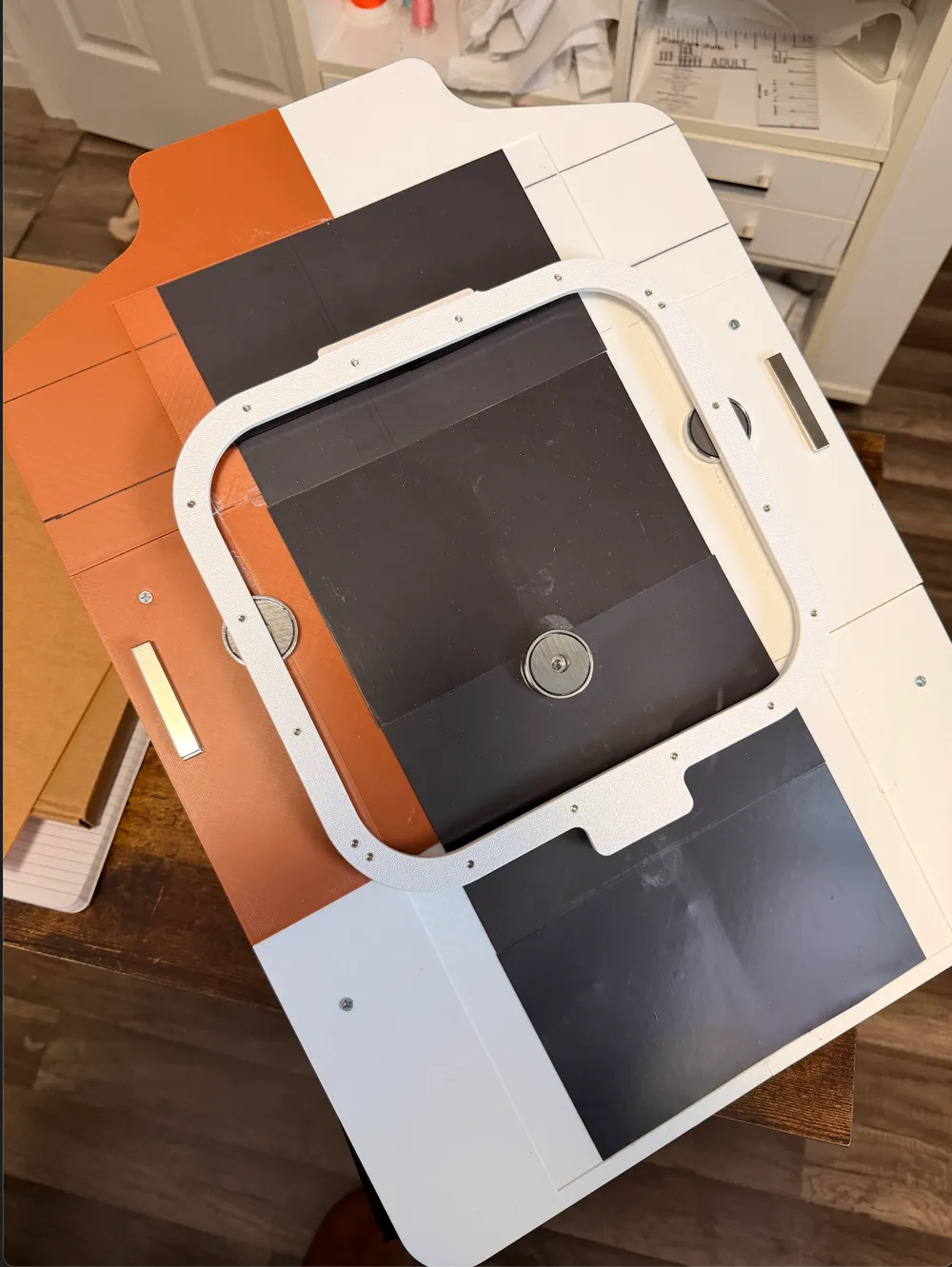

- i use strip magnets with self adhesive so i can adjust if needed - amazon has some steel plating you can het to insert into the offset
