ESP01s Relay Case
Print Profile(1)
Description

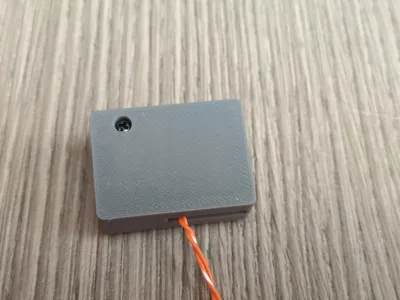

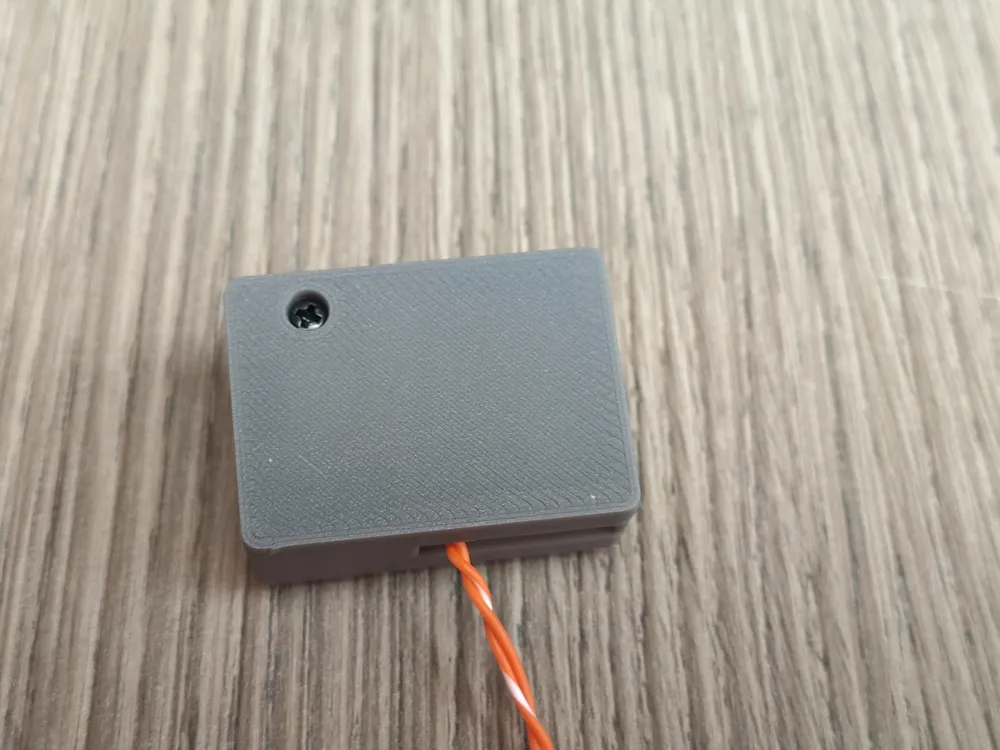

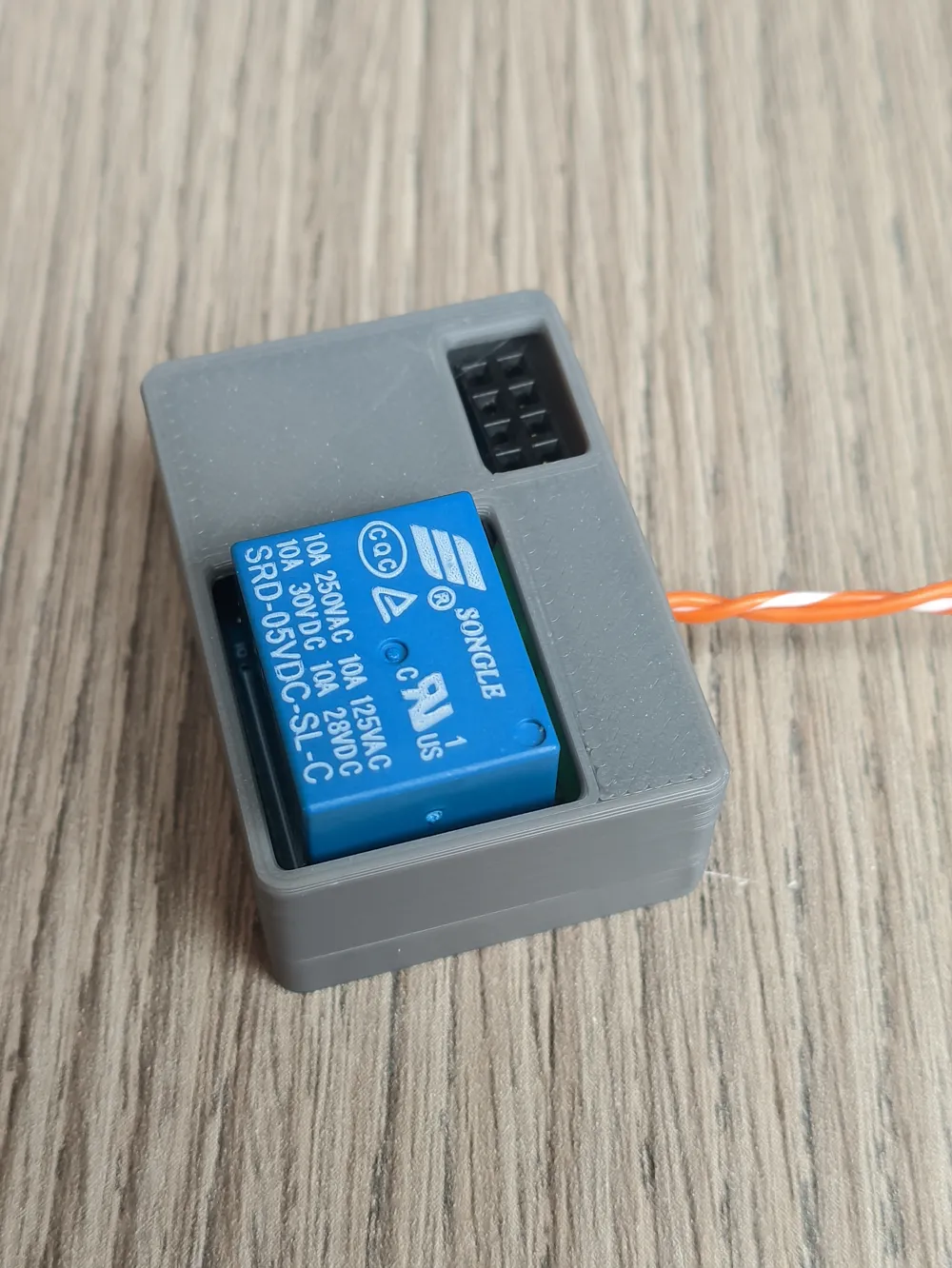

Compact case for relay module with ESP-01S, designed to ensure a solid mounting and a clean look.

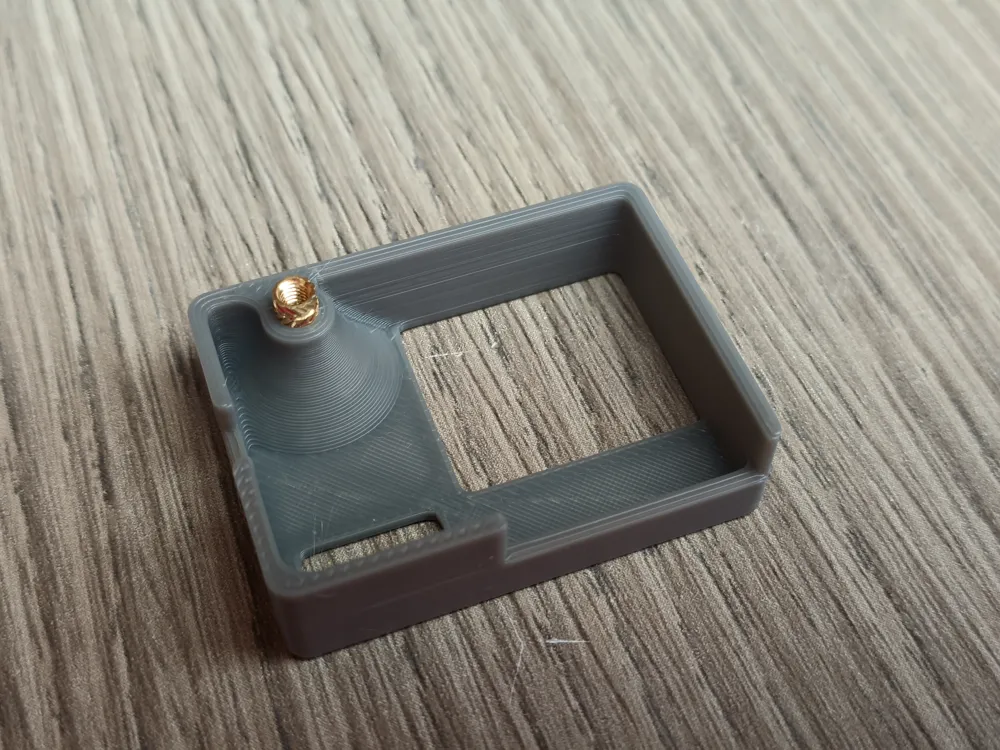

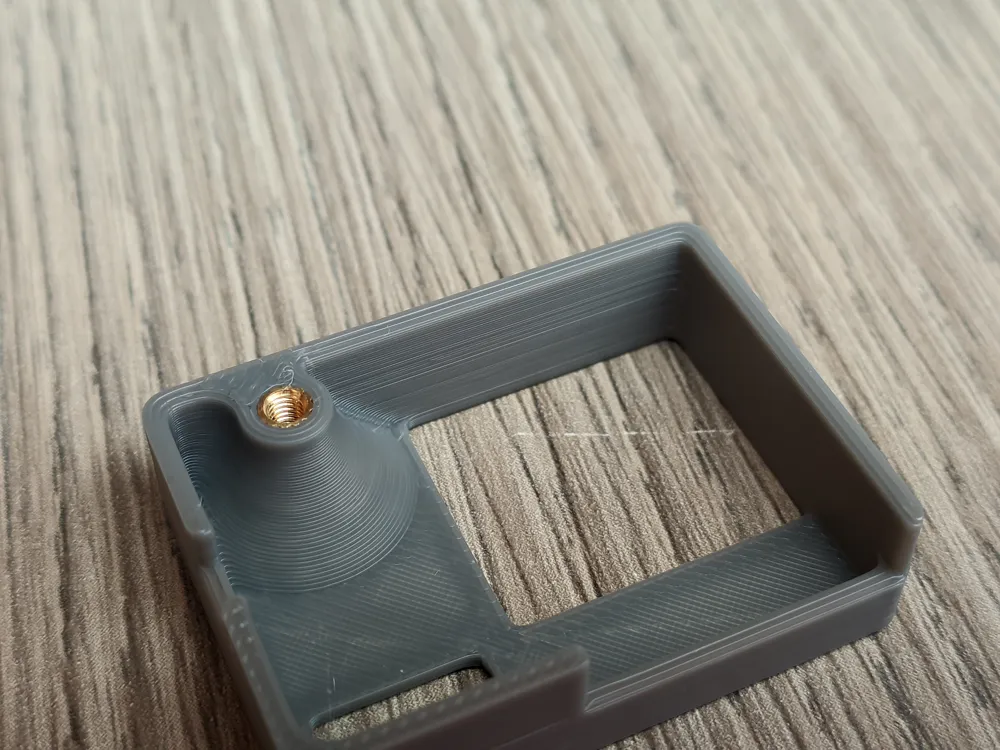

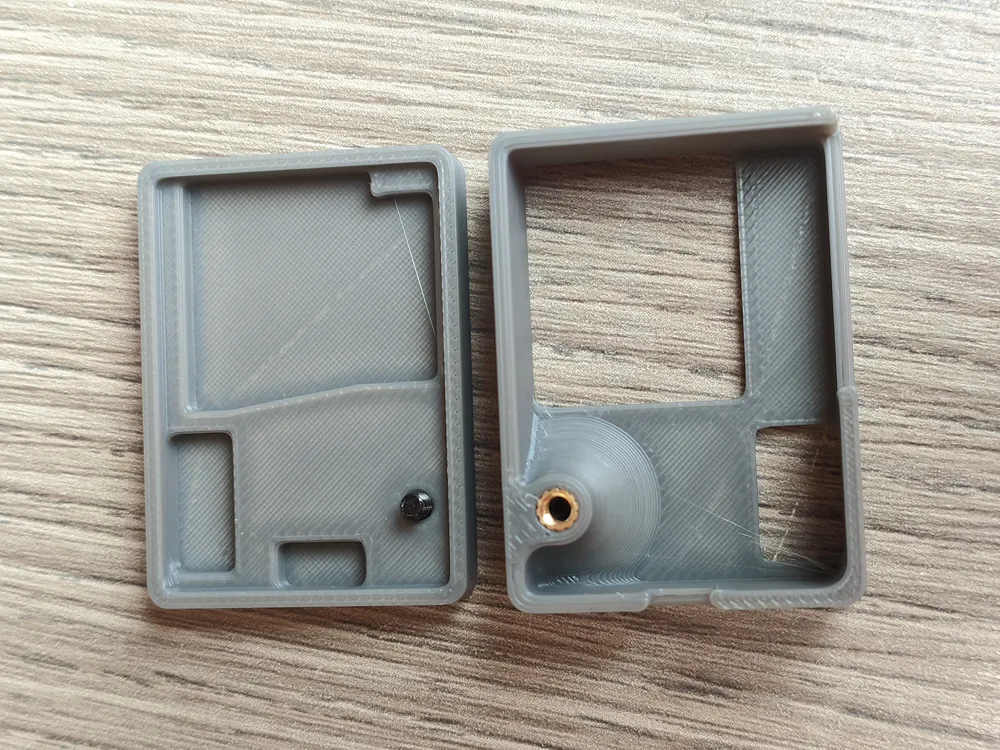

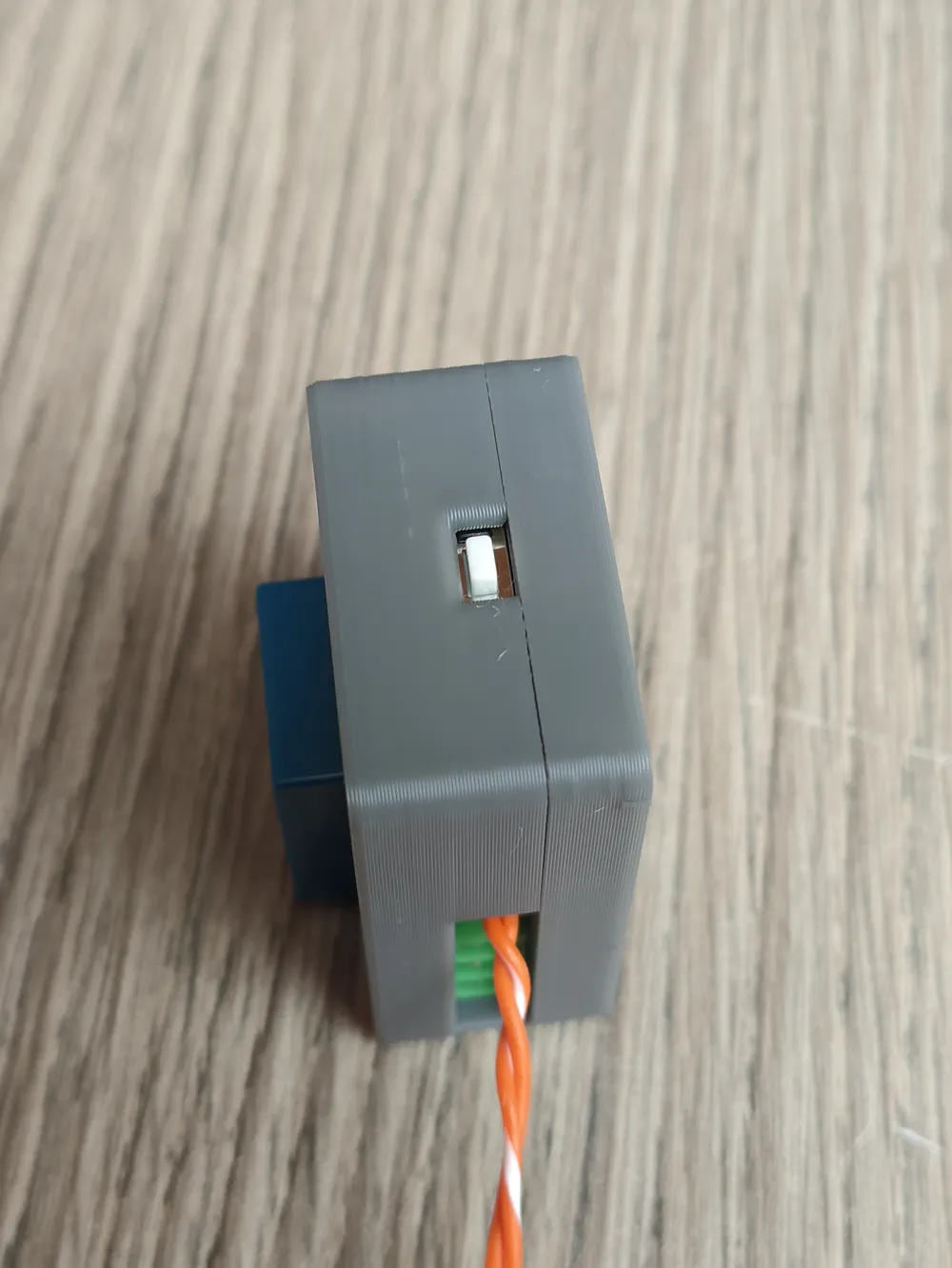

The design consists of two main parts — base and lid — fastened together using an M2.5 screw with a threaded insert (brass insert).
This system allows both the PCB and the entire case to be held firmly, preventing play or vibrations.

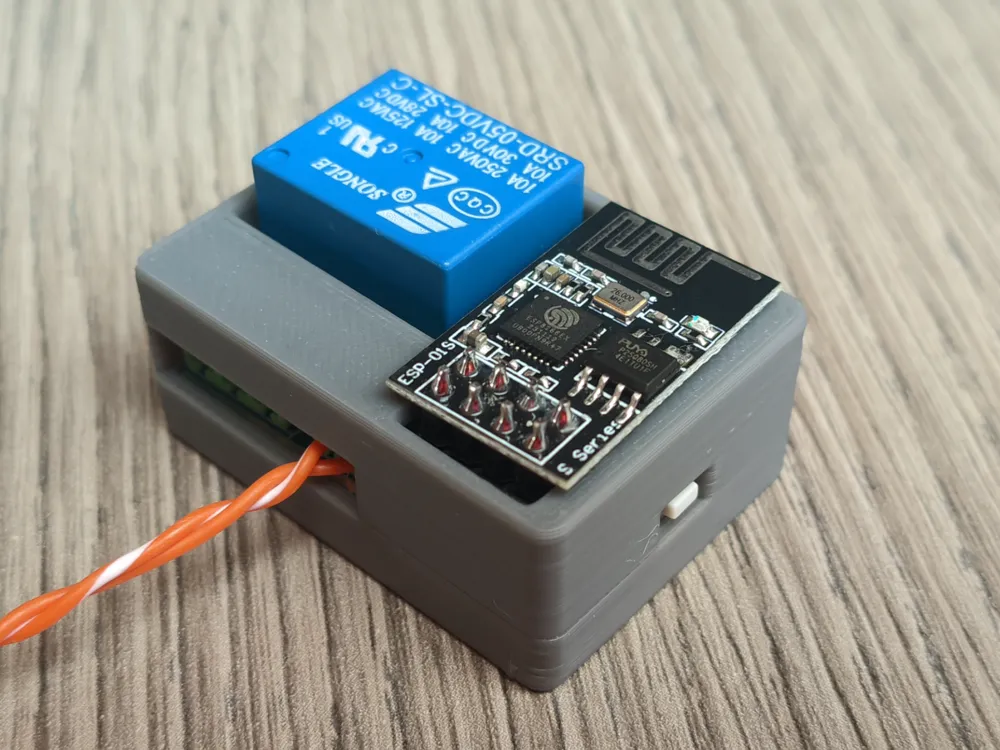

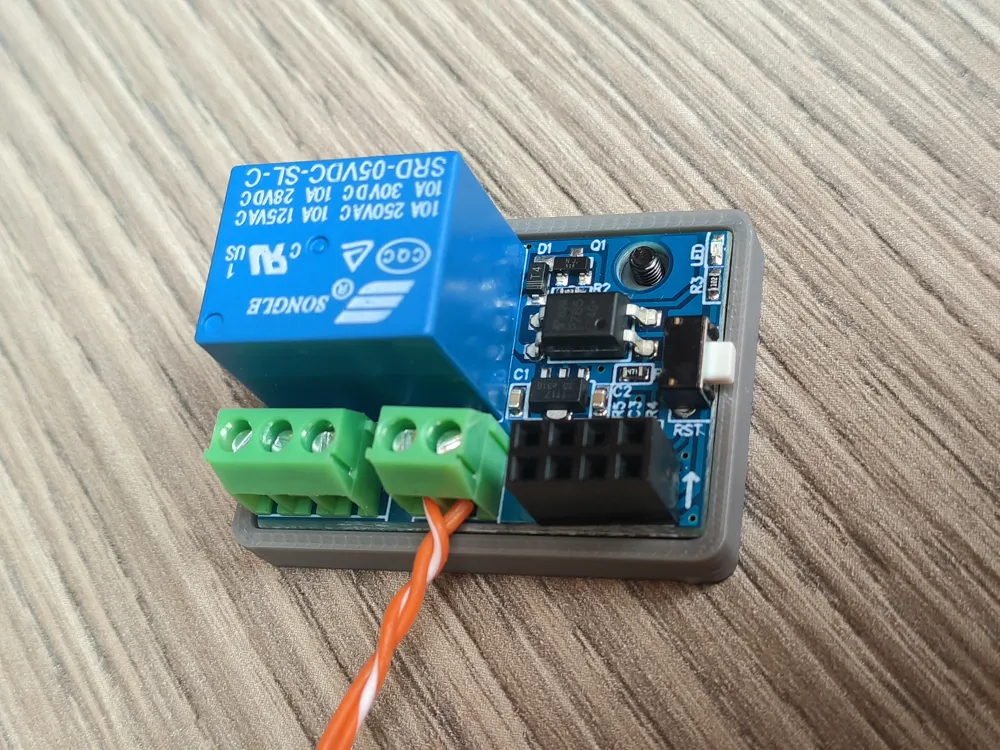

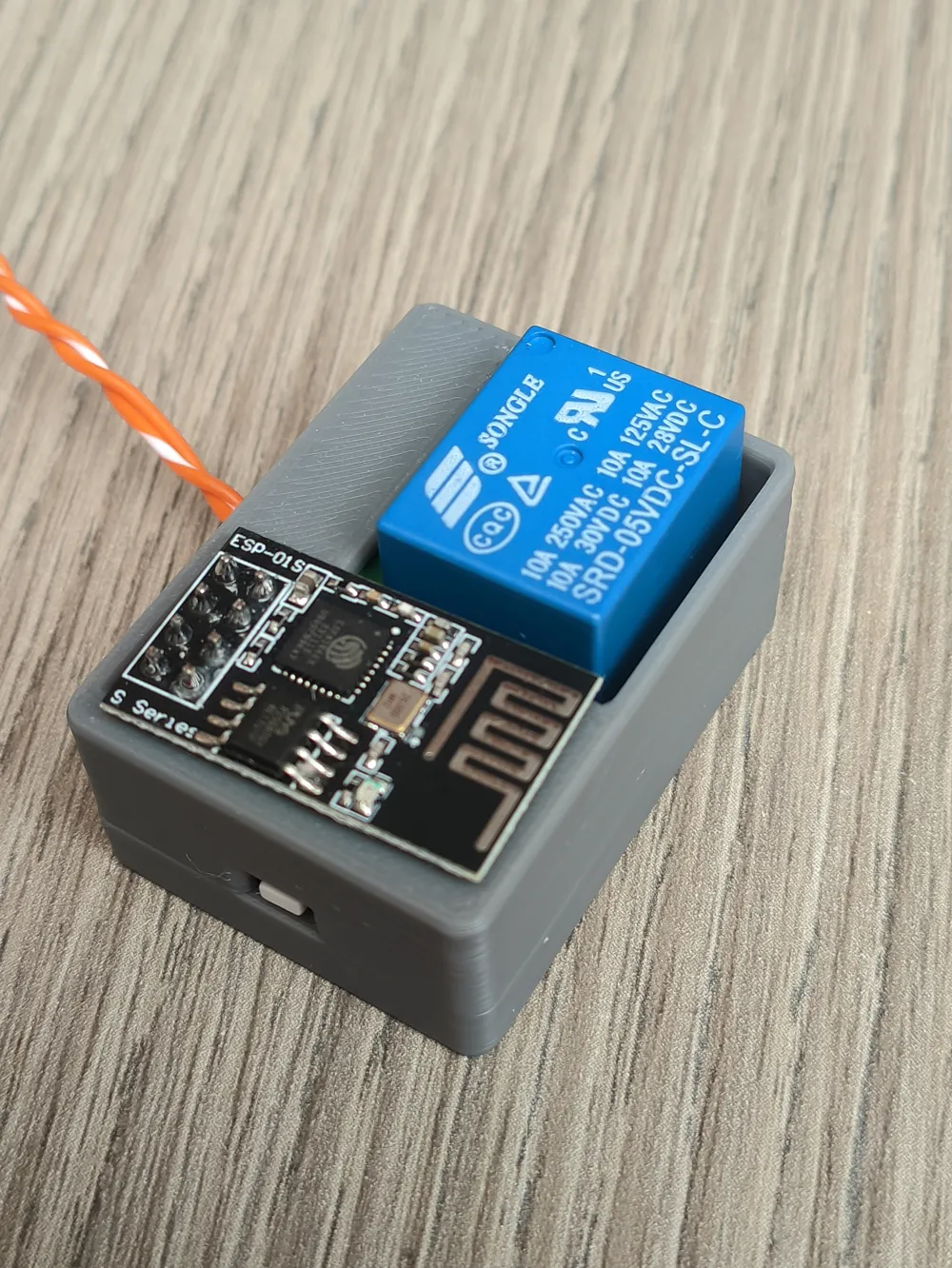

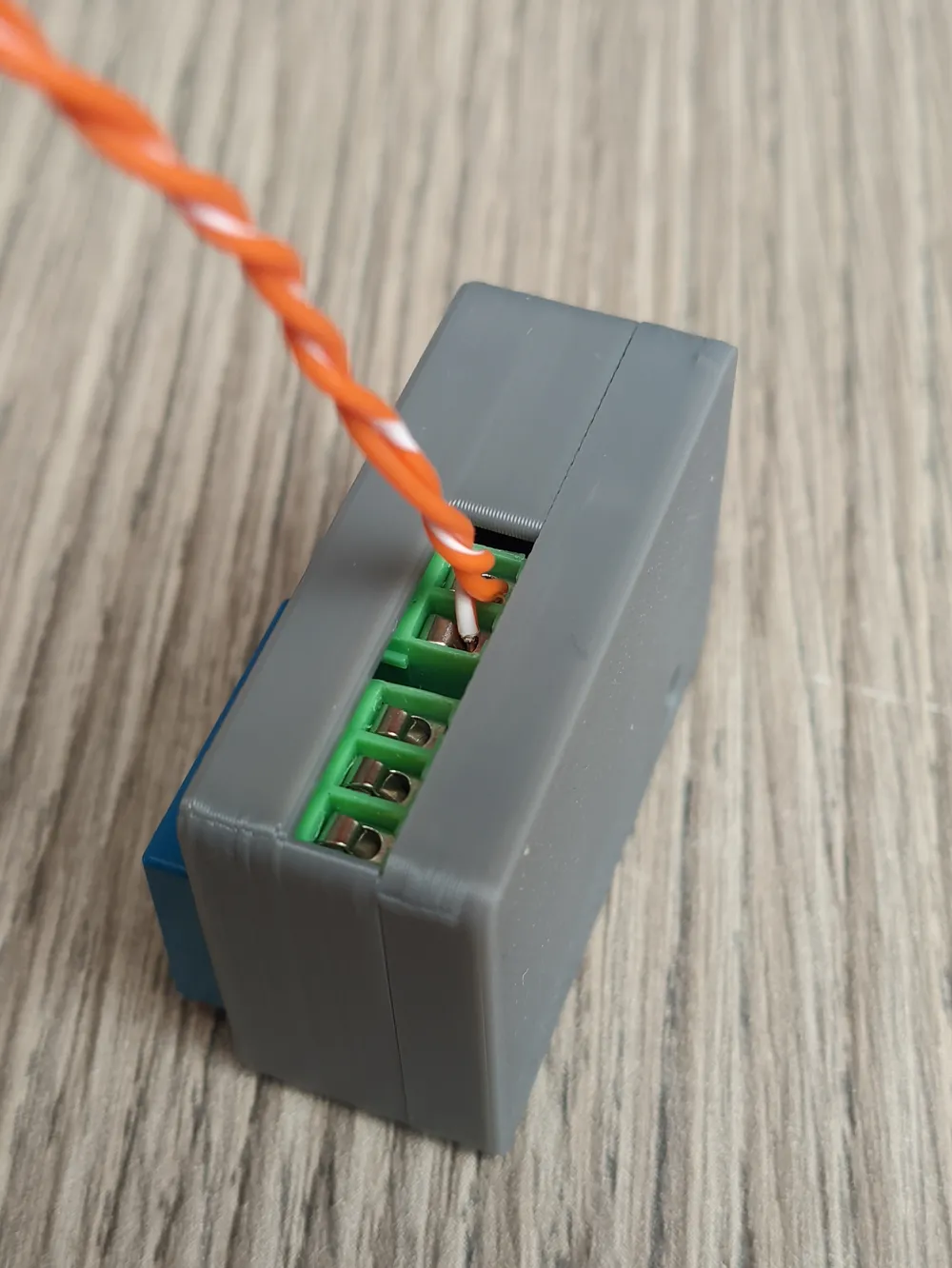

The interior is optimized to accommodate the standard relay module for ESP-01S, leaving enough space for the connector and ensuring good ventilation.
The project is designed for use in home automation systems or prototyping with ESPHome / Home Assistant, but can also be adapted to other compatible relay modules.
